Summary of Contents for Shure ULX Wireless System

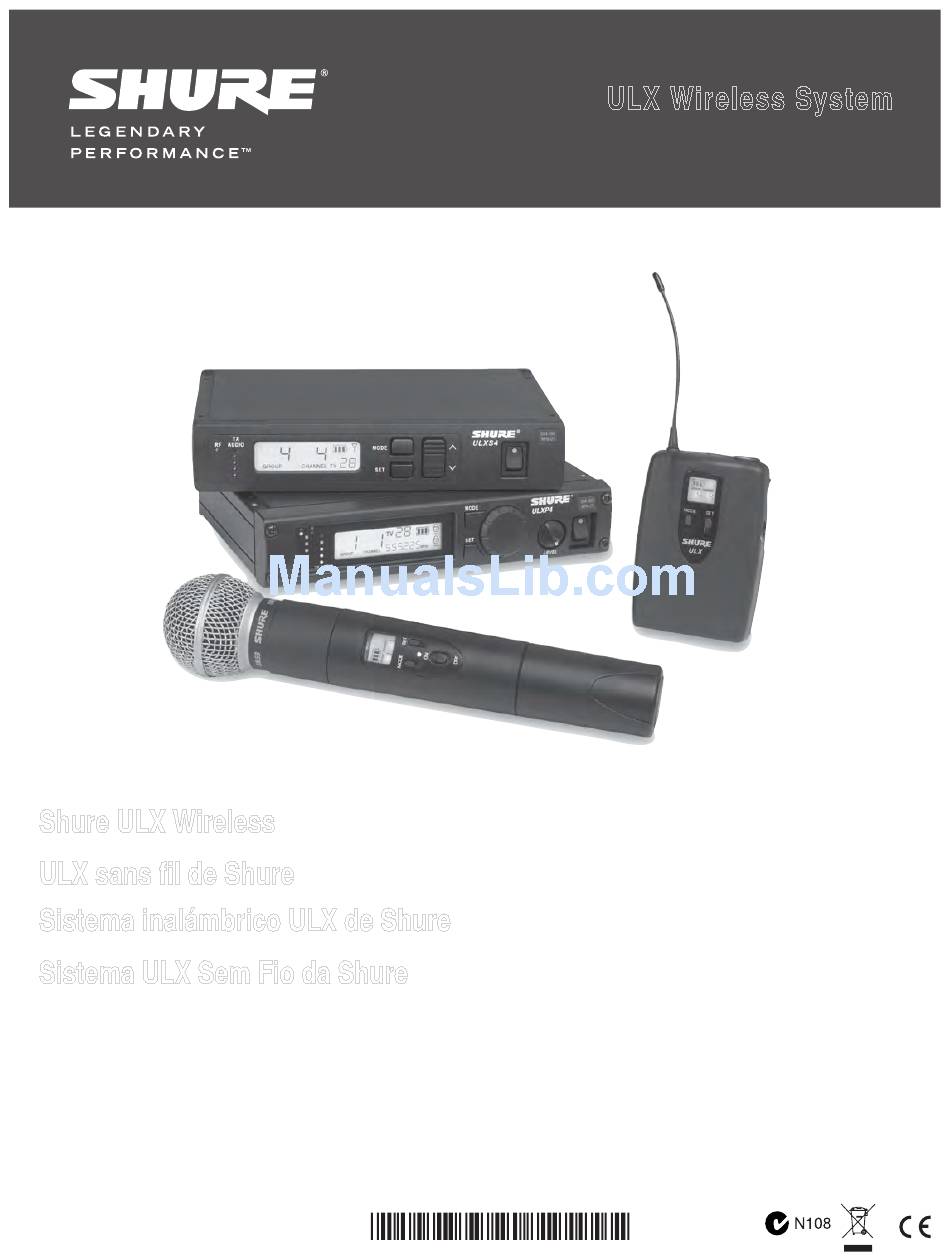

- Page 1 ULX Wireless System Shure ULX Wireless ULX sans fil de Shure Sistema inalámbrico ULX de Shure Sistema ULX Sem Fio da Shure ©2011 Shure Incorporated 27A15788 (Rev. 1)
-
Page 2: Ulx System Components
The antenna connectors on the ULX receiver provide 12 Vdc for active circuit antennas. Caution: Use only Shure antenna accessories to ensure the best operation. Do not use split- ters, combiners, or antennas that provide a DC ground, as this can cause the receiver to func-... -
Page 3: Rack Installation
Antenna Combiners and Accessories The supplied antennas can be connected directly to the BNC-type ANTENNA connectors. However, optional antenna mounting accessories from Shure can improve reception and reduce rack clutter. Use the following guidelines: • Antennas and receivers must be from the same band. -
Page 4: Battery Life
NOTE: Remaining battery life varies with battery type. Battery Life Battery Indicator Use only 9V alkaline or lithium batteries. Typical life for common types of 9V batteries are listed below. For detailed information on battery perfor- mance, contact Shure Applications Engineering. ULX1, ULX2 ULXP4, ULXS4 Hours Recommended: • Lithium (16 hours) -
Page 5: Single System
Tip: To reduce setup time, you can manually set up the group and chan- normal mode. nels before arriving at the venue. Visit www.shure.com for a list of groups and channels that are anticipated to be free of interference in a particular NOTE: The unit must remain in Master List mode to operate at the se- city or region. -
Page 6: Audio Output
Wireless Indicators RF Indicator Frequency Display Indicates wireless activity over the selected ULXP4 ULXS4 ULXP4 channel. Note: When the antenna and battery indica- tors are illuminated, the RF indicator shows signal strength from the transmitter. Otherwise, it is showing interference from another source. Select a different channel. -
Page 7: Transmitter Gain
Transmitter Gain Locking the Receiver (ULXP4 Only) For best audio quality, adjust transmitter gain so only the green and yel- This feature prevents accidental setting changes. low TX AUDIO LEDs flicker. (Occasional illumination of the red LED is okay.) ULXP4 Green=nominal Yellow=peak Red=overload... -
Page 8: Troubleshooting
Troubleshooting Tips for Improving System Performance No power: Check battery and power supply connections and voltage. Check the power switch on the transmitter. If you encounter wireless interference or drop outs, try the following: The LCD displays “E0 00” or similar code: Exit master list mode by holding the SET button for ten seconds. -
Page 9: Specifications
SPECIFICATIONS ULX2 Gain Adjustment Range 20 dB RF Carrier Range 470,000–865,000 MHz Dimensions SM58: 229 x 51 mm (9 x 2 in.), varies by region L x Dia. Working Range 100 m (300 ft) typical BETA 58: 221 x 51 mm (8.7 x 2 in.), L x Dia. - Page 10 Cet appareil numérique de la classe B est conforme à la norme NMB-003 tion, and on the selected frequency. Shure strongly urges the user to du Canada. contact the appropriate telecommunications authority concerning proper Meets requirements of EMC standards EN 300 422 Parts 1 and 2 and EN licensing, and before choosing and ordering frequencies.
-
Page 11: Accessories And Parts
Accessories and Parts Replacement Parts AC Adapter (120 VAC, 60 Hz) PS41 Furnished Accessories AC Adapter (220 VAC, 50 Hz) PS41AR AC Adapter (230 VAC, 50/60 Hz) PS41AZ Microphone Stand Adapter (ULX2) WA371 AC Adapter (230 VAC, 50/60 Hz, Europlug) PS41E Grip/Switch Cover (ULX2) WA555... - Page 12 ULX FREQUENCIES FOR EUROPEAN COUNTRIES ULX-G3E 470 - 506 MHz, max. 30 mW ULX R4 784–820 MHz max. 30 mW Country Code Frequency Range Country Code: Frequency Range Code de Pays Gamme de frequences Code de Pays: Gamme de frequences Codice di paese Gamme di frequenza Codice di paese:...
- Page 13 ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND G3E (470–506 MHz) Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 France France France France Full Range Full Range Full Range Channel preferred: preferred: preferred: preferred: max. # of compatible max.
- Page 14 ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND K2E (606-642 MHz) Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Full Range Full Range Full Range Full Range Full Range Full Range U.K.
- Page 16 United States, Canada, Latin Asia, Pacific: Europe, Middle East, Africa: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
