Summary of Contents for DeLonghi 9K

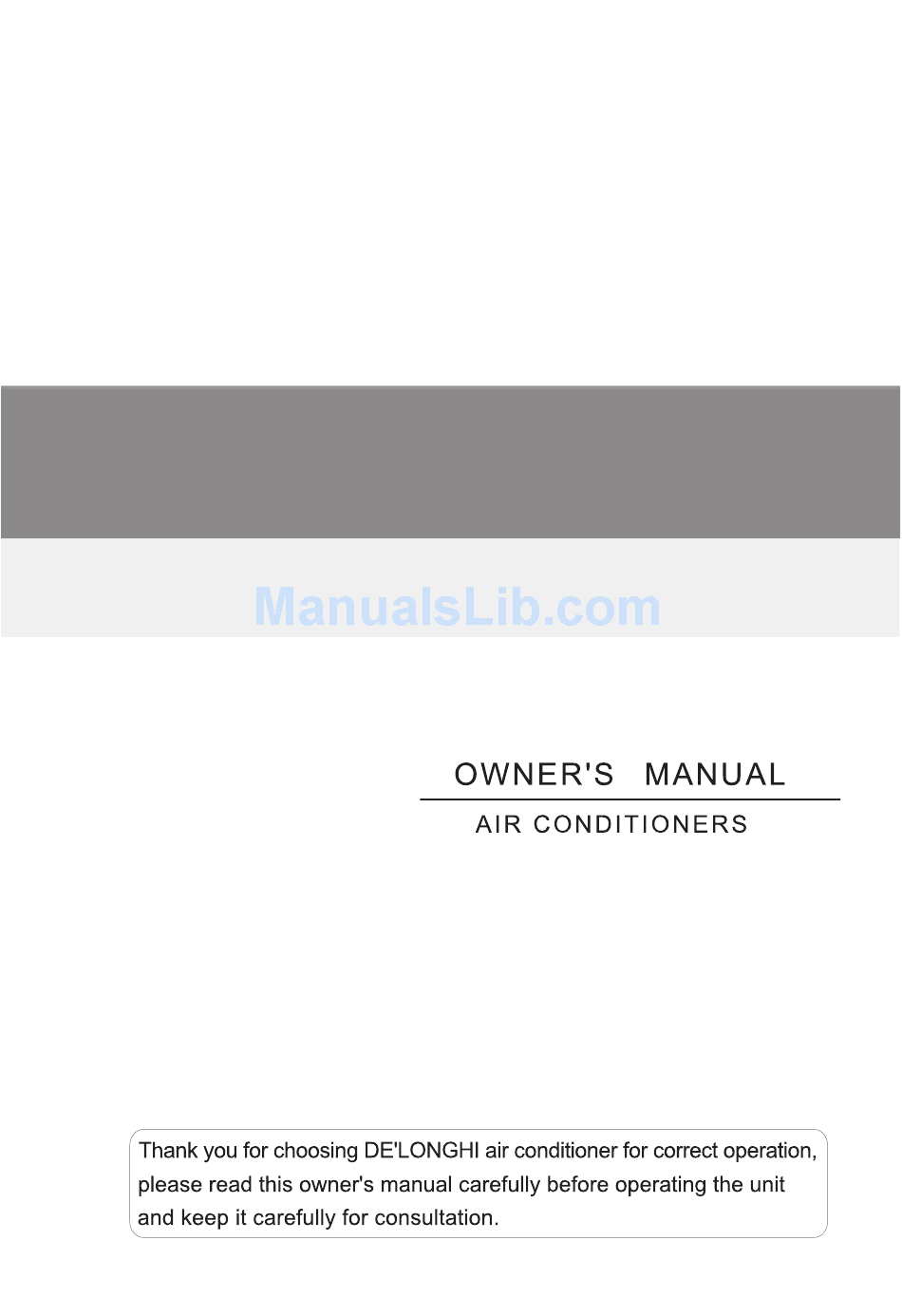

- Page 1 Split Air Conditioner...
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance Notices for operation Notices for use Names and functions of each part Operation of wireless remote control Emergency operation Clean and care Troubleshooting Installation service Notices for installation Installation dimension diagram ... Install indoor unit Install outdoor unit Check after installation and test operation Installation and Maintenance of Healthy Filter ....24 ¡ö... -
Page 3: Notices For Operation
Notices for operation Please read the following carefully before operating Be sure to pull out ★ When the voltage ★ Never splice the is very high, the the power plug as power cord or use components would be easily the air conditioner not in use an extended cord. - Page 4 Notices for operation ★ ★ Please don't cut off or damage the To adjust the airflow direction power cords and control cords. appropriately. When operating If they are damaged, please ask the qualified the unit, to adjust the vertical and lateral air flow direction by use of remote controller.
-
Page 5: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function If the unit is running in COOL mode and in low termperature, there will be frost formed on ¡... -
Page 7: Operation Of Wireless Remote Control
Operation of wireless remote control Name and function of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 9: I Feel Button
Operation of wireless remote control Name and function of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 10 Operation of wireless remote control Guide for operation- general operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly.
- Page 11 Operation of wireless remote control ¡ï About lock Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times.
-
Page 12: Emergency Operation
Emergency Operation Emergency Operation When the wireless remote control is lost or damaged, please use the manual switch, at this time, it is running in Auto Run mode that will not change the temperature setting value and fan speed. The manual switch can be operated as follow: At operation: When the unit stopped running, ●... -
Page 13: Clean And Care
Clean and care CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Or it may ● ● cause electric shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it ●... - Page 14 Clean and care ① Take down the air filter At the slot of surface panel to open an angle, pull the air filter downward and take it out. Cleaning ② To clean the dust adhering to the filters, you can either use a vacuum cleaner, or wash them with warm water (the water with the neutral detergent should below 45 ℃).
-
Page 15: Troubleshooting
Troubleshooting Warning Do not repair the air conditioner at your discretion. Incorrect repair may cause electric shock or fire, so please contact Authorized Service Center for professional repair. Following checks prior to contact may save your time and costs. Troubleshooting Phenomenon Air conditioner does not run upon immediately To protect the air conditioner upon immediate... - Page 16 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run. Does power plug come loose from the socket? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Break off Is the Timer correctly used?
- Page 17 Troubleshooting Troubleshooting Phenomenon In HEAT mode, when the temperature of ● Indoor unit cannot deliver air. indoor heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 3min) In HEAT mode, when the outdoor temperature ●...
-
Page 18: Installation Service
Installation service- Notices for installation Important Notices 1. The unit installation work must be done by qualified personnel according to the local rules and this manual. 2. If the air conditioner has not plug, directly connect it into the fixed circuit, a breaker should be installed in the fixed circuit. -
Page 19: Notices For Installation
Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional. -
Page 20: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Installation dimension diagram Space to the ceiling Above 15cm Above 15cm Above Space to the wall Space to the wall cm cm Above Above Air outlet side Space to the floor Space to the obstruction Air inlet side 30cm Above... -
Page 21: Install Indoor Unit
Install indoor unit Install the rear panel 1.Always mount the rear panel horizontally. As the water drainage pipe at the left, when adjusting the rear panel, this side should not be too high; the right side should be slightly high. 2. -
Page 22: Install The Indoor Unit
Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts ●... -
Page 23: Install Outdoor Unit
Install outdoor unit Electric Wiring 1. Disassemble handle of right side plate or front side plate of outdoor unit. 2. Take off wire clamp, connect and fix power connect cord to terminal of line bank. Wiring should fit that of indoor unit. 3. - Page 24 Install outdoor unit Leak hunting ● Indoor unit check point Use soap water or leak hunting meter to check whether the joints is leak. Outdoor unit check point Fig.6 Outdoor condensation drainage (Heat pump type only) When the unit is heating, the condensing water and defrosting water can be drained out reliably through the drain hose.
-
Page 25: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction The unit may drop, shake or emit noise. Has it been fixed firmly? It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity. -
Page 26: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig. - Page 27 GENERAL INFORMATION TECHNICAL DATA MODELS General data Electricity supply 230~50 (*) 230~50 V~Hz Refrigerant gas R410 A (**) R410 A Fuse Minimum cable section Size and clearance 1020 1020 1178 2500 2500 2000 2000 Indoor unit net weight 17,5 Outdoor unit net weight Connecting pipes Liquid 6,0 - 1/4”...
