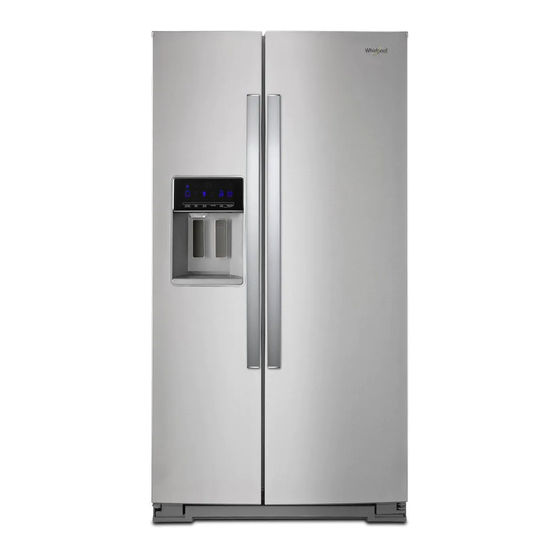

Whirlpool Refrigerator Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Whirlpool Manuals
  4. Refrigerator
  5. REFRIGERATOR
  6. Instructions for use manual

Whirlpool Refrigerator Instructions For Use Manual

Hide thumbs Also See for Refrigerator:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual , Use and Care Manual

INSTRUCTIONS FOR USE

BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
IF THE APPLIANCE IS NOT GOING TO BE
USED
MAINTENANCE AND CLEANING
STORING, FREEZING AND THAWING
FOOD
DESCRIPTION OF THE APPLIANCE
GUIDE TO THE INSIDE PARTS
USING THE APPLIANCE
USING THE ICE AND WATER DISPENSER
USING THE AUTOMATIC ICE-MAKER
CHANGING A WATER FILTER CARTRIDGE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Refrigerator and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool Refrigerator

Summary of Contents for Whirlpool Refrigerator

  • Page 1: Instructions For Use

    INSTRUCTIONS FOR USE BEFORE USING THE APPLIANCE SAFEGUARDING THE ENVIRONMENT PRECAUTIONS AND GENERAL RECOMMENDATIONS IF THE APPLIANCE IS NOT GOING TO BE USED MAINTENANCE AND CLEANING STORING, FREEZING AND THAWING FOOD DESCRIPTION OF THE APPLIANCE GUIDE TO THE INSIDE PARTS USING THE APPLIANCE USING THE ICE AND WATER DISPENSER USING THE AUTOMATIC ICE-MAKER...

  • Page 2: Before Using The Appliance

    BEFORE USING THE APPLIANCE Your new appliance is designed exclusively for Installation and the electrical connection must be domestic use. carried out by a qualified technician, according to the manufacturer’s instructions and local safety After unpacking the appliance, make sure it is not regulations.

  • Page 3: Precautions And General Recommendations

    • Do not use single/multi adapters or extension must be filled with drinking water only. cords. • Use the refrigerator compartment only for • For the water connection, use the pipe storing fresh food and the freezer supplied with the new appliance; do not reuse compartment only for storing frozen food, that of the previous appliance.

  • Page 4: If The Appliance Is Not Going To Be Used

    This will have to be put back after replacing the light bulb. • The refrigerator accepts light bulbs with a bayonet type mount. These do not need unscrewing/screwing when replacing. • The ice/water dispenser light bulb has a standard screw type mount and therefore needs to be screwed in place.

  • Page 5: Storing, Freezing And Thawing Food

    Wrap food so that no water, moisture or condensate can enter; this will prevent odours or aromas going from one part to another in the refrigerator, ensuring better preservation of frozen foods. Use plastic containers with hermetic lids, aluminium trays, aluminium foil, plastic film and waterproof plastic wraps.

  • Page 6: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE REFRIGERATOR COMPARTMENT FREEZER COMPARTMENT A. Inside light N. Automatic ice-maker B. Inside light O. Glass shelves / Racks (depending on the C. Adjustable shelf model) D. Shelf - drawer lid P . Drawer / Bottom basket (depending on the...

  • Page 7: Guide To The Inside Parts

    In this way the temperature inside the meat drawer is kept lower than the rest of the refrigerator. The air flow can be adjusted by means of the special slider. • To store vegetables in the meat drawer, shift the control device all the way to the left, to the vegetables setting.

  • Page 8: Using The Appliance

    USING THE APPLIANCE FIRST USE Connect the appliance to the water system and power supply (refer to the Installation manual). When connecting the appliance to the power supply, the display will show the temperatures preset by the manufacturer. Note: Reaching the preset temperatures requires a variable amount of time. This time depends on several factors (times the door is open, amount of food stored, ambient temperature).
  • Page 9 GUIDE TO SELECTING FUNCTIONS Stand-by This function turns off the refrigerator and freezer compartments. To activate the standby function, press the button for 3 seconds: both displays will go off and a dash will appear on the left display. To reset the function, carry out the same procedure until the previously set temperatures are displayed.
  • Page 10 The door alarm symbol lights up and the acoustic alarm is activated when one or both doors of the refrigerator and/or freezer have remained open. When the doors are left open for more than 2 minutes, the symbol flashes and an acoustic signal sounds.

  • Page 11: Operation Symbols

    The icon remains on until optimum preservation conditions are reached. “Listeria” thermometer indicator (in some models only) This symbol enables the user to check that the temperature of the refrigerator is suitable to guarantee the correct preservation of the food.

  • Page 12: Optional Functions

    This function can be activated or deactivated by pressing the button: The relevant icon will come on and the displayed temperature of the refrigerator compartment will be replaced by a dash. To reactivate the refrigerator compartment, repeat the operation. After activating the function, remove perishable food from the refrigerator compartment and keep the door closed, since the refrigerator maintains an adequate temperature for preventing the formation of odours.

  • Page 13: Using The Ice And Water Dispenser

    USING THE AUTOMATIC ICE-MAKER After switching on the refrigerator, it usually takes overnight for the first ice cubes to form. When selecting crushed ice, the cubes are crushed just before being dispensed, therefore the crushed ice may come out with a slight delay.

  • Page 14: Changing A Water Filter Cartridge

    CHANGING A WATER FILTER CARTRIDGE 1. Locate the water filter cartridge cap below the freezer compartment door. Rotate the cap counterclockwise to a vertical position and pull the cap and filter cartridge out through the base grille. Note: Since there is water in the cartridge, some spilling may occur.

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Before contacting the After-sales Service... Operation problems are often due to minor causes that can be found and fixed without using any tools. Noises from the appliance are normal, since the fans and compressors for controlling its operation switch on and off automatically.
  • Page 16 • If the room is very humid, it is normal for moisture to accumulate inside the appliance. If there is water in the defrost pan: • This is normal in hot and humid weather. The pan can even be half full. Make sure the refrigerator is level so that water does not spill from the pan.

  • Page 17: After Sales Service

    TROUBLESHOOTING GUIDE If the dispenser does not work: • Is the freezer compartment door closed? • Is the ice bucket correctly installed? If the ice dispenser stops working: • Are the ice cubes stuck because the ice dispenser has not been used for some time? Shake the ice bucket to separate the cubes and increase the holding capacity.

  • Page 18: Electrical Connection For Great Britain And Ireland Only

    ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY Warning - this appliance must be earthed Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.
