Specifications & Dimensions - EcoWater ETF AIV-10 Owner's Manual

ECOWATER
S Y S T E M S
Model Code
Amount of Zeolite Media
Amount of Quartz Gravel
Flow Rate
Minimum Backwash Flow Rate
Maximum Supply Water Pressure
Water Temperature Limits (min./max.)
Electrical Rating (transformer supplied)
Contaminant Removal Limitations
*
Well pump must be able to provide the minimum flow for 30+ minutes.
**
Consult manufacturer for applications with bacterial or organically bound iron.
***
Actual performance may vary depending on local water conditions.
IN
IN
3-3/4"
3-3/4"
OUT
OUT
IN - OUT
IN - OUT
B
39-1/4"
SPECIFICATIONS
DIMENSIONS
14"
14"
14"
14"
TOP VIEW
TOP VIEW
SIDE VIEW FRONT VIEW
SIDE VIEW FRONT VIEW

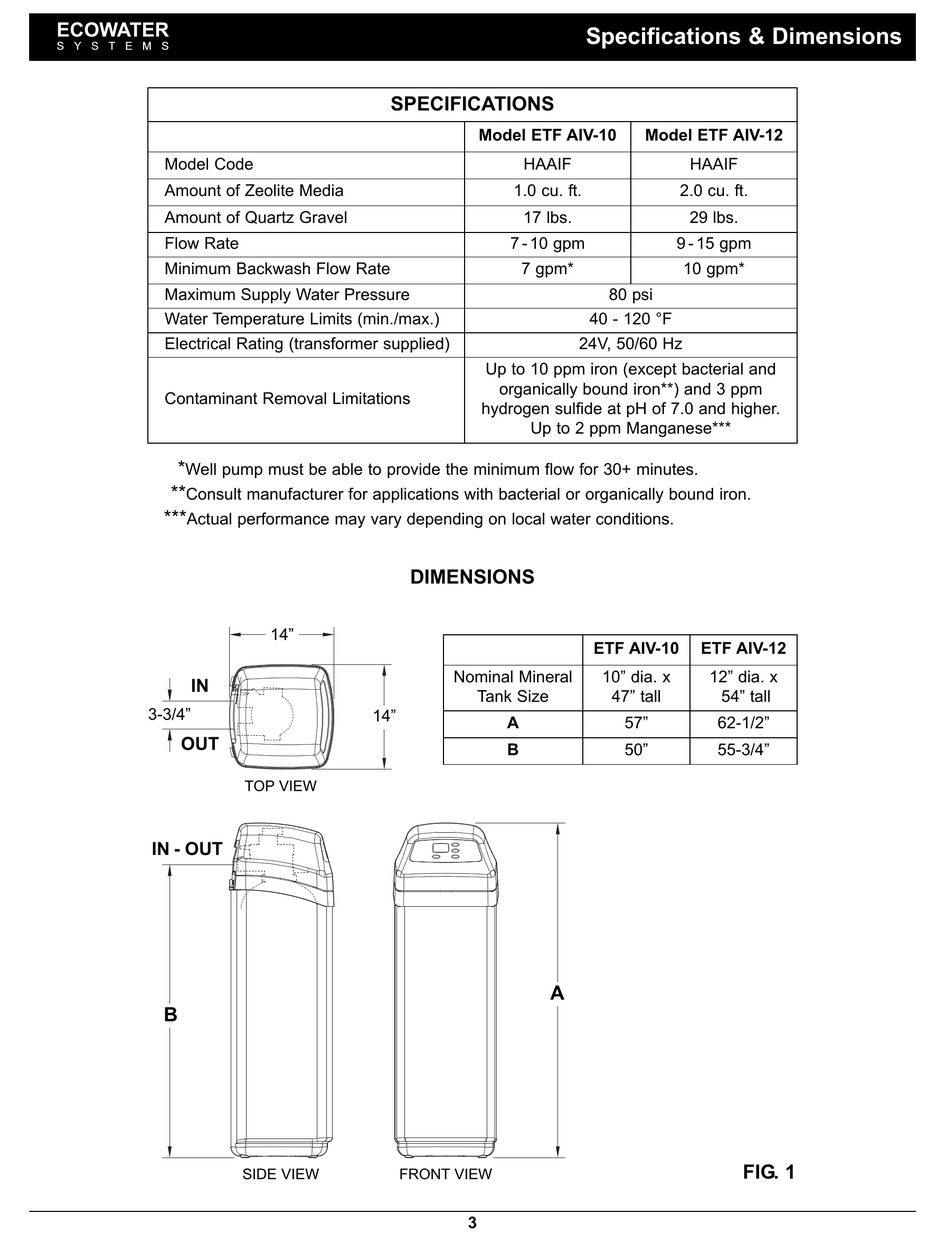

Specifications & Dimensions
Model ETF AIV-10
HAAIF
1.0 cu. ft.
17 lbs.
7 - 10 gpm
7 gpm*
80 psi
40 - 120 °F
24V, 50/60 Hz
Up to 10 ppm iron (except bacterial and
organically bound iron**) and 3 ppm
hydrogen sulfide at pH of 7.0 and higher.
Up to 2 ppm Manganese***
ETF AIV-10
Nominal Mineral 10" dia. x
Tank Size 47" tall
A 57"
B 50"
A
44-3/4"
3
Model ETF AIV-12
HAAIF
2.0 cu. ft.
29 lbs.
9 - 15 gpm
10 gpm*
ETF AIV-12
12" dia. x
54" tall
62-1/2"
55-3/4"
FIG. 1
