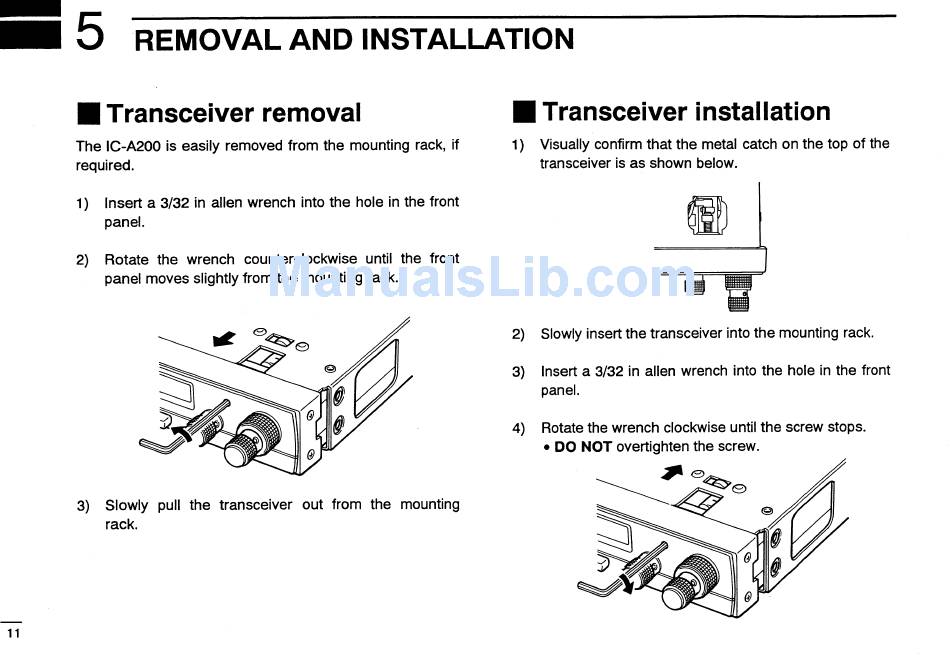

1 5 SREI-VIOVAL AND INSTALLATION

I Transceiver removal

The IC-A200 is easily removed from the mounting rack, if

required.

Insert a 3/32 in allen wrench into the hole in the front

panel

Rotate the wrench counterclockwise until the front

panel moves slightly from the mounting rack.

I 9%

3 C3

Q 4"' @ Q

3) Slowly pull the transceiver out from the mounting

rack.

"... ®\

I Transceiver installation

1) Visually confirm that the metal catch on the top of the

transceiver is as shown below

Slowly insert the transceiver into the mounting rack

insert a 3/32 in allen wrench into the hole in the front

Rotate the wrench clockwise until the screw stops

v DO NOT overtighten the screw

f@% Q

f®ll

..£§.
