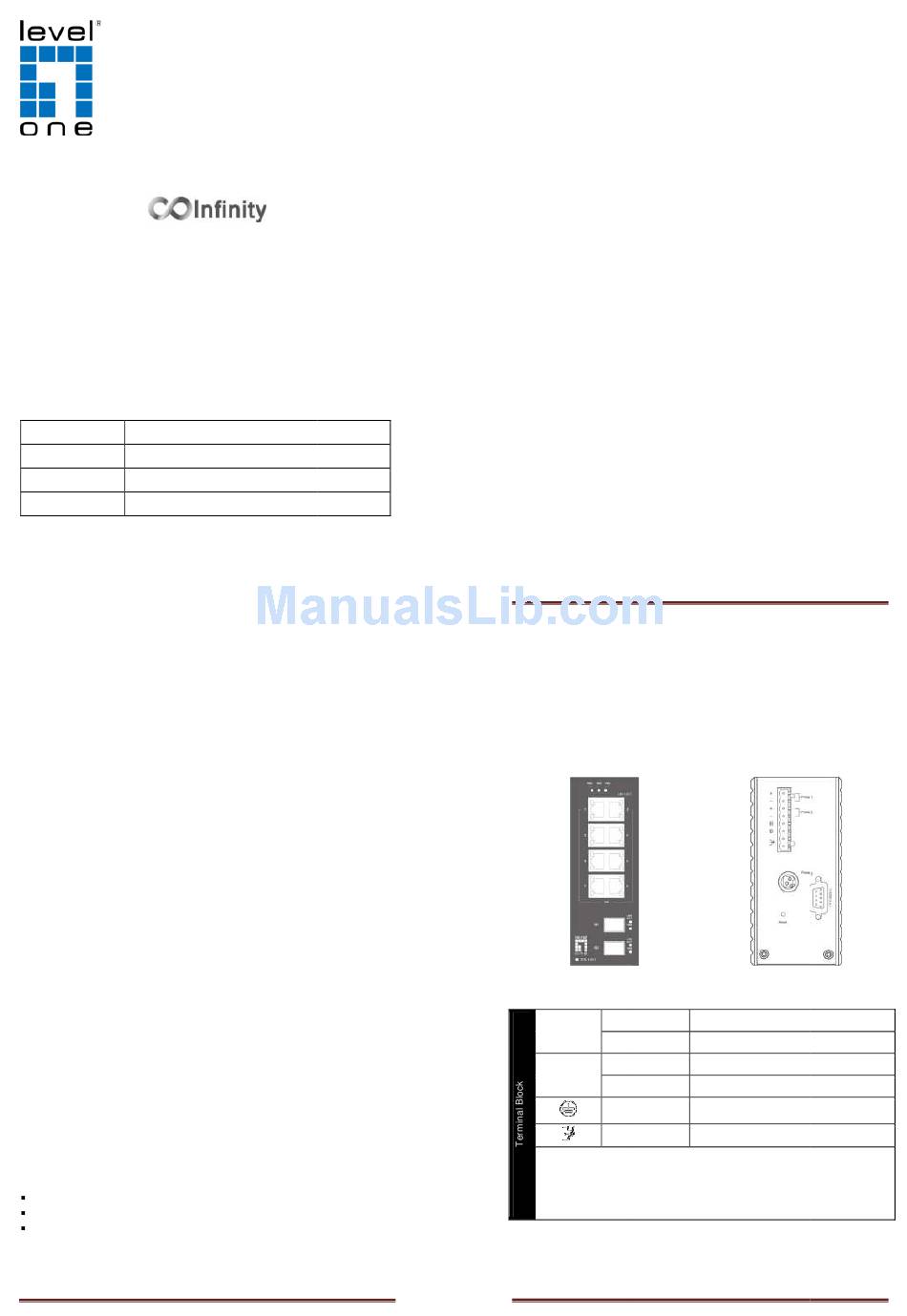

LevelOne IES-1081 Quick Installation Manual

IES-1081
8 FE + 2 GE SFP Managed Switch -40 to 75C, DIN 8 FE + 2 GE SFP Managed Switch
Quick Installation Guide Quick Installation Guide Quick Installation Guide
Default Setting
IP
Login
Password
Console
Features
• Complies with EN50121-4 environmental requirements for
railway applications.
• Meets NEMA TS1/TS2 Environmental requirements such as
temperature, shock, and vibration for traffic control equipment.
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard
Immunity for industrial environment.
• Manageable via SNMP, Web-based, Telnet, and RS-232 console
port.
• Supports Command Line Interface in RS-232 console.
• Support 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation:
10/100/1000Mbps, full/half-duplex; Auto MDI/MDIX.
• 100Base-FX: Multi mode SC or ST type, Single mode SC or ST
type. 100Base-BX: WDM Single mode SC type.
• 1000Base-SX/LX: Multi mode or Single mode SC type.
1000Base-BX: WDM Single mode SC type.
• Support 8192 MAC addresses. Provides 2M bits memory buffer.
• Alarms for power and port link failure by relay output.
• Power Supply: Redundant DC Terminal Block power inputs or
12VDC DC JACK with 100-240VAC external power supply.
• Operating voltage and max. current consumption: 0.92A @
12VDC, 0.46A @ 24VDC, 0.23A @ 48VDC. Power consumption:
11W Max.
• -40℃ to 75℃ (-40℉ to 167℉) operating temperature range.
Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉).
• Supports Din-Rail or Panel Mounting installation

Package Contents

IES-1081
Quick Installation Guide
CD User Manual / Utility
IES-1081
40 to 75C, DIN-rail
192.168.1.10
root
[blank]
115200, n, 8, 1
v1.00 - 1206
Page 2
Overview
LevelOne IES-1081 Industry Ethernet Switch provides 8 ports
of 10/100Base-TX plus 2 1000Base SFP slots to enable high
speed network at mission-critical environment. This device is
designed to be mounted on an industry standard DIN-rail, plus
the clearly visible status LEDs provide simple monitoring of port
link activity. Moreover, the SFP slots support pluggable
modules that enabling you to choose from a variety of
transceivers.
High Reliability
All components are built to withstand harsh environment
applications without compromise where humidity, temperature
variation and even shock vibration are concerns, including
Electric & Utility, Critical Infrastructure, Transportation and
Surveillance Security. This device operates under -40 to 75
Celsius (-40 to 167 Fahrenheit) temperature.
Resilient Ring Network
Supports Ring topology network providing simple installation
and ultra fast network recovery performance, less than 15ms.
Unlike much complex resilient topology, such as a redundant
star, the Ring simplifies the network design and requires less
cabling installation. In addition, fast network recovery time
helps minimize system downtime.
IES-1081
Physical Description Physical Description
Front Panel Front Panel
Power Input Power Input
+
PW1
–
+
PW2
–
Earth Ground Earth Ground
Relay Output Relay Output
Relay Alarm warning signal disable for following: arning signal disable for following:
1. The relay contact closes if Power1 and Power2 are both failed but Power3 The relay contact closes if Power1 and Power2 are both failed but Power3 The relay contact closes if Power1 and Power2 are both failed but Power3
on
2. The relay contact closes if Power3 is The relay contact closes if Power3 is failed but Power1 and Power2 are both
on
•
The relay output is normal open position when there is no power to the switch. The relay output is normal open position when there is no power to the switch. The relay output is normal open position when there is no power to the switch.
Please do not connect any power source to this terminal to prevent shorting your Please do not connect any power source to this terminal to prevent shorting your Please do not connect any power source to this terminal to prevent shorting your
power supply.
•
There are three power inputs can be used There are three power inputs can be used. Redundant power function is supported
PW3 is DC Jack type with 12VDC is DC Jack type with 12VDC input
IES-1081
Page 1
Rear Panel Rear Panel
12 – 48VDC
Power Ground
12 – 48VDC
Power Ground
1A @ 24VDC
failed but Power1 and Power2 are both
. Redundant power function is supported
