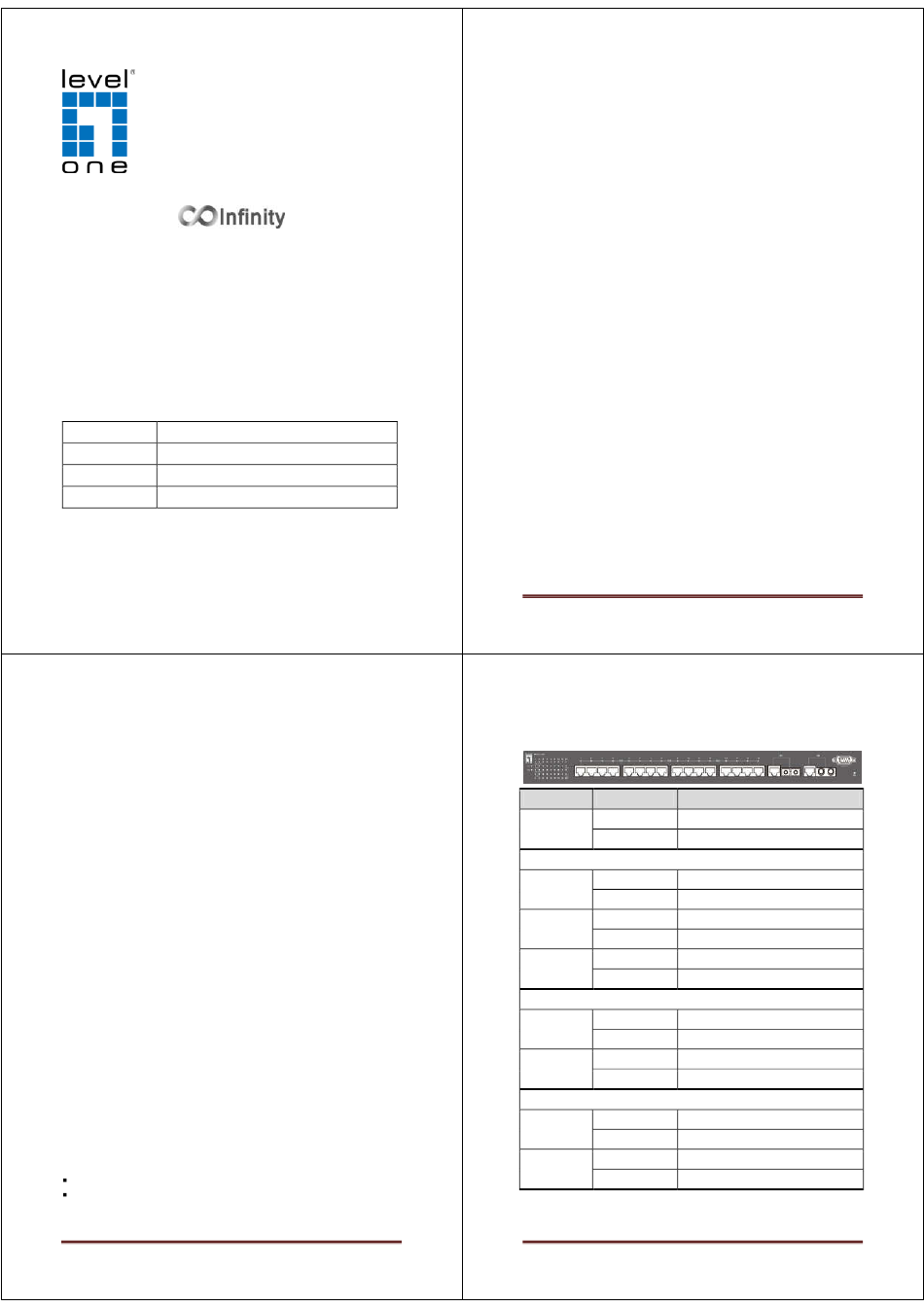

LevelOne Infinity IES-1881 Quick Installation Manual

IES-1881
16 x 802.3at + 2 GE TX/1000LX Combo Managed Switch -40 to
75C
Quick Installation Guide
Default Setting
IP
Login
Password
Console
Features
• Meets NEMA TS1/TS2 Environmental requirements such as temperature,
shock, and vibration for traffic control equipment.
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for
industrial environment.
• RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and
TFTP management.
• Supports Command Line Interface in RS-232 console.
• Supports 8192 MAC addresses. Provides 2M bits memory buffer.
• Supports IEEE802.3at Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
• Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation:
1000Mbps-full-duplex; 10/100Mbps-full/half-duplex; Auto MDI/MDIX.
• 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type;
100Base-BX: WDM Single mode SC type.
• 1000Base-SX/LX: Multi mode or Single mode SC type; 1000Base-BX:
WDM Single mode SC type.
• Provides up to two combo Gigabit ports.
• Store-and-forward mechanism. Full wire-speed forwarding rate.
• Alarms for port and power failure by relay output.
• Power Supply: Redundant 52~57VDC Terminal Block power inputs.
• Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG
torque value 7 lb-in.
• Operating voltage and Max. current consumption: 0.25A @ 48VDC. Power
consumption: 480W Max. (Full load with PoE), 12W Max. (Without PoE).
• -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for
functional operation @ -40℃ to 85℃ (-40℉ to 185℉). UL508 Industrial
Control Equipment certified Maximum Surrounding Air Temperature @ 75
℃ (167℉).
• For use in Pollution Degree 2 Environment.
• Hardened metal case.
• Supports Rack Mounting installation

Package Contents

IES-1881
Quick Installation Guide
IES-1881
192.168.1.10
root
[blank]
115200, n, 8, 1
v1.00 - 0714
Page 2
Overview
LevelOne IES-1881 Industry Ethernet Switch provides 16 PoE
ports of 10/100Base-TX plus 2 Combo ports of 1000Base-T
Gigabit Ethernet and 1000Base-LX SM SC fiber to enable high
speed network at mission-critical environment. With the 1U
height rack-mountable size, this switch can be easily installed
in the cabinet, plus the clearly visible status LEDs provide
simple monitoring of port link activity.
High Reliability
All components are built to withstand harsh environment
applications without compromise where humidity, temperature
variation and even shock vibration are concerns, including
Electric & Utility, Critical Infrastructure, Transportation and
Surveillance Security. This device operates under -40 to 75
Celsius (-40 to 167 Fahrenheit) temperature.

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully
complied with IEEE 802.3at PoE standard at maximum 30W
power budget per port. It helps to save infrastructure wiring
costs dramatically by eliminating electric wiring and less UPS
needed.
Management
Supports a variety of management features including: CLI via
Console or Telnet; Graphic User Interface via Web Browser or
Simple Network Management Protocol via SNMP tools. It
provides better visibility and management of those critical
assets.
IES-1881

LED Status

LED Status
Steady Power On
PW 1,2
Off Power Off
10/100Base-TX, 100Base-FX
Steady Network connection is established
LNK/ACT
Flashing Transmitting or Receiving data
Steady Connection speed at 100Mbps
10/100
Off Connection speed at 10Mbps
Steady Power Device (PD) is connected
PoE
Off Power Device (PD) is disconnected
100Base-FX
Steady Network connection is established
LNK/ACT
Flashing Transmitting or Receiving data
Steady Connection speed at 100Mbps
10/100
Off No connection
10/100/1000Base-TX, 1000Base-SX/LX/BX
Steady Network connection is established
LNK/ACT
Flashing Transmitting or Receiving data
Steady Connection speed at 100Mbps
1000
Off No connection at 1000Mbps speed
IES-1881
