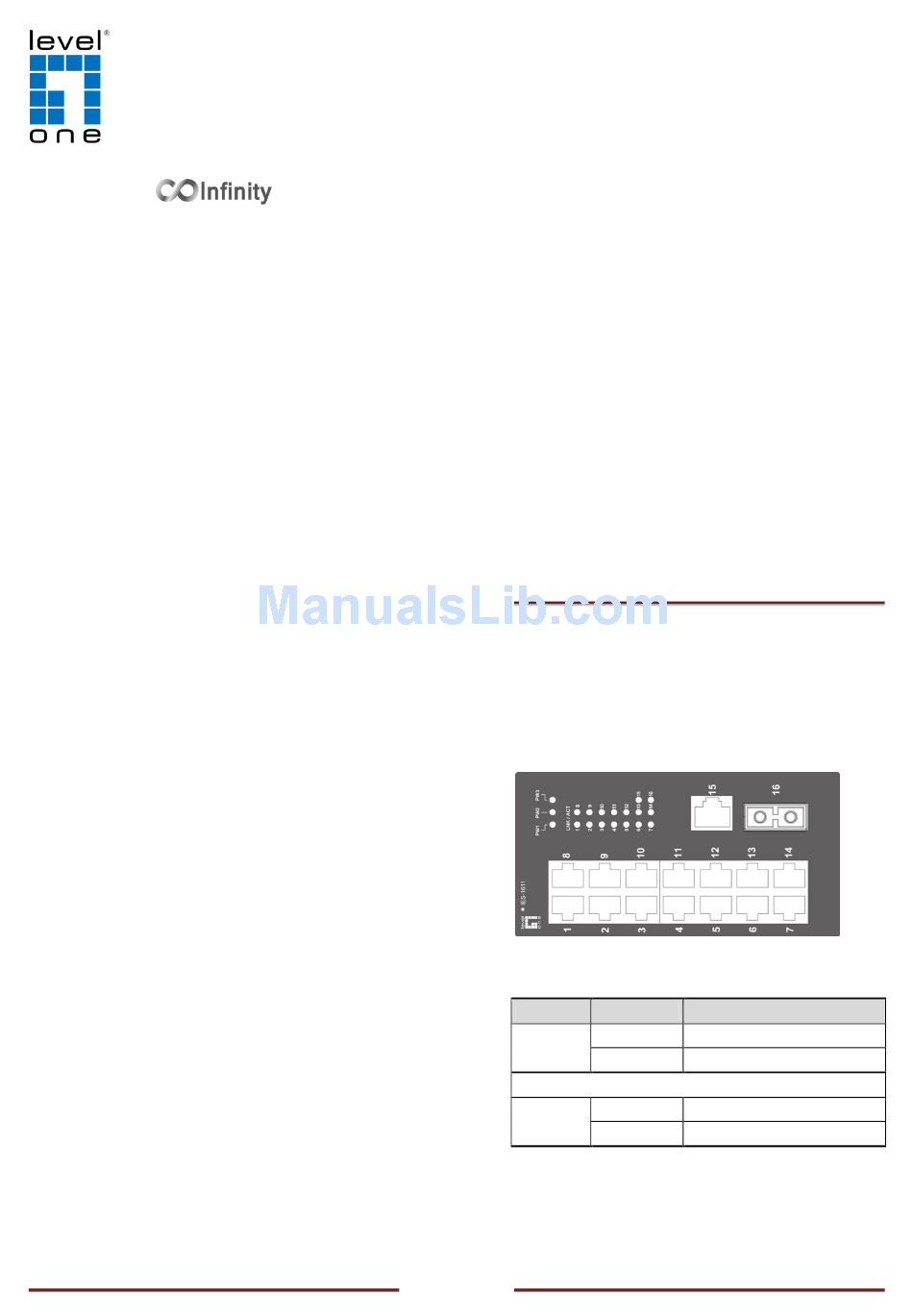

LevelOne Infinity IES-1611 Quick Installation Manual

IES-1611
15 FE + 1 MM SC Unmanaged Switch -10 to 60, DIN-rail
Quick Installation Guide
Features
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for
industrial environment.
• Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/Half-
duplex, Auto-Negotiation, Auto MDI/MDIX.
• 100Base-FX: Multi/Single mode SC or ST type, WDM Single mode SC type.
• Supports 4096 MAC addresses. Provides 1.625M bits buffer memory.
• Alarms for power failure by relay output 1A @ 24VDC.
• Power Supplies: Redundant 12-48VDC Terminal Block power inputs and 12VDC
DC JACK with 100-240VAC external power supply.
• Field Wiring Terminal: Use Copper Conductors Only, 60/75 , 12-24 AWG torque
value 7 lb-in.
• Operating voltage and Max. current consumption: 0.7A @ 12VDC, 0.35A @
24VDC, 0.175A @ 48VDC. Power consumption: 8.4W Max.
• Operating temperature ranges from -10
Industrial Control Equipment certified Maximum Surrounding Air Temperature
@ 60 (140 ).
• For use in Pollution Degree 2 Environment.
• Supports Din-rail or Panel Mounting installation.

Package Contents

§ IES-1611
§ Quick Installation Guide
IES-1610
v1.00 - 1206
to 60 (14 to 140 ). UL508
Page 2
Overview
LevelOne IES-1611 Industry Ethernet Switch provides 15 ports of
10/100Base-TX Ethernet plus 1 port 100Base-FX MM SC fiber to
enable high speed network at mission-critical environment. This
device is designed to be mounted on an industry standard DIN-rail,
plus the clearly visible status LEDs provide simple monitoring of
port link activity.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that offers optimal suitability for industrial
applications at low cost while maintaining all components built to
withstand harsh environment applications without compromise
reliability and stability.
Redundancy
This redundant power system is designed to meet the challenge of
power failure to ensure reliability and constant availability. Single
power design works fine in non-critical network applications, but it
falls short drastically for network applications in transportation,
automate production or banking.
Safety
This device has been tested under UL508 standard for Industrial
Control Equipment to endurance under test turn on and off 6,000
times while loaded, with no single failure. It's highly reliability and
safety measurement to ensure field hardened, especially for the
harsh environment.
IES-1610

LED Status

LED Status
Steady Power On
PW 1,2,3
Off Power Off
10/100Base-TX or 100Base-FX
Steady Network connection is established
LNK/ACT
(Green)
Flashing Transmitting or Receiving data
IES-1610
Page 1
Description
Page 3
