Cerio 100GX-N User Manual

Extreme high power 11n 150mbps in wall poe access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

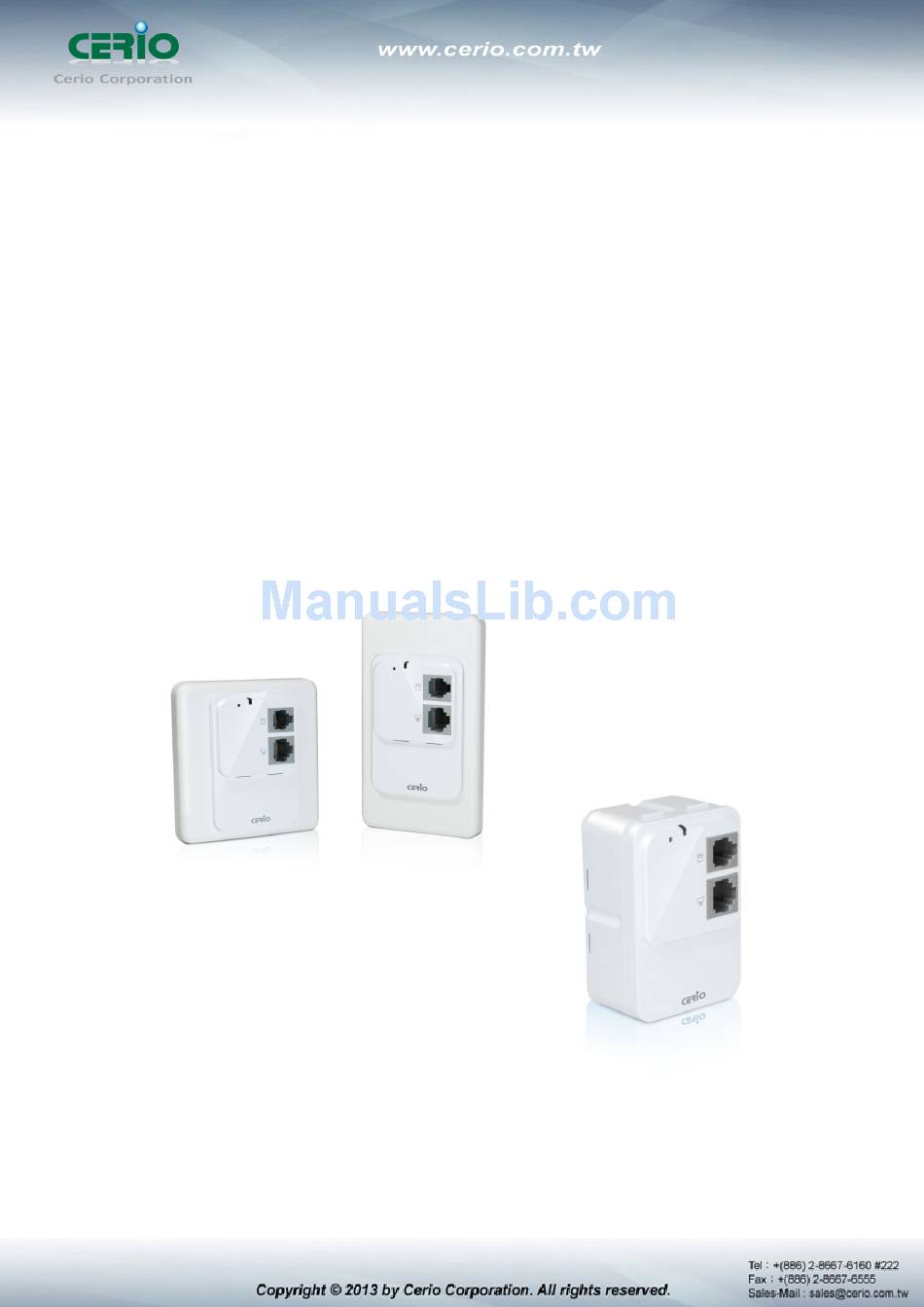

CERIO Corporation
100GX-N
extreme High Power 11n 150Mbps In Wall PoE Access Point
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100GX-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cerio 100GX-N

Summary of Contents for Cerio 100GX-N

  • Page 1 CERIO Corporation 100GX-N extreme High Power 11n 150Mbps In Wall PoE Access Point User’s Manual...

  • Page 2: Table Of Contents

    3. AP Mode Configuration ......................20 3.1 Chose Your Operating Mode ( AP Mode ) ................ 20 3.2 External Network Connection ................... 21 3.3 Configure 100GX-N LAN IP Address ................21 3.4 Wireless General Setup ....................23 3.5 Configure Wireless Advanced Setup ................25 3.6 Create Virtual AP –...
  • Page 3 6.4 Configure DDNS Setup ....................59 6.5 Wireless General Setup ....................59 6.6 Configure Wireless Advanced Setup ................60 6.7 Site Survey ........................62 6.8 Station Profile ........................63 6.9 Remote AP Status ......................64 6.10 Repeater AP Setup ......................64 6.11 Repeater AP MAC Filter Setup ..................

  • Page 4: Introduction

    The Ethernet port support Link-On and Cable Length Power Saving and Link-Down Power Saving also when PoE is not available. The 100GX-N Structure (Form Factor ) with bundle US or EU type faceplate set to support In wall Mounting make up and install.

  • Page 5: Package Contents

    100GX-N units. The web based management interface also allows Network administrators to easily configure , update , and monitor every 100GX-N station . SNMP private MIBs are available for advanced users preferring to manage through their own network manager.

  • Page 6: Size Of In Wall

    1.3 Size of In wall : Measure : mm Main Unit with US-Type Faceplate For U.S.A. / Japan Specification Main Unit with EU-Type Faceplate For Europe / China Specification...

  • Page 7: Features

    With bundle Stand Bracket support for Desktop & Wall and Ceiling Mountable Form Factor  Built-in controlled base’s Cerio CenOS3.0 software interface allows for communicating  with CERIO AM-Series AP Management WLAN Switch or Access Controller of network management servers Provide Traffic Monitor and Graphical GUI Status Interface. ...

  • Page 8: Quality Of Service

    Wireless Feature Support IEEE802.11n，HT Tx/Rx Stream selection : 1 for 150Mbps(Tx),and 150Mbps(Rx)  Transmission power control : Layer 1~9 Channel selection : Manual or Auto  IEEE802.11f IAPP : to facilitate faster roaming for the stations among different APs nearby ...

  • Page 9: Quick Installation

     IP Segment Set-up for Administrator's PC/NB Set the IP segment of the administrator's computer to be in the same range as 100GX-N for accessing the system. Do not duplicate the IP Address used here with IP Address of 100GX-N or any other device within the network.
  • Page 10 Step4 : In “Local Area Connection Properties” window, select “Internet Protocol (TCP/IP)” and click on Properties button.
  • Page 11 Step5 : Select “Use the following IP address”, and fix in IP Address : 192.168.2.X ex. The X is any number by 1 to 253 Subnet mask : 255.255.255.0 And Click "OK" to complete the fixed computer IP setting ========END======== Example of Segment: (Windows 7) Step 1 : Please click on the computer icon in the bottom right window, and click “Open Network and...
  • Page 12 Step 2 : In the Network and Sharing Center page, Please click on the left side of “Change adapter setting” button Step 3 : In “Change adapter setting” Page. Please find Local LAN and Click the right button on the mouse and Click “Properties”...
  • Page 13 Step 4 : In “Properties” page, please Click “Properties” button to TCP/IP setting Step 5 : In Properties page to setting IP address, please find “Internet Protocol Version 4 (TCP/IPv4)” and double click or click “Install” button. Double click Or click Install button...
  • Page 14 Step 6 : Select “Use the following IP address”, and fix in IP Address : 192.168.2.X ex. The X is any number by 1 to 253 Subnet mask : 255.255.255.0 And Click "OK" to complete the fixed computer IP setting Open Web Browser Without a valid certificate, users may encounter the following problem in IE7 when they try to access system's WMI (https://192.168.2.254).
  • Page 15 Launch as web browser to access the web management interface of system by entering the default IP Address, http://192.168.2.254, in the URL field, and then press Enter. Browser will pop up "login" page. Please key in username and password into the system on 100GX-N. The system manager Login Page then appears.
  • Page 16 The 100GX-N system login default As follows User Name : root Password : default The 100GX-N System screen...

  • Page 17: Wizard Setup

    The setup wizard is designed to be an 'easy to use' utility that allows quick modification of the 100GX-N UI Web-based GUI interface settings. The wizard should take no longer than 5 minutes to use. Please be aware that the wizard doesn't give full access to all the setup options in 100GX-N Indoor AP.
  • Page 18 LAN setup  Here are the instructions for setup your 100GX-N local LAN IP address and  netmask. If you don’t want change the default 100GX-N IP 192.168.2.254 address, please keep the default and go next setup. DNS  If you don’t know for your ISP correct DNS IP address, Please click “No default ...
  • Page 19 Wireless Security setup  Suggested setting that you use wireless encryption  authentication type for security Type : to “WPA2-PSK” the cipher suite : to “AES”, Key Type : to “ASCII” for 11n high speed mode. Pre-shared Key : Enter the information for pre-shared key; Pre-shared key can be either ...

  • Page 20: Ap Mode Configuration

    Web-based GUI interface. 3.1 Chose Your Operating Mode ( AP Mode ) 100GX-N Operating mode support four operational modes, AP mode, the WDS mode, the CPE mode and the Client Bridge + Repeater AP mode, respectively with built-in remote management features.

  • Page 21: External Network Connection

    3.2 External Network Connection Network Requirement Normally, 100GX-N connects to a wired LAN and provides a wireless connection point to associate with wireless client. Then, Wireless clients could access to LAN or Internet by associating themselves with 100GX-N set in AP mode.
  • Page 22 Hostname : The Hostname of the LAN port.  DNS: Check either “No Default DNS Server” or “Specify DNS Server IP” button as  desired to set up the system DNS. Primary : The IP address of the primary DNS server. ...

  • Page 23: Wireless General Setup

     Band Mode : Select an appropriate wireless band; bands available are 801.11 b/g/n  mixed mode Country : a region, the 100GX-N support region for US,ETSI and Japan  Channel : Choosing the best WiFi channel  Auto Scan : Smart channel judgment, the function can auto choose use best Channe ...
  • Page 24 Specify digit numbers between level 1 to level 9 (the unit is %) for your environment. If you are not sure which setting to choose, then keep the default setting level 9 (100%). RF(on/off) schedule : The 100GX-N can use the schedule control WiFi on or off  function.

  • Page 25: Configure Wireless Advanced Setup

    3.5 Configure Wireless Advanced Setup The administrator can change the Slot Time, ACK Timeout, RTS threshold and fragmentation threshold settings for the system. Please click on Wireless -> Advanced Setup and follow the below setting. Slot Time : Slot time is in the range of 9~1489 and set in unit of microsecond. The default ...
  • Page 26 ACK Timeout is best determined by distance between the radios, data rate of average environment. The Timeout value is calculated based on round-trip time of packet with a little tolerance, So, if experiencing re-transmissions or poor performance the ACK Timeout could be made longer to accommodate.
  • Page 27 Short Preamble : By default, it’s “Enable”. To Disable is to use Long 128-bit Preamble  Synchronization field. The preamble is used to signal "here is a train of data coming" to the receiver. The short preamble provides 72-bit Synchronization field to improve WLAN transmission efficiency with less overhead.
  • Page 28 AC Type：  Data Transmitted Queue Priority Description AP to Clients AC_BK Background High throughput. Bulk data that requires maximum throughput and is not time-sensitive is sent to this queue (FTP data, for example). AC_BE Best Effort Medium Medium throughput and delay. Most traditional IP data is sent to this queue.

  • Page 29: Create Virtual Ap - Virtual Ap Setup

    AIFS：The Arbitration Inter-Frame Spacing Number specifies a wait time (in  milliseconds) for data frames。 TxOP Limit：Transmission Opportunity is an interval of time when a WME AP has the  right to initiate transmissions onto the wireless medium (WM). This value specifies (in milliseconds) the Transmission Opportunity (TXOP) for AP;...

  • Page 30: Virtual Ap General Configuration

    ESSID: Display Virtual AP's ESSID; default is AP00~AP07.  Status: Display VAP status; default VAP0 is always on and only VAP0 can support WPS  function. Security Type: Display Virtual AP's Security Type; default is disabled.  MAC Filter Setup: Click “Setup” button for configuring Virtual AP's Access Control List. ...
  • Page 31 ESSID: Extended Service Set ID indicates the SSID which the clients used to connect to  the VAP. ESSID will determine the service type of a client which is assigned to the specified VAP. Hidden SSID: Select this option to enable the SSID to broadcast in your network. When ...
  • Page 32 Key Index: You can select the Key which you want to use. Other wireless station must  have the same key value to connect with 100GX-N, 4 different WEP keys can be configured at the same time, but only one is used. Effective key is set with a choice of WEP Key 1, 2, 3 or 4.
  • Page 33 Cipher Suite: You can chose use AES or TKIP with your WPA / WPA2 encryption  method  AES is short for “Advanced Encryption Standard”, The AES cipher is specified as a number of repetitions of transformation rounds that convert the input plaintext into the final output of ciphertext.
  • Page 34 General Setting : Cipher Suite: You can chose use AES or TKIP with your WPA / WPA2 encryption  method  AES is short for “Advanced Encryption Standard”, The AES cipher is specified as a number of repetitions of transformation rounds that convert the input plaintext into the final output of ciphertext.
  • Page 35 Authentication Server: Enter the IP address of the Authentication RADIUS server.  Port: The port number used by Authentication RADIUS server. Use the default 1812  or enter port number specified. Shared secret: The secret key for system to communicate with Authentication ...

  • Page 36: Wds Setup - Expand Your Wireless Network

    WEP Key Update Period: The time interval WEP will then be updated; the unit is in  seconds; default is 300 seconds; 0 = do not rekey. EAP Reauth Period: EAP re-authentication period in seconds; default is 3600; 0 = ...

  • Page 37: Wifi Mac Filter General Configuration

    3.9 WiFi MAC Filter General Configuration 100GX-N all virtual AP support MAC Filter setting, Major can filter wireless users connected to Access Point. Click Wireless -> Virtual AP Setup, And click MAC Filter “Edit” of Virtual AP List and then MAC Filter Configuration page appears.

  • Page 38: Wds Status

    MAC Access Control is the weakest security approach. WPA or WPA2 security methods should be used when possible. 3.10 WDS Status The Peers MAC Address, antenna 0/1 received signal strength, phy mode and channel bandwidth for each WDS are available. MAC Address : Display MAC address of WDS peer.

  • Page 39: Wds Mode Configuration

    Wireless Information : Display the Virtual AP configuration information of the system. VAP : Display number of system's Virtual AP.  ESSID : Extended Service Set ID of the Virtual AP.  Status : Display Virtual AP status currently.  Security Type : Security type activated by the Virtual AP.

  • Page 40: Configure 100Gx-N Lan Ip Address

    4.2 Configure 100GX-N LAN IP Address Here are the instructions to setup the local IP Address and Netmask Please click on System -> LAN and follow the below setting. ※ Please refer 3.3 Configure 100GX-N LAN IP Address LAN IP Setting.

  • Page 41: Wireless General Settings

    4.3 Wireless General Settings The administrator can change the data transmission, channel and output power settings for the system. Please click on Wireless -> General Setup and follow the below setting. ※ Please refer 3.4 Wireless General Setup 4.4 Configure Wireless Advanced Setup The administrator can change the Slot Time, ACK Timeout, RTS threshold and fragmentation threshold settings for the system.

  • Page 42: Wds Setup

    ※ Please refer 3.5 Configure Wireless Advanced Setup 4.5 WDS Setup The administrator could create WDS Links to expand wireless network. When WDS is enabled, access point functions as a wireless bridge and is able to communicate with other access points via WDS links.
  • Page 43 Security Type : Option is “Disable”, “WEP”, “TKIP”or “AES” from drop-down list. Needs  the same type to build WDS links. Security type takes effect when WDS is enabled. WEP Key : Enter 5 / 13 ASCII or 10 / 26 HEX format WEP key. ...

  • Page 44: Wds Status

    4.6 WDS Status The Peers MAC Address, antenna 0/1 received signal strength, phy mode and channel bandwidth for each WDS are available. MAC Address : Display MAC address of WDS peer.  RSSI : Indicate the RSSI of the respective WDS's link. ...

  • Page 45: External Network Connection ( Network Requirement )

    WISPs deliver wireless broadband Internet service to new residential and business customers. In this mode, 100GX-N is enabled with DHCP Server functions. The wired clients of 100GX-N are in the same subnet from Main Base Station and it accepts wireless connections from client devices.

  • Page 46: Wireless General Setup

    DHCP Server  Devices connected to the system can obtain an IP address automatically when this service is enabled. DHCP : Check Enable button to activate this function or Disable to deactivate this  service. Start IP / End IP: Specify the range of IP addresses to be used by the DHCP server when ...
  • Page 47 If you are not sure which setting to choose, then keep the default setting level 9 (100%) RF(on/off) schedule : The 100GX-N can use the schedule control WiFi on or off function.  Please refer to the Time Policy setup.

  • Page 48: Configure Wireless Advanced Setup

    Aggregation Size : The Aggregation Size is in the range of 1024~65535, default is 50000.  It determines the size (in Bytes) of the larger frame. 5.5 Configure Wireless Advanced Setup The administrator can change the Slot Time, ACK Timeout, RTS threshold and fragmentation threshold settings for the system.

  • Page 49: Site Survey

    5.6 Site Survey Use this tool to scan and locate WISP Access Points and select one to associate with. Please click on Wireless -> Site Survey. Below depicts an example for site survey. ESSID : Available Extend Service Set ID of surrounding Access Points. ...

  • Page 50: Station Profile

    5.7 Station Profile Connection Setup : Can you choose Fix or cycle to AP Link.  General Configuration :  MAC address : The remote AP MAC Address  Profile Name : Set different profiles for quick connection uses.  ESSID : Assign Service Set ID for the wireless system.

  • Page 51: Remote Ap Status

    If you only click “Connect” button and does not click “Save” button. The selected profile would not be saved on the Profile List Change these settings as described here and click Save button to save your changes. Click Reboot button to activate your changes. 5.8 Remote AP Status Show the remote bridge AP whether is link or unlinked 5.9 Repeater AP Setup...

  • Page 52: Repeater Ap Mac Filter Setup

    Client Isolation : By default, it’s “Disable”. Select “Enable”, all clients will be isolated from  each other, which means they can’t reach each other. IAPP : Inter Access-Point Protocol is designed for the enforcement of unique association  throughout a ESS(Extended Service Set) and for secure exchange of station's security context between current access point (AP) and new AP during hand off period.

  • Page 53: Wisp + Ap Mode Configuration

    6.2 Configure CPE(WAN) Setup It can be used as an Router AP with WDS function. In this mode, 100GX-N is a gateway enabled with NAT and DHCP Server functions. The wireless clients connected to Internet. There are Four connection types for the WAN port : Static IP, Dynamic IP, PPPoE and PPTP.
  • Page 54 Internet connection Type Static IP : Users can manually setup the WAN IP address with a static IP provided by  WISP. IP Address : The IP address of the WAN port; default IP address is 192.168.1.254  IP Netmask : The Subnet mask of the WAN port; default Netmask is 255.255.255.0 ...
  • Page 55 Hostname : The Hostname of the WAN port  PPPoE : To create wireless PPPoE WAN connection to a PPPoE server in network.  User Name : Enter User Name for PPPoE connection  Password : Enter Password for PPPoE connection ...
  • Page 56 PPTP : The Point-to-Point Tunneling Protocol (PPTP) mode enables the implementation  of secure multi-protocol Virtual Private Networks (VPNs) through public networks. IP Address : The IP address of the WAN port  IP Netmask : The Subnet mask of the WAN port ...
  • Page 57 DNS : Check “No Default DNS Server” or “Specify DNS Server IP” radial button as desired  to set up system DNS. Primary : The IP address of the primary DNS server.  Secondary : The IP address of the secondary DNS server. ...

  • Page 58: Configure 100Gx-N Lan Ip Address

    6.3 Configure 100GX-N LAN IP Address Here are the instructions for how to setup the local IP Address and Netmask. Please click on System -> LAN and follow the below setting. LAN Setup IP Address : The IP address of the LAN port; default IP address is 192.168.2.254 ...

  • Page 59: Configure Ddns Setup

    6.4 Configure DDNS Setup Dynamic DNS allows you to map domain name to dynamic IP address. Please click on System -> DDNS Setup and follow the below setting. Enabled: By default, it’s “Disable”. The mapping domain name won’t change when ...

  • Page 60: Configure Wireless Advanced Setup

    ※ Please refer 3.4 Wireless General Setup Explanation 6.6 Configure Wireless Advanced Setup The administrator can change the Slot Time, ACK Timeout, RTS threshold and fragmentation threshold settings for the system. Please click on Wireless -> Advanced Setup and follow the below setting.
  • Page 61 ※ Please refer 3.5 Configure Wireless Advanced Setup Explanation...

  • Page 62: Site Survey

    6.7 Site Survey Use this tool to scan and locate WISP Access Points and select one to associate with. Please click on Wireless -> Site Survey. Below depicts an example for site survey. ESSID : Available Extend Service Set ID of surrounding Access Points. ...

  • Page 63: Station Profile

    6.8 Station Profile Connection Setup : Can you choose Fix or cycle to AP Link.  General Configuration :  MAC address : The remote AP MAC Address  Profile Name : Set different profiles for quick connection uses.  ESSID : Assign Service Set ID for the wireless system.

  • Page 64: Remote Ap Status

    If you only click “Connect” button and does not click “Save” button. The selected profile would not be saved on the Profile List 6.9 Remote AP Status Show information of bridge signal link or unlink and remote SSID name by WISP. If set multiple connections, The GUI list will show multiple AP information on “Remote AP Status”...

  • Page 65: Repeater Ap Mac Filter Setup

    6.11 Repeater AP MAC Filter Setup Continue Virtual AP Setup section. For each Virtual AP setting, the administrator can allow or reject clients to access each Virtual AP. Action: Select the desired access control type from the drop-down list; the options are ...
  • Page 66 System Information System Name : Enter a desired name or use the default one.  Description : Provide description of the system.  Location : Enter geographical location information of the system. It helps administrator to  locate the system easier. Root Password : Log in as a root user and is allowed to change its own, plus admin user’s password.
  • Page 67 RSA key. Ping Watchdog : The ping watchdog sets the 100GX-N Device to continuously ping a user defined IP address (it can be the internet gateway for example). If it is unable to ping under the user defined constraints, the 100GX-N device will automatically reboot.

  • Page 68: Configure System Time

    Ping Interval : specify time interval (in seconds) between the ICMP “echo requests” are  sent by the Ping Watchdog Tool. Default is 300 seconds. Startup Delay : specify initial time delay (in seconds) until first ICMP “echo requests” are ...
  • Page 69 Local Time : Display the current system time.  Setup Time Use NTP : To synchronize the system time with NTP server.  Time Zone : Select a desired time zone from the drop-down list.  Daylight saving time : Enable or disable Daylight saving. ...

  • Page 70: Led Setup

    If the system time from NTP server seems incorrect, please verify your network settings, like default Gateway and DNS settings  ser Setup : The management can set time by system time Date: Setting the date for system.  Time : Setting the time for system. ...
  • Page 71 SNMP v2c Enable: Check to enable SNMP v2c.  ro community : Set a community string to authorize read-only access.  rw community : Set a community string to authorize read/write access.  SNMP v3 Enable: Check to enable SNMP v3. And supports the highest level SNMP ...

  • Page 72: Configure Advance Setup

    Community : Set a community string required by the remote host computer that will  receive trap messages or notices send by the system. IP(1~4) : Enter the IP addresses of the remote hosts to receive trap messages.  Click "save" to save your settings. Click Reboot button to activate your changes 8 Configure Advance Setup 8.1 DMZ (This function must be used WISP mode) DMZ is commonly work with the NAT functionality as an alternative of Virtual Server(Port...

  • Page 73: Ip Filter (This Function Must Be Used Wisp Mode)

    8.2 IP Filter (This function must be used WISP mode) Allows to create deny or allow rules to filter ingress or egress packets from specific source and/or to destination IP address on wired (LAN) or Wireless (WAN) ports. Filter rules could be used to filter unicast or multicast packets on different protocols as shown in the IP Filter Setup.

  • Page 74: Mac Filter (This Function Must Be Used Wisp Mode)

    When you create rules in the IP Filter List, the prior rules maintain higher priority. To allow limited access from a subnet to a destination network manager needs to create allow rules first and followed by deny rules. So, if you just want one IP address to access the system via telnet from your subnet, not others, the Example 1 demonstrates it, not rules in the Example 2.

  • Page 75: Virtual Server (This Function Must Be Used Wisp Mode)

    MAC Filter Rule : By default, it’s “Disable”. Options are Disabled, Only Deny List MAC or  Only Allow List MAC. Action :  Only Allow List MAC: The wireless clients in the MAC Filter List will be allowed to ...
  • Page 76 Service : By Default, It’s “Disable”. Check Enable radial button to enable Virtual Server.  Description : Enter appropriate message for resource sharing via Virtual Server.  Private IP : Enter corresponding IP address of internal resource to share.  Protocol Type : Select appropriate sessions, TCP or UDP, from shared host via multiple ...

  • Page 77: Parental Control (This Function Must Be Used Wisp Mode)

    8.5 Parental Control (This function must be used WISP mode) Parental Control allows you to block or allow specific kinds of Internet usage and traffic, such as Internet access, designated services, and websites. Please click on Advance -> Parental Control and follow the below setting. Rules : Control can be managed by a rule.

  • Page 78: Ip Routing (This Function Must Be Used Wisp Mode)

    If you want to block websites with specific URL address or using specific keywords, enter each URL or keyworks in the “Content Filter” field and click “Add” button to add in the Content Filter list of each rule. Click “Remove” button can remove URL or keywords. Local Port : Specify local port(LAN port) range required for this rule ...
  • Page 79 OSPF Settings : OSPF Service : By default, it's Disable. To Enable to activated OSPF routing service.  Route ID : The router ID is typically derived by each router from its interface IP address.  Distribute RIP over OSPF : Allow RIP routes will redistributed into OSPF. ...

  • Page 80: Time Policy

    Static Routing Setup : Service : Click Enable to activated static routing.  Destination Net/Mask : Specify desired destination IP network address with format of  A.B.C.D/M Via : Select a next hop of Gateway or Interface to the destination IP network. ...
  • Page 81 Policy : There are 10 Policy can be selected.  Schedule Rule : Select desired schedule for this policy.  On Schedule : Execution is based on schedule  Out of Schedule : Execution is based outside the schedule  Click “Save Action”...

  • Page 82: Configure Utilities Setup

    9 Configure Utilities Setup 9.1 Profile setting The Function is backup current configuration, restore prior configuration or reset back to factory default configuration can be executed via this page. Please click on Utilities -> Profile Setting and follow the below setting Save Settings to PC : Click Save button to save the current configuration to a local disk.

  • Page 83: Firmware Upgrade

    Do not interrupt during firmware upgrade including power on/off as this may damage system. Firmware Information :Show currently the 100GX-N of system software version and  software date Upgrade firmware : The upgrade firmware will support via local PC and TFTP Server and ...

  • Page 84: Network Utility

    Traceroute Allows tracing the hops from the 100GX-N device to a selected outgoing IP address. It should be used for the finding the route taken by ICMP packets across the network to the destination host. The test is started using the Start button, click Stop button to stopped test.

  • Page 85: Configure Status

    The System Overview page appears upon the completion of reboot. 10 Configure Status 10.1 Overview Detailed information on System, Network can be reviewed via this page System Information : Display the information of the system.  Device Information : Display the information of the Port link. ...

  • Page 86: Dhcp Client (This Function Must Be Used Wisp Mode)

    10.2 DHCP Client (This function must be used WISP mode) The administrator can view status of all DHCP Client Users on each DHCP Server. Please click on Status  DHCP Client to look DHCP information. DHCP Server Status : Display the information of the DHCP Server. ...
  • Page 87 Route Information : Select “Route Information” on the drop-down list to display route  table. 100GX-N could be used as a L2 or L3 device. It doesn’t support dynamic routing protocols such as RIP or OSPF. Static routes to specific hosts, networks or default gateway are set up automatically according to the IP configuration of system's interfaces.
  • Page 88 Bridge table will show Bridge ID and STP's Status on the each Ethernet bridge and its attached interfaces, the Bridge Port should be attached to some interfaces (e.g. eth2, ra0~ra7 and wds0~wds3). Bridge MACs Information : Select “Bridge MACs Information” on the drop-down list to ...

  • Page 89: Event Log

    10.4 Event Log The Event log displays system events when system is up and running. Also, it becomes very useful as a troubleshooting tool when issues are experienced in system. Time : The date and time when the event occurred. ...

  • Page 90: Appendix A. Web Gui Valid Characters

    Appendix A. WEB GUI Valid Characters Table B WEB GUI Valid Characters Block Field Valid Characters IP Address IP Format; 1-254 IP Netmask 128.0.0.0 ~ 255.255.255.252 IP Gateway IP Format; 1-254 Primary DNS IP Format; 1-254 Secondary DNS IP Format; 1-254 Hostname Length : 32 0-9, A-Z, a-z...
  • Page 91 Domain Length : 32 0-9, A-Z, a-z ~ ! @ # $ % ^ * ( ) _ + - { } | : < > ? [ ] / ; ` , . = Lease Time 600 ~ 99999999 Table B WEB GUI Valid Characters (continued) Block Field...
  • Page 92 Table B WEB GUI Valid Characters (continued) Block Field Valid Characters Virtual AP Setup ESSID Length : 31 Space 0-9, A-Z, a-z ~ ! @ # $ % ^ * ( ) _ + - { } | : < > ? [ ] / ; ` , . = Maximum Clients 1 ~ 32 VLAN ID...

  • Page 93: Appendix B. Mcs Data Rate

    Block Field Valid Characters Parental Control MAC Address MAC Format; 12 HEX chars Local/ Destination IP IP Formate; 1-254 Local/ Destination Port 1 ~ 65535 Upload & Download 8 ~ 8192 digital number Appendix B. MCS Data Rate The table below shows the relationships between the variables that allow for the maximum data rate Table C MCS Data Rate Data Rate (Mb/s) Channel Bandwidth = 20...

  • Page 94: Appendix C. Specifications

    When MCS=0~7(One Tx Stream), Guard Interval and Channel Bandwidth are supported When MCS=8~15(Two Tx Stream), Guard Interval and Channel Bandwidth are supported Appendix C. Specifications Hardware Specifications Standards Conformance IEEE 802.11 b/g/n compliant IEEE 802.3 / IEEE 802.3u IEEE 802.3af Power over Ethernet IEEE 802.11i Preauth (PMKSA Cache ) IEEE 802.11d Multi country roaming IEEE 802.1Q Tag VLAN...
  • Page 95 Environmental & Mechanical Characteristics Operating Temperature -25 °C ~ 55 °C Storage Temperature -25 °C ~ 65 °C Operating Humidity Storage Humidity 5% to 90% Non-Condensing Antenna Build in 1x 2.5dBi RF Antenna Form Factor Wall / In Wall System Power Consumption 8 Watt Max.
