Summary of Contents for Cerio OW-300N2-A2

  • Page 1: Quick Start Guide

    CERIO Corporation OW-300N2-A2 eXtreme Power 11N 2.4Ghz 2x2 +10dBi +Heater Outdoor Bridge/AP ( 1000mW ) Quick Start Guide...
  • Page 2: Package Content

    Power over Ethernet, allowing both data and power to be supplied through Cat5 cabling. OW-300N2-A2 supports 5 operation modes: Router AP mode / Router AP + WDS mode, Pure AP / AP + WDS Mode, Pure WDS Mode, Client Bridge + Universal Repeater AP Mode, and finally WISP + Repeater AP Mode.
  • Page 3: Hardware Specifications

    3. Hardware Specifications Application Software OS System Compatible Cerio CenOS 3.0 Software Core edition Specifications Network Standards IEEE 802.11 b/g/n compliant Conformance IEEE 802.3 / IEEE 802.3u IEEE 802.11 b/g/n compliant IEEE 802.11i Preauth (PMKSA Cache ) IEEE 802.11d -Multi country roaming IEEE 802.11Q...
  • Page 4 2.457 ~ 2.462 GHz (Spain) 2.457 ~ 2.472 GHz (France) Channel Spacing IEEE802.11b/g/n : 20/40MHz Media Access Protocol CSMA / CA with ACK Modulation Method IEEE 802.11b: DSSS (DBPK,DQPSK,CCK) IEEE 802.11g/n : OFDM(64-QAM,16-QAM,QPSK,BPSK) Operating Channels 802.11b/g : 11 for FCC,14 for Japan,13 for Europe, 2 for Spain, 4 for France Transmit Power Variation Max : 30±...
  • Page 5: Panel Function Description

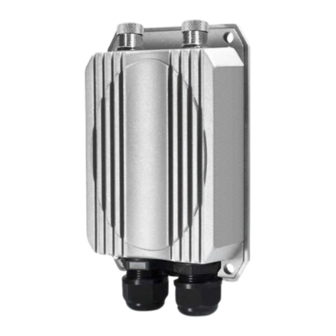

    4. Panel Function Description OW-300N2-A2’s bottom panel includes multiple LED lights for status indication, as well as two waterproof Ethernet connection ports. Please refer to the diagram below: Product Bottom The Ethernet connection for ETH0 / PoE in (2) The LED indicator of ETH0 Port. (Light indicates proper Ethernet connection) The Ethernet connection for ETH1 The LED indicator of ETH1 Port.
  • Page 6: Mounting Installation

    Product above N-Type 1 antenna connector N-Type 2 antenna connector *If does not use it while connecting antenna, please always lock the metal waterproof top cover 5. Mounting Installation...
  • Page 7: Software Configuration

    Software Configuration PC/Device Link setup by OS Windows 7 Connect the PC to the wireless device using cat5/cat6 cabling Step 1 : Please click on the computer icon in the bottom right window, and click “Open Network and Sharing Center”...
  • Page 8 Step 2 : In the Network and Sharing Center page, click “Change adapter setting” on the left hand panel Step 3 : Once in the “Change adapter setting” page, find Local LAN and Click the right button on the mouse, then Click “Properties”...
  • Page 9 Step 4 : In the “Properties” page, please Click the “Properties” button to go to TCP/IP setting Step 5 : In Local LAN Properties page, find “Internet Protocol Version 4 (TCP/IPv4)” and double click Double click...
  • Page 10 Step 6 : Select “Use the following IP address”, and fix in IP Address : 192.168.2.# (The # is any number by 1 to 253) Subnet mask : 255.255.255.0 And Click "OK" to complete the fixed computer IP setting Open Web Browser Without a valid certificate, users may encounter the following problem in IE7 when they try to access system's WMI (http://192.168.2.254).
  • Page 11 After keying in the IP address into a web browser, the system manager Login Page will appears. Enter “root” as User name and “default” as Password, and then click “OK” to login to the OW-300N2-A2 software user interface. MODE Router, AP , WDS , ( WISP / Client Bridge )+ Repeater AP...
  • Page 12 Administrator wanting to set detailed functions for OW-300N2-A2 system must refer to the OW-300N2-A2 user manual.
