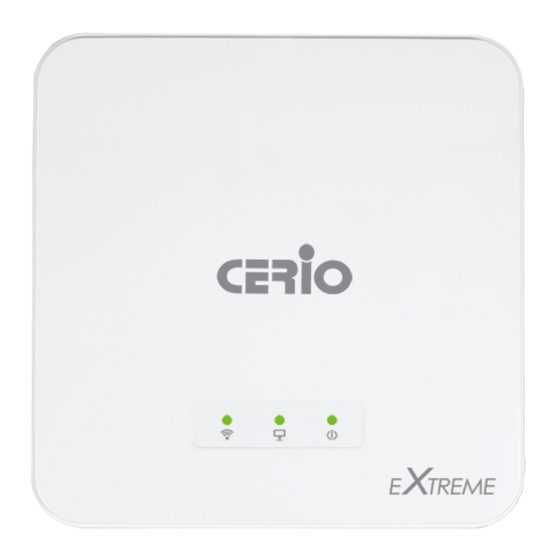

- Page 1 CERIO Corporation CW-300N eXtreme Power 11n 2.4Ghz 2x2 Ceiling / Wall PoE Access Point (500mW) Quick Start Guide V1.0b...
-
Page 2: Table Of Contents
Overview.............................. 3 Package Content ..........................3 Hardware Specifications ......................... 4 Product Outward Appearance ....................... 5 Panel Function Description......................6 Mounting Installation ........................7 Uninstallation for Mounting kit ...................... 8 Software Configuration ........................8 V1.0b... -
Page 3: Overview
Overview The CW-300N eXtreme Power 11n 2.4Ghz 2x2 Ceiling / Wall PoE Access Point bundles Cerio CenOS 3.0 Software Core and supports Cerio Wireless Management Software (CWMS), enabling connection to Wireless Indoor Networks for service providers deploying last mile services to home , businesses, and residential broadband subscribers. -
Page 4: Hardware Specifications
3. Hardware Specifications Application Software OS System Compatible edition Cerio CenOS 3.0 and Cerio CenOS 4.0 Software Core Specifications Network Standards IEEE 802.11 b/g/n compliant Conformance IEEE 802.3 / IEEE 802.3u IEEE 802.11 b/g/n compliant IEEE802.3af/at Power Over Ethernet compliant IEEE 802.11Q... -
Page 5: Product Outward Appearance
Receiver Sensitivity Max : -92 dBm Environmental & Mechanical Characteristics Operating Temperature -10 °C ~ 55 °C Storage Temperature -20 °C ~ 65°C Operating Humidity 10% - 90% Non-Condensing Storage Humidity 10% - 90% Non-Condensing Antenna Build in 2x2 Smart Omni Directional Antenna Form Factor Supports both Ceiling Mounting and Wall mounting, installed using a provided Mounting Bracket. -
Page 6: Panel Function Description
5. Panel Function Description 1. The LED by Product Power. 2. The LED by Ethernet LAN Network function. 3. The LED by Wi-Fi function. The Ethernet connect by LAN Port 5. Reset button (Please press and hold for about 15 seconds and then release) 6. -
Page 7: Mounting Installation
2. Align the device with the mounting Hinges on the bracket. Ensure that the mounting clips fit correctly into each slot. 3. Slide the CW-300N down until the device is locked into place. V1.0b... -
Page 8: Uninstallation For Mounting Kit
Set the IP segment of the administrator's computer to be in the same range as CW-300N for accessing the system. Do not duplicate the IP Address used here with IP Address of CW-300N or any other device within the network. - Page 9 Step 1 : Please click on the computer icon in the bottom right window, and click “Open Network and Sharing Center” Step 2 : In the Network and Sharing Center page, Please click on the left side of “Change adapter setting” button V1.0b...
- Page 10 Step 3 : In “Change adapter setting” Page. Please find Local LAN and Click the right button on the mouse and Click “Properties” Step 4 : In “Properties” page, please Click “Properties” button to TCP/IP setting V1.0b...
- Page 11 Step 5 : In Properties page to setting IP address, please find “Internet Protocol Version 4 (TCP/IPv4)” and double click or click “Install” button. Double click Or click Install button Step 6 : Select “Use the following IP address”, and fix in IP Address : 192.168.2.# ex.
- Page 12 Launch as web browser to access the web management interface of system by entering the default IP Address, http://192.168.2.254, in the URL field, and then press Enter. Browser will pop up "login" page. Please key in username and password into the system on CW-300N. The system manager Login Page then appears.
- Page 13 Default IP Address 192.168.2.254 Account root Passwork default When display “Overview” information (As shown in the diagram above) in browser. Representation administrator successfully entered the CW-300N(CenOS3.0) or CW-300N-NGS(CenOS4.0) interface. The CW-300N(CenOS3.0) or CW-300N-NGS(CenOS4.0) detailed functions instruction, please refer to user’s manual. V1.0b...
