User’s Manual Quick Installation Guide CERIO Corporation WM-200N High Power 11n 300Mbps PoE Wireless Access Point Quick Installation Guide V2.0... -
Page 2: Package Contents

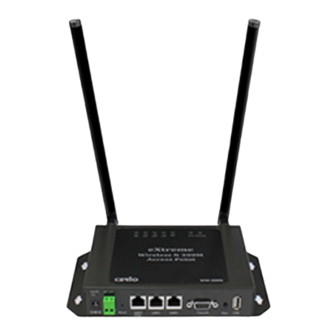

Aspiring to provide the best performance/price ratio for both SMB and industrial applications, CERIO WM-200N is uniquely designed for Wall Mount with metal case and IP50 rating for a fast, robust, secure and business class access point perfect for installation in factories, warehouses, hotels marinas, hospitals, large homes, hotspot and more. - Page 3 User’s Manual Quick Installation Guide Features Key Feature 300mW Pure Output Power for 11n Mode , Provide best WiFi coverage Operation Modes : Access Point, WDS (Repeater) Maxmum Security with 802.1x, WPA, and AES Integragted IEEE 802.3af Power over Ethernet (PoE) Dual PoE Power redundancy ...
- Page 4 User’s Manual Quick Installation Guide Panel Function Description There are several LED indicators and button on the front of the WM-200N. Please refer to the definitons below : Front Panel Real Panel LED Panel...
- Page 5 → default configurations. The SYSTEM LED will be FLASH ( Reset factory default ) 6. Antenna : WM-200N supports 1 RF Interface with 2 SMA connectors for Antenna connection. 7. STATUS: LED ON indicates System up, OFF indicates down, FLASH indicates Scan button activated.
-
Page 6: First-Time Installation And Configuration
The best location for WM-200N is usually at the center of your wireless network. Connect WM-200N to your external network device. Connect one end of the Ethernet cable to the LAN1 port of WM-200N on the front panel. On your environment, connect the other end of the cable to the external Internet. - Page 7 Set the IP segment of the administrator's computer to be in the same range as WM-200N for accessing the system. Do not duplicate the IP Address used here with IP Address of WM-200N or any other device within the network.
- Page 8 User’s Manual Quick Installation Guide Select “Use the following IP address”, and type in IP Address : 192.168.2.100 Subnet mask : 255.255.255.0 Launch Web Browser Launch as web browser to access the web management interface of system by entering the default IP Address, http://192.168.2.254, in the URL field, and then press Enter.
-
Page 9: Quick Configuration
WM-200N. Quick Configuration WM-200N is a two mode system which can be configured either as a access point or an WDS as desired. This section provides a step-by-step configuration procedure for basic... - Page 10 User’s Manual Quick Installation Guide AP Mode Ensure the Operating Mode is currently at AP mode; the web management UI can be viewed at the Status section under the System Overview page. (default operating mode is in AP Mode) Mode Confirmation ...
-
Page 11: Change Password
By default, the password for “root” user is “default”, if you login as “root” user that means you had granted an administrator privilege, an administrator has the right to modify anything on WM-200N. Click Save button, and process with steps followed. -
Page 12: Lan Setup
For the reason to management the WM-200N with an easy way, we recommend you to use “Static IP” for WM-200N, you must assign an “IP address”, “IP Netmask” and “IP Gateway” in the related fields, please notice that, if you enter a wrong information in this page, the WM-200N will not work properly, please make sure the whole IP information is suitable for your network. - Page 13 User’s Manual Quick Installation Guide Enable “Static IP” and “Specify DNS Server IP” option, and enter the related informations in the field. Click Save button to save the settings.
-
Page 14: Time Server Setup
User’s Manual Quick Installation Guide Time Server Setup Click System -> Time Server, and then Time Server Setup page appears. Enable “Setup Time Use NTP”, and then enter the related information. Click Save button to save the settings. - Page 15 Click Wireless -> Virtual AP Setup, and then VAP Setup page appears. By default, the WM-200N will only enable one Virtual AP, click “Edit” and then VAP0 Configuration page appears. Setup the broadcasting ESSID for easily identifying the system when device is...
-
Page 16: Wireless Security Settings
User’s Manual Quick Installation Guide Wireless Security Settings ... - Page 17 WPA2 key information required in the Pre-shared Key field, and the same information will also be used to set up devices which will then be using WM-200N services.
- Page 18 User’s Manual Quick Installation Guide Click “Save” and “Reboot” to activate all settings configured so far. Congratulation! The AP mode is now successfully configured.
