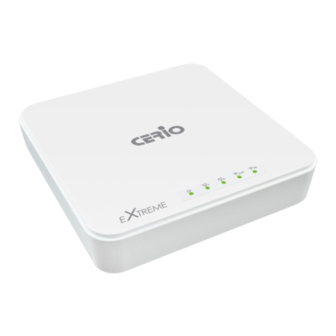

Cerio CW-400NAC Quick Start Manual

Extreme power ac1200 2.4ghz / 5ghz 2x2 ceiling / wall poe access point ( 800mw )
Hide thumbs Also See for CW-400NAC:

Advertisement

Quick Links

Download this manual
CERIO Corporation
CW-400NAC
eXtreme Power AC1200 2.4GHz / 5GHz 2x2
Ceiling / Wall PoE Access Point ( 800mW )
Quick Start Guide
V1.0a

Advertisement

loading
Need help?

Need help?

Do you have a question about the CW-400NAC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cerio CW-400NAC

Summary of Contents for Cerio CW-400NAC

  • Page 1 CERIO Corporation CW-400NAC eXtreme Power AC1200 2.4GHz / 5GHz 2x2 Ceiling / Wall PoE Access Point ( 800mW ) Quick Start Guide V1.0a...

  • Page 2: Table Of Contents

    Overview.............................. 3 Product Outward Appearance ....................... 3 Panel Function Description......................4 LED Explanation..........................5 Mounting Installation ........................5 Uninstallation for Mounting kit ...................... 6 Software Configuration ........................7 Login CW-400NAC Web Page ...................... 11 V1.0a...

  • Page 3: Overview

    Overview The CW-400NAC eXtreme Power AC1200 2.4GHz / 5GHz 2x2 Ceiling / Wall PoE Access Point is an AC1200 Wireless concurrent dual band wifi device. CW-400NAC bundles Cerio CenOS 3.0 Software Core and supports Cerio Wireless Management Software (CWMS), enabling connection to Wireless Indoor Networks for service providers deploying last mile services to home, businesses, and residential broadband subscribers.

  • Page 4: Panel Function Description

    3. Panel Function Description 1. 12V / 1A DC input power (The power adapter by optional) The Ethernet connect by Ethernet2 Port, Support PoE Bridge function. 3. Reset button (Please press and hold for about 15 seconds and then release) The Ethernet connect by Ethernet1 Port, Support PoE in.

  • Page 5: Led Explanation

    4. LED Explanation (1) Power LED (2) RJ-45 Ethernet LED of the LAN1 connection (3) RJ-45 Ethernet LED of the LAN2 connection (4) 2.4G Wi-Fi LED (5) 5G Wi-Fi LED 5. Mounting Installation V1.0a...

  • Page 6: Uninstallation For Mounting Kit

    1. Position the Mounting Bracket in the desired location. Use the screws and anchors in the mounting kit to secure the bracket into position. 2. Align the device with the mounting Hinges on the bracket. Ensure that the mounting clips fit correctly into each slot.

  • Page 7: Software Configuration

    Software Configuration PC link to device setup by OS Windows7 Please PC link to Device used cat5/6 Ethernet cable. Step 1 : Please click on the computer icon in the bottom right window, and click “Open Network and Sharing Center” Step 2 : In the Network and Sharing Center page, Please click on the left side of “Change adapter setting”...
  • Page 8 Step 3 : In “Change adapter setting” Page. Please find Local LAN and Click the right button on the mouse and Click “Properties” V1.0a...
  • Page 9 Step 4 : In “Properties” page, please Click “Properties” button to TCP/IP setting Step 5 : In Properties page to setting IP address, please find “Internet Protocol Version 4 (TCP/IPv4)” and double click or click “Install” button. Double click Or click Install button V1.0a...
  • Page 10 Step 6 : Select “Use the following IP address”, and fix in IP Address : 192.168.2.# ex. The # is any number by 1 to 253 Subnet mask : 255.255.255.0 And Click "OK" to complete the fixed computer IP setting Please Open Web Browser Without a valid certificate, users may encounter the following problem in IE7 when they try to access system's WMI (https://192.168.2.254).

  • Page 11: Login Cw-400Nac Web Page

    8. Login CW-400NAC Web Page Launch Web Browser Launch as web browser to access the web management interface of system by entering the default IP Address, http://192.168.2.254, in the URL field, and then press Enter. System Login Please use default Users name: “root” and default password “default” to login.
