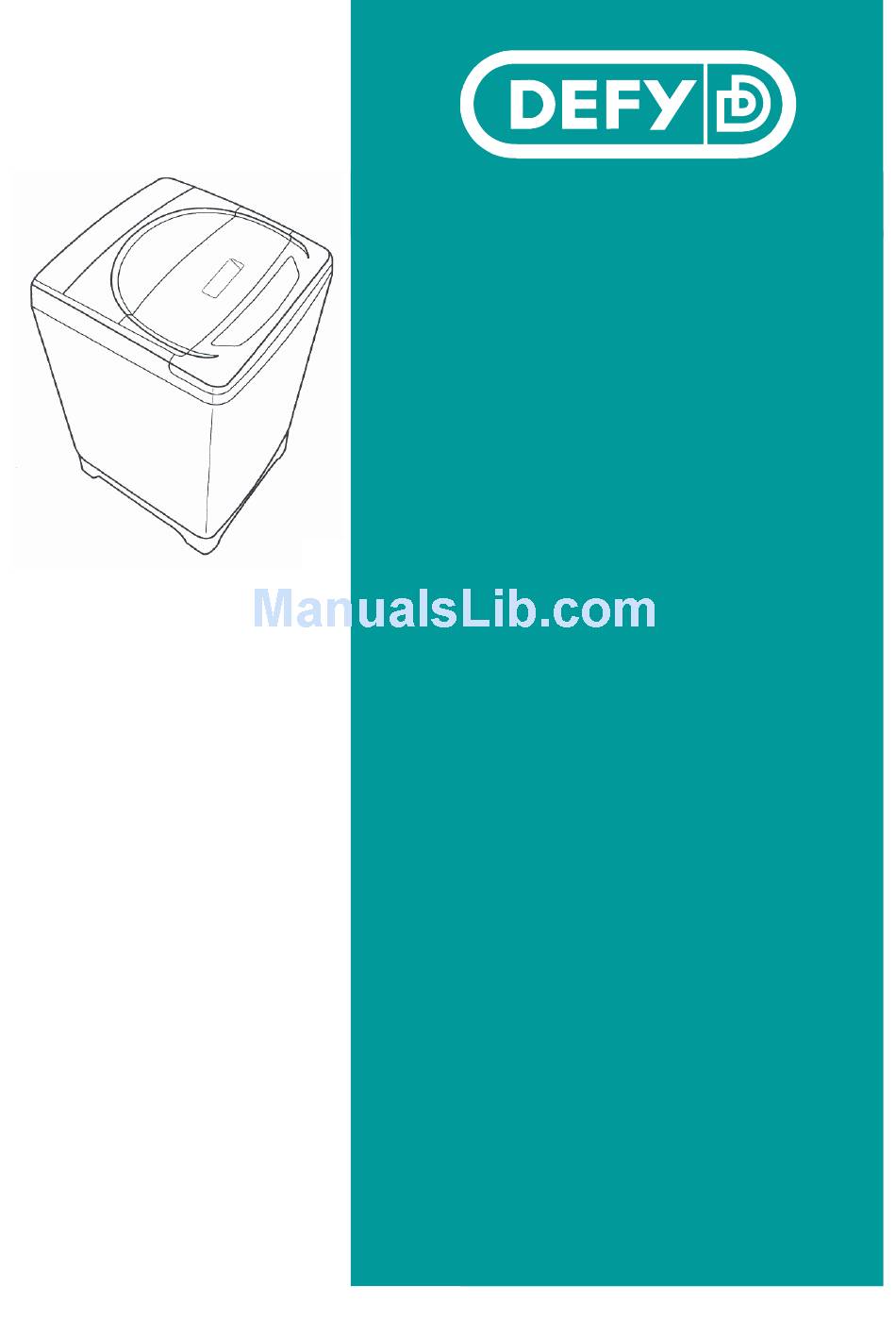

OWNER'S
MANUAL

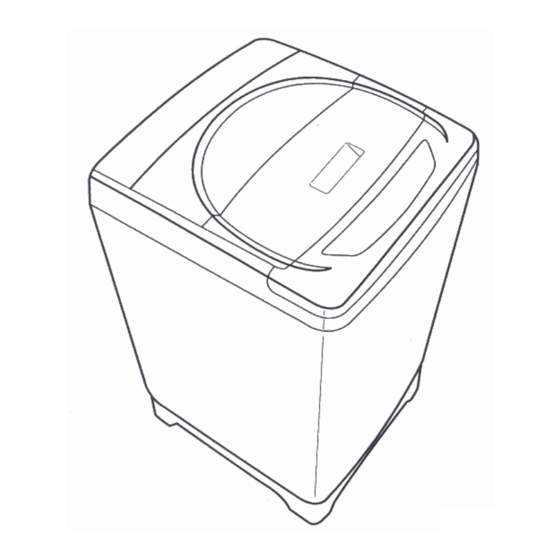

Laundromaid
ELECTROLOGIC 720
TOP LOADING
AUTOMATIC
WASHING MACHINE
The Manufacturer strives for
continuous improvements.
For this reason, the text and illus-
trations in this book are subject
to change without notice.
www.defy.co.za
YOU CAN RELY ON DEFY
2 INTRODUCTION.
2 FEATURES.
2 ACCESSORIES.
3 SAFETY PRECAUTIONS.
4 INSTALLATION.
Unpacking,
Positioning,
Inlet hoses,
Electrical installation.
Connecting the drain hose,
Outlet drain requirements.
6 LOADING THE MACHINE.
6 TECHNICAL SPECIFICATIONS.
7 CONTROL FUNCTIONS.
8 OPERATION.
Before operating,
Adding detergent,
Adding bleach,
Adding softener,
Operating the machine.
9 PROGRAMME SELECTION.
Fuzzy,
Heavy,
Quick,
Wool.
10 USER DEFINED PROGRAMMES.
Wash time,
Rinse time
Spin time,
Spin only,
Time delay.
11 MAINTENANCE.
Cleaning and care
Lint filter,
Water inlet filter,
Drain filter.
13 STAIN REMOVAL GUIDE.
14 TROUBLE SHOOTING.
15 SERVICE CENTRES.
16 WARRANTY.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Defy ELECTROLOGIC 720
Summary of Contents for Defy ELECTROLOGIC 720
- Page 1 OWNER’S MANUAL YOU CAN RELY ON DEFY 2 INTRODUCTION. 2 FEATURES. 2 ACCESSORIES. 3 SAFETY PRECAUTIONS. 4 INSTALLATION. Unpacking, Positioning, Inlet hoses, Electrical installation. Connecting the drain hose, Outlet drain requirements. 6 LOADING THE MACHINE. 6 TECHNICAL SPECIFICATIONS. Laundromaid 7 CONTROL FUNCTIONS.
- Page 2 Introduction You are now the proud owner of one of the finest and most modern washing machines that today’s technology can pro- duce. You and your machine are going to make a great team together. But first it will pay if you really get to know each other.
-
Page 3: Safety Precautions
Safety precautions Do not reach inside the tub while the machine is working. Wait until all motion stops. Before washing, check all clothes for loose buttons and tears. Check pockets for coins, pins or other small articles. Close zips and fasteners. Wash small articles inside a pillow slip. -
Page 4: Electrical Installation
The machine should be connected to an earthed 3 pin do not accept respon- wall socket. sibility for • If the power-cord should ever need replacing, use only a any damage due to in- genuine cord available from the nearest Defy Service correct Centre. electrical connection. Page 4... -
Page 5: Drain Hose
Installation continued DRAIN HOSE • Connect the drain hose to the drain outlet at the rear of the machine and secure it with the hose clamp supplied. • Fit the flexible hose guide. • Hook the outlet end of the drain hose over the lip of a sink or outlet pipe. -
Page 6: Loading The Machine
Loading the machine PREPARATION • Close all zippers, snaps and hooks to prevent them from snagging other articles. • Remove pins and other hard items to prevent them from scratching the machine. • Empty all pockets and turn them inside out. •... - Page 7 Control functions SOAK POWER HIGH FUZZY WASH MED. HEAVY RINSE COLD QUICK SPIN HOURS WOOL START E L E C T R O L O G I C 7 2 0 E L E C T R O L O G I C 7 2 0 HOLD WASH TEMP.
-
Page 8: Operation
Operation BEFORE ANY OF THE WASH OPTIONS ARE SELECTED YOU MUST FIRST: • Insert the power plug into an earthed wall socket and switch on. • Open the hot and cold water taps. • Load the washing into the machine.( see Loading) •... -
Page 9: Programme Selection
Programme selection FUZZY LOGIC PROGRAMME This machine has Fuzzy Logic sensors. These enable it to evaluate each load placed in the drum and to select and modify a wash programme to suit the load. Do not use the FUZZY programme for woollen or delicate garments. POWER START HOLD... -
Page 10: User Defined Programmes
User defined Programmes SWITCHING ON Press the POWER /ON pad SETTING THE WASH TIME MODE Press the Mode pad and select WASH Press the Control pad repeatedly to select the wash time CONTROL 12 > 15 > 18 > 0 > 6 > 9 Minutes If you do not want a wash cycle, you must select (0) minutes. -
Page 11: Maintenance
TIME DELAY First select and set the programme, you require, as described previ- ously. Press the TIME DELAY pad as many times as you require. The digital dis- TIME DELAY play shows the delay time. Every press of the pad delays the completion time by one hour. -
Page 12: Cleaning The Lint Filter
Maintenance continued CLEANING THE LINT FILTER Filter Frame Pull the filter frame upwards. Turn the filter inside out and Re-shape the filter mesh remove any lint and dirt and fit the filter frame under running water. back in it’s slot. CLEANING THE WATER INLET FILTER •... -
Page 13: Stain Removal Guide
Stain removal guide Rinse immediately and then soak in cold water with an enzyme Blood. based detergent before washing in cold water. Cocoa , Chocolate. Rinse immediately and then soak in cold water with an enzyme based detergent before washing in cold water. Chewing gum. -
Page 14: Troubleshooting
Trouble shooting Most problems are easily solved if the cause is known BEFORE CALLING A SERVICE TECHNICIAN PLEASE CHECK THE FOLLOWING: PROBLEM CHECK The machine will not operate at all. Is there a power failure? Has the power pad been pressed? Has the start / hold pad been pressed? Is there water in the tub? There is a restricted or no water supply. -
Page 15: Service Centres
Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. -
Page 16: Warranty
Warranty This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
Need help?
Do you have a question about the ELECTROLOGIC 720 and is the answer not in the manual?
Questions and answers
Water runs out as u start up
Water may run out when starting the Defy ELECTROLOGIC 720 if the drain hose is not installed correctly, is too low, or is siphoning water. The manual does not specifically state this, but improper drain hose placement can cause water to drain immediately. Additionally, check if the tap is open, water supply is functioning, and the inlet filter is not blocked.
This answer is automatically generated
When you press start button it shows LE
