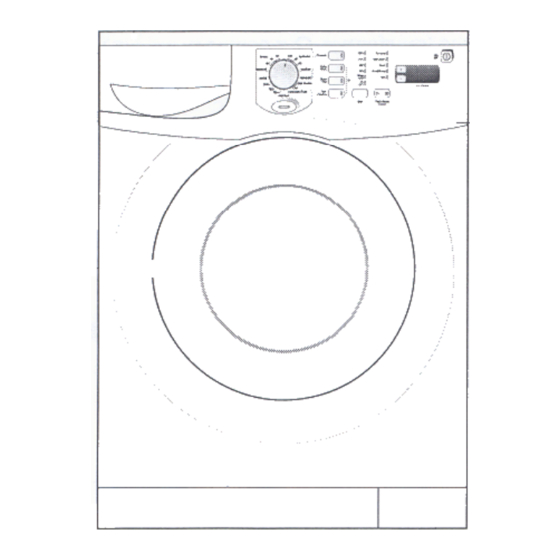

Defy MAXIMAID 720W Owner's Manual

Electronic automatic washing machine
Hide thumbs Also See for MAXIMAID 720W:
Table of Contents

Advertisement

Quick Links

PAGE
INDEX
2
2
Packaging
•
2
•
3
•
3
Water connection
•
3
•
4
•
4
DETERGENT DRAWER
4
CONTROL PANEL
5
5
Quick Wash button
•
5
•
5
•
5
Spin speed selection
•
5
Rinse and hold
•
5
Wash programme selector
•
5
•
6
6
6
•
6
•
7
•
8
OPERATING NOTES
8
On / Off
•
8
•
8
•
9
•
9
•
9
Adding additional laundry
•
9
Time display
•
9
•
10
11
11
•
11
•
11
•
11
General cleaning
•
12
•
12
•
12
Drum
•
12
OWNER'S RESPONSIBILITY
13
PROBLEM WASHING CHECK LIST
13
TROUBLE SHOOTING
15
INTERNATIONAL SYMBOLS
16
17
20
TECHNICAL SPECIFICATIONS

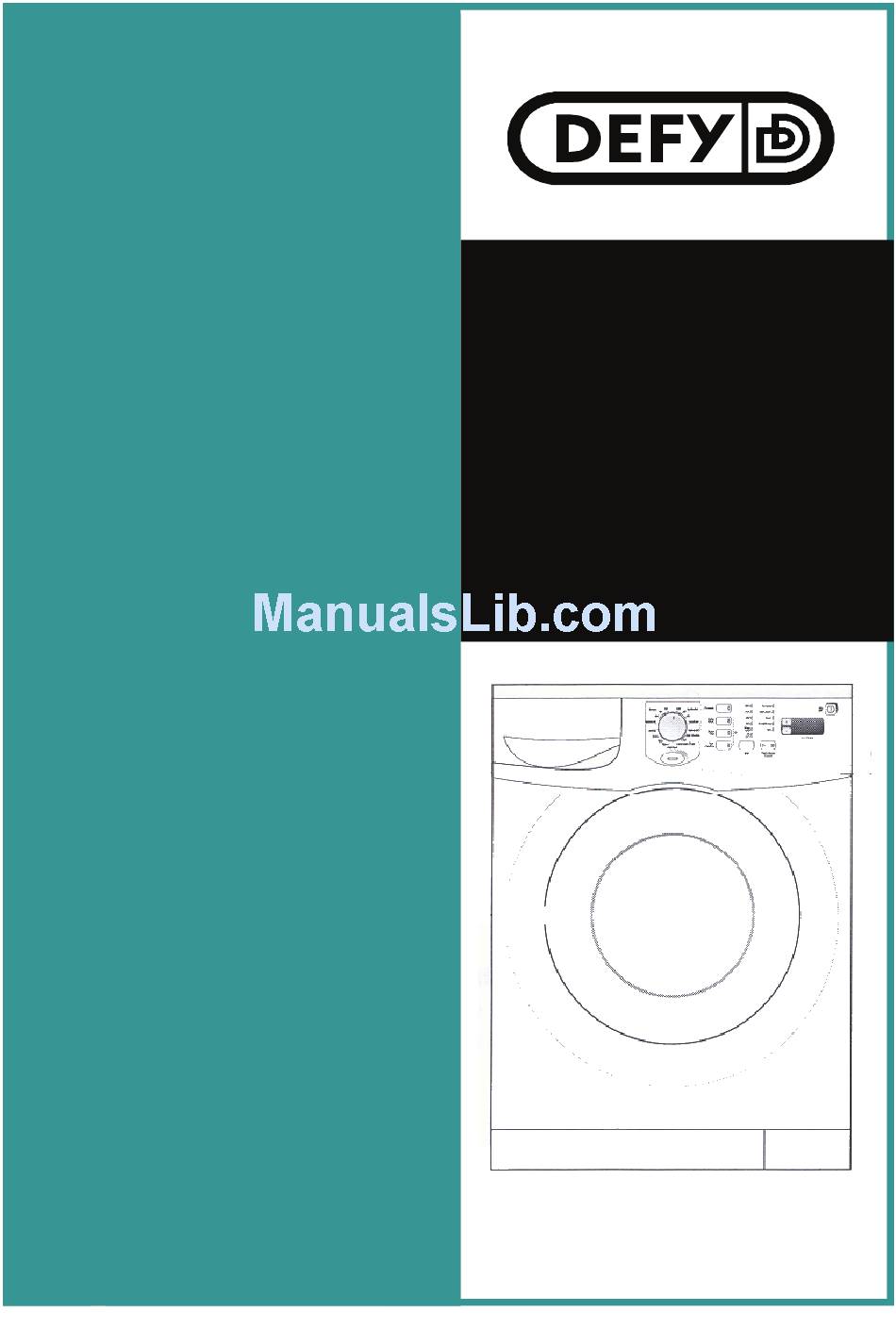

You can rely on Defy
OWNER'S MANUAL
Maximaid
Maximaid
ELECTRONIC
AUTOMATIC WASHING MCHINE
www.defy.co.za
Page 1
720m
720w

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXIMAID 720W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Defy MAXIMAID 720W

Summary of Contents for Defy MAXIMAID 720W

  • Page 1 PAGE INDEX INSTALLATION Packaging • Transport fittings • Levelling • Water connection • Water drainage • Electrical connection • DETERGENT DRAWER CONTROL PANEL FEATURES Quick Wash button • Rinse plus • Anti creasing • Spin speed selection • Rinse and hold •...
  • Page 2 Thank you for choosing Defy You are now the proud owner of one of the finest and most modern washing machines that today’s technology can pro- duce. You and your Maximaid are going to make a great team together. But first it will pay if you really get to know each other.
  • Page 3 Levelling 1. The machine must stand firmly on the floor. Any instability will negatively affect its performance. 2. The machine has two adjustable feet at the front. 3. To level the machine, loosen the plastic lock nuts on the adjustable feet. 4.
  • Page 4 Electrical connection 1. The power cord must be connected to a 15 amp earthed wall socket 2. Do not connect the machine through a double adaptor. It requires a dedicated power point 3. If the power cord should ever need replacing, use only a genuine cord ( Type ‘X’) available from the nearest Defy Service Centre.

  • Page 5: Features

    Quick Wash button Selecting this feature will shorten the wash time for lightly soiled fabrics. Quick wash may be used for cotton and synthetic programmes at temperatures below 60°C. Rinse Plus Selecting this feature will adds an extra rinse to the was cycle. This is particularly use- ful for removing any residual detergent from absorbent fabrics.

  • Page 6: Hints

    Sort washing by material type. • Adhere to garment label washing instructions. • Fasten zips to prevent them snagging other articles. • Mend loose seams and tears before washing. • Secure all loose buttons. • Empty all pockets of coins and loose objects. •...
  • Page 7 Operating the machine continued Washing Plug the machine in and switch on at the wall socket. Open the water tap. Check that the drain hose is in position and is free of kinks. 1. Press the ON/OFF button. 2. Press the DOOR OPEN button. 3.
  • Page 8 On / Off After pressing the On/Off button, the machine is ready to accept the desired pro- • gramme, spin speed and auxiliary programmes. The DOOR OPEN light will glow , indicating that the door may be opened. The duration of the selected programme may be observed in the display window.

  • Page 9: Adding Laundry

    Operational notes continued Auxiliary function selection. The machine will restrict certain selections and make it impossible to select all • the auxiliary functions in a single wash programme. For example, if the COTTON programme is selected, the QUICK WASH and PREWASH can not be selected at the same time.
  • Page 10 Wash programme guide Depending on water, textile and ambient con- ditions, the values given may deviate from the standards as tested in laboratory conditions. Programme Fabric type Cotton 90 Heavily soiled fabrics made from cotton or linen, heat resistant. Normally soiled fabrics made Cotton 60 from cotton or linen, heat resistant.
  • Page 11 Care and maintenance Detergent Dispenser To remove residual detergent, pull the dispenser drawer outward, press on the marked area of the siphon, and pull the drawer free. Wash the dispenser and the housing in water before re-inserting the dispenser. Siphon To prevent clogging, the siphon ( the coloured component in the dispenser ) should be cleaned after every 30—40 washes.
  • Page 12 Care and maintenance The water intake filter Water intake filters are located at the machine inlet valve and at the tap end • of the inlet hose. These filters prevent dirt from entering the machine and should be cleaned periodically. (every 30 to 40 washes.) Close the tap and disconnect the inlet hose.
  • Page 13 Problem washing—Check list Greasy stains on washing. Use more detergent if washing is heavily soiled. • Use both prewash and main wash programmes. • Check that the machine is not overloaded. • Grey, dirty looking washing. Use more detergent if the washing is heavily soiled or if the machine is located in a •...
  • Page 14 Trouble shooting ( continued ) The machine will not work at all. Check: House fuses or circuit breakers. • Wall socket ( plug in another appliance to check ) • That the door is closed properly. • That the water tap is open. •...
  • Page 15 International fabric care labels Recommended washing temperature Bleach can be used Do not use bleach Wash by hand only Dry on horizontal surface Do not wash Dry clean Chemicals can be used No dry cleaning No spin May be washed in centrifugal machine Do not wash in centrifugal machine...
  • Page 16 Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. Commercial Head Office, Administration, Distribution, National Groups, Tel.
  • Page 17 This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
  • Page 18 Notes Page 18...
  • Page 19 Notes Page 19...
  • Page 20 TECHNICAL SPECIFICATION You can rely on Defy Maximaid 720 Height 850 mm. Width 600 mm. Depth 590 mm. Net weight 76 kg. Power requirement 220-230 V, 50 Hz. Nominal current 10 A Total power 2400 W Washing speed 52 rev/min Max. Spin speed 1200 rev/min Top lid...
