OWNER'S
MANUAL
TOP
LOADING
AUTOMATIC
WASHING
MACHINE
www.defy.co.za
YOU CAN RELY ON DEFY
E L E C T R O L O G I C 1 3 0 0
INDEX
INDEX
2 Features.
2 Accessories.
3 Safety precautions.
4 Installation.
5 Electrical installation.
6 Loading the machine.
7 Control functions.
8 Programme selections.
9 Time delayed start.
9 Customising programmes.
10 Adding detergents.
11 Starting the machine.
11 Maintenance.
12 Technical specification.
13 Trouble shooting.
14 Service.
15 Warranty.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Defy LAUNDROMAID Electro Logic 1300
Summary of Contents for Defy LAUNDROMAID Electro Logic 1300
-
Page 1: Washing Machine
OWNER’S MANUAL YOU CAN RELY ON DEFY E L E C T R O L O G I C 1 3 0 0 INDEX INDEX 2 Features. 2 Accessories. LOADING 3 Safety precautions. AUTOMATIC 4 Installation. 5 Electrical installation. WASHING 6 Loading the machine. - Page 2 Congratulations You are now the proud owner of one of the finest and most modern washing machines that today’s technology can pro- duce. You and your machine are going to make a great team together. But first it will pay if you really get to know each other.
-
Page 3: Safety Precautions
Safety precautions Do not reach inside the tub while the machine is working. Wait until all motion stops. Before washing, check all clothes for loose buttons and tears. Check pockets for coins , pins or other small articles. Close zips and fasteners. Wash small articles inside a pillow slip. -
Page 4: Installation
Installation UNPACKING • Remove all packaging and dispose of it in a responsible manner. • Open the wash-tub lid and remove all the accessories stored in the drum. • Do not attempt to operate the machine while any of the packaging is still in place. POSITIONING •... -
Page 5: Electrical Installation
The machine should be connected to an earthed 3 pin wall socket. • If the power-cord should ever need replacing, use only a genuine cord available from the nearest Defy Service Centre. The appliance must be earthed and the manufacturer and seller... -
Page 6: Loading The Machine
Loading the machine PREPARATION • Close all zippers, snaps and hooks to prevent them from snagging other articles. • Remove pins, and other hard items to prevent them from scratching the machine. • Empty all pockets and turn them inside out. •... -
Page 7: Control Functions
Control functions FUZZY LOGIC COLD DETERGENT AIR POWER PROGRAMME POWER ON / OFF HIGH SOAK MED. FEED WASH TEMP HOUR START SMALL HOLD WATER PROGR. LEVEL SPIN DELAY RINSE WASH Press this pad to turn the power on or off. Press this pad to select the water temperature. -
Page 8: Programme Selection
Programme selection FUZZY LOGIC PROGRAMME This machine has Fuzzy Logic sensors. These enable it to evaluate each load placed in the drum and to select and modify a wash programme to suit the load. Do not use the FUZZY programme for woollen or delicate garments. POWER To select Fuzzy, simply press the POWER On pad and then the START /... -
Page 9: Time Delayed Start
WOOL PROGRAMME ( The water temperature is automatically set to COLD ) Wash 1.5 kg maximum. Do not wash chamois or leather. START PROGR. HOLD Select WOOL NOTE: Water temperature is automatically set at COLD and LOW Water level is not selectable. Time delayed start The wash cycle completion time may be delayed by 2 to 48 hours. - Page 10 BEFORE ANY OF THE WASH OPTIONS ARE SELECTED YOU MUST FIRST: • Insert the power plug into an earthed wall socket and switch on. • Open the hot and cold water taps. • Load the washing into the machine.( see Loading) •...
-
Page 11: Maintenance
Starting the machine STARTING THE MACHINE • Close the lid. • Press the POWER ON pad. • Select the desired wash cycle ( either fully automatic FUZZY or any of the pre- programmed washes BLANKET, ECONOMY, WOOL, SOAK or any customised pro- gramme). -
Page 12: Technical Specifications
Maintenance continued CLEANING THE WATER INLET FILTER • Periodically clean the water inlet filter. • Remove the power plug from the wall socket. • Turn off the water taps. • Separate the inlet hose and remove the mesh filter. • Clean the filter with an old toothbrush and re-fit. -
Page 13: Troubleshooting
Trouble shooting Most problems are easily solved if the cause is known BEFORE CALLING A SERVICE TECHNICIAN PLEASE CHECK THE FOLLOWING: PROBLEM CHECK The machine will not operate at all. Is there a power failure? Has the power pad been pressed? Has the start / hold pad been pressed? Is there water in the tub? There is a restricted or no water supply. -
Page 14: Service Centres
Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. -
Page 15: Warranty
Warranty This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance. - Page 16 You can rely on Defy The Manufacturer strives for continuous improvements. For this reason, the text and illustrations in this book are subject to change without notice. Part Number 062 660 Page 16...
Need help?
Do you have a question about the LAUNDROMAID Electro Logic 1300 and is the answer not in the manual?
Questions and answers

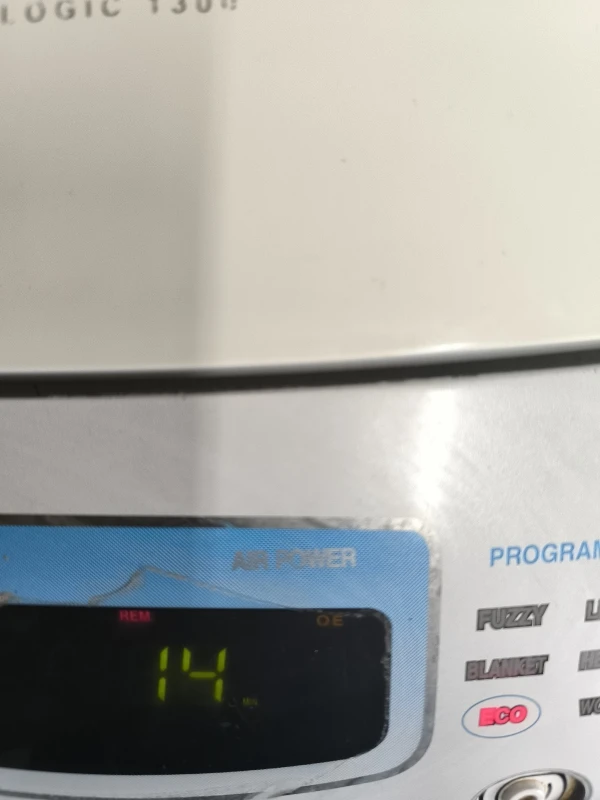

What does the error code OE means
The error code OE on the Defy LAUNDROMAID Electro Logic 1300 indicates that the machine is not draining properly. This happens when draining is not completed within a specified time limit. Possible causes include a blocked or frozen drain hose, a kinked or deformed drain hose, the end of the drain hose being immersed in water, or excessive dirt in the drain filter. When this error occurs, a buzzer will sound to indicate the problem.
This answer is automatically generated
Was spindle wont engage in my 1300 to loader

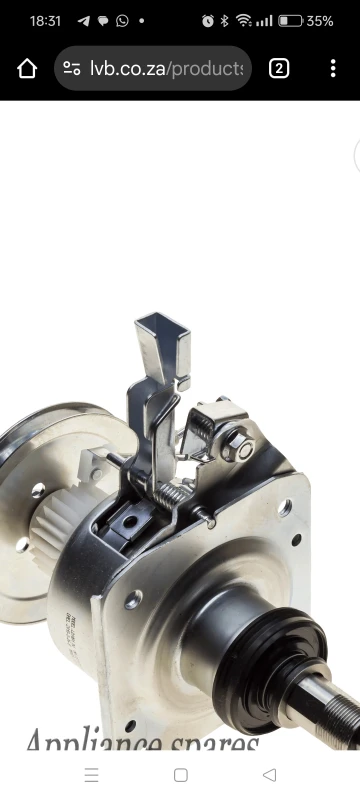

What gearbox is installed
