Defy Automaid 600 Owner's Manual
Hide thumbs Also See for Automaid 600:

Advertisement

PAGE
INDEX
2
INSTALLATION
2
Packaging
2
Transport fittings
3
Levelling
3
Water connection
3
Water drainage
4
Electrical connection
4
DETERGENT dispenser
4
CONTROL PANEL
5
FEATURES
5
Detergent dispenser
5
Temperature control
5
Wash programme selector
5
On / Off button
5
No Heat button
5
Rinse and hold button
6
Door
6
HELPFUL HINTS
7
PROGRAMME SELECTION GUIDE
OPERATING THE MACHINE
8
8
Sorting
8
Loading
8
Washing
8
Unloading
9
CARE AND MAINTENANCE
9
Detergent drawer
9
Siphon
9
Filters
9
General cleaning
10
The pump filter
10
FABRIC CARE LABELS
11
PROBLEM WASHING CHECK
11
TROUBLE SHOOTING
13
SERVICE CENTRES
14
WARRANTY
15
TECHNICAL SPECIFICATIONS
You can rely on Defy
OWNER'S MANUAL
Automaid
www.defy.co.za
Page 1
600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Automaid 600 and is the answer not in the manual?

Questions and answers

Shane Ellis
March 1, 2025

The machine turns once and then stop

1 comments:
Mr. Anderson
May 14, 2025

The cause of the Defy 600 machine turning once and then stopping could be related to a water level issue or a power supply problem to the water pump. If the water pump cannot get power and there are no visible loose connections, it may indicate a fault in the control board, wiring, or pump itself. Also, if the machine is not filling with water properly, it may stop early in the cycle. Check the water intake filters for blockages and confirm that the water tap is open and the hose is not kinked.

This answer is automatically generated

Melissa
June 21, 2025

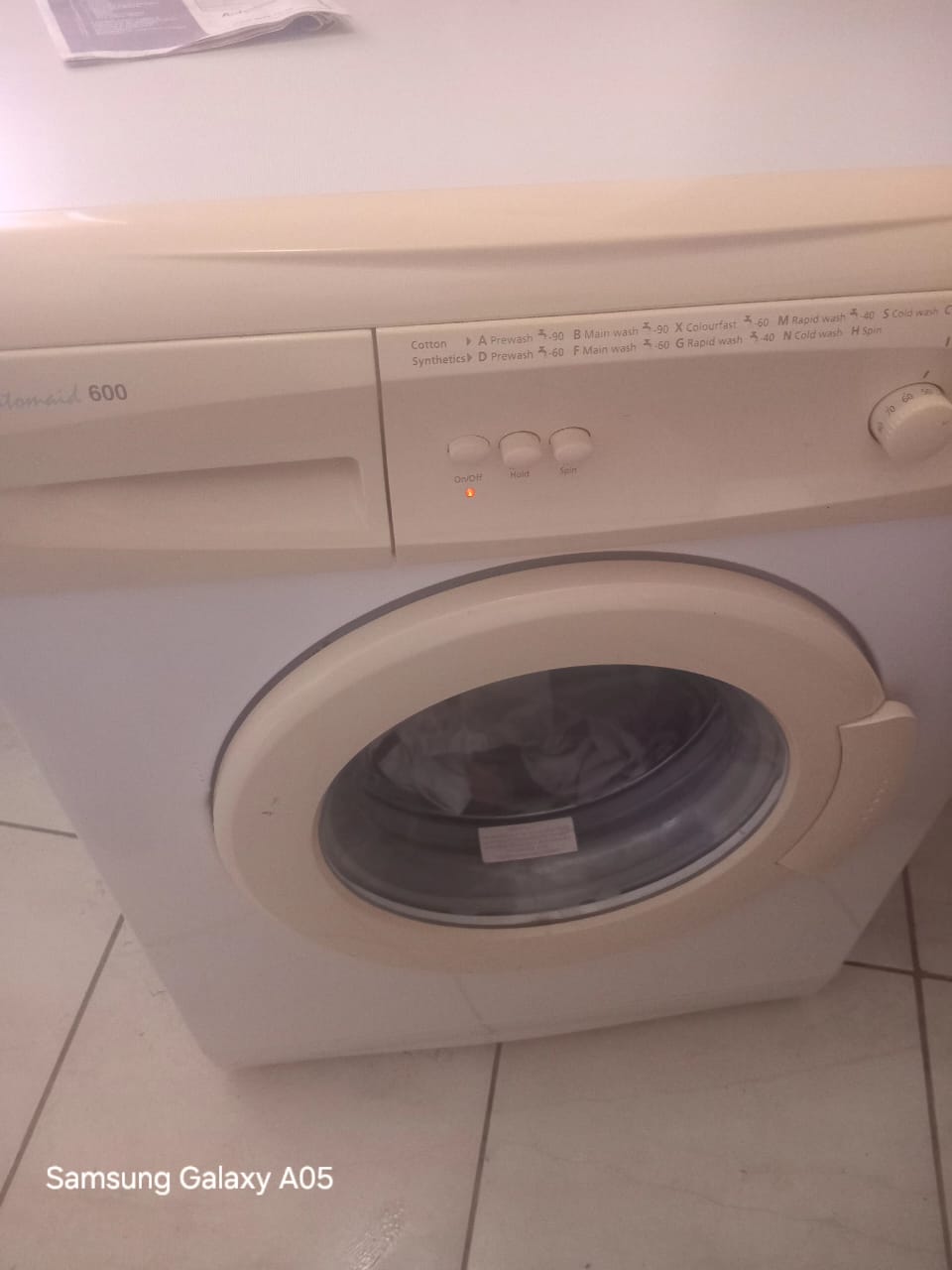

Our machine does not want to work but power button is on

User image 68568fb396135

Summary of Contents for Defy Automaid 600

  • Page 1 PAGE INDEX INSTALLATION • Packaging • Transport fittings • Levelling • Water connection You can rely on Defy • Water drainage • Electrical connection DETERGENT dispenser CONTROL PANEL FEATURES • Detergent dispenser • Temperature control OWNER’S MANUAL • Wash programme selector •...
  • Page 2: Installation

    Thank you for choosing Defy You are now the proud owner of one of the finest and most modern washing machines that today’s technology can pro- duce. You and your Automaid are going to make a great team together. But first it will pay if you really get to know each other.
  • Page 3: Levelling

    Levelling 1. The machine must stand firmly on the floor. Any instability will negatively affect its performance. 2. The machine has two adjustable feet at the front. 3. To level the machine, loosen the plastic lock nuts on the adjustable feet. 4.
  • Page 4: Electrical Connection

    3. If the power cord should ever need replacing, use only a genuine cord ( Type ‘X’) available from the nearest Defy Service Centre. The appliance must be earthed and the manufacturer and seller do not accept responsibility for any damage due to incorrect electrical connection.
  • Page 5: Features

    Features 1 Detergent dispenser. The detergent dispenser has 3 compartments. ( See page 4.) Use only low foam detergents specifically designed for front loading automatic washing machines. Dose as per the manufacturer’s recommendations on the detergent pack. Dosage may vary according to wash load, dirt and water hardness. 2 On / Off button.
  • Page 6: Helpful Hints

    Features Door Open the door by gently pulling on the handle. Close the door by pushing firmly until it clicks into place. Note: The door locks during the wash cycle Switch the machine off and allow 1 to 2 minutes for the safety lock to disengage.
  • Page 7: Programme Selection Table

    Programme selection guide PROGRAMME DETERGENT °C LOAD OPTION BUTTONS COMPT RINSE & HOLD NO SPIN COTTON AND LINENS HEAVILY COLD WHITE PRE-WASH A –B-C SOILED To 90 COLD MAIN WASH NORMALLY TO 90 SOILED COLD COLOUR FAST LIGHTLY TO 60 SOILED COLD NON COLOUR FAST...
  • Page 8: Operating The Machine

    Operating the machine Sorting the laundry Sort the laundry in one of the following groups: 1. White cotton and linen as well as robust colourfast fabrics. 2. Synthetics and synthetic blends as well as non colourfast fabrics 3. Delicate fabrics such as silks and rayon 4.
  • Page 9: Detergent Dispenser/Siphon

    Periodically check the inlet and outlet hoses for leaks, perishing or cracks. In very cold conditions water in the hoses may freeze. In this instance, empty the hoses after the wash is complete. Replacement hoses may be purchased from your nearest Defy Service Centre. Page 9...
  • Page 10: Cleaning Pump Filter

    Care and maintenance Cleaning the pump filter A filter prevents foreign objects from entering and dam- aging the pump. This filter should be cleaned after every 30-40 washes. First disconnect the machine from the power supply. Use a large screwdriver or coin to turn the plastic fasteners in the kick panel through 90°.
  • Page 11: Problem Washing-Check List

    Problem washing—Check list Greasy stains on washing. • Use more detergent if washing is heavily soiled. • Use both pre-wash and main wash programmes. • Check that the machine is not overloaded. Grey, dirty looking washing. • Use more detergent if the washing is heavily soiled or if the machine is located in a hard water area.
  • Page 12 Trouble shooting The machine will not work at all. Check: • House fuses or circuit breakers. • Wall socket ( plug in another appliance to check ) • That the door is closed properly. • That the water tap is open. •...
  • Page 13: Service Centres

    Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it.
  • Page 14: Warranty

    Warranty This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
  • Page 15: Technical Specifications

    Technical specification Option buttons Temperature selector knob Programme selector knob Detergent dispenser Door Kick-panel Kick-panel securing screw Height 850 mm. Width 600 mm. Depth 540 mm. Net Weight 66 kg. Power requirement 230V, 50 Hz. Nominal current 10 A Power 2250 W Washing speed 70 r/min...
  • Page 16: Water Connection

    PAGE INDEX INSTALLATION • Packaging • Transport fittings • Levelling • Water connection You can rely on Defy • Water drainage • Electrical connection DETERGENT dispenser CONTROL PANEL FEATURES • Detergent dispenser • Temperature control OWNER’S MANUAL • Wash programme selector •...
