PCM-QUAD02 User's Guide
The incremental encoders connect to each channel through either a screw terminal board or a user-configurable,
non-terminated cable. The signals provided are (per channel):
Phase A+, A–
Phase B+, A–
Index+, Index–
+5V and GND (optional power for 5V encoders; not to exceed 400 mA peak)

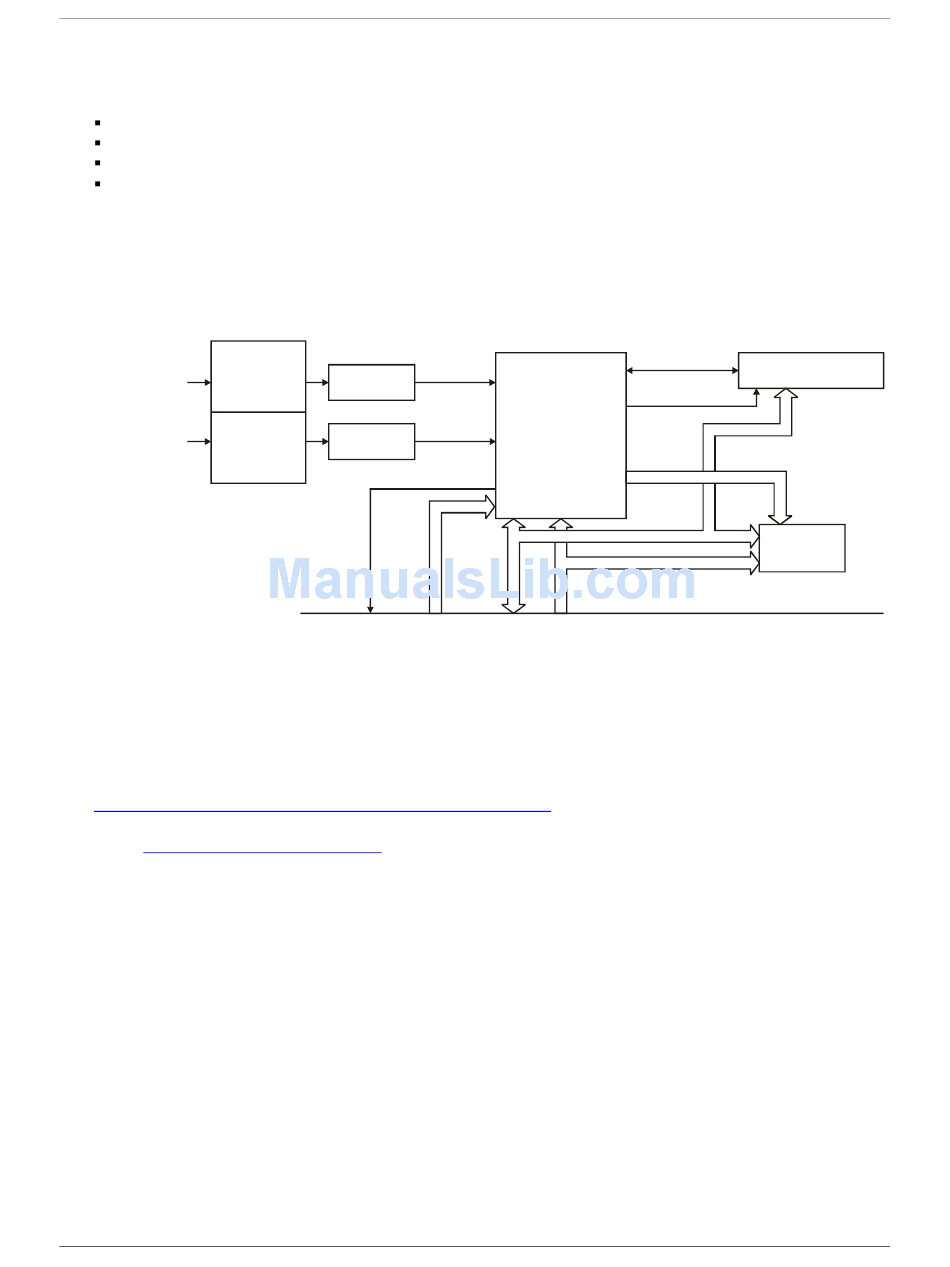

PCM-QUAD02 block diagram

PCM-QUAD02 functions are illustrated in the block diagram shown here.
Configuration
S.E./DIFF
Channel
Setting
Quadature
1
Termination
Encoder
Input
Channel
S.E./DIFF
2
Setting
Termination

Software features

For information on the features of InstaCal and the other software included with your PCM-QUAD02, refer to
the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.
Check www.mccdaq.com/download.htm
Input
75ALS175
75ALS175
Control
IRQ
Figure 1. PCM-QUAD02 functional block diagram
for the latest software version.
FPGA
Control
Decode
Signal Routing
Data
Address
PCMCIA bus
7
Introducing the PCM-QUAD02
LS7266: 24 bit dual-axis
quadrature counter
Channels 1 and 2
Signalling
Control
Data
CIS
Memory
