Summary of Contents for Proline PROV Wall Hood

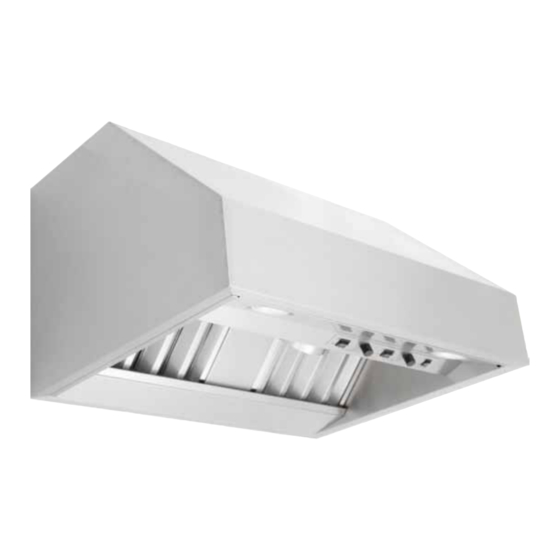

- Page 1 Range Hoods Manual for: PROV Wall Hood user manual...
- Page 2 1-877-901-5530 (Toll Free) Hours: Monday-Friday 7am-5pm Mountain Standard Time Thank you for buying PROLINE! We are dedicated to delivering you quality hoods at amazingly low prices. We are confident you’ll enjoy your new PRO- LINE hood for many years to come.
-
Page 3: Table Of Contents
Table of Contents Saftey Notice Diagrams Hood Dimensions Control Panel . Clearance . Interior Ventilator . Exterior Ventilator . Installation 8-11 Venting Options Hood Installation . 9-10 Duct Cover Option . Care & Cleaning 12-13 Troubleshooting Purchase Information 15-17 Warranty Returns . -
Page 4: Important Safety Notice
Use common sense and caution when installing, maintaining or operating this or any other appliance. Always contact the PROLINE Customer Support Team (1-877-901-5530) with any prob- lems or situations that you do not understand. - Page 5 IMPORTANT SAFETY NOTICE warning If you receive a damaged product, immediately contact PROLINE Customer Support. Do not ♦ install or use a damaged hood. Do not install, repair or replace any part of the range hood unless specifically recommend- ♦...
-
Page 6: Diagrams
PROLINE ranGe HooDs PROV Wall (width) (depth) 30” 29 7/8” (75.9cm) 24” (610cm) 36” 35 7/8” (91.1cm) 24” (610cm) 42” 41 7/8” (106.4cm) 24” (610cm) 48” 47 7/8” (121.6cm) 24” (610cm) 54” 53 7/8” (136.8cm) 24” (610cm) 60” 59 7/8” (152.1cm) -
Page 7: Control Panel
User manUal | Control Panel A) LIGHTS: To turn on lights, flip the switch on the left. Press up (I) to power on, and down (o) to power off. To adjust the brightness of the lights, use the knob on the right. Turning the knob counterclockwise will dim the lights. -
Page 8: Clearance
PROLINE ranGe HooDs clearance dimensions... - Page 9 User manUal | instructions warning It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard. Hoods mounted too high will be hard to reach and will lose performance and efficiency. For best operation, we recommend you: allow 30-36”...
-
Page 10: Interior Ventilator
PROLINE ranGe HooDs internal blower 600 CFM Internal Blower 1200 or 1600 CFM Internal Blower... -
Page 11: Exterior Ventilator
User manUal | In-line blower 600 or 900 CFM In-line Blower 1100 CFM In-line Blower... -
Page 12: Installation
PROLINE ranGe HooDs venting options horizontal wall venting Option 1 Option 2 vertical roof venting preparation Plan where the ductwork will be located. Install proper-sized duct work, and roof or wall cap, depending on where you will be venting your hood. Recommended and most com- mon installations are shown in the venting diagrams above. -
Page 13: Hood Installation
User manUal | wall hood installation step 1 Measure down 1-13/16 (4.6 cm) from desired height of hood and secure 1-1/2” x 3/4” wood strip (provided lo- cally) to wall using screws provided. step 2 Use additional mounting screws to se- cure hood to wood strip. -
Page 14: Hood Installation
10 | PROLINE ranGe HooDs wall hood installation step 4 Slide filter front over front lip. Push filter rear up, then slide back over rear lip. step 5 Slide spacer front over front lip. Push spacer rear up, then slide back over rear lip. -
Page 15: Duct Cover Option
User manUal | 11 duct cover (optional) step 1 (Optional) Measure distance from ceiling to canopy. step 2 (Optional) Slide the duct cover in place and fasten from inside canopy using the sheet metal screws provided. -
Page 16: Care & Cleaning
12 | PROLINE ranGe HooDs Care & Cleaning warning Never put your hand into the area housing the fan while the fan is operating ♦ Turn off power to the hood before cleaning ♦ Make sure your cooktop and hood are cool before cleaning ♦... -
Page 17: Care & Cleaning
User manUal | 13 13 | PROLINE ranGe HooDs Care & Cleaning step 1 step 2 Slide filter forward off of rear lip. Slide spacer forward off of rear Lower filter rear, then slide filter lip. Lower spacer rear, then slide front out. -
Page 18: Troubleshooting
14 | troubleshooting NOTHING WORKS (Control Panel not lit, Blower not working) Solution 1: Turn on power at circuit breaker panel or fuse box. Check for tripped breaker or blown fuse. Solution 2: Make sure hood main power switch is on. LIGHTS NOT TURNING ON Solution 1: see “nothing works”... -
Page 19: Purchase Information
User manUal | 15 Warranty All PROLINE range hoods come with a Two Year Warranty on Parts, and a One Year Warranty on Labor. Who is Covered: Only the original purchaser for residential products purchased in the continental United States (limited warranty in Canada, Hawaii, and Alaska). -
Page 20: Returns
Damaged Returns 1. You must report damage directly to PROLINE within 7 days to receive a full refund. 2. Send a photo showing the damage. We need this before we can approve your damage claim. -
Page 21: Exchanges
Exchanges exchanges 1. You must request an exchange directly to PROLINE within 14 days. 2. Notify us of your reason for the exchange. Provide a photo if your hood is damaged. 3. We will help arrange for returned shipping of your hood. - Page 22 Range Hoods PROLINE 1750 S 500 W Salt Lake City, UT 84115 • 1-877-901-5530 • www.prolinerangehoods.com...
