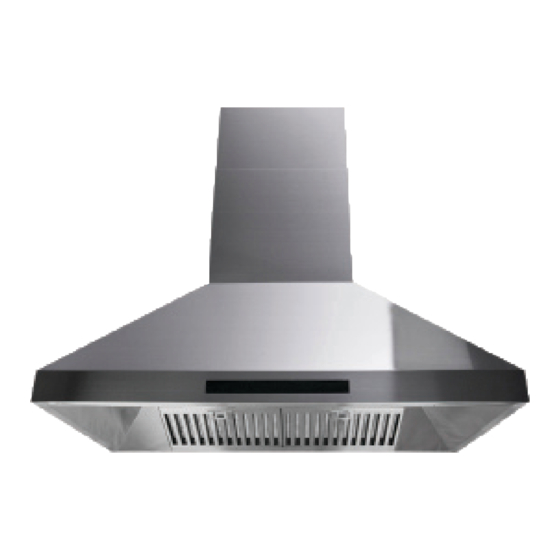

- Page 1 Range Hoods For model numbers: PLFIPROS & PLFWPROS user manual...
- Page 2 1-877-901-5530 (Toll Free) Hours: Monday-Friday 7am-5pm Mountain Standard Time Thank you for buying PROLINE! We are dedicated to delivering you quality hoods at amazingly low prices. We are confident you’ll enjoy your new PRO- LINE hood for many years to come.
-
Page 3: Table Of Contents
| Tablit di Cintensts Table of Contents Saftey Notice Diagrams PROS Hood Control Panel . Filters Venting . Installation 8-15 Preparation Wall Hood . . 9-11 Island Hood .12-13 Care & Cleaning 14-15 Troubleshooting Purchase Information 17-19 Warranty Returns . Exchanges . -
Page 4: Important Safety Notice
Use common sense and caution when installing, maintaining or operating this or any other appliance. Always contact the PROLINE Customer Support Team (1-877-901-5530) with any prob- lems or situations that you do not understand. - Page 5 IMPORTANT SAFETY NOTICE warning If you receive a damaged product, immediately contact PROLINE Customer Support. Do not ♦ install or use a damaged hood. Do not install, repair or replace any part of the range hood unless specifically recommend- ♦...
-
Page 6: Diagrams
PROLINE RANGE HOODS Wall or Island Hood A - HOOD directs heat and smoke into the hood’s internal blower system. The blower forces heat and smoke from cooking into the chimney. B - CHIMNEY vents air from cooking to the outside of the home. -
Page 7: Control Panel
PROLINE RANGE HOODS Control Panel Power ON - Power your hood on by activating the fan with the Plus(+) or Minus(-) buttons. Fan Speeds - There are 4 speeds available. Press Plus(+) or Minus(-) buttons to adjust to your desired level. The lowest speed is the quietest. The highest speed is the most powerful. -
Page 8: Filters
PROLINE RANGE HOODS grease filters baffle filter The baffle filter is equipped with a spring loaded handle. To remove from the hood, pull back toward the wall and down. The baffle filter can also be opened for easy cleaning. To open unscrew the cylin- drical handle and separate the layers to clean.. -
Page 9: Filters
PROLINE RANGE HOODS ductless filters charcoal filter We recommend venting your hood directly outdoors if at all possible. If you do not have the option to vent your hood outside, charcoal filters are a convenient alternative. These filters clean impurities and odors from the air as it recirculates through your home. -
Page 10: Venting
PROLINE RANGE HOODS venting options horizontal wall venting Option 1 Option 2 vertical roof venting... -
Page 11: Venting
PROLINE RANGE HOODS venting requirements height & venting requirements For best operation, we recommend you: allow 28-36” between the top of your ♦ cooking surface and the bottom of hood vent vertically through the roof if ♦ possible vent through a side wall if you can- ♦... -
Page 12: Installation
♦ 2. Test plug in and test controls, lights, fan ♦ inspect for any damage during shipping ♦ you must report any damage to Proline within 7 days for a refund ♦ tools you’ll need: power drill ♦ screwdrivers ♦... -
Page 13: Installation
PROLINE RANGE HOODS wall hood installation Plan where the ductwork will be located. Install proper-sized duct work, and roof or wall cap, depending on where you will be venting your hood. Recommended and most com- mon installations are shown in the venting diagrams above. Adjust your measurements to accomodate heights of ceilings, cabinets, or rangetops. - Page 14 10 | PROLINE RANGE HOODS wall hood installation step 2 Install ceiling bracket Place the chimney bracket against the ceiling ♦ Find the center point of the bracket and mark ♦ Line the bracket center point with the center ♦...
- Page 15 11 | PROLINE RANGE HOODS wall hood installation step 4 Install chimney Take off protective laminate coating ♦ Place the chimney on top of range hood base ♦ Make sure the chimney is facing the correct ♦ direction (the vertical vent should be on the...
- Page 16 12 | PROLINE RANGE HOODS island hood installation step 1 Mark ceiling find and mark the center point directly above your ♦ cooktop place the ceiling bracket on the ceiling around ♦ the center point. (Make sure it is square with your cooktop).
-
Page 17: Island Hood
13 | PROLINE RANGE HOODS island hood installation step 4 Install Chimney slide inner chimney sleeve over support brackets, ♦ covering the ceiling bracket screw into place at the top of ceiling bracket ♦ slide outer chimney sleeve to the bottom portion ♦... -
Page 18: Care & Cleaning
All PROLINE hoods come with either an aluminum mesh or stainless steel baffle filter. Both types of filters are dishwasher safe for easy cleaning. If handwashing your filter,... -
Page 19: Care & Cleaning
15 | PROLINE RANGE HOODS Care & Cleaning replacing the light bulb Make sure the range hood is unplugged or turn OFF breaker ♦ Place a flat-head screwdriver between light cover and housing to remove cover ♦ Gently pull defective bulb straight out and discard ♦... -
Page 20: Troubleshooting
16 | troubleshooting NOTHING WORKS (Control Panel not lit, Blower not working) Solution 1: Turn on power at circuit breaker panel or fuse box. Check for tripped breaker or blown fuse. Solution 2: Make sure hood main power switch is on. LIGHTS NOT TURNING ON Solution 1: see “nothing works”... -
Page 21: Purchase Information
17 | PROLINE RANGE HOODS Warranty All PROLINE range hoods come with a Two Year Warranty on Parts, and a One Year Warranty on Labor. Who is Covered: Only the original purchaser for residential products purchased in the continental United States (limited warranty in Canada, Hawaii, and Alaska). -
Page 22: Returns
Damaged Returns 1. You must report damage directly to PROLINE within 7 days to receive a full refund. 2. Send a photo showing the damage. We need this before we can approve your damage claim. -
Page 23: Exchanges
Exchanges exchanges 1. You must request an exchange directly to PROLINE within 14 days. 2. Notify us of your reason for the exchange. Provide a photo if your hood is damaged. 3. We will help arrange for returned shipping of your hood. - Page 24 PROLINE Range Hoods 1750 S 500 W Salt Lake City, UT 84115 • 1-877-901-5530 • www.prolinerangehoods.com...
