Summary of Contents for Proline PLFW581

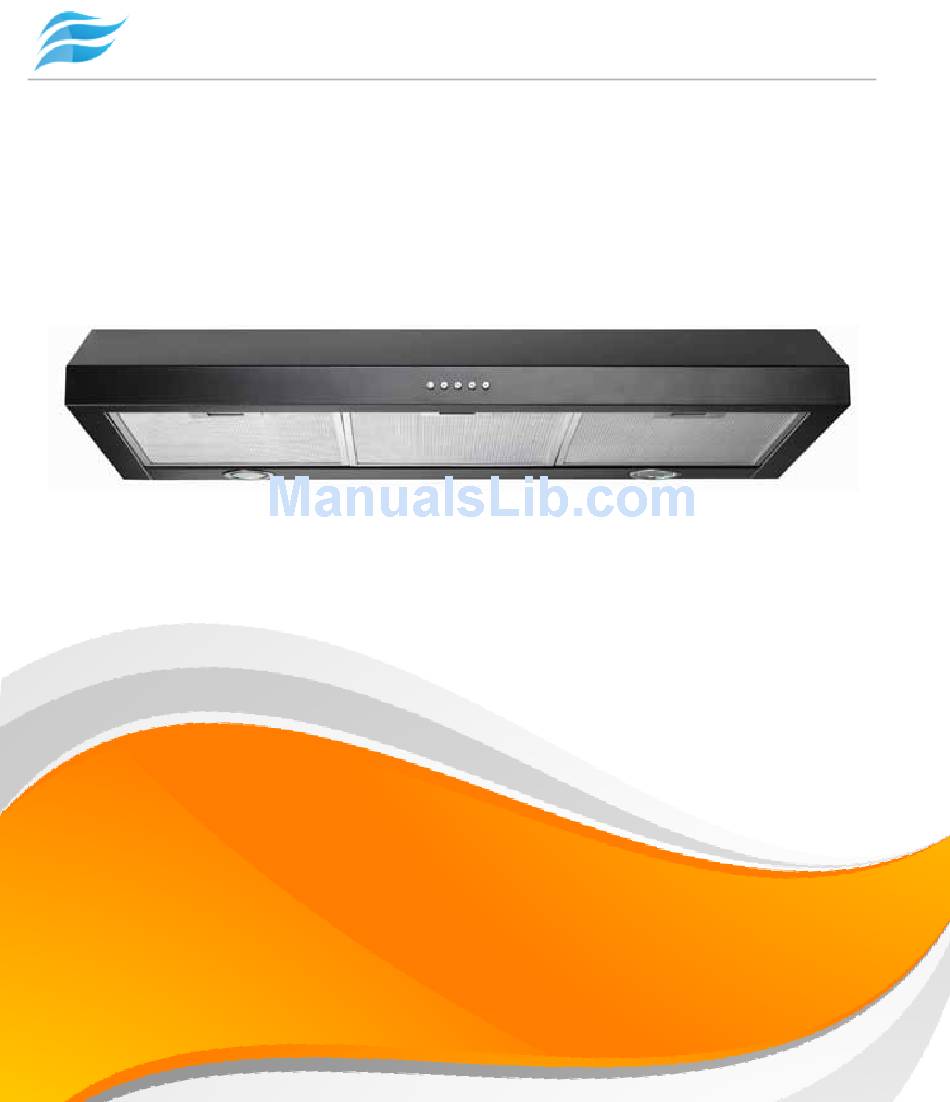

- Page 1 Range Hoods For model numbers: PLFW581 / PLFW582 user manual...
- Page 2 1-877-901-5530 (Toll Free) Hours: Monday-Friday 7am-5pm Mountain Standard Time Thank you for buying PROLINE! We are dedicated to delivering you quality hoods at amazingly low prices. We are confident you’ll enjoy your new PRO- LINE hood for many years to come.
-
Page 3: Table Of Contents
Table of Contents Saftey Notice Diagrams Your Hood Control Panel . Venting . Installation Preparation Warranty Care & Cleaning 10-11 Troubleshooting Purchase Information 13-15 Warranty Returns . Exchanges . -
Page 4: Important Safety Notice
Use common sense and caution when installing, maintaining or operating this or any other appliance. Always contact the PROLINE Customer Support Team (1-877-901-5530) with any prob- lems or situations that you do not understand. -
Page 5: Saftey Notice
IMPORTANT SAFETY NOTICE warning If you receive a damaged product, immediately contact PROLINE Customer Support. Do not ♦ install or use a damaged hood. Do not install, repair or replace any part of the range hood unless specifically recommend- ♦... -
Page 6: Diagrams
PROLINE ranGe HooDs your Hood A - HOOD directs heat and smoke into the hood’s internal blower system. B - CONTROL PANEL - controls the hood’s various features. C - FILTER(S) - prevent grease and grime from getting into the blower(s). The number and type of filters depends on the model. -
Page 7: Control Panel
User manUal | Control Panel Power: Press the power button to turn on or off. Speeds: 3 speeds. Press the button of your desired fan speed. The lowest speed is the most quiet. The highest speed is the most powerful. Lights: Tap button to turn lights on or off. -
Page 8: Venting
PROLINE ranGe HooDs venting options horizontal wall venting Option 1 Option 2 vertical roof venting... -
Page 9: Venting
User manUal | venting requirements height & venting requirements For best operation, we recommend you: allow 28-36” between the top of your ♦ cooking surface and the bottom of hood vent vertically through the roof if ♦ possible vent through a side wall if you can- ♦... -
Page 10: Aluminum Filter
PROLINE ranGe HooDs filters aluminum filter To remove the aluminum filter, pull the spring loaded handle back toward the wall and down charcoal filter We recommend venting your hood directly outdoors if at all possible. If you do not have the option to vent your hood outside, charcoal filters are a convenient alternative. -
Page 11: Installation
♦ 2. Test plug in and test controls, lights, fan ♦ inspect for any damage during shipping ♦ you must report any damage to Proline within 7 days for a refund ♦ tools you’ll need: power drill ♦ screwdrivers ♦... - Page 12 PROLINE ranGe HooDs hood insert installation step 1 Mark the leveling point of the hood. Position two mounting screws on the wall leaving 1/8” space between the wall and your hood. If you are installing under a cabinet, the hood should be flush with the front of the cabinet.
-
Page 13: Installation
User manUal | hood insert installation step 4 Align hood-mounting bracket to the screws on the wall and hook hood into place. Additional mount- ing fasteners may be used to further secure your hood. step 5 Use 6” or 8” round steel pipe to connect the exhaust on the hood to the ductwork above. -
Page 14: Care & Cleaning
All PROLINE hoods come with either an aluminum mesh or stainless steel baffle filter. Both types of filters are dishwasher safe for easy cleaning. If handwashing your filter,... -
Page 15: Replacing The Light Bulb
User manUal | 11 11 | PROLINE ranGe HooDs Care & Cleaning replacing the light bulb Make sure the range hood is unplugged or turn OFF breaker ♦ Place a flat-head screwdriver between light cover and housing to remove cover ♦... -
Page 16: Troubleshooting
12 | troubleshooting NOTHING WORKS (Control Panel not lit, Blower not working) Solution 1: Turn on power at circuit breaker panel or fuse box. Check for tripped breaker or blown fuse. Solution 2: Make sure hood main power switch is on. LIGHTS NOT TURNING ON Solution 1: see “nothing works”... -
Page 17: Purchase Information
User manUal | 13 Warranty All PROLINE range hoods come with a Two Year Warranty on Parts, and a One Year Warranty on Labor. Who is Covered: Only the original purchaser for residential products purchased in the continental United States (limited warranty in Canada, Hawaii, and Alaska). -
Page 18: Returns
Damaged Returns 1. You must report damage directly to PROLINE within 7 days to receive a full refund. 2. Send a photo showing the damage. We need this before we can approve your damage claim. -
Page 19: Exchanges
Exchanges exchanges 1. You must request an exchange directly to PROLINE within 14 days. 2. Notify us of your reason for the exchange. Provide a photo if your hood is damaged. 3. We will help arrange for returned shipping of your hood. - Page 20 Range Hoods PROLINE 1750 S 500 W Salt Lake City, UT 84115 • 1-877-901-5530 • www.prolinerangehoods.com...
