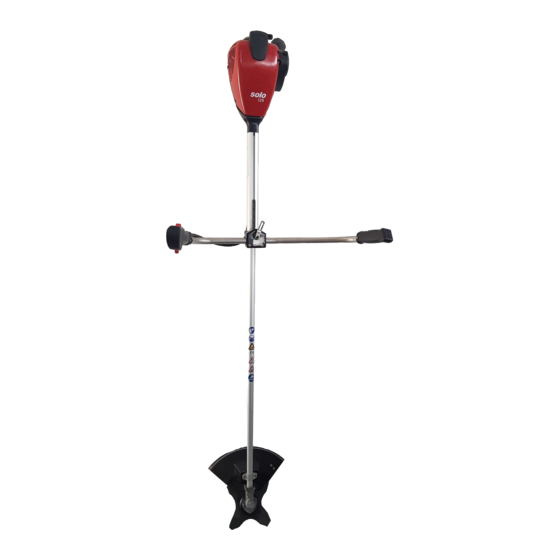

- Page 1 121/129 Brushcutter Instruction manual Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 121 102 english 11/2005...
- Page 2 The following symbols are used in this manual and on the product: Congratulations for choosing this SOLO quality product. Thoroughly read these operating The Models 121 and 129 brushcutters, with instructions before undertaking any newly developed 25 cm / 29 cm high performance...
-
Page 3: Table Of Contents
Index Page 1. Safety regulations ........................4 General safety instructions Working clothes Fuelling When transporting the equipment Maintenance and repairs Preparing the equipment for starting Starting Working with the machine 2. Specification ..........................7 3. Standard delivery ........................8 4. Control and function elements ....................8 5. -
Page 4: Safety Regulations
(for example a tight fitting work suit), but should not be confining. We recommend: SOLO forest and countryside work jacket EN 340 Part no: 99 303 000 + size (2[s] - 6[xxl]) SOLO Outdoor Knee-breeches Part no: 99 020 95 + size... -
Page 5: Fuelling
Safety regulations 1.3 Fuelling Petrol is very light and highly flammable. Keep away from open flames and never spill fuel. Do not smoke at the operating site or at and near the refuelling site! • Stop the engine prior to refuelling. •... -
Page 6: Working With The Machine
Safety regulations 1.8 Working with the machine • Only use this power tool when it is complete and in a safe condition. As soon as the engine is running, the power tool generates toxic gases, which may be invisible and odourless. Never work with the power tool in enclosed spaces. -
Page 7: Specification
Specification 2. Specification Brushcutter Engine type SOLO single cylinder two-stroke engine Engine capacity Bore / stroke 33 / 30 35 / 30 Engine power kW at rpm 0,75 / 7500 1,0 / 7500 Max. permissible speed 8500 9000 no load with cutter... -
Page 8: Standard Delivery
Standard delivery ; Control and function elements 3. Standard delivery • Brushcutter partially assembled; the following components are supplied separately and require assembly • Handle subject to model and all parts required to complete the assembly • Shoulder strap • Shield, protective bar, line trimmer with screw and all parts required to assemble the shield •... -
Page 9: Preparing The Equipment For Use
Preparing the equipment for use 5. Preparing the equipment for use 5.2 Installation - Bicycle handlebar Model 121B, 129B and 129BTS For shipping purposes, the brushcutter is partly disassembled and has to be reassembled prior to Fig. 4 use. Only use the brushcutter after it has been fully assembled. -
Page 10: Shield Installation
Preparing the equipment for use A) Fitting the grass cutter blade 5.3 Shield installation (subject to model or as accessory) Fig. 5 Fig. 6 • Pull anti-vibration piece (2) with the bead uppermost (towards the engine) over the shaft tube. For this, the anti-vibration piece can be bent open at the slot. -
Page 11: Shoulder Strap Adjustment
Preparing the equipment for use B) Fitting the nylon head Information regarding the guard bar: (subject to model or as accessory) Always operate without the guard bar when using the grass cutting blade. Note: When fitting the nylon head, the collar When operating with other cutting tools, which are washer (Fig. -
Page 12: Fuelling
Always use a fuel:oil ratio of 25:1 (4%) for the first five tank fillings. After that we recommend a ratio of 50:1 (2%) with the use of special two-stroke oil "SOLO 2T engine • Move the stop switch (3) to "Start". oil" which we can supply. -
Page 13: Choke And Primer
Starting / Stopping the engine and ensure that the cutter does not touch any 7.3 Choke and primer objects or the ground. Fig. 11 If the engine is cold: With the choke lever down ( ), pull the starter cord several times in a straight line, until you can hear the engine firing. -
Page 14: Using Your Brushcutter
Approach the working area with the brushcutter set permitted with the steel thicket blade (SOLO part to idle, and then switch to full throttle. Never leave no. 69 00 947), which is available as accessory. -
Page 15: Adjusting The Cutting Line
Using your brushcutter 8.3 Adjusting the cutting line 8.4 Sectional shaft Model 129LTS and 129BTS When using a semi-automatic nylon head: For transport and to save space during storage, models 129LTS and 129BTS are equipped with a Fig. 14 sectional shaft. In addition, model 129LTS is available with many different accessory sets, for which the working tool is already pre-assembled onto the lower section of the shaft. -
Page 16: Operating And Maintenance Instructions
There should be no still visible. open flame or similar nearby. For longer periods Your SOLO dealer workshop is happy to help you in without using the equipment (longer than four case of doubt. -
Page 17: Information About The Silencer
Operating and maintenance instructions The carburettor has 3 adjusting screws: 9.6 Air Filter Maintenance • Idling end-stop screw "T" Contaminated air filters cause a reduction in engine • Low speed mixture screw "L" performance and increase fuel consumption with more pollutants in the exhaust gas. Engines are less •... -
Page 18: Information About The Spark Plug
Operating and maintenance instructions 9.7 Information about the spark plug 9.8 Replacing the fuel filter Check the spark plug regularly after 50 hours of We recommend having the fuel filter (32) changed operation. annually by a specialised service centre. • Remove the spark plug cover. Fig. -
Page 19: Scheduled Maintenance
Operating and maintenance instructions 9.10 Scheduled maintenance The following information is based on standard operating conditions. For special conditions, such as prolonged daily use, the recommended maintenance intervals should be reduced accordingly. Carburettor Check idling speed Adjust idling speed Air filter Clean Replace Spark plug... -
Page 20: Accessories
Accessories 10. Accessories Via dealers, SOLO offers an extensive range of brushcutter accessories. Their use is limited to the particular model to which it is allocated, together with its relevant protection. Orientate yourself on the following table and check with your dealer. -
Page 21: Parts Subject To Wear And Tear
If in doubt, ask your equipment vendor. He SOLO face/ear protection pack 99 390 1001 is responsible for guarantee matters. SOLO forest and countryside work 99 303 000 + We hope you will understand that we cannot be jacket EN 340... - Page 22 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-130 +49-7031-149 info@solo-germany.com export@solo-germany.com...
