- ENGLISH -

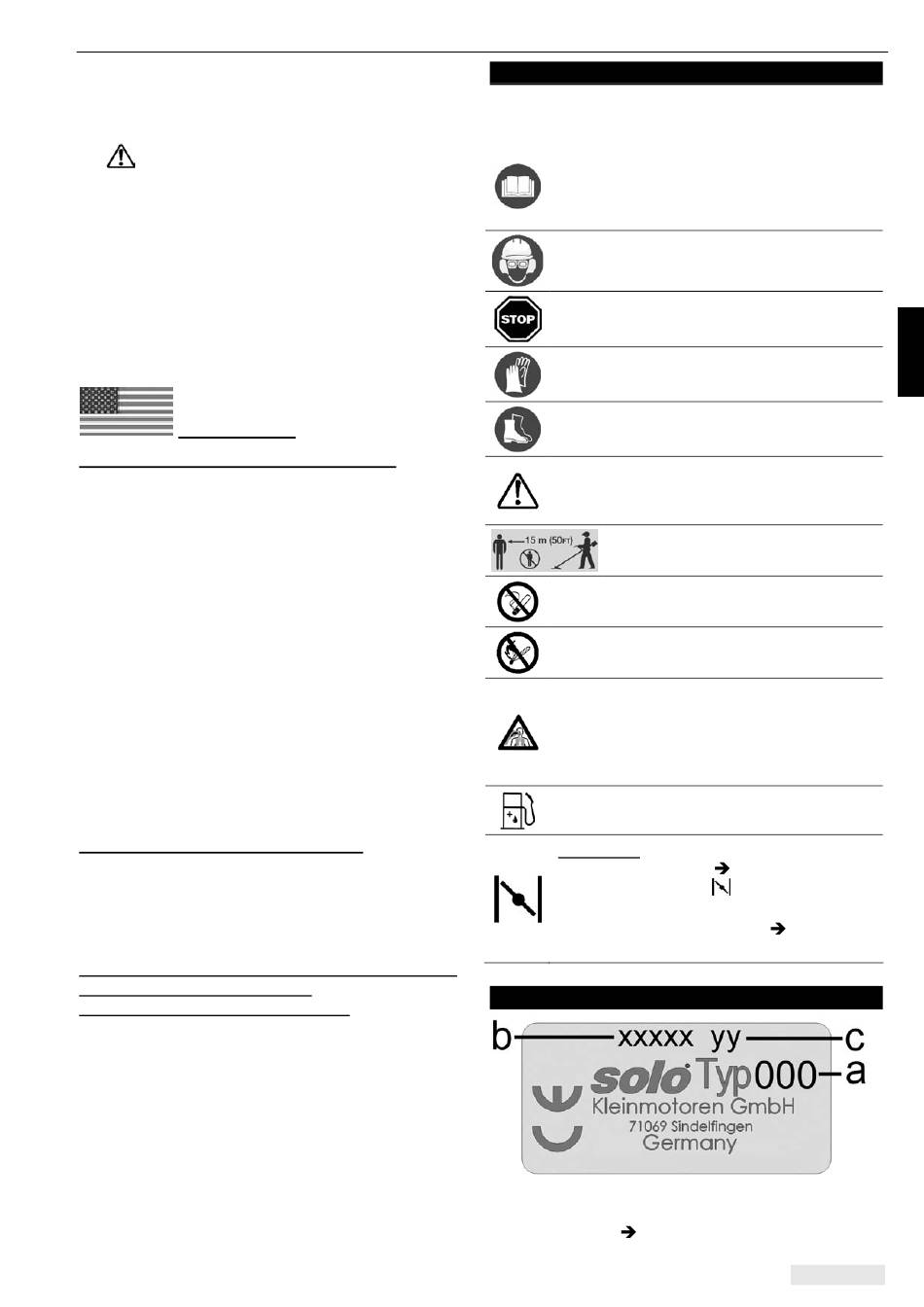

Instruction manual
Original instructions
Caution! Before initial use, read these
operating instructions and the operating
instructions of the changeover tool to be used
(accessory) carefully and observe all safety
instructions.
Observe the maintenance guidelines closely to
ensure the long service life of your equipment.
Your dealer will be glad to assist you with any
questions.
For USA only:
Emissions Control Warranty Statement
The Environmental Protection Agency and Solo
are pleased to explain the emission control system
on your small non-road power equipment engine.
In the US new small non- road engines must be
designed, built, and equipped to meet the
Environmental Protection Agency's standards.
Solo must warrant the emission control system on
your small non- road engine for the period of time
listed below provided there has been no abuse,
neglect, or improper maintenance of your small
non-road engine.
Your emission control system includes parts such
as the carburetor, the ignition system, and the
exhaust system.
Where a warrantable condition exists, Solo will
repair your small non-road power equipment
engine at no cost to you including diagnosis, parts,
and labor.
Manufacturer's Warranty Coverage
Solo's small non-road power equipment engines
are warranted for a period of two years. If any
emission control related part on your engine is
defective, the part will be repaired or replaced by
Solo.
Contact Information for Authorized Service Center
Locations, Replacement Parts,
Warranty and Technical Information
Warranty repairs must be completed by a SOLO
Authorized Service Center.
SOLO USA, Inc.
5100 Chestnut Avenue
Newport News, VA 23605
1-800-765-6462
techserv@solousa.com
Base tool MultiSystem
Symbols
The following symbols are used in this manual and
on the product:
Thoroughly read these operating
instructions before undertaking any
maintenance, installation and cleaning
steps
Wear ear defenders and a face shield
before starting the engine
Switching off the engine, stop switch on
"STOP"
Wear protective gloves when handling
and working with the equipment
Wear solid shoes, preferably safety
shoes with a good tread
Danger! Failure to comply with the
instructions could cause accidents with
potentially life-threatening injuries.
Maintain a minimum distance of
15 metres bystanders
Never smoke near the power tool or
where the equipment is refuelled!
Keep open flames away from the power
tool and the fuel can
- This equipment produces exhaust
fumes
and
- fuel vapours are poisonous;
never start or refuel in enclosed spaces
Fuel mixture: symbol above the fuel
mixture tank cap
Choke flap:
Cold start position
towards this symbol
Operation and warm start
lever down
Type plate
a: Type designation
b: Serial number
c: Build year (08
2008)
109LG
choke lever up,
choke
ENGLISH 1
