Table of Contents
Delu×e Electronic
Temperature
Control
(Some
Upright
Frost Free Models)

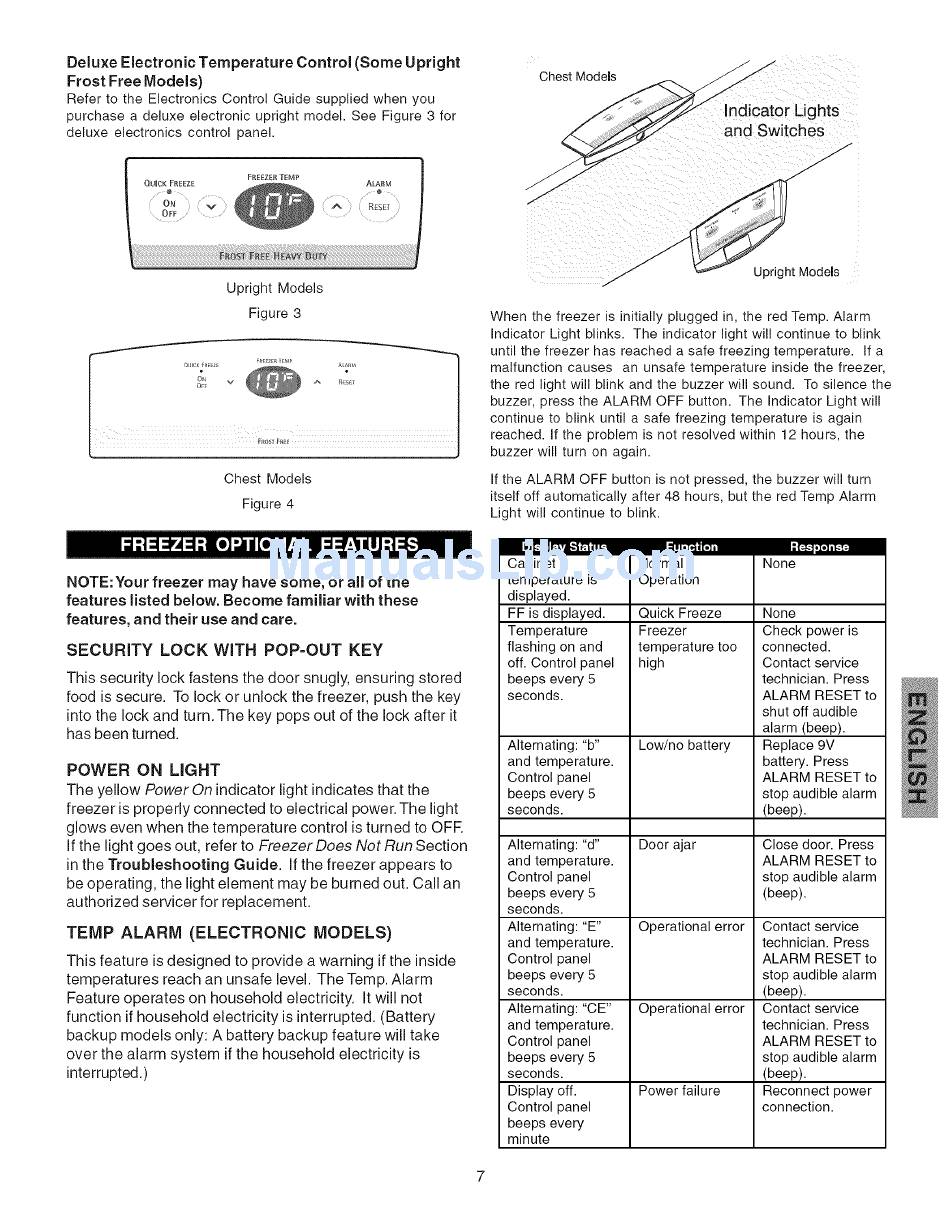

Refer to the Electronics Control Guide supplied when you
purchase a deluxe electronic
upright model. See Figure 3 for
deluxe electronics
control panel.
OU[CK FREEZE
ON
v
OFF
FREEZER TEMP
ALAI{M
_ESET
:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_!_ii_
_!!_!_!!_i_i_:i_i_i
_!_1_#_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_
Upright Models
Figure 3
Chest Models
Figure 4
Chest Models
J
Indicator
Lights
and Switches
/
/
/
/
/
/
./
Upright Models
J
When the freezer is initially plugged in, the red Temp. Alarm
Indicator Light blinks. The indicator light will continue to blink
until the freezer has reached a safe freezing temperature.
If a
malfunction causes
an unsafe temperature
inside the freezer,
the red light will blink and the buzzer will sound.
To silence the
buzzer, press the ALARM OFF button. The Indicator Light will
continue to blink until a safe freezing temperature
is again
reached. If the problem is not resolved within 12 hours, the
buzzer will turn on again.
If the ALARM OFF button is not pressed, the buzzer will turn
itself off automatically
after 48 hours, but the red Temp Alarm
Light will continue to blink.
NOTE: Your freezer may have some, or all of the
features listed below. Become familiar with these
features, and their use and care.
SECURITY
LOCK
WITH
POP=OUT
KEY
This security lock fastens the door snugly, ensuring stored
food is secure. To lock or unlock the freezer, push the key
into the lock and turn. The key pops out of the lock after it
has been turned.
POWER
ON LIGHT
The yellow Power On indicator light indicates that the
freezer is properly connected to electrical power. The light
glows even when the temperature control is turned to OFF
if the light goes out, refer to Freezer Does Not Run Section
in the Troubleshooting
Guide. If the freezer appears to
be operating, the light element may be burned out. Call an
authorized servicer for replacement.
TEMP
ALARM
(ELECTRONIC
MODELS)
This feature is designed to provide a warning if the inside
temperatures reach an unsafe level. The Temp. Alarm
Feature operates on household electricity. [t will not
function if household electricity is interrupted. (Battery
backup models only: A battery backup feature will take
over the alarm system if the household electricity is
interrupted.)
Cabinet
temperature
is
displayed.
FF is displayed.
Temperature
flashing on and
off. Control panel
beeps every 5
seconds.
Alternating:
"b"
and temperature.
Control panel
beeps every 5
seconds.
Normal
None
Operation
Quick Freeze
Freezer
temperature
too
high
Low/no battery
None
Check power is
connected.
Contact service
technician. Press
ALARM RESET to
shut off audible
alarm (beep).
Replace 9V
battery. Press
ALARM RESET to
stop audible alarm
(beep).
Alternating:
"d"
Door ajar
Close door. Press
and temperature.
ALARM RESET to
Control panel
stop audible alarm
beeps every 5
(beep).
seconds.
Alternating:
"E"
Operational error
Contact service
and temperature,
technician. Press
Control panel
ALARM RESET to
beeps every 5
stop audible alarm
seconds.
(beep).
Alternating:
"CE"
Operational error
Contact service
and temperature,
technician. Press
Control panel
ALARM RESET to
beeps every 5
stop audible alarm
seconds.
(beep).
Display off.
Power failure
Reconnect power
Control panel
connection.
beeps every
minute
