How To
Change the Belt – Model ZM-200
and ZM-400
CAUTION: First, unplug the vacuum cleaner
from the electrical outlet.
1. Turn the unit over and remove the
bottom plate (see "How to Remove
Bottom Plate").
2. Remove the brushroll and the worn or
broken belt from the brushroll pulley and
the motor drive shaft (Fig. 20).
3. Loop the new belt around the
motor drive shaft and the brushroll
(Fig. 21).
4. Reinstall the brushroll back into the
housing. Turn the brushroll by hand,
making sure the belt is not twisted
and all rotating parts move smoothly
(Fig. 22).
5. Reinstall the bottom plate (see "How to
Install Bottom Plate").
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good condition.
Replace the belt if it is stretched, cracked,
or if excessive slipping is occurring.
14

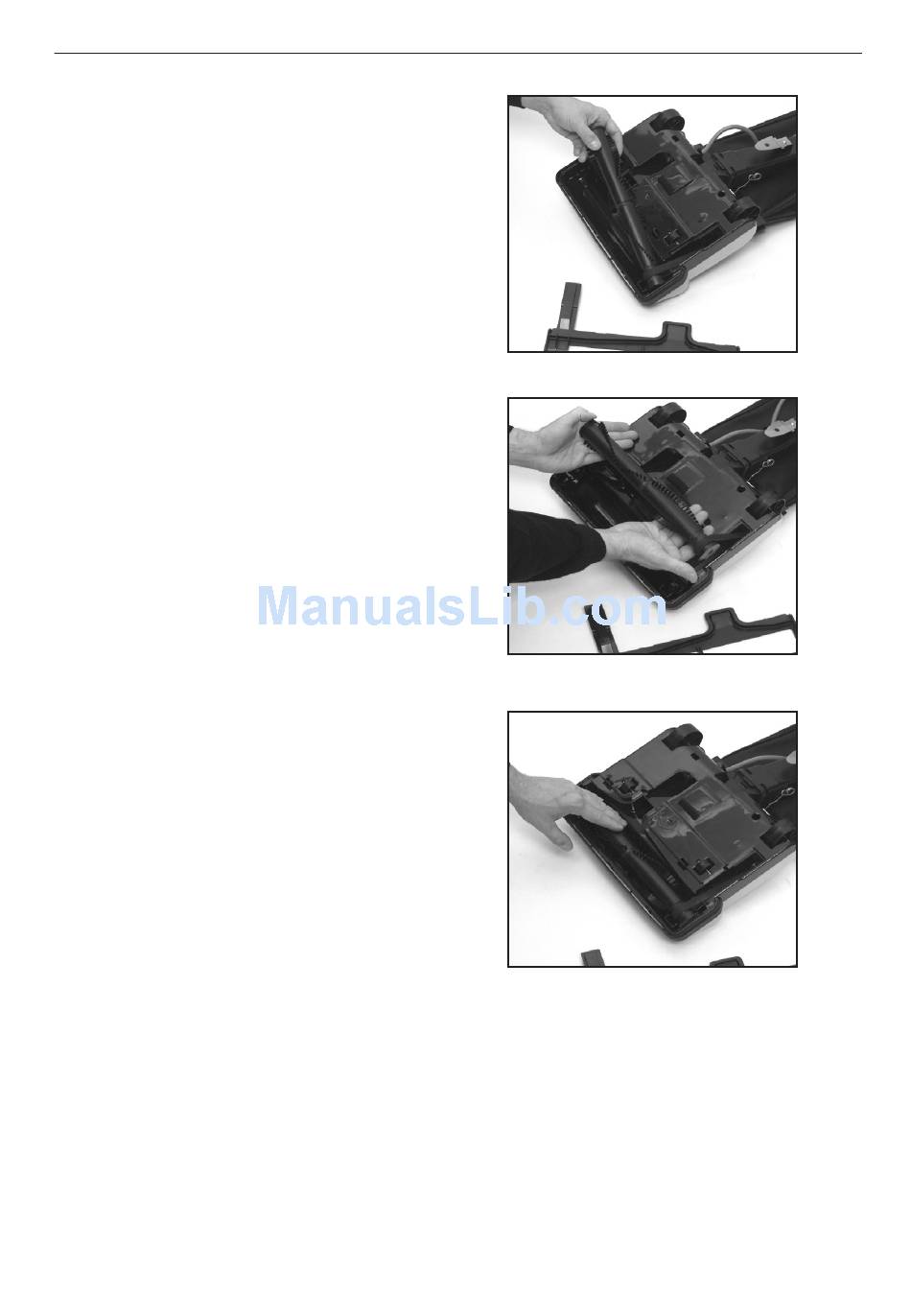

Fig. 20
Fig. 21
Fig. 22
