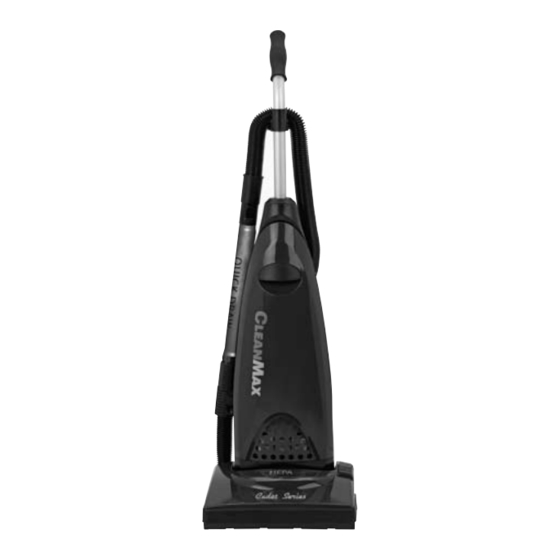

CleanMax CMC-1N Operating Instructions Manual

CleanMax CMC-1N Operating Instructions Manual

Cadet series

Advertisement

C
LEAN

OPERATING INSTRUCTIONS

FOR CLEANMAX CADET SERIES
UPRIGHT VACUUMS
MODELS :
CMC-1N
CMC-QD
Before operating the vacuum,
please read these instructions completely.
M
AX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMC-1N and is the answer not in the manual?

Questions and answers

Summary of Contents for CleanMax CMC-1N

  • Page 1: Operating Instructions

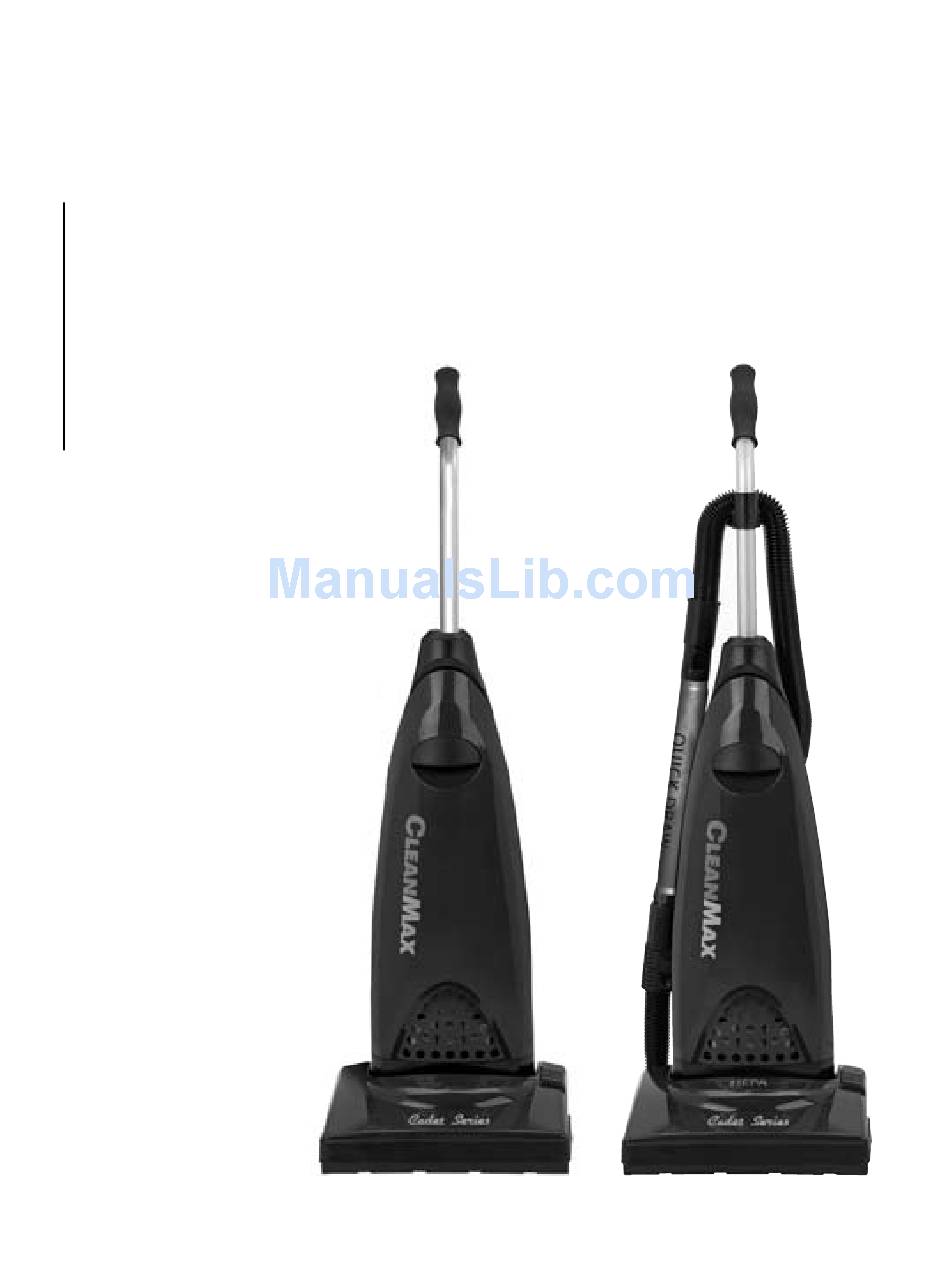

    LEAN OPERATING INSTRUCTIONS FOR CLEANMAX CADET SERIES UPRIGHT VACUUMS MODELS : CMC-1N CMC-QD Before operating the vacuum, please read these instructions completely.
  • Page 2: Table Of Contents

    ____________________________________________________________________________________ Date Purchased: Your CleanMax vacuum cleaner is a product of high quality materials and superior workmanship . We urge you to read these operating instructions carefully before you use this vacuum cleaner, in order to obtain the full performance and satisfaction it can offer you .
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using an electrical appliance, basic precautions should always be followed, including the following: SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of fire, electric shock or injury: 1 . Do not leave appliance unattended when plugged in . Unplug from outlet when not in use and before servicing . 2 .
  • Page 4: Grounding Instructions

    Self-adjusting nozzle Thermal reset button Replacement Bags and Filters • Genuine CleanMax Vacuum Bags • Genuine CleanMax Vacuum Filters Part # CMP-12 12 per package (Paper) Part # CMS-HEPA 1 per package (HEPA) Part # CMH-6 6 per package (HEPA)
  • Page 5: How To Assemble And Operate The Vacuum

    How to Assemble and Operate the Vacuum How to Attach the Handle to the Vacuum Cleaner (Fig.1) The vacuum and the handle are packed separately . 1 . First remove the handle screw, then slide the handle into the slots on top of the vacuum cleaner .
  • Page 6: How To Change The Vacuum Bag

    How to Change the Vacuum Bag Always operate the vacuum cleaner with a vacuum bag installed . How to Change the Vacuum Bag 1 . Unplug the vacuum cleaner . Remove the bag compartment cover and remove the used bag from the bag holder . (Fig .1) 2 .
  • Page 7: Edge Cleaning Feature

    Edge Cleaning Feature For best results when cleaning carpets near walls and stationary furniture, place the right side of the vacuum nozzle along the wall or furniture . Handle Adjustments The handle on this vacuum cleaner can be set to one of three positions – upright, middle or low . How to Adjust the Handle 1 .
  • Page 8: Optional Cleaning Tools/Accessories

    Optional Cleaning Tools/Accessories Deluxe Attachment Set (Fig. 1) 15-foot crushproof hose Curved wand Extension wand (2 pieces) Dusting brush Crevice tool Upholstery tool Upholstery brush insert Deluxe floor brush Fig . 1 Standard Attachment Set (Fig. 2) 7-foot hose Extension wand (2 pieces) Dusting brush Crevice tool Upholstery tool with brush...
  • Page 9: On-Board Tool Cleaning

    Fig . 1 Automatic Self-Adjusting Nozzle Your CleanMax upright vacuum cleaner is designed with an Automatic Self-Adjusting Nozzle . No manual adjustments are required . The height of the nozzle is instantly and automatically adjusted to carpet pile height .
  • Page 10: How To Replace Vacuum Belt

    How to Replace the Vacuum Belt CAUTION: First, unplug the vacuum cleaner . How to Remove the Bottom Plate 1 . Place vacuum cleaner in the low position (see page 7) . Then, turn the vacuum cleaner over, exposing the underside . 2 .
  • Page 11: How To Clean The Nozzle Hose

    Thermal Fuse Protection Your CleanMax vacuum cleaner comes equipped with a Manual Reset Thermal Fuse Protector . This thermal protector is designed to protect your vacuum cleaner from overheating due to a cutoff in airflow (i .e . clogged hose, operating the vacuum without a bag) .
  • Page 12: For Best Performance

    • Change vacuum bags and filters as recommended to maintain optimum cleaning efficiency. • Always use genuine CleanMax vacuum bags and filters, as use of other products may result in poor cleaning or filtration performance . CleanMax filtration products are designed for maximum performance .

This manual is also suitable for:

Cmc-qd

Table of Contents
