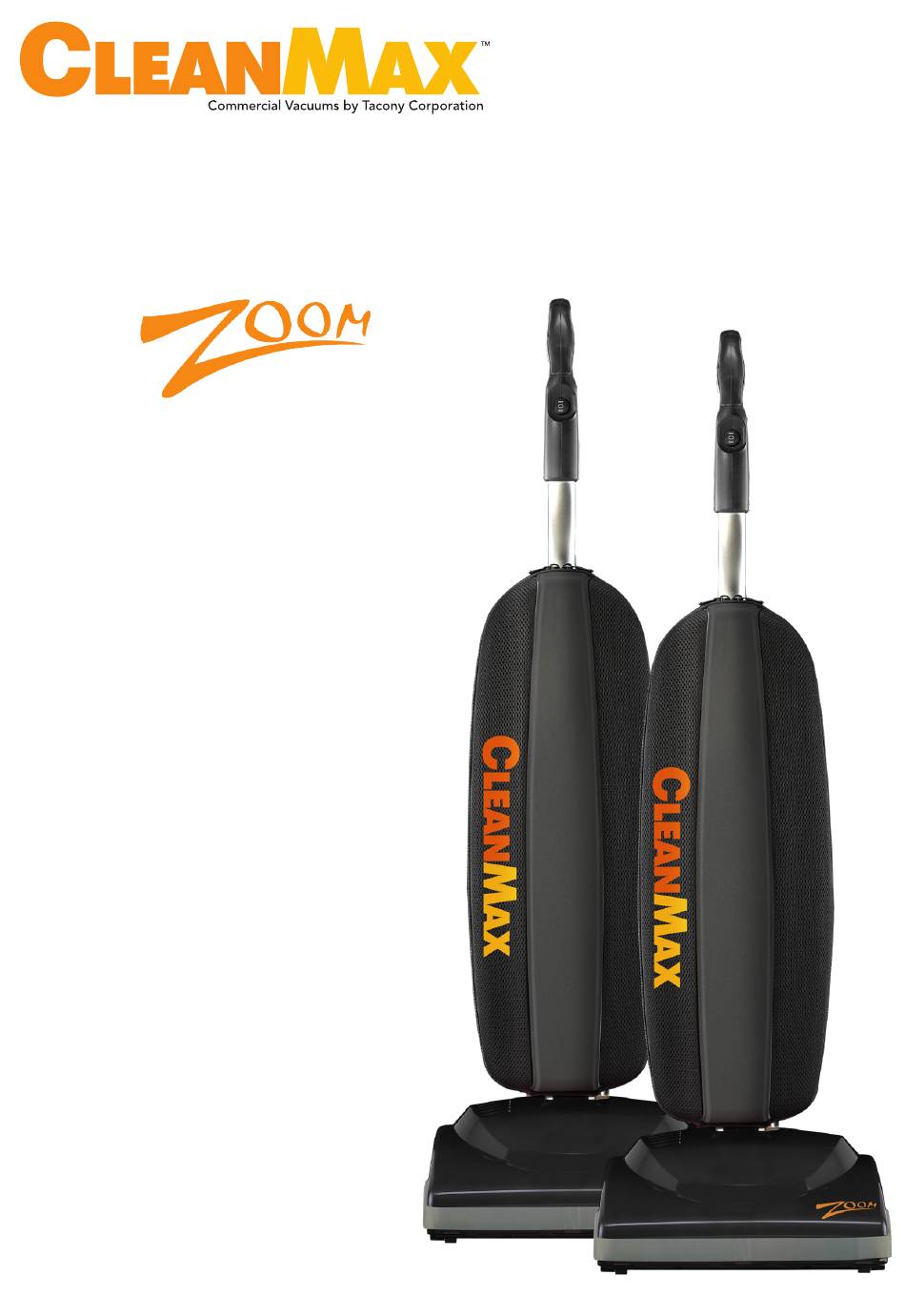

  • Page 1 Owner’s Manual for the CleanMax Models ZM-500 & ZM-700...

  • Page 3: Table Of Contents

    Contents Getting Started Important Safety Instructions Grounding Instructions Description of the Vacuum Assembling the Vacuum Operation Reclining the Handle On/Off Switch Edge Cleaning Automatic Carpet Height Adjustment Bare Floor Cleaning Maintenance and Care Power Cord Care Vacuuming Under Furniture Replacing the Vacuum Bag Removing/Reinstalling the Bottom Plate Replacing the Agitator Belt Lifetime Belt Protection...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE IMPORTANT: The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended.

  • Page 5: Grounding Instructions

    Grounding Instructions This vacuum cleaner must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This vacuum cleaner is equipped with a cord having an equipment-grounding conductor and grounding plug.

  • Page 6: Description Of The Vacuum

    Description of the Vacuum Ergonomic Handle On/Off Power Switch, Two Speed Bag Compartment Vacuum Nozzle Furniture Guard Brushroll Jam Indicator (Model ZM-700) Circuit Breaker Reset Button Handle Release Pedal Quick Release Cord Hook Upper Cord Hook Cord Restraint...

  • Page 7: Assembling The Vacuum

    Assembling the Vacuum SHEET PART 1 OF 1 DESCRIPTION O Attaching the Handle to the Vacuum NOTE: Do not plug in the vacuum until it is completely assembled. The vacuum cleaner and the handle are packed separately and require assembly. •...
  • Page 8 Assembling the Vacuum Attaching the Extension Power Cord to the Cord Lock • Connect the extension power cord to the pigtail cord on the vacuum. • Snap the extension power cord into the slot on the end of the cord lock. •...

  • Page 9: Operation

    Operation Reclining the Handle • Press the handle release pedal located on the back of the vacuum with your foot to recline the handle (Fig. 1). On/Off Switch, Two Speed • The power switch located on the vacuum handle, Fig. 1 is a three-way switch (Fig.

  • Page 10: Maintenance And Care

    Power Cord Care • If the cord or plug has any apparent damage, refrain from using the vacuum. Please visit an Authorized CleanMax Distributor for a new cord or plug. • When the vacuum is in use, hold the cord to keep from running over it.

  • Page 11: Replacing The Vacuum Bag

    Maintenance and Care Replacing the Vacuum Bag NOTE: Unplug the vacuum cleaner from the electrical outlet before changing the bag. • Unzip the bag compartment. • Remove the used vacuum bag by pulling the green bag collar tab away from the vacuum (Fig. 1). Slide the used bag out of the bag holder which Fig.

  • Page 12: Removing/Reinstalling The Bottom Plate

    Maintenance and Care Removing and Reinstalling the Bottom Plate WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug before servicing or cleaning. To Remove the Bottom Plate: • Press the handle release pedal to place the vacuum cleaner in the flat position.

  • Page 13: Replacing The Agitator Belt

    • Reinstall the bottom plate (see page 10). Fig. 2 Lifetime Belt Protection Warranty (Model ZM-700) Your vacuum belt is covered by a lifetime warranty. Should the vacuum belt break, simply bring your vacuum to the distributor where your CleanMax vacuum was purchased for a free replacement.

  • Page 14: Brushroll Jam Indicator

    • If the brushroll is free of obstructions and the Brushroll Jam Indicator light is still flashing, it’s likely the clogged condition is located in the vacuum motor fan. If so, please take your vacuum to the distributor where your CleanMax vacuum was purchased.

  • Page 15: Resetting The Circuit Breaker

    Breaker Reset Button. Plug in the power cord, and turn on the vacuum. If the vacuum fails to turn on, visit the distributor where your CleanMax vacuum was purchased for assistance. Replacing the Squeegee If your squeegee splits or begins to look...

  • Page 16: Key Replacement Parts

    • Have your vacuum checked periodically by the distributor where your CleanMax vacuum was purchased. • Store your vacuum carefully in a dry area. • For optimum cleaning performance and safety, follow your owner’s...

  • Page 17: Warranty

    This warranty covers any defects in material and workmanship in your new CleanMax vacuum. How Long Coverage Lasts: Warranty coverage for your CleanMax vacuum lasts one year. What is Not Covered: • Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse or improper maintenance.
  • Page 18 OWNER’S WARRANTY INFORMATION keep this for your records… Date of purchase Serial number Model number Purchased from: Store name Address City, State, Zip Telephone Register your new vacuum today at CleanMaxVacuums.com...
  • Page 20 CleanMax Vacuum Cleaners PO Box 730 Fenton, MO 63026 B503-3600D...
