2.2 HEAT OUTPUT ADJUSTMENT

The valve supplied with the appliance has a HI/LO knob to control the heat output and flame height
(see valve diagram in Lighting Instructions, section 2.1).

2.3 FAN OPERATION

For units equipped with a fan control knob, the knob is located in the valve control compartment and
may be adjusted to the following settings:
OFF: Turn the control fully counter-clockwise until the switch operates.
Variable Speed Setting:
Turn the control to the desired setting. When the knob is turned fully clockwise the fan will set to
minimum speed.
This appliance is equipped with a three prong (grounding) plug for your protection against shock
hazard and should be plugged directly into a properly grounded three prong receptacle. Do not cut or
remove the grounding prong from this plug.
Warning
Electrical Grounding Instructions

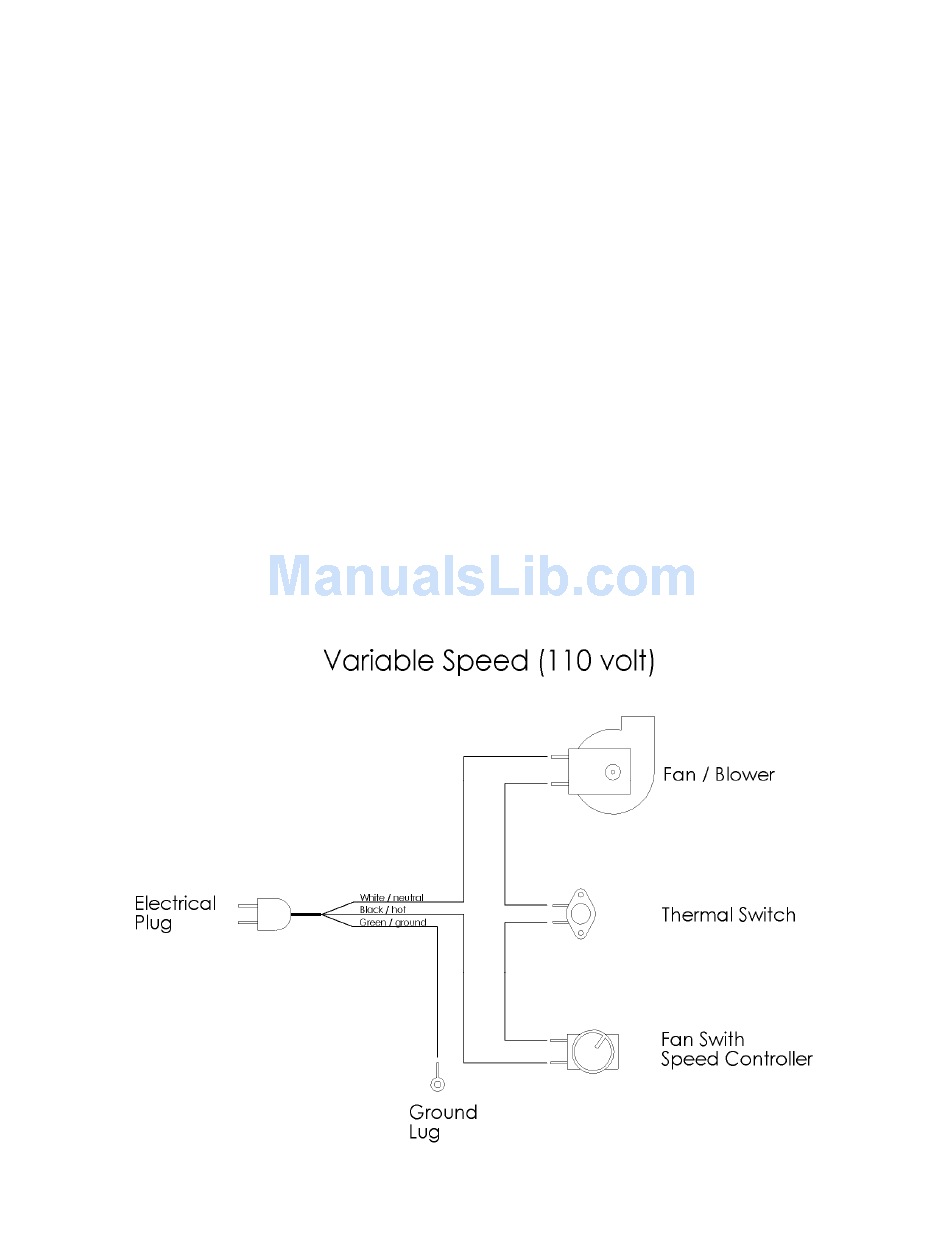

Figure 2
Page 9 of 80
