Intertek TASMAN EP & HP Installation And Operating Instructions Manual page 72

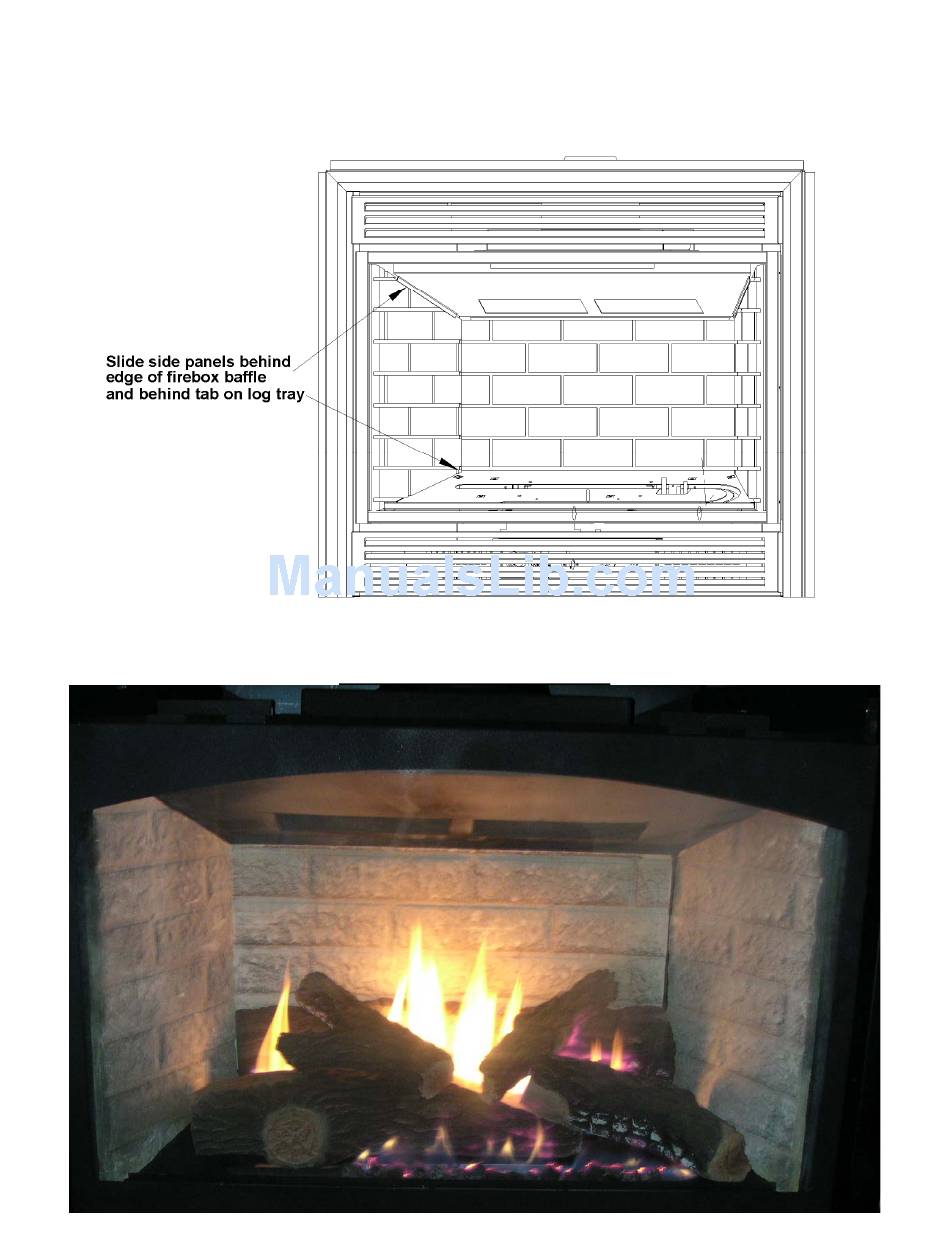

5) The first step for installing the ceramic brick panels is to place the rectangular shaped panel on the
log tray against the back wall of the firebox. Next slide, either, left or right panel into place, note that
the panel fits behind the ledge of the firebox baffle on the top and a bent up tab on the log tray on the
bottom. When both side panels are installed they will secure the rear panel in place.
7) The final step will be to replace the E unit, tempered glass, door with the H unit ceramic glass door.
Flame picture of heater unit
Page 72 of 80
