TABLE 1
AWG
2) After the unit is installed and the gas line hooked up, crimp a fork connector to each wire and
attach them to the TH/TP and TH screws located on the valve.
3) Check tests can be performed on the valve by using the trouble-shooting guide, Section 5.0.

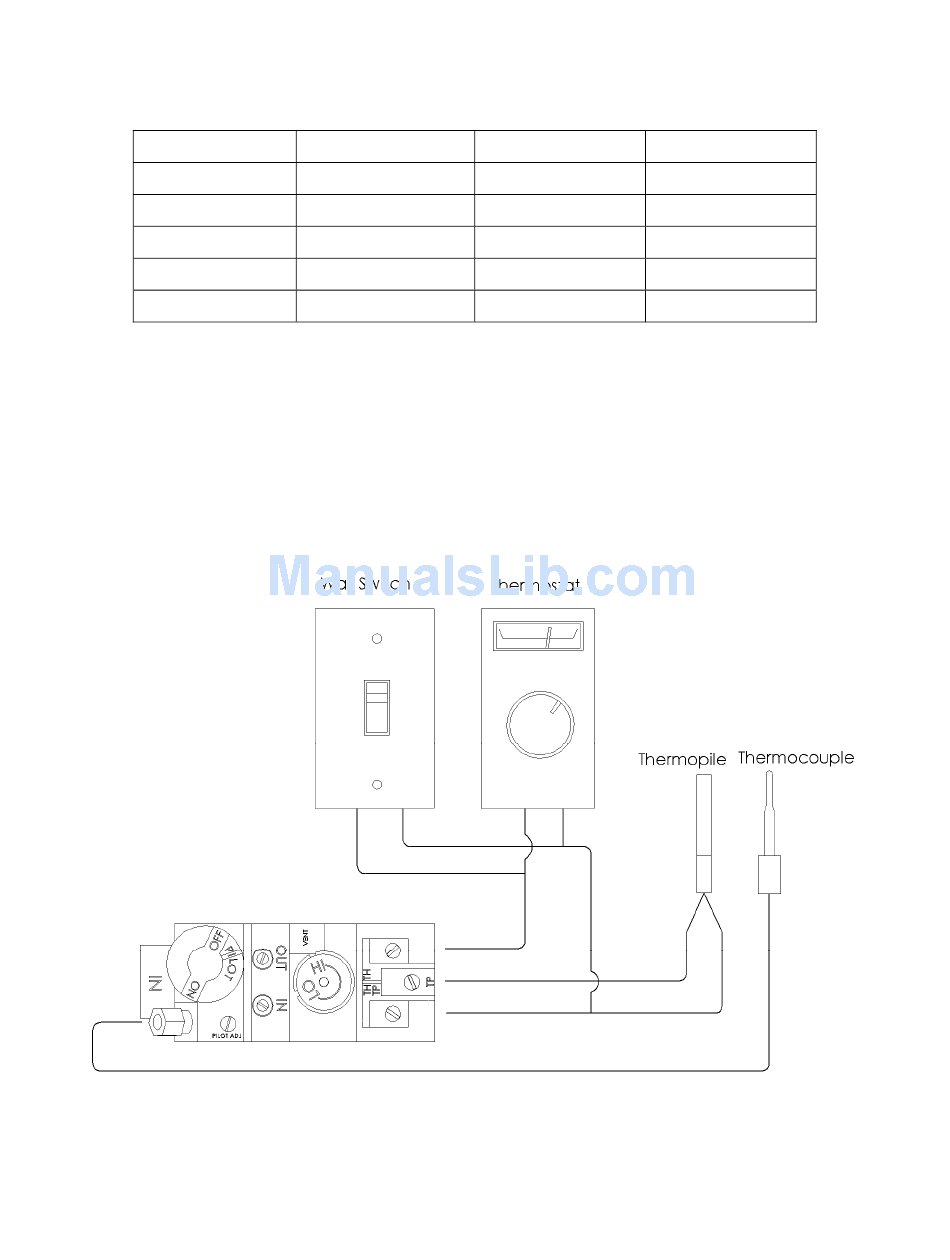

4) This switch may be connected in parallel with a thermostat, digital on/off remote or wall switch
(see Figure 4).
THERMOSTAT WIRE INFORMATION
WIRE SIZE
mm
22 0.6
20 0.8
18 1.0
16 1.3
14 1.6
MAX. WIRE LENGTH
ft.
10
25
40
64
100
Figure 4
m
3.0
7.6
12.2
19.5
30.5
