3.3.6 Door Installation

Fit the top door slots over the brackets on each side of the top of the firebox, locate the two bottom
clasps and close. See Figure 12.
Pull the top of the window forward and release. Make sure the door returns to it's original position.
This ensures that the door safety device is working properly.
Removal is reverse order.
If the glass has been damaged or broken it is highly recommended that you contact a qualified
service person. Remove the broken pieces (be sure to wear gloves) and remove door. See the
replacement parts list, at the end of the manual, you will require one 6 mm tempered glass panel (part
# IMC1010). Next you will install the glass gasket (part # 6AL) around the perimeter of the glass
panel, this gasket has an adhesive edge which is adhered to the glass while the rounded edge of the
gasket is folded over the edge of the glass. Lay a thin bead of high temperature silicone (part #
RTV106) around the inside perimeter of the door frame and with the rounded edge facing into the
door place the glass panel back into the door frame. Then follow the instructions above to re-install
the door.

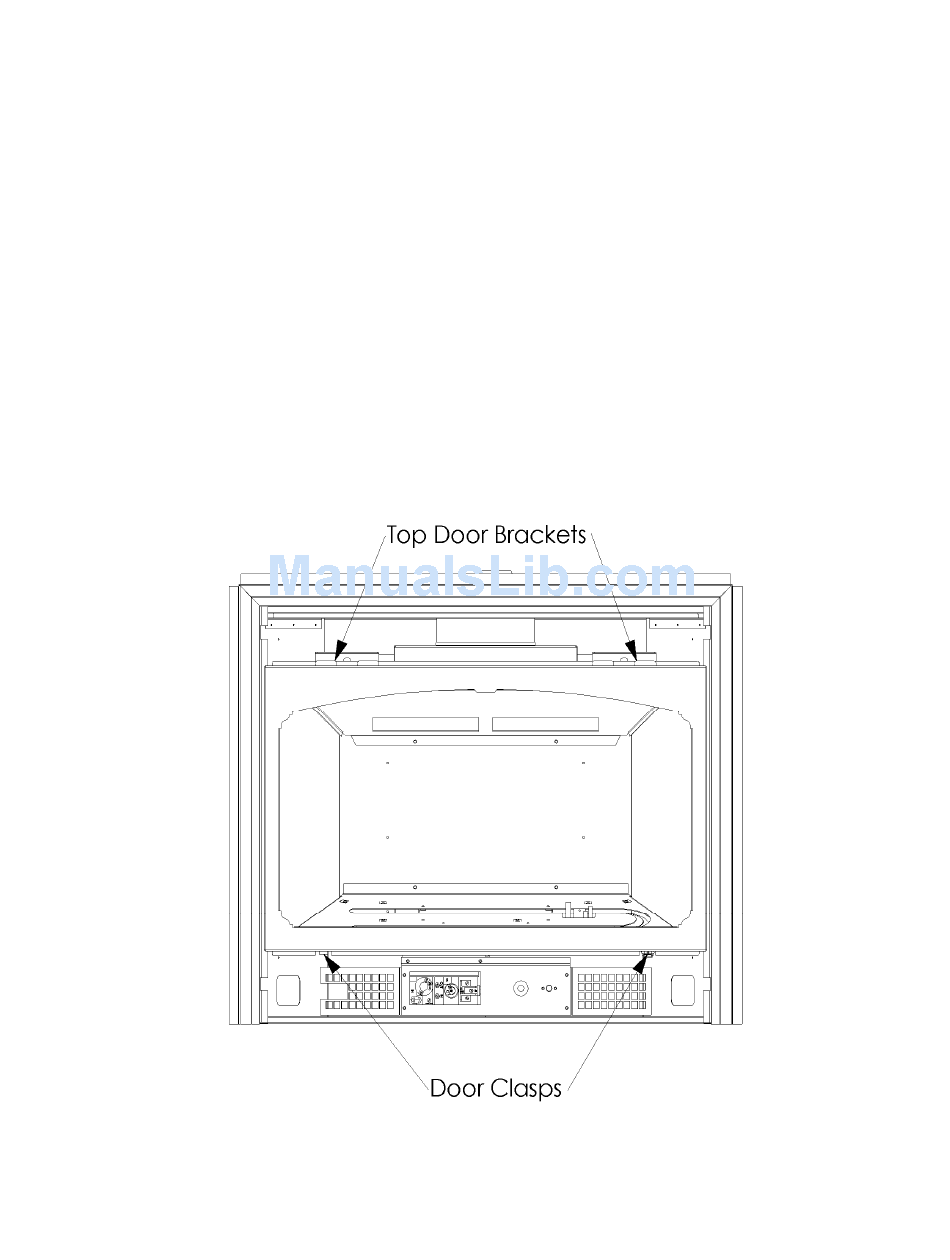

Figure 12
