5-3 TRANSMIT ADJUSTMENT (continued)
Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard.
ADJUSTMENT
[ADJUST ITEM]
CTCSS/DTCS 1 • Channel
•
No audio signals are applied to the JIG cable.
DEVIATION
•
Transmitting
[CTCSS/DTCS]
SETTING;
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P-P)/2
ADJUSTMENT CONDITION
: 1-12
MODULATION ANALYZER
(0.1–300 MHz)
OPERATION

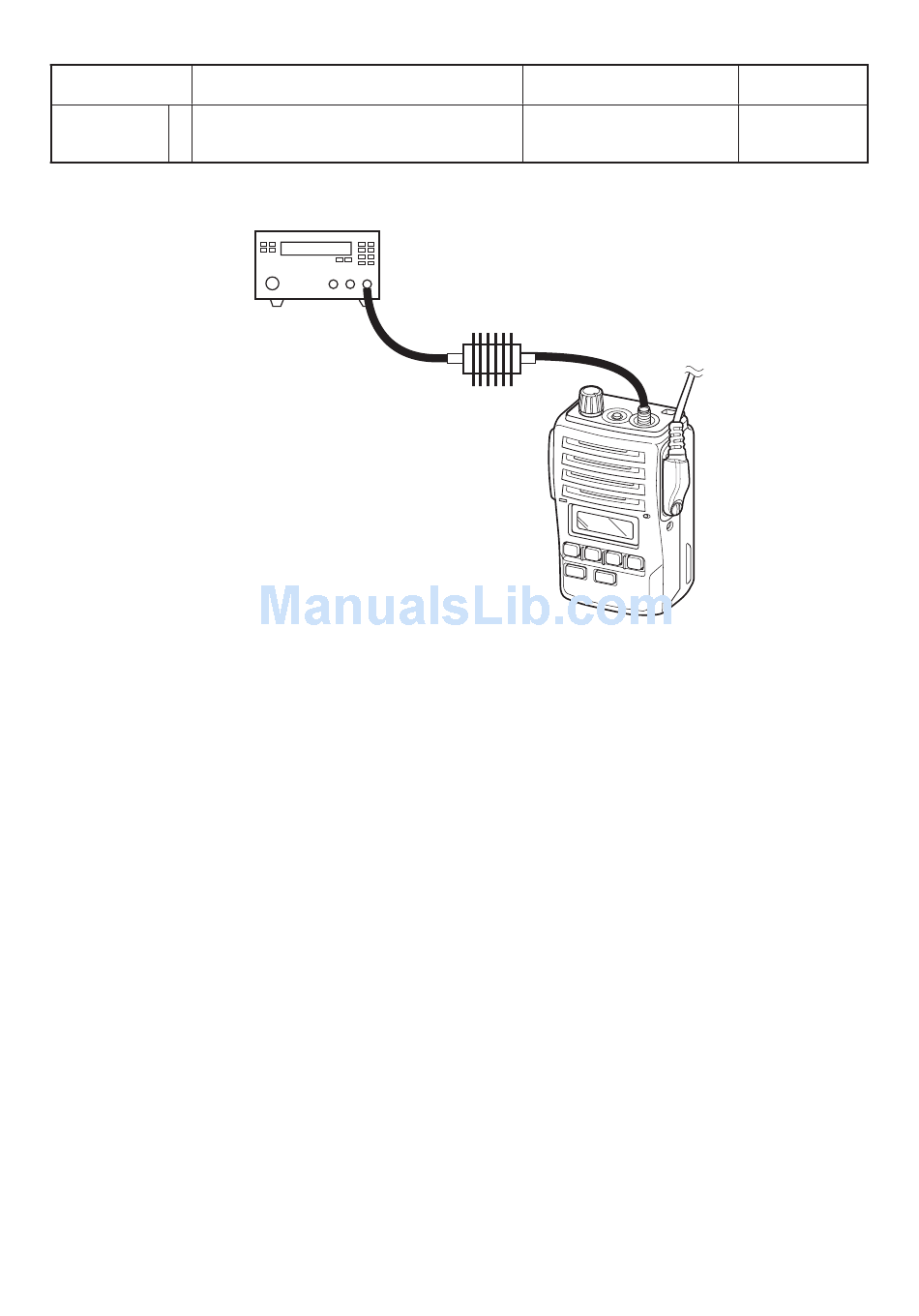

Connect a Modulation Analyzer
to the antenna connector through
an Attenuator.
ATTENUATOR
(30 dB/10 W)
5 - 9
VALUE
±0.66 to 0.70 kHz
