5-3 TRANSMIT ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard.
ADJUSTMENT
[ADJUST ITEM]
TRANSMIT 1 • Channel
•
Transmitting
OUTPUT
POWER
(Hight)
[Hi]
2 •
(Low2) Channel
•
Transmitting
[L2]
3 •
(Low1) Channel
•
Transmitting
[L1]
ADJUSTMENT CONDITION
: 1-3
: 1-4
: 1-5
RF POWER METER
(10 W/50 Ω)
OPERATION

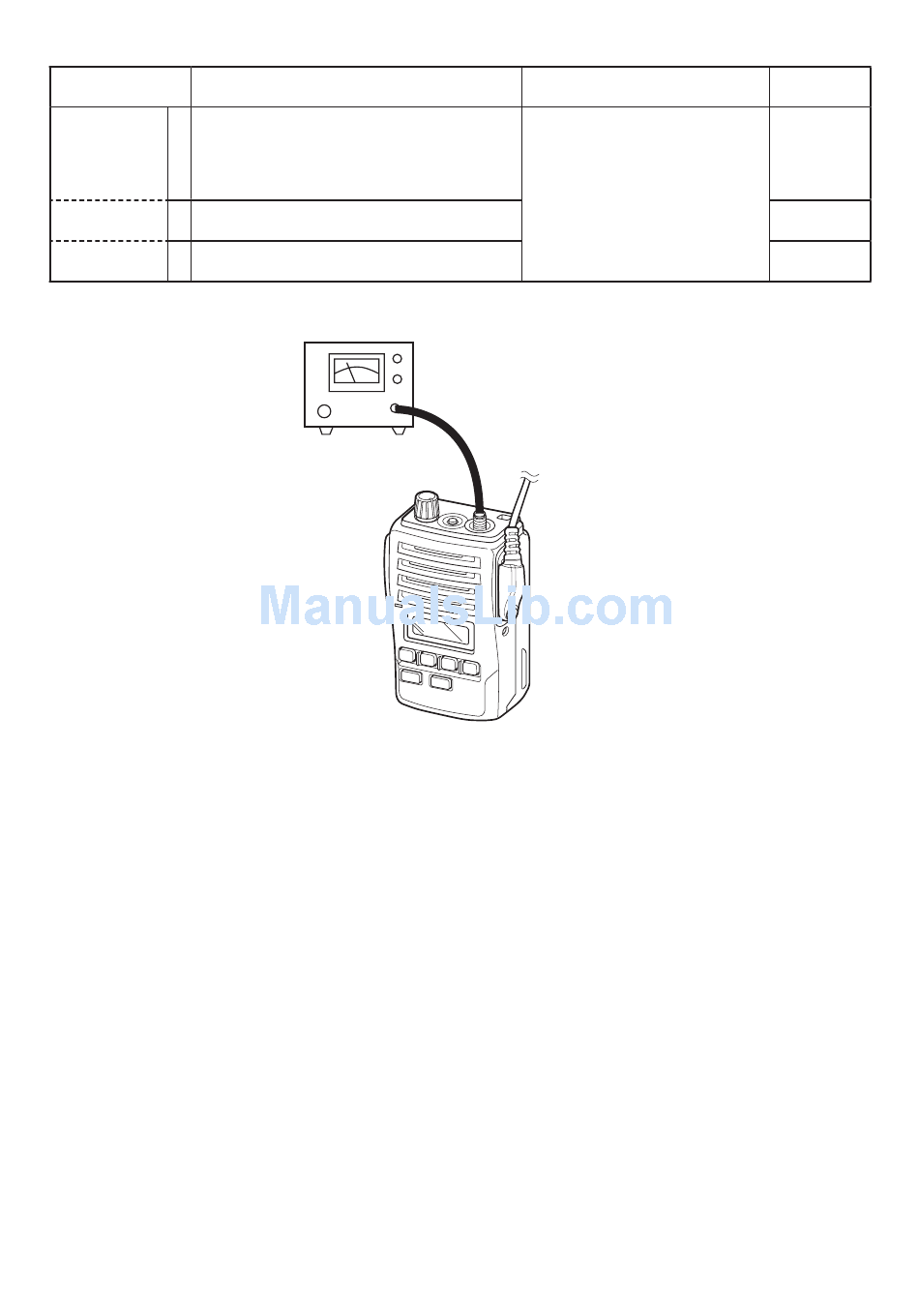

Connect an RF power meter to the
antenna connector.
5 - 6
VALUE
5.0 W
2.0 W
1.0 W
