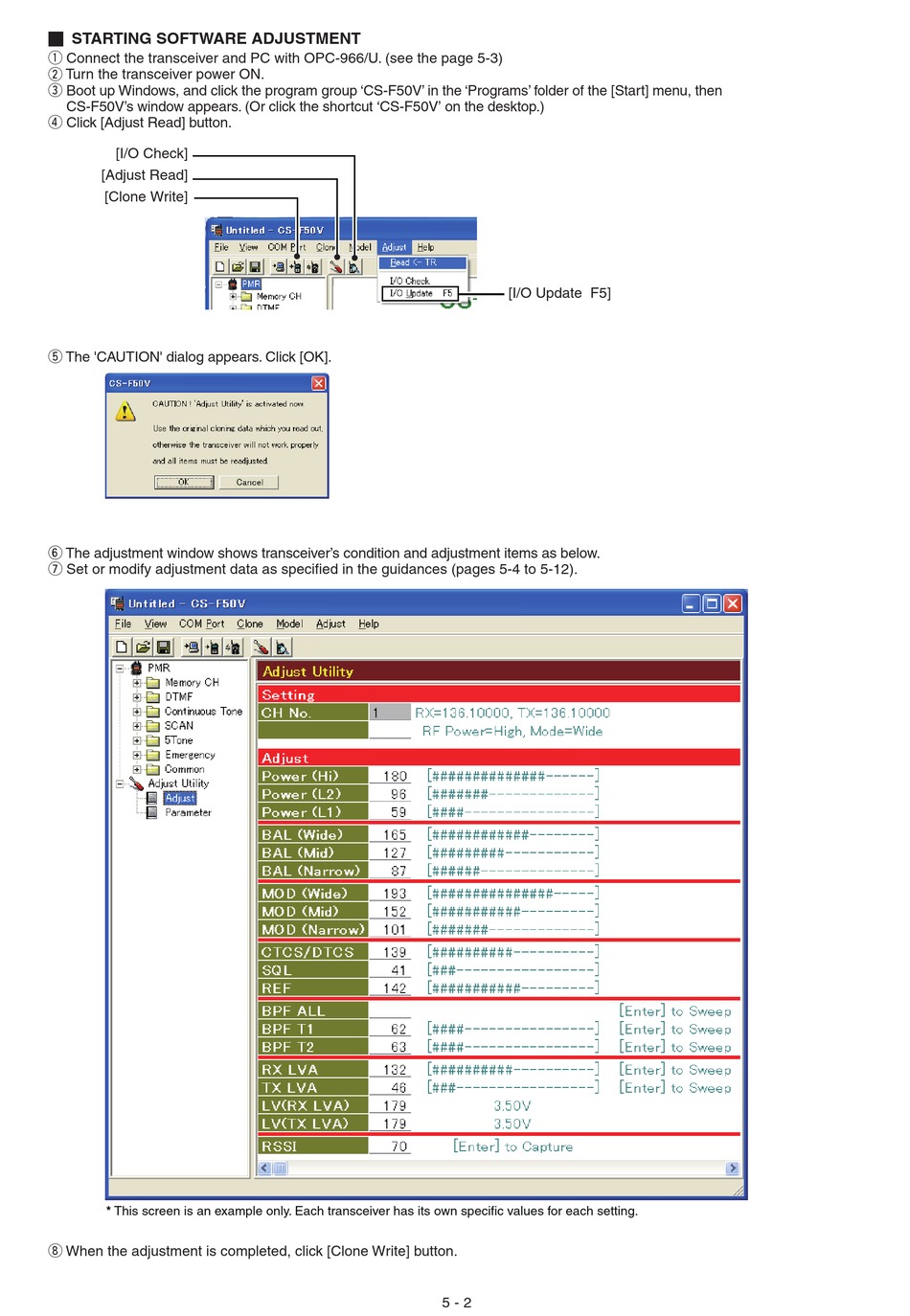

¤ STARTING SOFTWARE ADJUSTMENT
q Connect the transceiver and PC with OPC-966/U. (see the page 5-3)
w Turn the transceiver power ON.
e Boot up Windows, and click the program group 'CS-F50V' in the 'Programs' folder of the [Start] menu, then
CS-F50V's window appears. (Or click the shortcut 'CS-F50V' on the desktop.)
r Click [Adjust Read] button.
[I/O Check]
[Adjust Read]
[Clone Write]
[I/O Update F5]
t The 'CAUTION' dialog appears. Click [OK].
y The adjustment window shows transceiver's condition and adjustment items as below.
u Set or modify adjustment data as specifi ed in the guidances (pages 5-4 to 5-12).
* This screen is an example only. Each transceiver has its own specific values for each setting.
i When the adjustment is completed, click [Clone Write] button.
5 - 2
