Simplified version
Customising
Settings For
Your Home
To change the settings of your heating
system please use the main controller
located on the front panel of the
cylinder unit or on a wall. The following
is a quick guide to viewing the main
settings. Should you require more
information please see the instruction
booklet included with the cylinder.

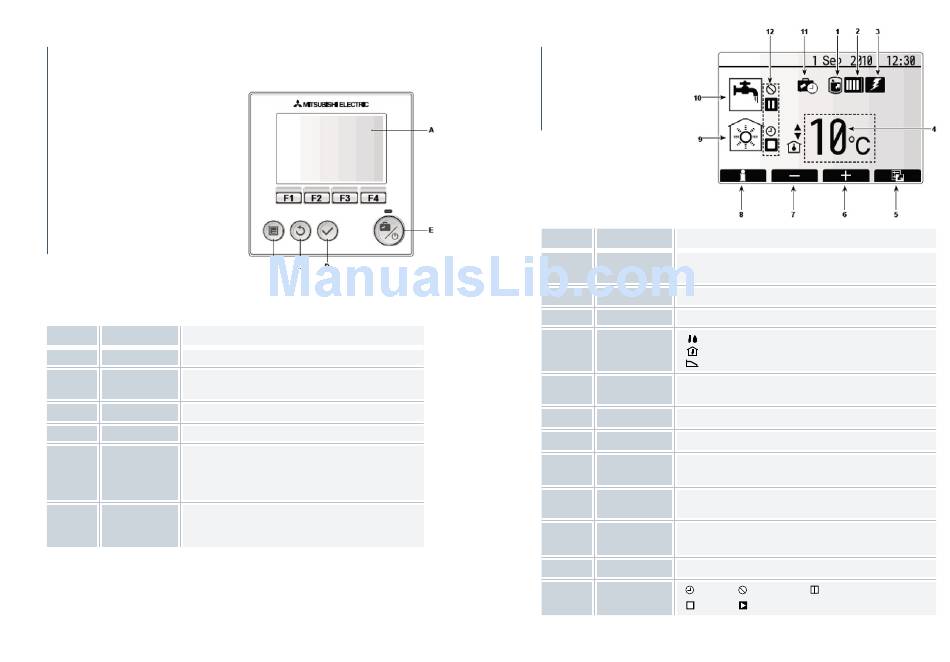

Main controller parts
Letter
Name
Function
A
Screen
Screen in which all information is displayed.
B
Menu
Access to system settings for initial set up
and modifications.
C
Back
Return to previous menu.
D
Confirm
Used to select or save. (Enter key)
E
Power/Holiday
If system is switched off, pressing once will turn
system on. Pressing again when system is switched
on will enable Holiday Mode. Holding the button
down for 3 secs will turn the system off.
1-4
Function keys
Used to scroll through menu and adjust settings.
Function is determined by the menu screen visible
on screen A.
Page 6
Controller
Display
Settings
No
Icon
Description
1
Legionella
When this icon is displayed Legionella prevention mode
prevention
is active.
2
Heat pump
When this icon is displayed the Heat Pump is in use.
3
Electric heater
When this icon is displayed the electric heaters are in use.
4
Target
Target flow temperature
temperature
Target room temperature
Compensation curve
5
OPTION
Pressing the function button below this icon will display
the option screen.
6
+
Increase desired temperature.
7
-
Decrease desired temperature.
8
Information
Pressing the function button below this icon displays
the information screen.
9
Space heating
Heating mode.
mode
10
Domestic hot
Normal or ECO mode.
water mode
11
Holiday mode
When this icon is displayed 'Holiday mode' activated.
12
Timer
Stop
Prohibited
Stand-by
Operating
Page 7
