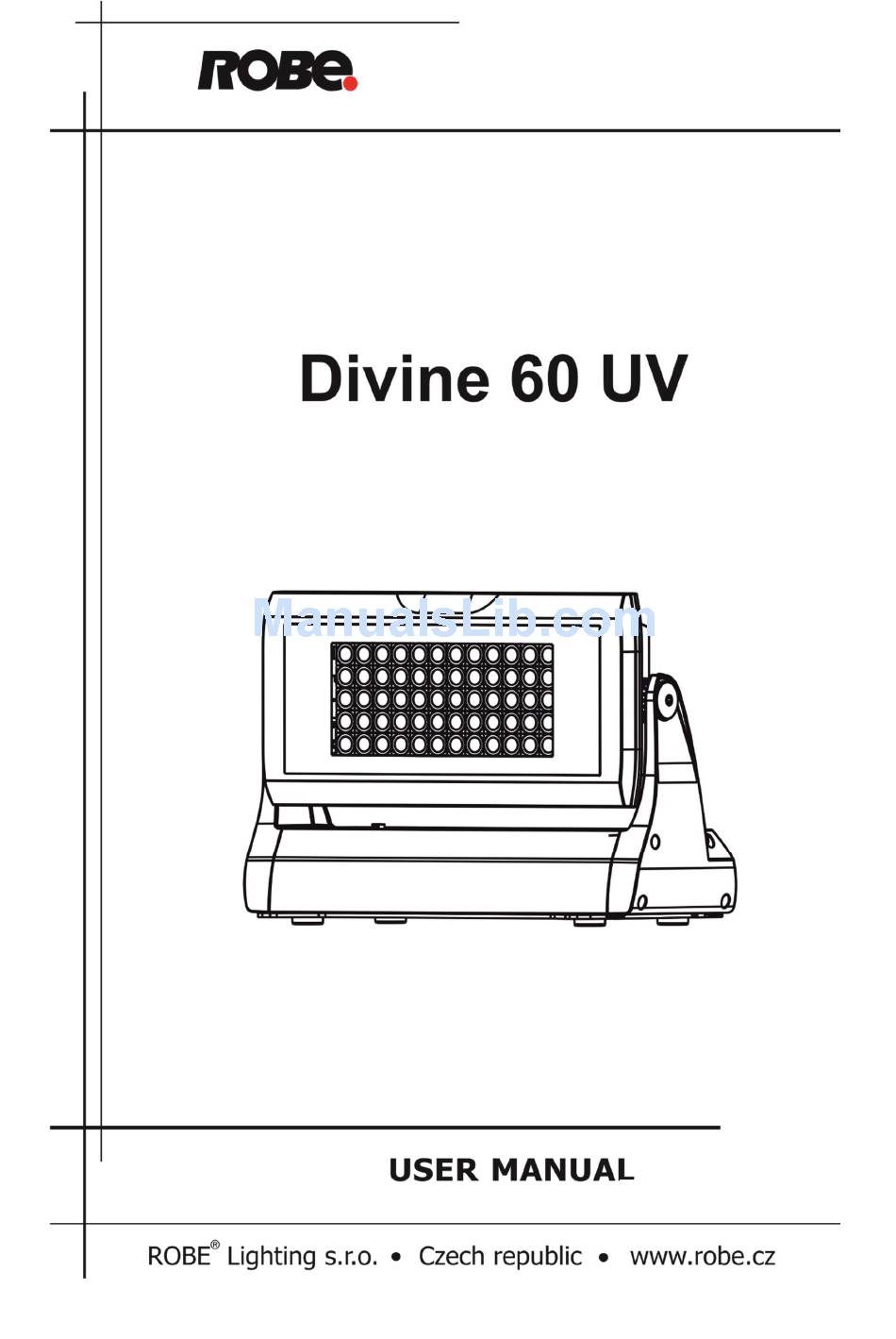

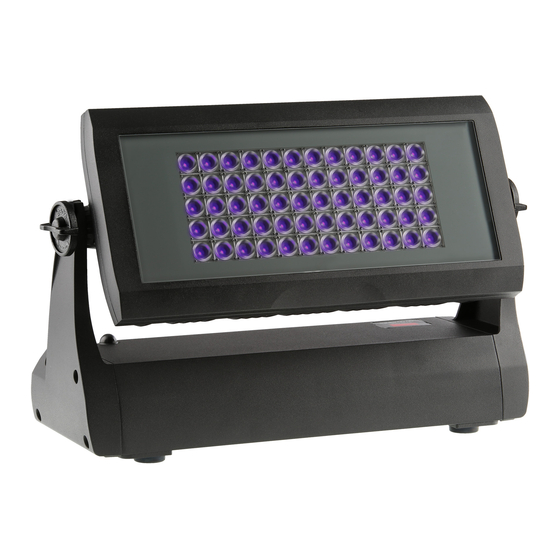

- Page 1 Version 1.5(touring)
-
Page 2: Table Of Contents
3.2 Mounting the fixture ............................7 3.3 Adapter black glass installation ..........................9 3.4 DMX 512 connection ............................10 4. Divine 60 UV - DMX protocol ........................... 11 5. Control menu ................................12 5.1 Fixture Address ..............................12 5.2 Fixture information ............................. 12 5.3 Personality ................................ -
Page 3: Safety Instructions
Divine 60 UV FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Divine 60 UV! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 Divine 60 UV Risk Group 3 LED product according to ČSN EN 62471. Make sure that materials which are exposed to UV radiation will not be damaged! Do not look at the fixture´s LEDs during operation. The light beam may damage your eyes.
- Page 5 Divine 60 UV Please use the original packaging if the fixture is to be transported. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,...
-
Page 6: Fixture Exterior View
This device falls under class one and must be grounded! The Divine 60 UV is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240V (CE) or 100-277 V (US). The fixture must be connected to a non-dimmable power source in order to avoid damage to its internal power supply and other electrical components. -
Page 7: Mounting The Fixture
Divine 60 UV 3.2 Mounting the fixture The Divine 60 UV can be arranged in any position/orientation without altering its operation characteristics. The LED module can be tilted to desired position by means of the tilt lock. The Universal base adaptor of the fixture (8) is equipped with two pairs of rubber feet (6) for standing the fixture on the floor and three pairs of openings (7) for installation of the mounting brackets Omega CL (9) which allow to rig the fixture to the truss. - Page 8 Divine 60 UV...
-
Page 9: Adapter Black Glass Installation
Divine 60 UV 3.3 Adapter black glass installation 1. Unscrew two screws M3x5 (1) to separate the bottom part (2) from the upper part (3) of the adapter. 2. Place both parts of the adapter on the head (4) and screw both parts of the adapter together by means of two screws M3x5 (1). -
Page 10: Dmx 512 Connection
Divine 60 UV 3.4 DMX 512 connection The fixture is equipped with 5-pin XLR connectors for DMX input/output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR connectors in order to connect the controller with the fixture or one fixture with another. -
Page 11: Divine 60 Uv - Dmx Protocol
Divine 60 UV 4. Divine 60 UV - DMX protocol Version 1.1 Mode Mode Mode Function Type of control Value Zone 1 Intensity 0 - 255 Intensity from 0% to 100% proportional Zone 2 Intensity 0 - 255 Intensity from 0% to 100%... -
Page 12: Control Menu
5. Control menu The Divine 60 UV is equipped with 4-segment LED display which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, control all range of effects and program it in stand-alone mode. -
Page 13: Personality
DM.In.---DMX values. Select this function to read DMX values of each channel received by the fixture. 5.3 Personality Use this menu to modify the Divine 60 UV operating behaviour. DM.Pr. --- DMX preset. Select this menu item to set a desired DMX mode. Please refer to the chapter "DMX protocol"... -
Page 14: Manual Mode
Divine 60 UV If time between two receiving DMX values is < than fade time set in the item“F.tin. “, the adjusted fade time will be reduced to fill entire time between the two receiving DMX values. e.g “F.tin.“=2sec. and fixture has received from DMX controller value Red=0 DMX, after 5 seconds will receive Red=255 DMX. -
Page 15: Test Sequences
5. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the Divine 60 UV. 5.6 Stand-alone setting The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. -
Page 16: Special Functions
1. DMX Software Uploader program is available from the robe web site at WWW.robe.cz. 2. Make a new directory ( e.g. Robe Uploader) on your hard disk and download the software to it. 3. Unpack the program to the directory. - Page 17 Divine 60 UV When the update is finished, the line with the text “The fixture is successfully updated“ will appear in this window and the fixture will reset with the new software. Note: In case upload process is interrupted (e.g. power loss), the fixture stays in “Updating mode” and you will...
-
Page 18: Technical Specifications
• Manual control of all effects via control panel • One editable program, up to 40 steps Wireless DMX/RDM module (only for wireless DMX version of the Divine 60 UV) • Compliance with USITT DMX-512 (1986 & 1990) and 512-A •... - Page 19 • 1 x Universal base adaptor for Strobe IP (P/N 10980379) • 1 x User manual OptionaI accessories • Top Hat Strobe IP black/Divine 60 UV black (P/N 10980354) • Half Top Hat Strobe IP/Divine 60 UV black (P/N 10980355) • Wire Guard/Anti-Glare Strobe IP (P/N 10980385) •...
-
Page 20: Cleaning And Maintenance
Should you need any spare parts, please use genuine parts. 7.1 Replacing a fuse This replacement has to be realized by a qualified person or Robe service worker only. 7.2 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local... -
Page 21: Extract From A Test Report Of Brno University Of Technology - Light Laboratory
8.1 Measurement results for all LEDs with clear glass (max. power), beam angle 38° Evaluted according: ČSN EN 62471, ČSN EN 62471-5, IEC TR 62778, ANSI/IESNA RP -27.3-07 Fixture at a distance, which produces illuminance of 500 lx. Results for Divine 60 UV are in bold frame... - Page 22 Divine 60 UV Key to identify the hazards in the evolution tables If the cell has transparent background and the text is written in italics, the value is not used to evaluate risk. All LEDs on (max. power) Calculated values of illuminance (E) with uncertainty of measurement (k=2) 0,94%, actinic ultraviolet irradiance (E...
-
Page 23: Measurement Results For All Leds With Black Glass (Max. Power), Beam Angle 38
8.2 Measurement results for all LEDs with black glass (max. power), beam angle 38° Evaluted according: ČSN EN 62471, ČSN EN 62471-5, IEC TR 62778, ANSI/IESNA RP -27.3-07 Fixture at a distance, which produces illuminance of 500 lx. Results for Divine 60 UV are in bold frame... - Page 24 Full report from the Light Laboratory on request. Specifications are subject to change without notice September 7, 2017 Copyright © 2017 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
- Page 25 Divine 60 UV...
