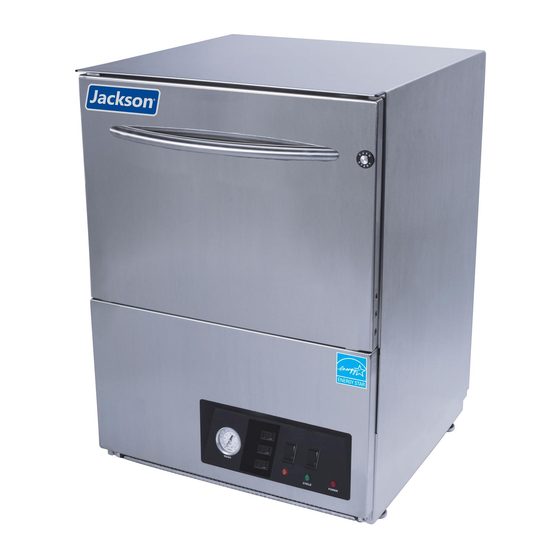

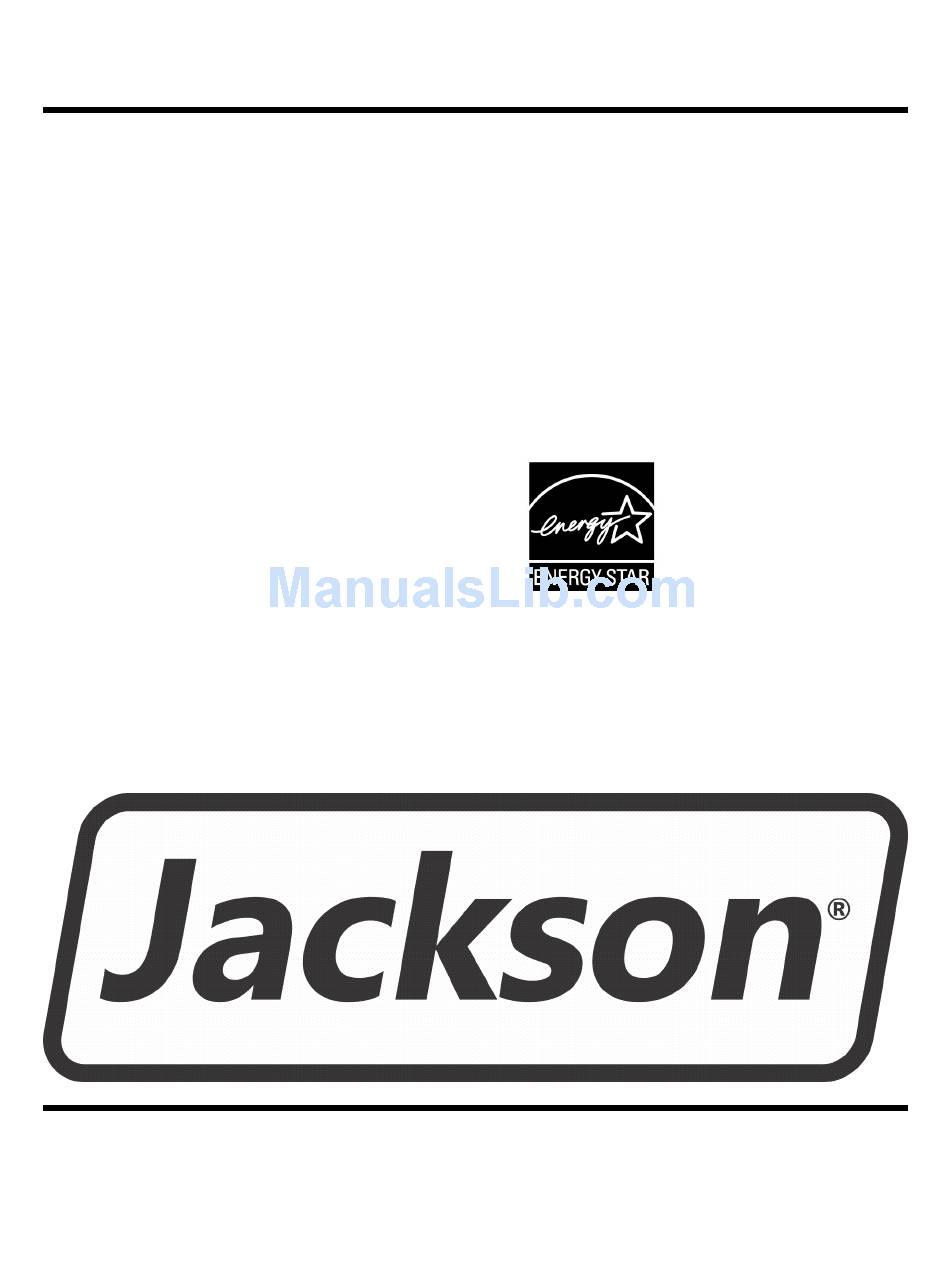

AVENGER UNDER COUNTER DISH MACHINE SERIES
TECHNICAL MANUAL
INSTALLATION, OPERATION & TECHNICAL MANUAL
ELECTRICALLY HEATED MODELS:
Avenger HT
Avenger LT
Jackson WWS,INC
P.O. Box 1060, Hwy 25E
Barbourville, KY USA
1.606.523.9795
March 11, 2013
www.jacksonwws.com
P/N 07610-003-34-01 (Revision M)
