ENGINE

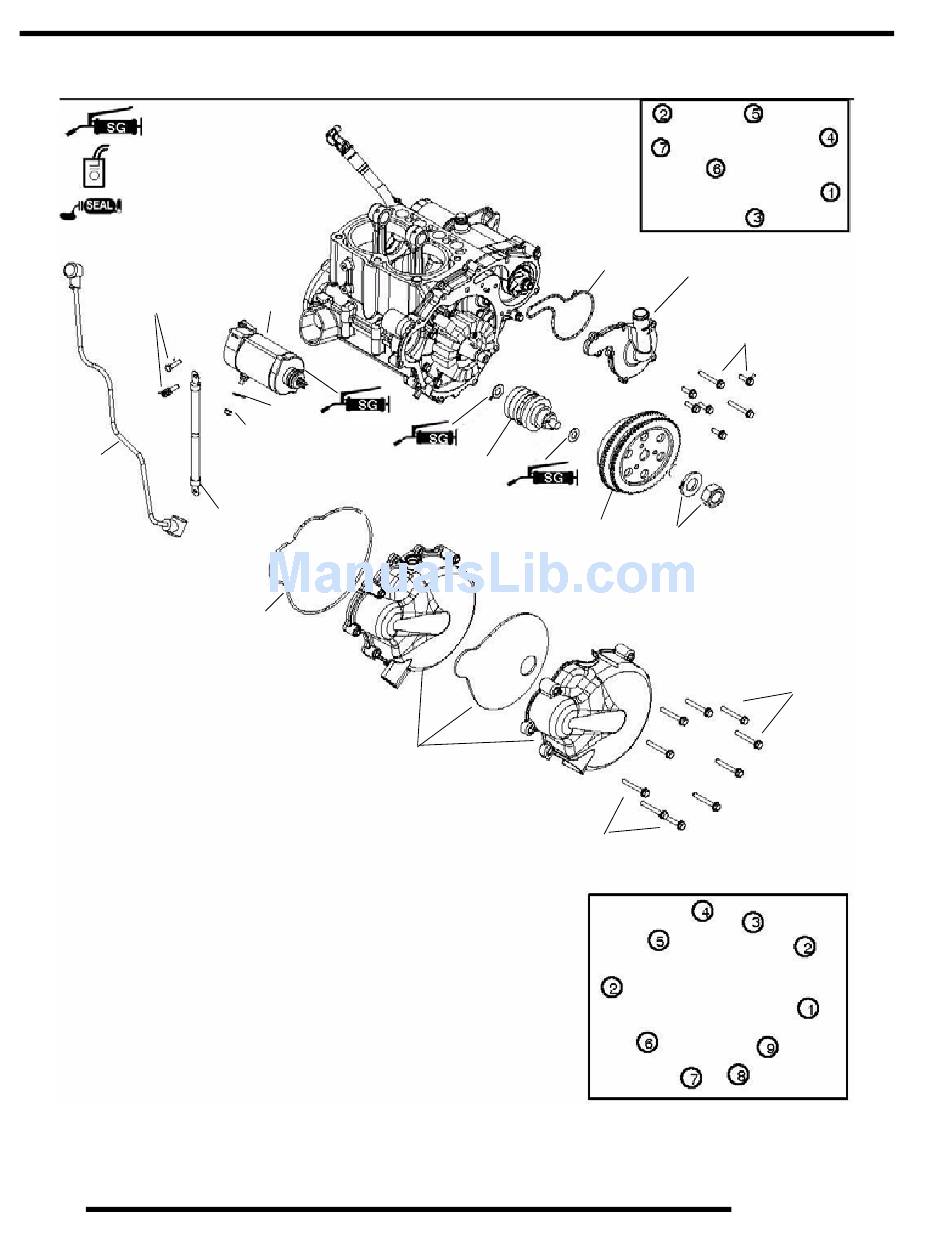

Starter / Flywheel / Water Pump Exploded View
Apply Polaris
Starter Grease
Apply Polaris 0W-40
oil to seal
Loctite™ Pipe Sealant
(PN 2871956)
A
84 ± 8 ft.lbs. (9.5 ± 0.9 Nm)
Tighten Top Bolt First
1
2
E
A. Bolts
B. Starter
C. Washer
D. Nut
E. Positive Cable
F. Negative Cable
G. Gasket
H. Clamp
I. Bolts
J. Gasket
K. Water Pump Cover
L. Bolts
M. Crank Nut/Washer
N. Flywheel
O. Bendix
3.4
B
C
D
108 ± 12 ft.lbs.
(12 ± 1.35 Nm)
F
G
Water Pump Cover
Bolt Tighten Sequence
No Grease or Oil
O
H
±
96 12 in.lbs.
(10.85± 1.35 Nm)
J
K
L
96 ± 12 in.lbs.
(10.85 ± 1.35 Nm)
N
M
65 ± 7 ft.lbs.
(88 ± 9.5 Nm)
Stator Cover Bolt
Tighten Sequence
I
