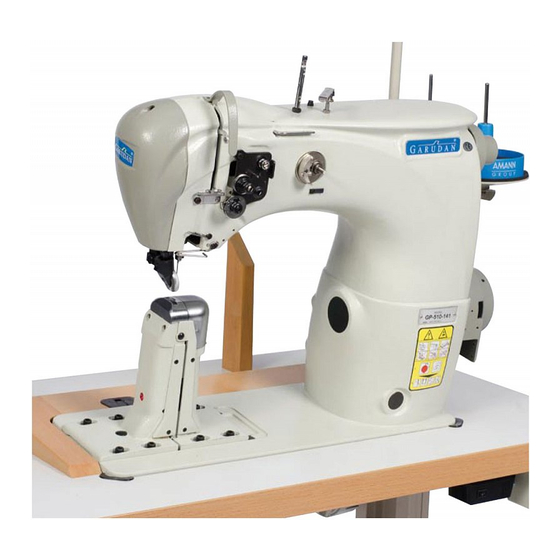

Garudan GP-514- 141 User Manual And Spare Parts List
  1. Manuals
  2. Brands
  3. Garudan Manuals
  4. Sewing Machine
  5. GP-514- 141
  6. User manual and spare parts list

Garudan GP-514- 141 User Manual And Spare Parts List

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual and
Spare Parts List
GP-514- 141
ANITA B, s.r.o.
Hliníky 2068
680 01 Boskovice
Czech Republic
tel: +420 516454774, 516453496
fax: +420 516452751
e-mail:
info@anita.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-514- 141 and is the answer not in the manual?

Questions and answers

Related Manuals for Garudan GP-514- 141

Summary of Contents for Garudan GP-514- 141

  • Page 1 User manual and Spare Parts List GP-514- 141 ANITA B, s.r.o. Hliníky 2068 680 01 Boskovice Czech Republic tel: +420 516454774, 516453496 fax: +420 516452751 e-mail: info@anita.cz...
  • Page 3 GP-514-141 1 Safety Measures Do not put the machine into operation until an appropriate preparation is carried out by a specialist or an authorised person, and until you get acquainted with safety measures. 1. Any sewing machine may be operated only by a properly trained operator.
  • Page 4 GP-514-141 Putting the machine into operation Following instructions must be observed to avoid risk of failures or damage to the machine: - clean the machine of preserving agents - drop 1-2 drops of oil into looper - remove the front cover and oil the ends of needle bar connecting-rod and of the cross-head slide of thread take-up.
  • Page 5 GP-514-141 Threading the Upper Thread Caution! Switch off the main switch and remove your feet from the pedals on the machine support before threading so that the machine may not be started by unintended treading on the pedal. When threading the thread from bobbin stand into needle follow figure 1 for single needle machine, or figure 2 for two-needle machine.
  • Page 6 GP-514-141 Inserting needles Caution ! Switch off the main switch and remove your feet from the pedals on the machine support before replacing needles so that the machine may not be started by unintended treading on the pedal. Fig.3 Having chosen the right thickness (size) of needle whose system coresponds to the prescribed kind (usually 134 LR) loosen screw (A,fig.3) on needle bar and insert needle (B) as far as it will...
  • Page 7 GP-514-141 Caution! Do not start the machine until you put the hook covers in working (protecting) position. Switch off the main switch and remove your feet from the pedals on the machine support before replacing the hook bobbin so that the machine may not be started by unintended treading on the pedal.
  • Page 8 GP-514-141 7 Adjusting Differential Feed Ratio (only for machines with driven presser foot) To ensure sewing of fabric layers without their displacement in the course of feeding it is possible to adjust different lengths of feeding driven by press-wheel and feeding by rotary feed dog.
  • Page 9 GP-514-141 The sewing machines are equipped with a safety clutch on the lower shaft (A) fig. 8 that allows the operator to turn the driving part of lower shaft (A) when the loopers or feed dogs are locked. The clutch consists of segment (B) engaging with.groove (C) in the disk on lower shaft by the pressure of two springs.
  • Page 10 GP-514-141 10 Switching Off and Switching On of the Main Switch The Main Switch are marked 0 and I or they have grey/green and red buttons. Pushing position of the button marked "0" (red) means: off, pushing position of the button marked "I"...
  • Page 11 GP-514-141 12 Bobbin Winder – Standart Built in Fig. 9 The thread passes from the bobbin stand through thread guide on the winder bracket (1) and between tension disks (2) and then following the direction of arrow (S) to the empty bobbin.
  • Page 12 GP-514-141 Instructions for adjustment threat trimmer mechanism 13 Basic condition a) Clearance between the throat plate and the bobbin case stopper. Fig.10 Condition : Clearance between the top end of the bobbin case resting groove on the throat plate and the top face of the bobbin case stopper of the hook : 1,4 mm –(for left and right side)

  • Page 13: Table Of Contents

    TABLE OF CONTENTS anita-b GP-514-141 Spare Parts Lists Frame and Cover Parts……………………………………………..14,15 Upper Shaft Mechanism………………………….………………..16,17 Lower Shaft and Clutch Mechanism………………………………..18,19 Timing Belt DrivingMechanism…………………………………….20,21 Needle Feed and Driven Mechanism……………………………….22,23 Lower Feed Mechanism…………………………………………….24,25 Feed Shaft Mechanism……………………………………………...26,27 Stitch Adjuster Mechanism……………………….………………...28,29 Needle Bar and Presser Foot Mechanism…………………………...30,31 Thread Take-Up Lever Mechanism…………………………………32,33...
  • Page 14 Frame and Cover Parts anita-b GP-514-141...

  • Page 15: Frame And Cover Parts

    Frame and Cover Parts anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 5-1 A1-1 Face Plate GP/ 108246 A1-2 Screw (M5x0,8x25) GP/ 108234 A1-3 Screw (M5x0,8x35) GP/ 168061 A1-4 Thread Take-up Cover GP/ 210210 A1-5 Screw (M5x0,8x8) GP/ 119027...
  • Page 16 Upper Shaft Mechanism anita-b GP-514-141...

  • Page 17: B Upper Shaft Mechanism

    Upper Shaft Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 119702-2 Crank Cam GP/ 130224 Screw (M5x0,8x12) GP/ 119702-3 Screw (M7x1,0x22) GP/ 119702-4 Screw (M7x1,0x16,5) GP/ 700510 Screw (M6x0,75x8) GP/ 119702-5 Bushing GP/ 119702-1 Upper Shaft GP/ 200-002...
  • Page 18 Lower Shaft and Clutch Mechanism anita-b GP-514-141...

  • Page 19: Lower Shaft And Clutch Mechanism

    Lower Shaft and Clutch Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 175025 C1-1 Shaft GP/ 518250 C1-2 Retaining Ring GP/ 119711 C1-3 Shaft GP/ 175019 C1-4 Coupler GP/ 341901 C1-5 Screw (M6x0,75x6) GP/ 133109 C1-6 Coupler...
  • Page 20 Timing Belt Driving Mechanism anita-b GP-514-141...

  • Page 21: C2 Timing Belt Drivingmechanism

    GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 119097 C2-1 Plug GP/ 610300 C2-2 Retaining Ring GP/ 018624 C2-3 Ball Bearing GP/ 119707 C2-4 Timming Belt Wheel GP/ 335902-1 C2-5 Screw (M6x0,75x8) GP/ 335902 C2-6 Screw (M6x0,75x10) GP/ 119121...
  • Page 22 Needle Feed and Driven Roller Mechanism anita-b GP-514-141...

  • Page 23: D1 Needle Feed And Driven Mechanism

    Needle Feed and Driven Roller Mechanism anita-b GP-514-141 Ref.No. Part No. Name of Part Q´ty D1- 1 GP/ 119164 Clamp D1- 2 GP/ 108177 Screw (M4x0,7x10) D1- 3 GP/ 119163 Crank D1- 4 GP/ 108225 Screw (M5x0,8x10) D1- 5 GP/ 119085...
  • Page 24 Lower Feed Mechanism anita-b GP-514-141...

  • Page 25: Lower Feed Mechanism

    Lower Feed Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty D2-17 GP/119112 Free Wheeling (Left) D2-17-1 GP/061014 Needle Bearing D2-17-2 GP/119115-1 Free Wheeling Seat D2-18 GP/119115 Free Wheeling (Right) D2-19 GP/012555 Ball Bearing D2-20 GP/664350 Retaining Ring 22mm...
  • Page 26 Feed Shaft Mechanism anita-b GP-514-141...

  • Page 27: Feed Shaft Mechanism

    Feed Shaft Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 610280 D3-1 Retaining Ring GP/ 119085 D3-2 Washer GP/ 133283 D3-3 Washer GP/ 215124 D3-4 Needle Bearing GP/ 118600 D3-5 Bushing D3-6 GP/119163 Crank D3-7 GP/108225 Screw (M5x0,8x10)
  • Page 28 Stitch Adjuster Mechanism anita-b GP-514-141...

  • Page 29: Stitch Adjuster Mechanism

    Stitch Adjuster Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 175038 D4-1 Connecting Rod GP/ 069060 D4-2 Ball Bearing GP/ 175038A D4-3 Crank Rod Set GP/ 215028 D4-4 Needle Bearing GP/ 118612 D4-5 Bearing Stud GP/ 165356...
  • Page 30 Needle Bar Feed and Presser Foot Mechanism anita-b GP-514-141...

  • Page 31: Needle Bar And Presser Foot Mechanism

    Needle Bar Feed and Presser Foot Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 118197 Needle Bar GP/ 118196 Ring Clamp GP/ 108174-1 Screw (M4x0,7x8) GP/ 700868 Screw (1/8x44x3,5) GP/ 700868-1 Screw (M3x0,5x4) GP/ 118195 Needle Holder (2,8)
  • Page 32 Thread Take-Up Lever Mechanism anita-b GP-514-141...

  • Page 33: Thread Take-Up Lever Mechanism

    Thread Take-Up Lever Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 118084 Thread Take-up Assy GP/ 119009 Take-up Lever Support Stud GP/ 168039 Washer GP/ 215022 Needle Bearing GP/ 119008 Take-up Frame GP/ 119762 Take-up Crank Pin...
  • Page 34 Roller Presser Foot Mechanism anita-b GP-514-141...

  • Page 35: Roller Presser Foot Mechanism

    Roller Presser Foot Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 119803 G1-1 Roller Preser Assy (Large) GP/ 119803-1 G1-2 Roller Preser Assy (Middle) GP/ 119802 G1-3 Roller Preser Assy (Small) GP/ 119469 G1-4 Spring Washer GP/ 033145...
  • Page 36 Presser Foot Bar Mechanism anita-b GP-514-141...

  • Page 37: Presser Foot Bar Mechanism

    Presser Foot Bar Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 119019 G2-1 Presser Bar Bushing (Upper) GP/ 700785 G2-2 Screw (M5x0,8x6) GP/ 119018 G2-3 Presser Bar Bushing (Upper) GP/ 118530 G2-4 Presser Bar Holder GP/ 700510...
  • Page 38 Right Side Hook Mechanism anita-b GP-514-141...

  • Page 39: Right Side Hook Mechanism

    Right Side Hook Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ G400S H1-1 Hook Complete With Bobbin Case GP/ G400S-589 H1-1-1 Hook complete without cap GP/ G400S-582 H1-1-2 Hook without cap holder GP/ G400T-017 H1-1-3 Tension spring fastening screw...
  • Page 40 Left Side Hook Mechanism anita-b GP-514-141...

  • Page 41: Left Side Hook Mechanism

    Left Side Hook Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty H2-1 GP/G400S Hook Complete With Bobbin Case H2-1-1 GP/G400S-589 Hook complete without cap H2-1-2 GP/G400S-582 Hook without cap holder H2-1-3 GP/G400T-017 Tension spring fastening screw H2-1-4 GP/G400S-046...
  • Page 42 Right Side Hook Post Mechanism anita-b GP-514-141...

  • Page 43: Right Side Hook Post Mechanism

    Right Side Hook Post Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 119695 I1-1 Cover Plate GP/ 250084 I1-2 Srew/šroub(M3x0.5x6) GP/ 175318 I1-5 Stud/excentr GP/ 330217 I1-6 Screw/šroub(M5x4.5) GP/ 175324 I1-7 Hook Post GP/ 119140 I1-8 Post Cap Assy...
  • Page 44 Left and Middle Side Post Mechanism anita-b GP-514-141...

  • Page 45: I2 Left And Middle Side Post Mechanism

    Left and Middle Side Post Mechanism anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty I2-1 GP/119976 Side Bracket I2-2 GP/119499 Cover Plate/kryt I2-3 GP/250084 Screw I2-4 GP/119695 Cover Plate/kryt I2-5 GP/168351 Plug I2-6 GP/135292 Screw/šroub(M6x1x20) I2-7 GP/305174 Washer/podložka I2-8 GP/16120 Ball Bearing/ložisko...

  • Page 46: Bobbin Winder

    Bobbin Winder anita-b GP-514-141 Part No. Ref. No. Name of Part Q´ty GP/ GU-100T N1-1 Bobbin Winder-Built in D/ D08082993000 N1-2 Knife D/ D08028312900 N1-3 Spring 283129 D/ D08028313000 N1-4 Spring 283130 P/ P98002524800 N1-5 Thread Retainer GP/ M3x5 N1-6...
  • Page 48 Accessories anita-b GP-514-141...

  • Page 49: Accesories

    Accessories anita-b GP-514-141 Part No. Ref.No. Name of Part Q´ty GP/ 123456 N2-1 Accessory Bag GP/ 029836 N2-2 Vinyl Cover GP/ 800110 N2-3 Spanner GP/ 129915 N2-4 Screw Driver (Small) GP/ 029946 N2-5 Screw Driver (Middle) GP/ 029007 N2-6 Screw Driver (Large)
