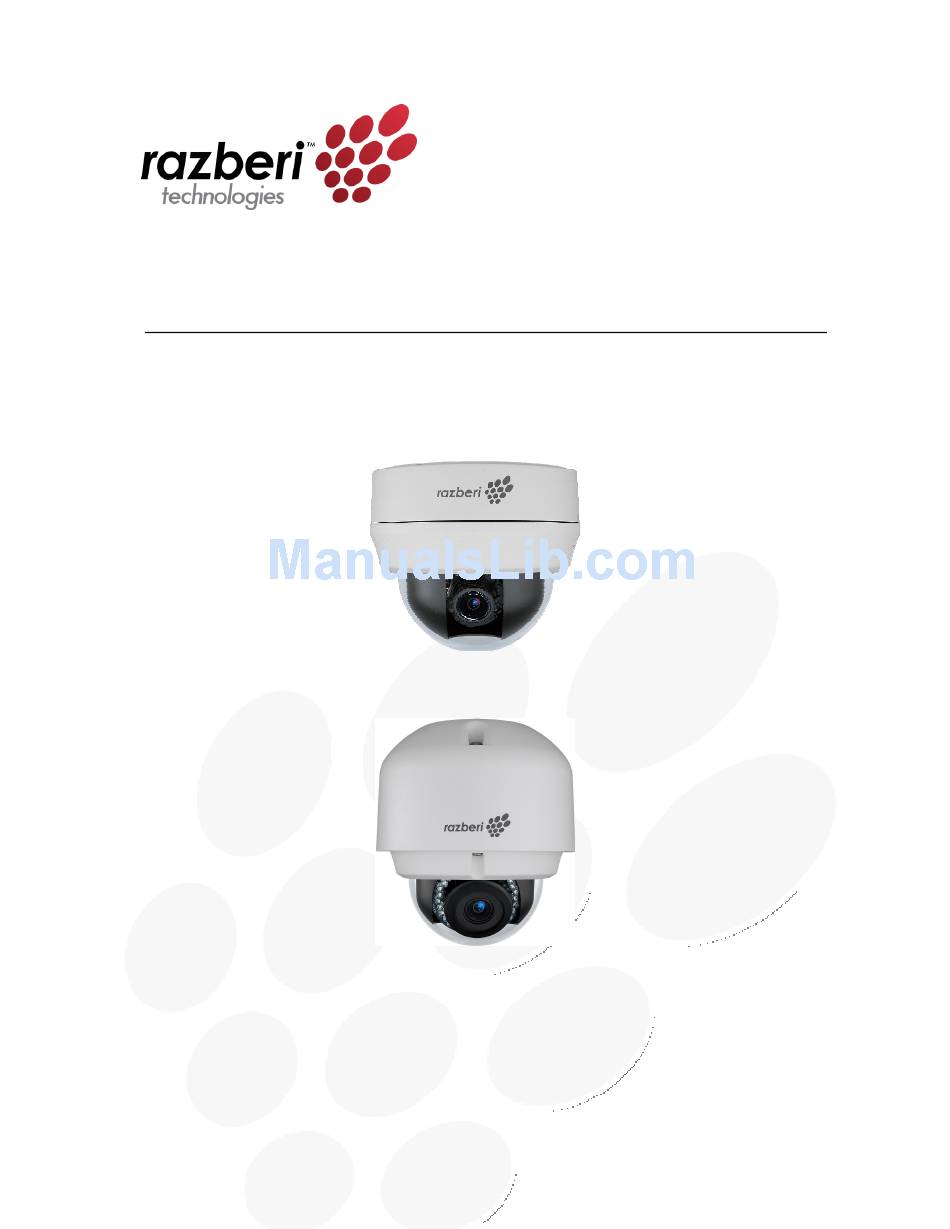

Page 1: User Manual
Full HD Multi-Stream Vandal Proof Dome IP Camera DV200 / DV200L / DVO200 / DVO200L User Manual Ver 4.17... -
Page 2: Table Of Contents
File Location (Snapshots and Web Recording) ........... 59 7.2.14 Iris Adjustment (Fixed Focal Lens Excluded) ..........59 7.2.15 View Log File ....................59 7.2.16 View User Information ................. 60 7.2.17 View Parameters ..................60 7.2.18 Factory Default .................... 61 7.2.19 Software Version ..................61 razberi technologies™... - Page 3 7.5.3 Pan/Tilt Control .................... 78 7.6 Logout ......................... 79 Appendix A: Technical Specifications ..................80 Appendix B: Delete the Existing DC Viewer ................83 Appendix C: Setup Internet Security ..................84 Appendix E: Install UPnP Components ..................85 razberi technologies™...
-
Page 4: Overview
Smart Picture Quality/3DNR Tampering Alarm Day/Night (ICR) Micro SD support BNC analog output IR LED module (Optional) Weatherproof (IP66 International) Vandal Proof Dome Cover Sunshield & Outdoor Mounting Kit ONVIF Support razberi technologies™... -
Page 5: Package Contents
Please check the package contains the following items listed below. Indoor Camera Package Contents Vandal Proof DC Jack Cable and terminal block Fixed Dome IP Camera Rubber Washers (×6) Security Torx Self Tapping Screws Plastic Screw Anchors (×4) (×4) (bundled software and documentation) Quick Guide razberi technologies™... - Page 6 Outdoor Camera Package Contents DC Jack Cable and terminal block Vandal Proof Fixed Dome IP Camera Pendant Tube Washer (×1) Security Torx Hexagon Screw-M8*12 (x1) Spring Washer (×1) Rubber Washer (×1) (bundled software and documentation) Quick Guide razberi technologies™...
-
Page 7: Dimensions
Dimensions The IP Dome Camera’s dimensions are shown below. Indoor Top View Side View Outdoor Top View Side View razberi technologies™... -
Page 8: Connectors
GND (Input－) Input＋ Alarm connection Alarm I/O Output－ Output＋ Output (L) Output (R) Two-way audio transmission Audio I/O Input Power Reserved DC 12V Power connection Power Power-1 Earth GND AC 24V Power-2 10/100 Mbps Ethernet / PoE RJ-45 razberi technologies™... -
Page 9: Camera Cabling
The camera equips one alarm input and one relay output for alarm application. Refer to alarm pin definition below to connect alarm devices to the IP Camera if needed. PIN 1: GND (Input-) PIN 2: Input+ PIN 3: Output- PIN 4: Output+ razberi technologies™... -
Page 10: System Requirements
Windows VISTA / Windows XP / Windows 7 Operating System Microsoft Internet Explorer 6.0 or later Web Browser Firefox Chrome Safari 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation Network Card ActiveX control plug-in for Microsoft IE Viewer razberi technologies™... -
Page 11: Access Camera
The default Administrator login ID and password: Login ID Password Admin 1234 NOTE: Login ID and password are case sensitive. NOTE: It is strongly advised that the administrator’s password be altered for security concerns. Refer to System Menu for razberi technologies™... - Page 12 The Information Bar (just below the URL bar) may come out and ask for permission to install the ActiveX Control for displaying video in browser. Right click on the Information Bar and select <Install ActiveX Control…> to allow the installation. razberi technologies™...
- Page 13 Image and Focus Adjustment The image displays on the Home page when successfully accessing to the IP Camera. Adjust zoom and focus as necessary to produce a clear image. razberi technologies™...
- Page 14 Note: Please refer to Full HD Multiple Streams IP Camera Menu Tree for more button function detail. razberi technologies™...
-
Page 15: Setup Video Resolution
Setup Video Resolution Users can setup Video Resolution on the Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. Click on <Save> to confirm the setting. razberi technologies™... -
Page 16: Video Format
720 x 480 (30fps) √ 800 x 600 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ 720 x 480 (30fps) √ 720 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ razberi technologies™... - Page 17 640 x 480 (30fps) √ 352 x 240 (30fps) √ 720 x 480 (30fps) √ 720 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ 640 x 480 (30fps) 640 x 480 (30fps) √ razberi technologies™...
- Page 18 352 x 240 (30fps) √ razberi technologies™...
- Page 19 1280 x 720 (30fps) √ 1024 x 768 (30fps) √ 800 x 600 (30fps) √ 720 x 480 (30fps) √ 640 x 480 (30fps) √ 352 x 240 (30fps) (*) Default Click on <Save> to confirm the setting. razberi technologies™...
- Page 20 720 x 480 (30fps) √ 640 x 480 (30fps) √ 352 x 240 (30fps) √ 800 x 600 (30fps) √ 720 x 480 (30fps) √ 800 x 600 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ razberi technologies™...
- Page 21 640 x 480 (30fps) √ 352 x 240 (30fps) √ 1024 x 768 (30fps) √ 800 x 600 (30fps) 1024 x 768 (30fps) 720 x 480 (30fps) √ 640 x 480 (30fps) √ 352 x 240 (30fps) √ razberi technologies™...
- Page 22 1280 x 720 (30fps) √ 1024 x 768 (30fps) √ 800 x 600 (30fps) √ 720 x 480 (30fps) √ 640 x 480 (30fps) √ 352 x 240 (30fps) (*) Default Click on <Save> to confirm the setting. razberi technologies™...
-
Page 23: Configuration Files Export/ Import
File Download window will come out. Click on <Save> and specify a desired location for saving the configuration file. Upload To copy an existing configuration file to the IP Camera, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading. razberi technologies™... -
Page 24: Menu Tree
Pan Tilt Head uses in the <Pan/ Tilt Control> page. NOTE: Pan Tilt function is only available for 10x/ 18x Zoom AF IP Camera and Box Camera. (DC12V/ AC24V/PoE Model) Logout Click on the tab to re-login the IP Camera with another username and password. razberi technologies™... -
Page 25: Home Page
The default place of saving snapshots is: C:\. To change the storage location, please refer to File Location for further details. NOTE: For users with Windows 7 operating system, it is required to log on as an Administrator to implement the Snapshot function. razberi technologies™... - Page 26 Hold the <Near/Far> button, and implement continuous focus adjustment. Near/Far Steps buttons Click on the <Near/Far> buttons will lead focus to be altered toward Near/Far sides in user-defined range, which can be selected from the drop-down menu. razberi technologies™...
- Page 27 The one-push AF function is for fixing the focus on the target in a shot using AF. Once click on the button, AF will be implemented. Reset button Click on the <Reset> button, and the camera lens will be calibrated at full wide end and infinity focus at once. razberi technologies™...
-
Page 28: Function Differences Between Models
√ Reset √ Manual √ √ √ √ Near/ Far Manual Focus Near Steps/ √ √ √ Adjustment Far Steps √ √ √ Reset √ Auto Auto Focus √ Zoom AF Adjustment √ √ √ √ Push AF razberi technologies™... -
Page 29: System
Select the item, and video date and time display will synchronize with the PC’s. Manual The Administrator can set video date, time and day manually. Entry format should be identical with that shown next to the enter fields. razberi technologies™... - Page 30 NTP server. Please specify the server you wish to synchronize in the enter field. Then select an update interval from the drop-down menu. For further information about NTP, please refer to the web site: www.ntp.org. razberi technologies™...
-
Page 31: Security
This item allows the appointed User to change camera parameters on the Camera Setting page. Talk/Listen Talk and Listen functions allow the appointed user in the local site (PC site) communicating with, for instance, the administrator in the remote site. razberi technologies™... - Page 32 IP Camera. Please refer to the last part of this section: Provide the Certificate Information more details. NOTE: The self-signed certificate does not provide the same high level of security as when using a CA-issued certificate. razberi technologies™...
- Page 33 Enter a 2-letter combination code to indicate the country the certificate will be used in. For instance, type in “US” to indicate United States. State or province Enter the local administrative region. Locality Enter other geographical information. Organization razberi technologies™...
- Page 34 The Filtered IP Addresses list box shows the currently configured IP addresses. Up to 256 IP address entries may be specified. To remove an IP address from the list, please select the IP and then click on the <Delete> button. razberi technologies™...
- Page 35 Private Key Password Enter the password (maximum 16 characters) for your user identity. Enable IEEE 802.1X Check the box to enable IEEE 802.1X. Click on <Save> to save the IEEE 802.1X/ EAP- TLS setting. razberi technologies™...
-
Page 36: Network
When using static IP address to login to the IP Camera, users can access it either through “DeviceSearch” software (refer to User’s Manual) or input the IP address in the URL bar and click on <Enter>. IP address razberi technologies™... - Page 37 The default setting of RTSP Port is 554; the setting range is from 1024 to 65535. MJPEG over HTTP port The default setting of MJPEG over HTTP Port is 8008; the setting range is from 1024 to 65535. razberi technologies™...
- Page 38 This setting is only available for the IP Cameras that support audio. Management DSCP The class consists of HTTP traffic: Web browsing. NOTE: To enable this function, please make sure the switches/ routers in the network support QoS. razberi technologies™...
- Page 39 Trap community Enter the community to use when sending a trap message to the management system. Trap Option Warm Start A Warm Start SNMP trap signifies that the SNMP device, i.e. IP Camera, performs software reload. razberi technologies™...
- Page 40 NOTE: To enable this function, please make sure that your router supports UPnP and it is activated. Friendly name Set the name for the IP Camera for identity. razberi technologies™...
-
Page 41: Ddns
Two sets of SMTP can be configured. Each set includes SMTP Server, Account Name, Password and E-mail Address settings. For SMTP server, contact your network service provider for more specific information. razberi technologies™... -
Page 42: Ftp
<Alarm> triggered and <Motion Detection> notifications can be sent to the specified HTTP server. Click on <Save> when finished. Please refer to: Application> Send HTTP notification/ Motion Detection for HTTP Notification settings. razberi technologies™... -
Page 43: Application (Compact Fixed Dome Excluded)
Select the item and the camera’s IR cut filter (ICR) will be removed (on) or blocked (off) when alarm input is triggered. Note: The IR Function (Refer to Function) could not be set as <Auto> mode if this triggered action is enabled. Send Alarm Message by FTP/E-Mail razberi technologies™... - Page 44 Select <Upload for __ sec> to set the recording duration after alarm is triggered. The setting range is from 1 to 99999 seconds. Select <Upload during the trigger active> to record the triggered video until the trigger is off. razberi technologies™...
- Page 45 HTTP server. For instance, if the custom parameter is set as” action=1&group=2”, and the HTTP server name is” http://192.168.0.1/admin.php”, the notification will be sent to HTTP server as” http://192.168.0.1/admin.php? action=1&group=2” when alarm is triggered. razberi technologies™...
- Page 46 technologies™...
-
Page 47: Motion Detection
Motion Detection The Motion Detection setting can be found under this path: System> Motion Detection. Motion Detection function allows detecting suspicious motion and triggering alarms when motion volume in the detected area reaches/exceeds the determined sensitivity threshold value. razberi technologies™... - Page 48 Detection Window, move the mouse cursor to the selected Window, and click on the <delete> button. If Motion Detection function is activated, the pop-off window (Motion) with indication of motion will be shown. When motion is detected, the signals will be displayed on the Motion window as shown below. razberi technologies™...
- Page 49 The Administrator can specify alarm actions that will take when motion is detected. All options are listed as follows: Enable Alarm Output Check the item and select the predefined type of alarm output to enable alarm relay output when motion is detected. razberi technologies™...
- Page 50 <Upload for __sec> and enter the duration in the blank. The images of the duration will be uploaded to FTP when the motion event occurs. The setting range is from 1 to 9999 seconds. Select <Upload during the trigger active> to make the images keep being uploaded to FTP during razberi technologies™...
- Page 51 <Motion Detection> triggered. When an alarm is triggered, the notification can be sent to the specified HTTP server. For instance, if the custom parameter is set as” action=1&group=2”, and the HTTP server name is” http://192.168.0.1/admin.php”, the notification razberi technologies™...
- Page 52 HTTP server as” http://192.168.0.1/admin.php? action=1&group=2” when alarm is triggered. razberi technologies™...
- Page 53 File Name The uploaded image’s filename format can be set in this section. Please select the one that meets your requirements. Save Click on the <Save> button to save all the Motion Detection settings mentioned above. razberi technologies™...
-
Page 54: Tampering
Select this item and the Tampering Alarm recording will be stored in Micro SD/ SDHC card when tampering is detected. Pre-trigger buffer recording function allows users to check what happened to cause the trigger. The pre-trigger buffer time range is from 1 to 3 seconds. razberi technologies™... - Page 55 FTP during the trigger active until the tampering stops. Set the Image frequency as the upload frame rate. The setting range is from 1 frame to 15 frames. NOTE: Make sure FTP configuration has been completed. Refer for further details. razberi technologies™...
- Page 56 HTTP server name is” http://192.168.0.1/admin.php”, the notification will be sent to HTTP server as” http://192.168.0.1/admin.php? action=1&group=2” when alarm is triggered. File Name The uploaded image’s filename format can be set in this section. Please select the one that meets your requirements. razberi technologies™...
-
Page 57: Storage Management (Local Recording)
<Device information> section in the Storage Management page. Device setting Click on the <Format> button to format the memory card. Disk cleanup setting Users can enable automatic recordings cleanup by specifying the time and storage limits Recording List razberi technologies™... - Page 58 To open/download a video clip, select the file first, and then click on the <download> button below the Recording list field. The selected file window will pop up. Click on the AVI file to directly play the video in the player or download it to a specified location. razberi technologies™...
-
Page 59: Recording (Local Recording)
<Always> to activate Micro SD/SDHC Card Recording all the time. Please click on the <Save> button for confirming the schedule mode. Terminating Micro SD/SDHC Card Recording Select <Disable> to terminate the recording function. razberi technologies™... -
Page 60: File Location (Snapshots And Web Recording)
The View Log File function can be found under this path: System> View Log File. Click on the tab to view the system log file. The content of the file provides useful information about connections after system boot-up. razberi technologies™... -
Page 61: View User Information
Listen. 7.2.17 View Parameters The View Parameters function can be found under this path: System> View Parameter. Click on this item to view the entire system’s parameter setting such as Camera Settings, Mask Information and Network Information. razberi technologies™... -
Page 62: Factory Default
Click on the <Reboot> button, and the system will restart without changing current settings. 7.2.19 Software Version The Software Version can be found under this path: System> Software Version. The current software version is displayed in the software version page. razberi technologies™... -
Page 63: Software Upgrade
Remove Programs>. In the <Currently install programs> list, select <DCViewer> and click on the button “Remove” to uninstall the existing DC Viewer. Step 6. Open a new web browser, re-login the IP Camera, and then allow the automatic download of DC Viewer. razberi technologies™... -
Page 64: Maintenance
Upload To copy an existing configuration file to the IP Camera, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading. razberi technologies™... -
Page 65: Streaming
Click on <Save> to confirm the Text Overlay setting. Video Rotate Type Users can change video display type if necessary. Selectable video rotate types include Normal, Flip, Mirror, 90 degree clockwise, 180 degree rotate and 90 degree counterclockwise. razberi technologies™... -
Page 66: Video Compression
MJPEG Q factor is 35; the setting range is from 1 to 70. H.264-1/ H.264-2 bit rate The default setting of H.264-1/H.264-2 is 4096/1024 kbps; the setting range for H.264-1 is from 64 to 8192 kbps and for H.264-2 is from 64 to 2048 kbps. razberi technologies™... -
Page 67: Video Ocx Protocol
RTP over UDP / RTP over RTSP(TCP) / RTSP over HTTP / MJPEG over HTTP Multicast Mode Enter all required data, including <Multicast IP Address>, <H.264 Video Port>, <MJPEG Video Port>, <Audio Port> and <TTL> into each blank. Click on <Save> to confirm the setting. razberi technologies™... -
Page 68: Video Frame Rate
Uncheck the checkbox of the Video Mask meant to be deleted, and the selected mask will disappear from the Live Video pane instantly. Mask Setting Mask color The selections of Mask color include red, black, white, yellow, green, blue, cyan, and magenta. Click on <Save> to confirm the setting. razberi technologies™... -
Page 69: Audio (Audio Mode And Bit Rate Settings)
Selectable audio transmission bit rate include 16 kbps (G.726), 24 kbps (G.726), 32 kbps (G.726), 40 kbps (G.726), uLAW (G.711) and ALAW (G.711). Both uLAW and ALAW signify 64 kbps but in different compression formats. Higher bit rate razberi technologies™... -
Page 70: Camera
The minimum shutter speed range is configurable from 1 (1/1.5) to 1/500 (1/425) sec. Shutter Priority Mode This function is to set the shutter speed at a specified speed. The range is configurable from 1/30 (1/25) to 1/500 (1/425) sec. razberi technologies™... - Page 71 In this mode, fixed shutter speed could be selected from the dropdown menu. The shutter speed range is from 1/10000 to 1 (1/1.5) sec. with 19 (18) options. Users could select suitable shutter speed according to the environmental illumination. razberi technologies™...
-
Page 72: White Balance Setting
In this mode, users can change the White Balance value manually. Users can select a number between 0 ~127 of “Rgain/ Bgain” item to gain the red/ blue illuminant on the Live Video Pane. Click on <√> to confirm the new setting. razberi technologies™... -
Page 73: Picture Adjustment
The Backlight Setting can be found under this path: Camera> Backlight. The Backlight Compensation function prevents the center object from being too dark in surroundings where excessive light is behind the center object. Click on < √ > to confirm the new setting. razberi technologies™... -
Page 74: Digital Zoom
Additionally, for the models with built-in IR LED module, the day/night IR switching mechanism will depends on the ambient light level instead of the light sensor (Light sensor mode) on the IR LED module. Click on <√> to confirm the new setting. razberi technologies™... -
Page 75: Wdr Function
Low, 3DNR Mid, 3DNR Hi, SPQ, SPQ + 3DNR Low, SPQ + 3DNR Mid, to SPQ + 3DNR Hi. Click on < √ > to confirm the new setting. 7.4.9 TV System Setting The TV System Setting can be found under this path: Camera> TV System. razberi technologies™... -
Page 76: Pan Tilt
Users may adjust the zoom position as well. Step 2. Once a Preset Point is defined, please assign a number (between 1 and 127) and enter it into the input field. razberi technologies™... - Page 77 Step 3. Click on the <√> button to save the defined preset point. razberi technologies™...
-
Page 78: Sequence
<Save> in the top of the Sequence setting menu. Sequence Run Select the specified Sequence Line from the drop-down list, click on the button, and then the camera will start moving forward each scene sequentially as programmed. razberi technologies™... -
Page 79: Pan/Tilt Control
PelcoP (9600) Click on <Save> to confirm the setting Move the camera to the desired position by moving the mouse cursor onto the screen, one left click on mouse, and then dragging the red arrow to pan/tilt. razberi technologies™... -
Page 80: Logout
Logout Click on the tab <Logout> on the top of the page, and the login window will pop up. This enables log in with another user name. razberi technologies™... -
Page 81: Appendix A: Technical Specifications
Exposure Auto/Manual Sharpness Manual Contrast Manual White Balance Auto/Manual Saturation Manual Manual Image Setting Backlight Compensation On/Off Digital Zoom Support On/Off 3D Noise Reduction On/Off Motion detection On/Off Privacy Mask On/Off Privacy Mask Type Color ICR * Auto/On/Off razberi technologies™... - Page 82 Heater & Fan, powered by AC24V: -35°C ~ 50°C (-31° ~ 122° F) Humidity: 10% to 90%, no condensation Power Source DC12V/ AC24V/ PoE System: 5W Power Consumption (Heater: +6W, Fan: +1W, Built-in IR Illuminator: +3W, Motorized Lens: +3.6W) Weatherproof Standard IP66 Regulatory CE, FCC, RoHS Compliant razberi technologies™...
- Page 83 Indoor ∅ 151 x 130 mm (∅ 5.9 x 5.1 in.) Dimension Outdoor ∅ 170 x 210 mm (∅ 6.7 x 8.3 in.) Indoor 0.8 kg (1.8 lb) Weight Outdoor 1.3 kg (2.9 lb) (*) Optional razberi technologies™...
-
Page 84: Appendix B: Delete The Existing Dc Viewer
Step 2: Click on the <Delete> button under <Browsing history> section. Then click on the <Delete Files> button under the <Temporary Internet files> section. Step 3: A confirmation window will pop up. Click on <Yes> to start deleting the files. razberi technologies™... -
Page 85: Appendix C: Setup Internet Security
Step 4: Click on <OK> to accept the settings and close the Security Settings window. Step 5: Click on <OK> to close the Internet Options screen. Step 6: Close the browser window, and restart a new one later to access the IP Camera. razberi technologies™... -
Page 86: Appendix E: Install Upnp Components
Components Wizard window, and then click on <Details>. Step 4: Select <UPnP User Interface> in the Networking Services’ subcomponents list and then click on <OK>. Step 5: Click on <Next> in the Windows Components Wizard window. Step 6: Click on <Finish> to complete installation. razberi technologies™... - Page 87 Razberi Technologies 1628 Valwood Pkwy #148 Carrollton, TX 75006 P.469-828-3380 www.razberi.net razberi technologies™...
