2-1 CPU INSTALLATION

WARNING !!!
• Make sure that +5V DCV and +3.3 DCV of your power supply are suitable
for the processor.
• Any attempt to operate the PIII or Celeron processor without a suitable
cooling Fan will damage processor and other component.

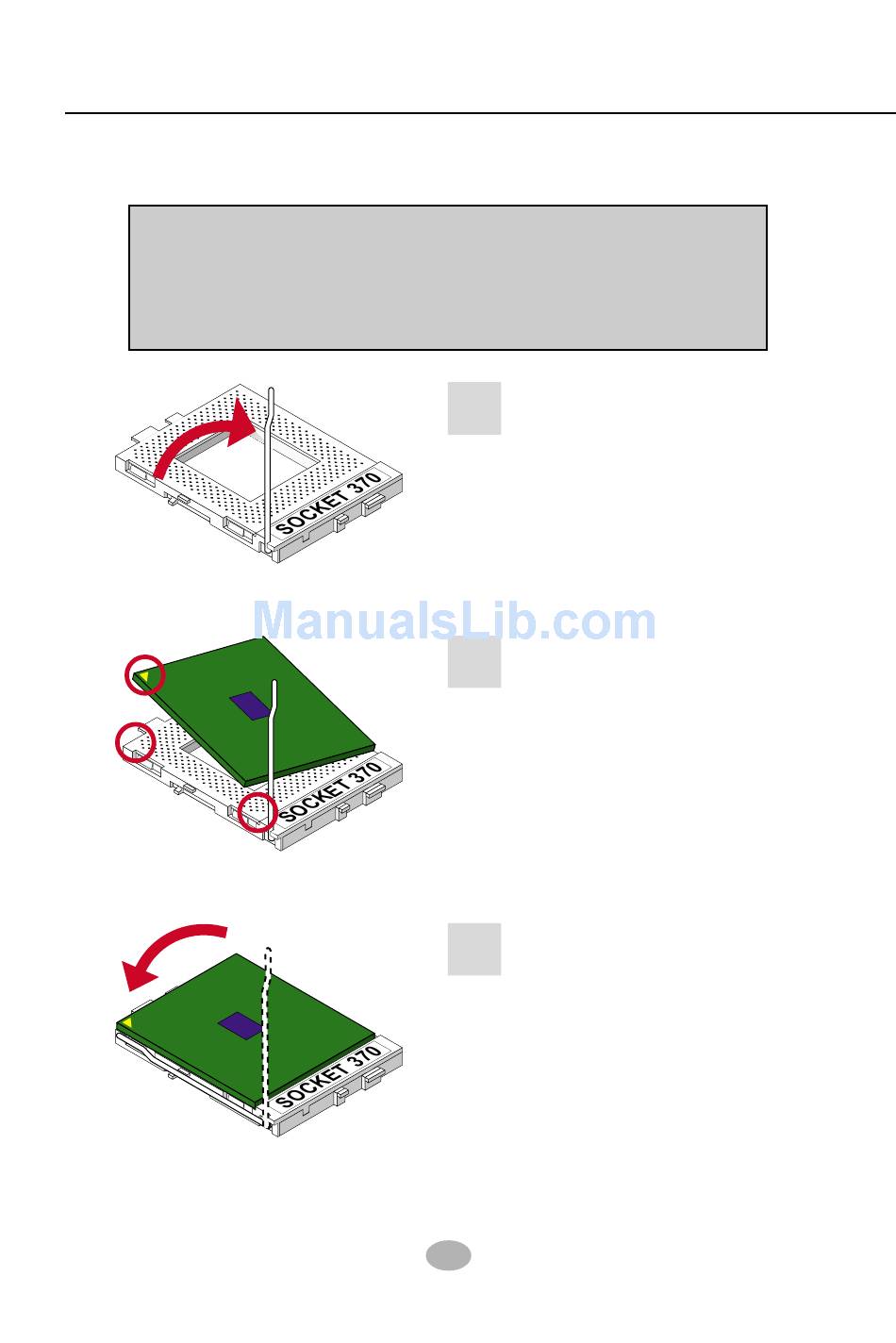

Pull out the lever from the socket,
1
and then raise the lever up to a
90-degree angle.
Take notice of the red circles
2
as shown below. While insert-
ing the CPU into the socket,
you can find out there is a
definite pin orientation for
CPU and socket.
Make sure that the CPU is
3
placed into the socket tightly.
Then lower down the lever to
complete the CPU installation.
