StarTech.com 8STET91000SFP2C Instruction Manual

Instruction Manual

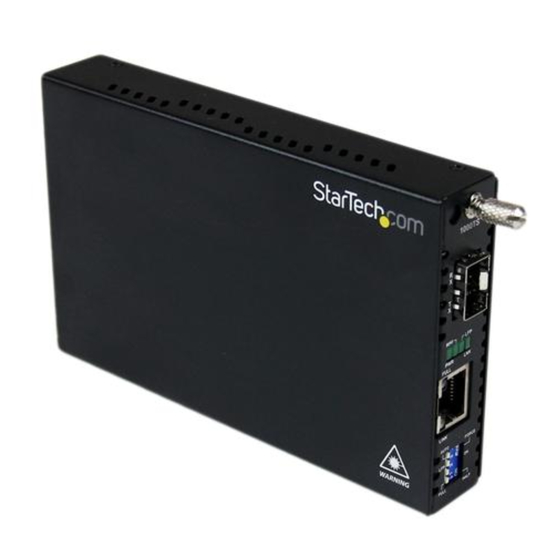

Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot
ET91000SFP2 / ET91000SFP2C
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
ET91000SFP2
• 1 x Fiber Media Converter
• 1 x Universal Power Adapter (NA/EU/UK)
• 1 x Grounding Screw
• Instruction Manual
System Requirements
• MSA Compliant Gigabit SFP Module
• 1000BASE-T compatible Ethernet network equipment
• RJ45 terminated UTP Cat5e or better Ethernet cable
• Available AC electrical outlet
Installation
1. Make sure the DIP switches are set appropriately for
your network configuration (see "DIP Switch Settings"
section for details).
2. Insert a compatible SFP module into the open SFP slot.
3. Connect a fiber optic network cable from a computer /
switch / media converter to the inserted SFP connector
on the media converter.
NOTE: When connecting the fiber cable to your installed SFP
module, make sure to connect the Tx (transmit) terminal on one end,
with the Rx (receive) terminal on the other end.
4. Connect a UTP Ethernet cable from a computer/switch
to the RJ45 jack on the media converter.
5. Connect the power adapter to the media converter.
For the most up-to-date information, please visit: www.startech.com
ET91000SFP2C
• 1 x Fiber Media Converter
• Instruction Manual

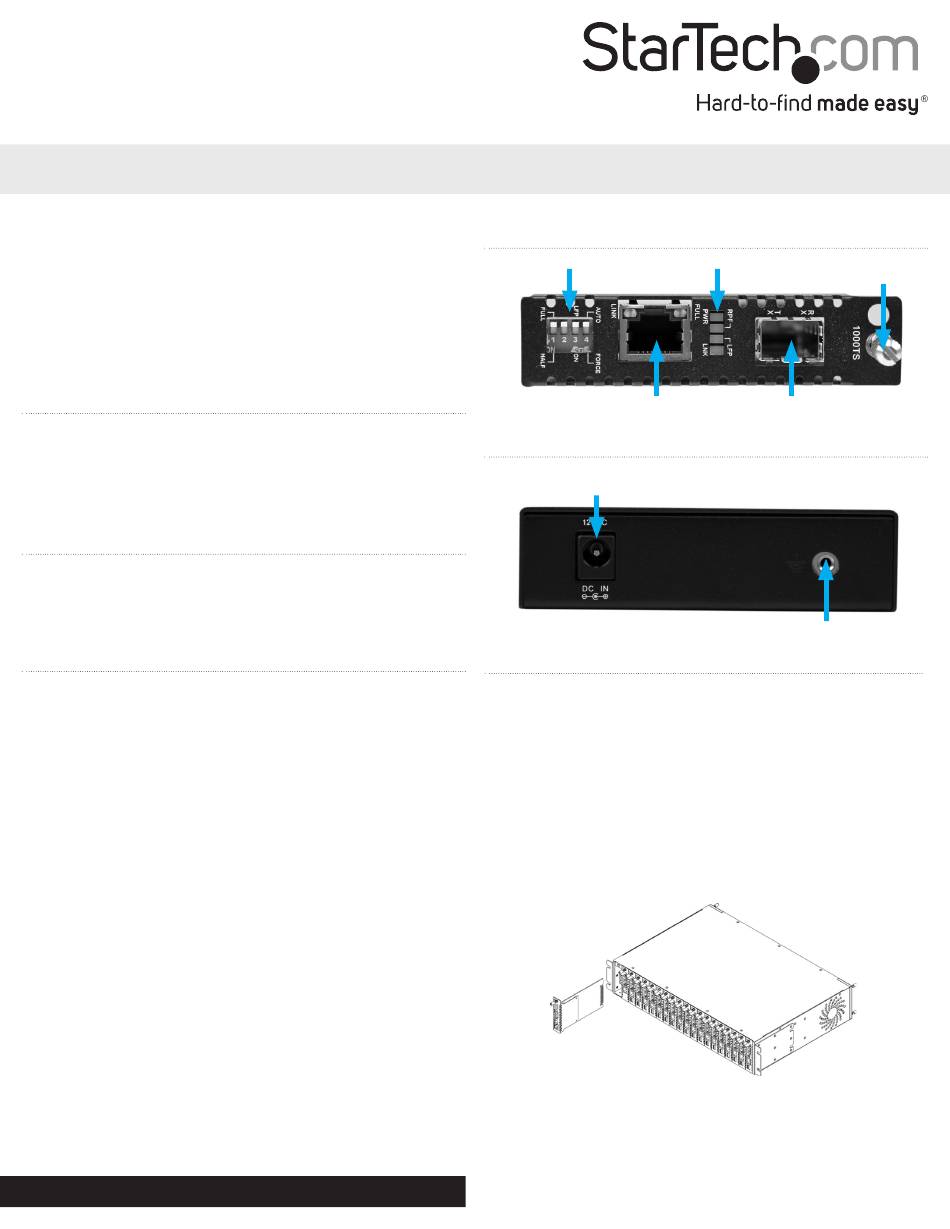

Front
Dip Switch
RJ45 Ethernet Connector
Rear
DC Power Connector
Installation into ETCHS2U Chassis
The ETCHS2U chassis supports the full line of StarTech.com ET series
2 media converters, which can be installed in a mixed fashion to suit
your environment. The cards are designed to be hot-swappable,
meaning the chassis need not be powered off in order to remove or
insert a card.
1. If the chassis slot was previously unused, loosen the screw at the
top of the slot to remove the cover plate
2. Align the card with the desired slot of the chassis and gently slide
the card into the groove to seat the power connection
3. Re-tighten the captive screw to hold the card in place
LED Indicators Thumb Screw
SFP Slot
Ground Point(Optional)
Manual Revision: 06/17/2016
Release
