Instruction Manual

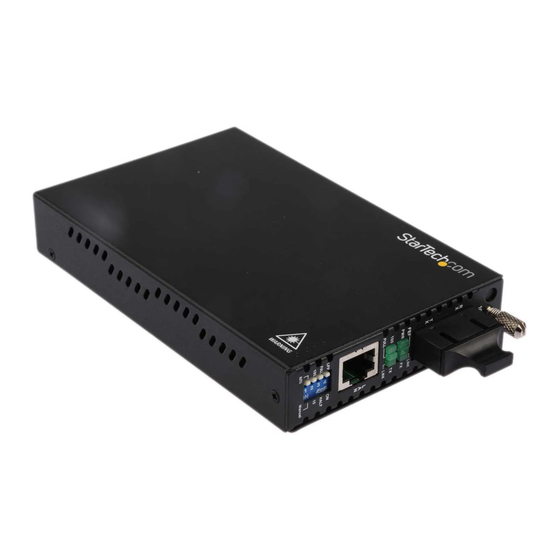

10/100 Mbps Ethernet to Single Mode SC WDM Fiber Media Converter Kit - 20km/30km
ET90110WDM2 / ET90110SM302
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• Fiber Media Converter (2 x for ET90110WDM2)
• Universal Power Adapter (2 x for ET90110WDM2)
• Power Adapter PlugS (2 Sets of NA/ UK/ EU for ET90110WDM2)
• Instruction Manual
System Requirements
• 10BASE-T or 100Base-TX compatible Ethernet network equipment
• RJ45 terminated UTP Cat5 or better Ethernet cable
• 100BASE-FX compatible fiber optic network equipment
• SC terminated single mode 9/125 micron (μm) fiber optic cable
• Available AC electrical outlet
Installation
1. Make sure the DIP switches are set appropriately for your network
configuration (see "DIP Switch Settings" section for details).
2. Setup the media converters at each of their respective end point locations.
3. Connect the fiber optic network cable from one media converter
to the other media converter.
4. Connect a UTP Ethernet cable, from a computer/switch to the
RJ45 jack on the media converters at each end point.
5. Connect the included power adapters to the media converters.
The following example illustrates the connection scheme
6.
when connecting from a 100BASE-TX Ethernet port on a
hub/switch to a 100BASE-TX Ethernet Network Interface
Card (NIC) in a computer through the fiber media converter:
For the most up-to-date information, please visit: www.startech.com

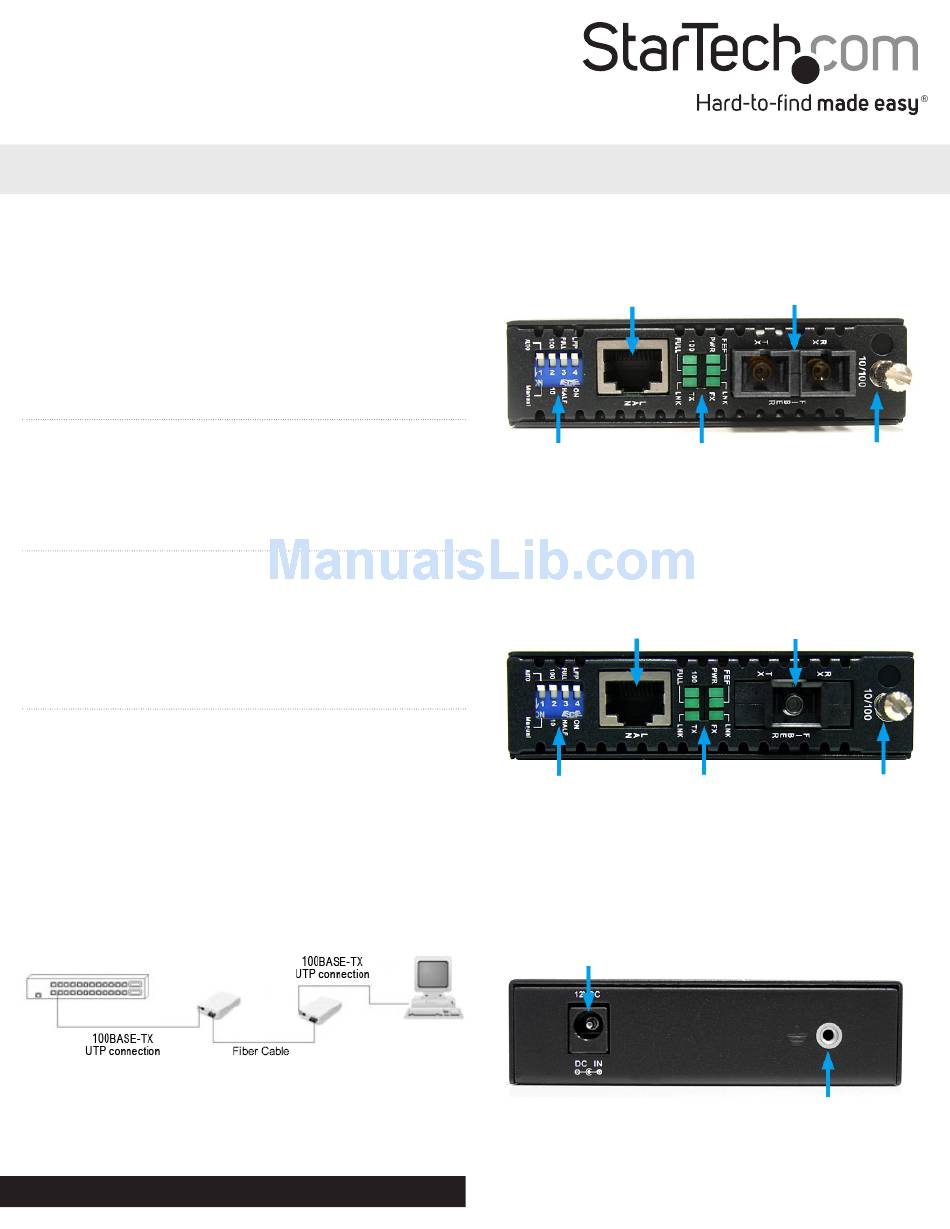

ET90110SM302 - Front View
RJ45 Ethernet
connector
DIP Switches
LED indicators
ET90110WDM2 - Front View
RJ45 Ethernet
connector
DIP Switches
LED indicators
Rear View
DC Power connector
SC Duplex fiber
connector
Card Release
Thumbscrew
SC fiber
connector
Card Release
Thumbscrew
Ground Point (optional)
Manual Revision: 01/08/2013
