Summary of Contents for Mio MiVue 5 series

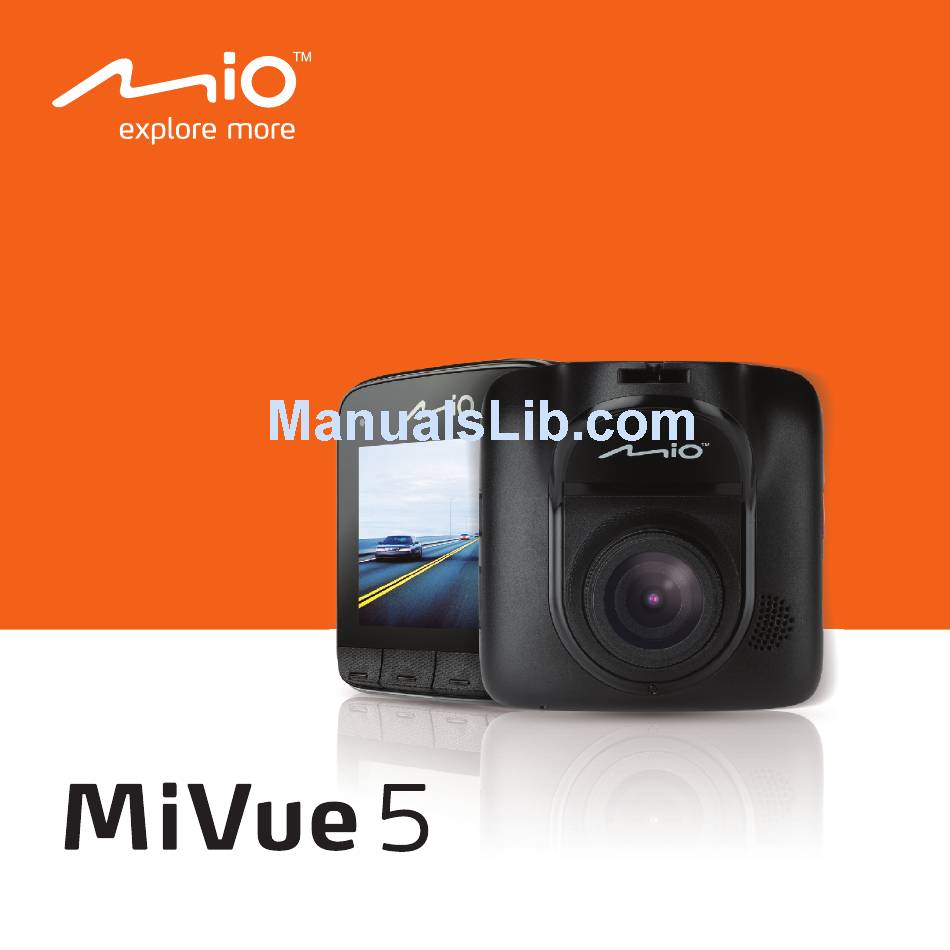

  • Page 1 User Manual Series...

  • Page 2: Table Of Contents

    Table of Contents Getting to know the recorder ......................2 Power key ............................3 Function keys ..........................3 System icons ..........................4 LED indicators ..........................4 Inserting a memory card ......................... 5 Using your recorder in a vehicle ....................6 Connecting to external devices .....................8 Connecting to your computer ....................8 Connecting to a High Definition (HD) device ...............8 Operating basics ..........................9...

  • Page 3: Getting To Know The Recorder

    Getting to know the recorder Name Device mount socket For the device mount. Mini-USB connector Connects to the charger or computer. HD OUT connector Connects to an external device. LCD screen Function keys LED indicator 1 Indicates the system status of the recorder.

  • Page 4: Power Key

    Power key Once the vehicle engine is started, the recorder automatically turns on. By default, the recording will start right after the recorder turns on. You can perform the following using the Power key: ƒ To manually turn the recorder on and off, press and hold the Power key for 2 seconds.

  • Page 5: System Icons

    System icons Various System icons on the title bar at the top of the screen provide the status information of your device. The icons displayed will vary depending on your device model and state. Example Icon Description The REC icon blinks while recording is in progress. Displays the current time.

  • Page 6: Inserting A Memory Card

    Inserting a memory card You must insert a memory card (may be sold separately) before you can start recording. 1. Hold the card by the edges and gently insert it into the slot with the label facing the rear side of the recorder. 2.

  • Page 7: Using Your Recorder In A Vehicle

    Using your recorder in a vehicle 1. Make sure that your car is parked on a level ground. 2. Follow the instruction below to mount your recorder in a vehicle securely. 3. Connect the car charger to the cigarette lighter. Route the cables through the top ceiling and the A-pillar so that it does not interfere with driving.
  • Page 8 4. When adjusting the angle of mounting, make sure that the camera’s view is parallel with the level ground, and the ground/sky ratio is close to 6/4. 5. When not using the recorder, follow the instruction below to remove the recorder from the holder.

  • Page 9: Connecting To External Devices

    Connecting to external devices Connecting to your computer You can connect the recorder to your computer to access data on the memory card. The Mini-USB connector is located on the right side of the device. Follow the instruction below to connect the rcorder to the computer via the USB cable (not supplied). Connecting to a High Definition (HD) device For a better viewing experience, you can connect the recorder to an external viewing device that supports the High Definition (HD) feature via a HD cable (not supplied).

  • Page 10: Operating Basics

    Operating basics Turning the recorder ON and OFF Complete the installation according to the instructions in the “Using your recorder in a vehicle” section. ƒ Once the vehicle engine is started, the recorder automatically turns on. By default, the recording will automatically start in few seconds after start-up. ƒ...

  • Page 11: Recording In Driving Mode

    ƒ When you select Automatic, the system will display the time zone setting screen. to select your time zone and press . The system will set the correct date and time according to the time zone setting. ƒ When you select Manual, the system will display the date and time setting screen. to adjust the value of the selected field;...

  • Page 12: Recording In Parking Mode

    Emergency recording By default, if an event happens, such as sudden impact, high-speed driving, an aggressive turn or an accidental crash, the G sensor will prompt the recorder to start an emergency recording. ƒ If you want to manually start an emergency recording while continuous recording is in progress, press To stop emergency recording and resume continuous recording, press ƒ...

  • Page 13: Camera Mode

    watch videos or resume continuous recording. ƒ The parking recordings can be found in the “Parking” category for file playback. Camera mode The recorder allows you to take a photo. ƒ If the recording is in progress, press to take a photo. ƒ...

  • Page 14: Safety Camera Alerts (For Selected Models Only)

    Safety camera alerts (for selected models only) Caution: For legal reasons the safety camera function is not available in all countries. You can receive alerts to warn you about the locations of safety cameras, which will enable you to monitor your speed through these areas. When a safety camera appears and is positioned in the detectable direction, you will receive alerts.

  • Page 15: System Settings

    System settings Settings Menu To customise the system settings, press Item Description File Playback Plays the recorded videos and photos. For more information on playback, see the "Playback mode" section. Record Sound Sets if you want to include sounds in the recordings. The default setting is On.

  • Page 16: Advanced Settings

    Item Description - EV: Sets the proper exposure level (-1 ~ +1) to adjust the brightness of the image. The default setting is 0. - HDR: Select On or Off to enable or disable High Dynamic Range function of the device. - GPS Stamp: Sets if and how you want to record the GPS information.
  • Page 17 the videos (including continuous recording, emergency recording and parking recording) and photos. Select the proper configuration based on your usage. ƒ Restore to Defaults: Restores system settings to factory defaults. ƒ Version: Displays the software information.

  • Page 18: Mivue Manager

    Installing MiVue Manager Download MiVue Manager from www.mio.com and follow the on-screen prompts to install Playing the recording files 1. Remove the memory card from the recorder and access the card on the computer via a card reader.
  • Page 19 NOTE: ƒ The Map screen may not display when the computer is not connected to the Internet or when your MiVue model does not support the GPS function. ƒ G sensor chart displays data in 3-axis waveform about the car’s shift forward/ backward (X), to the right/left (Y) and upward/downward (Z).
  • Page 20 : Mutes or unmutes the volume. ƒ : Adjusts the volume level. ƒ : Plays the video in full screen. Click to return to the normal view. ƒ : Displays the playback progress. You can click on a point along ƒ...

  • Page 21: For More Information

    For more information Precautions and notices ƒ For your own safety, do not operate the controls of the product while driving. ƒ A window mount is needed when using the recorder in a car. Make sure that you place the recorder in an appropriate place, so as not to obstruct the driver’s view or deployment of airbags.

  • Page 22: About Gps (For Selected Models Only)

    ƒ Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. About the battery CAUTION! This unit contains a non-replaceable internal Lithium Ion battery. The battery can burst or explode, releasing hazardous chemicals.

  • Page 23: Caring For Your Device

    Caring for your device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage. ƒ Keep your device away from excessive moisture and extreme temperatures. ƒ Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.

  • Page 24: Regulatory Information (Ce)

    Regulatory information (CE) For regulatory identification purposes, Mio MiVue 528/538 series is assigned a model number of N467. Products with the CE marking comply with the Electromagnetic Compatibility Directive (2004/108/EC) - issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Standards: EN 301 489-1 V1.9.2 : 2011...
  • Page 25 Notes Not all models are available in all regions. Depending upon the specific model purchased, the color and look of your device and accessories may not exactly match the graphics shown in this document. MiTAC Europe Ltd www.mio.com...
