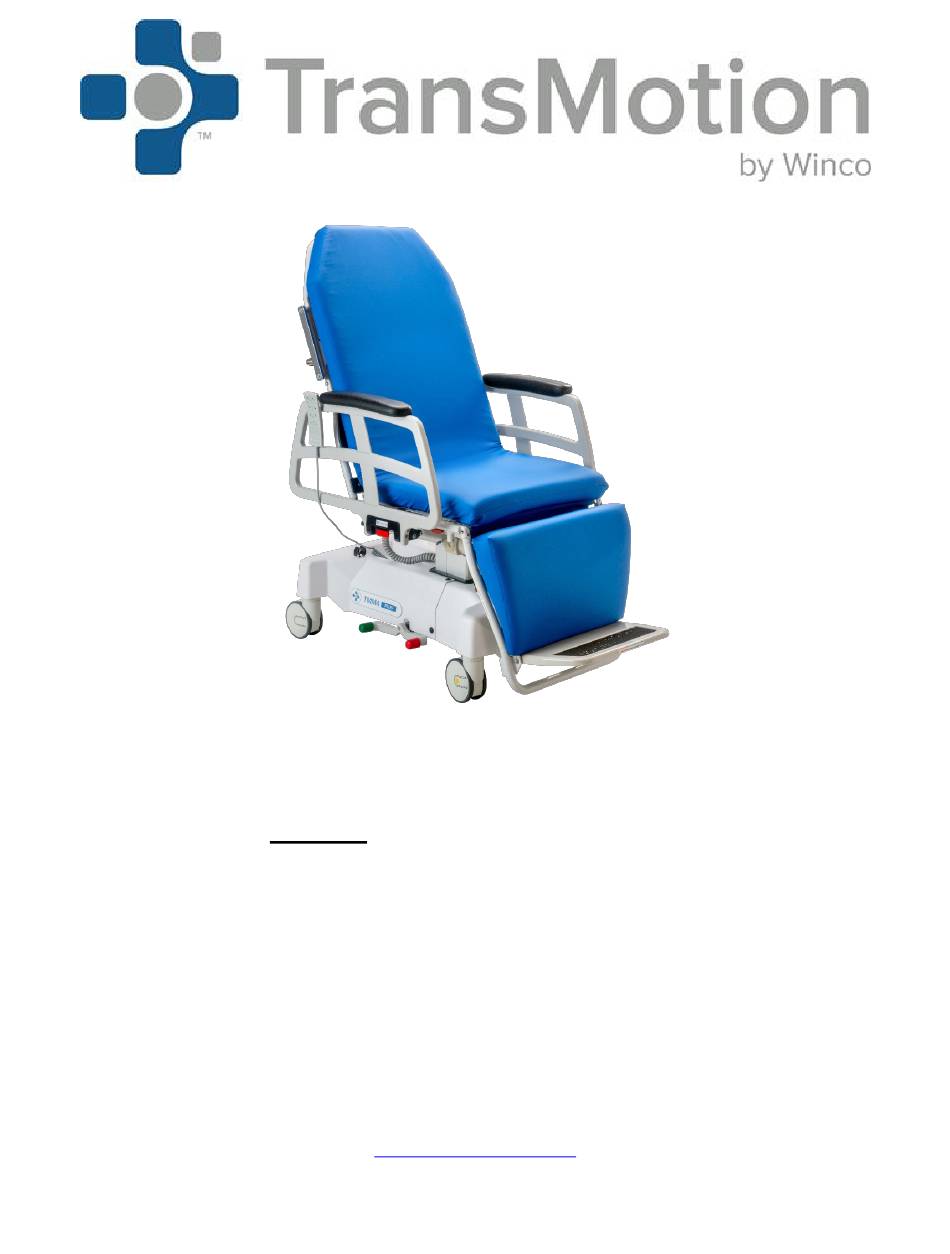

OPERATION MANUAL
Model TMM4 PLUS Series
Multi-Purpose Stretcher-Chair
Options:
W
Wide
T
Tall
R
Rail on Back Section
L
Low
G
ENG Headpiece
F
Folding Footrest
E
Export
B
Battery
A
AC Power
5516 S.W. 1
st
Phone: 1-800-237-3377 - Fax: 1-352-854-9544
www.transmotionmedical.com
Lane – Ocala, FL 34474
Document No.: TMM-2217-13
Revision: A
Page 1 of 30
Advertisement
Table of Contents
Related Manuals for Winco TransMotion TMM4 PLUS-154
Summary of Contents for Winco TransMotion TMM4 PLUS-154
- Page 1 OPERATION MANUAL Model TMM4 PLUS Series Multi-Purpose Stretcher-Chair Options: Wide Tall Rail on Back Section ENG Headpiece Folding Footrest Export Battery AC Power 5516 S.W. 1 Lane – Ocala, FL 34474 Phone: 1-800-237-3377 - Fax: 1-352-854-9544 www.transmotionmedical.com Document No.: TMM-2217-13 Revision: A Page 1 of 30...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT NOTES ABOUT THIS MANUAL ................3 INTENDED USE STATEMENT ....................3 TRANSPORTATION, STORAGE, HANDLING & DISPOSAL ............3 PREPARATION: BEFORE YOU BEGIN ..................4 POWER / CABLE REQUIREMENTS ...................4 SPECIAL NOTES - SIGNAL WORDS ..................4 SAFETY PRECAUTIONS ......................5-8 LABELING DIAGRAMS (TMM4 PLUS-B shown) ...............9 OPERATING INSTRUCTIONS .................... -
Page 3: Important Notes About This Manual
The product should be stored in an environment that will inhibit rust/mold formation. Winco Mfg., LLC recommends not leaving the product in the factory packing in excess of three (3) months. The product should always be handled in a manner consistent with the user instructions and in a manner to prevent contamination after each use. -
Page 4: Preparation: Before You Begin
DO NOT install, maintain or operate this equipment without reading and following this manual, otherwise injury and/or damage may result. IF YOU HAVE QUESTIONS OR CONCERNS PLEASE CONTACT WINCO MFG., LLC. WINCO ASSUMES NO RESPONSIBILITY FOR DAMAGE OR INJURY CAUSED BY IMPROPER ASSEMBLY, INSTALLATION, USE, OR MAINTENANCE OF THESE PRODUCTS. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS WARNINGS: CHAIR OPERATION BY QUALIFIED, TRAINED MEDICAL PERSONNEL ONLY • The chair is intended to be operated only by qualified, trained medical staff. Operation of chair by unauthorized / untrained / lay people must be avoided. USE CAUTION ON RAMPS •... - Page 6 Only equipment approved by TransMotion by Winco is to be mounted on surgical rails. TransMotion by Winco is not responsible for damage, and assumes no liability, caused by the use of unapproved equipment or accessories. Approved medical equipment includes tools, instruments, or scopes that are compatible with a.365”...
- Page 7 The max weight capacity of each back surgical bar is 50 pounds. To prevent personal injury to patient, do not mount equipment weighing more than 50 pounds to device. Weight of patient plus weight of equipment should not exceed 500 pound weight capacity of TransMotion by Winco stretcher-chair. EMI CAUTION:...
- Page 8 NOTICES: MAXIMUM PATIENT WEIGHT IS 500 lbs (227 kg) • Maximum patient weight capacity of chair is 500 pounds. If exceeded, damage to chair could occur. CHAIR IS INTENDED FOR INDOOR USE ONLY • To ensure proper operation and extend chair life, only use chair in specified environment. USE CDC’s UNIVERSAL PRECAUTIONS When maintaining chair after clinical use, service personnel must use UNIVERSAL PRECAUTIONS as •...
-
Page 9: Labeling Diagrams (Tmm4 Plus-B Shown)
INSPECT LABELS PERIODICALLY Every three months, inspect all labels and ensure that they are legible, and not tattered, torn, or missing. Refer to label locations in figures below. If labels need replacing, contact TransMotion by Winco Customer Service at 1-800-237-3377. - Page 10 Document No.: TMM-2217-13 Revision: A Page 10 of 30...
- Page 11 Document No.: TMM-2217-13 Revision: A Page 11 of 30...
-
Page 12: Operating Instructions
COULD RESULT IN THE BACK RELEASE LEVER FUNCTIONING IMPROPERLY DURING AN EMERGENCY. To ensure proper operation, activate quick release every thirty days. If quick release does not operate properly, please contact TransMotion by Winco Customer Service at 1-800-237-3377. Document No.: TMM-2217-13 Revision: A... -
Page 13: Caster Brake Operation
CASTER BRAKE OPERATION BRAKE MODE Activate braking system by pressing down on red end of either brake pedal located at base of chair. This mode prevents all four casters from swiveling and all wheels from spinning. NEUTRAL MODE Activate neutral mode by placing either brake pedal into a horizontal orientation. -
Page 14: Side Rail Operation
SIDE RAIL OPERATION LOWERING SIDE RAIL Grasp top of side rail and push inward slightly, while pulling out red rail release tab. Once released, lower rail. STOWING SIDE RAIL To stow side rail, lower rail into “down” position below seat (or back section depending on rail location). RAISING SIDE RAIL Lift side rail until it is in “up”... - Page 15 To move inward, rotate bottom jam nut as shown. To move outward, rotate bottom jam nut as shown.. Document No.: TMM-2217-13 Revision: A Page 15 of 30...
- Page 16 Once aligned, tighten top jam nut. NOTICE 1) You do not need to hold bottom nut to tighten top. Once aligned, top nut is tightening nut. 2) When adjusting, ensure bottom jam nut is contacting seat frame. 3) Ball joint head angle does not matter. 4) Prior to adjustment, pull outward on side rail in order for system to settle.
-
Page 17: Pendant (Controller)
PENDANT (CONTROLLER) PENDANT IS NOT INTENDED FOR PATIENT’S USE To prevent damage, pendant can be stored at various locations on the chair when not in use. ENSURE AREA IS CLEAR OF OBSTRUCTIONS PRIOR TO PENDANT USE To prevent property damage or injury to patient, survey area for possible obstructions prior to pendant use. -
Page 18: Patient Ingress / Egress
PATIENT INGRESS / EGRESS PATIENT SHOULD NEVER BE PERMITTED TO ENTER / EXIT FROM ENDS OF STRETCHER- CHAIR WHEN IN AN UPRIGHT, PARTIALLY, OR TOTALLY RECLINED POSITION. EXCESSIVE WEIGHT ON ENDS COULD CAUSE CHAIR TO TILT, RESULTING IN POSSIBLE PATIENT INJURY. Follow these instructions for safe and proper patient ingress (entry onto chair) and egress (exit from chair). -
Page 19: Push Bar Operation
PUSH BAR OPERATION LOWERING PUSH BAR Grasp push bar handle while pulling out red release knob. Lower push bar into “down” position. RAISING PUSH BAR Lift push bar handle until it is in “up” position. Red release knob will engage (lock) automatically. OPTIONS “W”... -
Page 20: T" Option: Tall Height
“T” OPTION: TALL HEIGHT & “L” OPTION: LOW HEIGHT For “T” option, chair height travel is 16”. Standard travel is 8”. prevent chair damage, ensure ground clearanc e is at least 1.75” when driving chair up a ramp or over a bump. -
Page 21: G" Option: Eng Headpiece
“G” OPTION: ENG HEADPIECE To remove ENG headpiece: 1) Loosen two black knobs on either side of chair. 2) Lift headpiece from back section of chair. To prevent component loss, ensure that knobs remain assembled in back section frame. To re-install ENG headpiece: 1) Lift headpiece and insert each side into back section of chair. -
Page 22: E" Option: Export
“E” OPTION: EXPORT “E” option designates chair was shipped with power cord specific to receiving country. “A” option power cord is directly attached to chair. “B” option power cord is attached to battery charger (# TMA57-15). Power cords depicted in image may not match power cord shipped with your chair. -
Page 23: A" Option: Ac Power (For On-Board Batteries And Charger)
“A” OPTION: AC POWER (for on-board batteries and charger) AC power cord for charging batteries is attached to chair base, and may be stowed by wrapping around storage bracket. To charge on-board batteries: 1. Insert AC plug into wall outlet. To prevent insufficient power, plug chair in to charge batteries overnight (i.e. -
Page 24: Switch Schematic
SWITCH SCHEMATIC ALL EXCESS WIRE IS PLACED IN FRONT OF CONTROL BOX GROUND WIRE ATTACHES TO GROUND POST (“A” OPTION ONLY) BATTERY CORD PLUGS INTO PORT #13 COLUMN PLUG (TMM4) OR PLUGS (TMM4-T) PLUG INTO PHONO TO DIN ADAPTER PLUGS THEN PLUG INTO PORTS #1 (AND PORT #2 FOR TMM4-T) BACK SECTION ACTUATOR –... -
Page 25: Cleaning Instructions
Facility approved As required/in Wipe with damp TransMotion by detergents, accordance with cloth and allow to Check for damage Winco Accessories disinfectants & facility policies air dry water As required/in 3rd Party accordance with Consult manual provided by accessory manufacturer. - Page 26 Upholstery Care & Cleaning Instructions Proper care is essential in ensuring the durability and reliability of TransMotion by Winco upholstery. In general, all products should be: 1. Cleaned 2. Disinfected (in accordance with facility policy) 3. Rinsed 4. Allowed to air dry It is important to note that the terms “disinfecting”...
-
Page 27: Pad Removal Instructions
PAD REMOVAL INSTRUCTIONS When removing cushions, pull laterally. Do not pull from top to bottom. PREVENTIVE MAINTENANCE To ensure proper operation and extend the chair’s life, it should be maintained on a regular basis as shown below. COMPONENT FREQUENCY PROCEDURE TOOL COMMENT Inspect for... -
Page 28: Battery Safety & Charging Information
After exposure, wash skin thoroughly with water. • Do NOT short-circuit battery terminals, which can cause battery explosion or fire. To request Material Safety Data Sheet (MSDS) for battery, contact TransMotion by Winco Customer Service. • BATTERY LIFE Battery capacity diminishes over time. -
Page 29: Warranty Information
The Limited Warranty period begins when the product is delivered to the Buyer. The Limited Warranty applies when the product is used and cared for as specified by Winco Mfg., LLC. If the product is not used and cared for as specified, the Limited Warranty is void. Adjustments under this Limited Warranty will be made only after completion of inspection of the part or product by Winco Mfg.,... -
Page 30: Service & Contact Information
SERVICE & CONTACT INFORMATION Customer service and support are important aspects of each TransMotion by Winco product. Prior to contacting TransMotion by Winco for assistance with your chair, please HAVE YOUR CHAIR’S SERIAL NUMBER AVAILABLE. (Refer to label diagram for location.) - Page 31 Operation Manual Description: Document No.: TMM4 PLUS SERIES MANUAL OM TMM4 PLUS SERIES Prepared By: D. Myers Date Originated: 11/11/2019 Revision History Revision Letter Date Changed by Description 11/11/19 D. Myers New Manual Document No.: OM TMM4 PLUS SERIES Revision: A Page 1 of 1...
