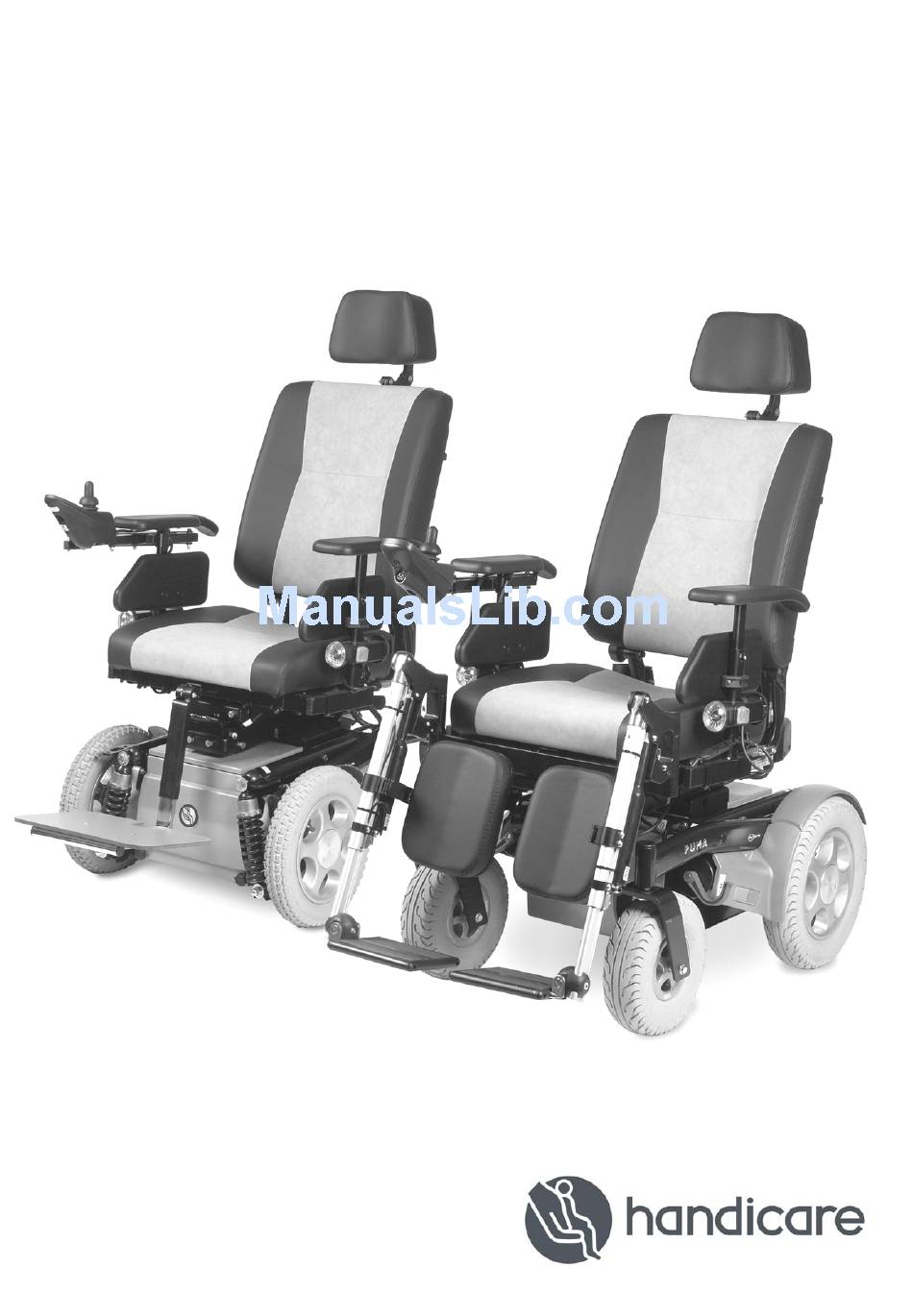

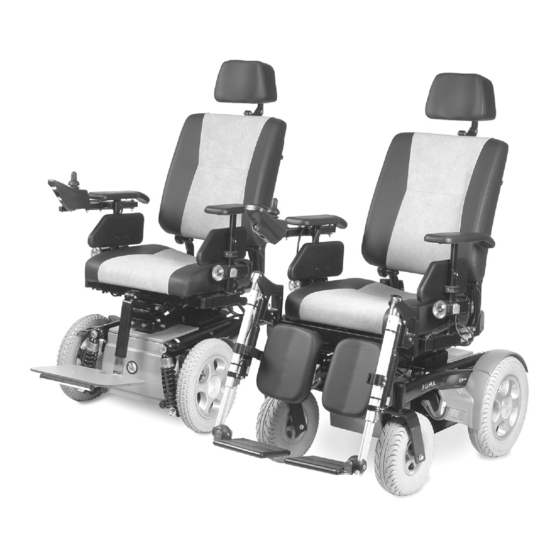

  • Page 1 SERVICEMANUAL YES-SERIES...
  • Page 2 The information provided is valid for the product in its standard version. Handicare cannot be held liable for possible damage resulting from specifications of the product deviating from the standard configuration. The available information has been prepared with all possible care, but Handicare cannot be held liable for possible errors in the information or the consequences thereof.

  • Page 3: Table Of Contents

    Table of contents This manual Indications and pictograms Available documentation Identification plate Identification of the product Warranty stipulations concerning the wheelchair Liability stipulations concerning the product Wheelchairs and the environment General safety regulations and instructions 1.1 Indications and instructions on the wheelchair ..................10 1.2 Technical specifications ........................
  • Page 4 Table of contents Technical specifications 5.1 Product specification sheet of the Y.e.S. series ................... 29 5.2 Measurements legends ........................31 5.3 Glossary ............................32 5.4 Electrical diagrams ........................... 32 5.4.1 Electrical connection diagrams for ‘DX’ and ‘Shark’ ..............33 5.4.2 Electrical wiring diagram for 'DX' Standard ................34 5.4.3 Electrical wiring diagram for 'DX' Lighting ................

  • Page 5: This Manual

    Preface This manual This manual contains the basic instructions for repairs and general maintenance of the electric wheelchair. Mechanics that do repairs on this wheelchair must be well trained and familiar with the repair methods and the maintenance of the electric wheelchair. Always make sure that the work is carried out safely, particularly with respect to procedures requiring the wheelchair to be lifted up.
  • Page 6 Preface Battery charging connection To charge the batteries, see 'Charging'. Program This program depends on the version of the wheelchair (front-wheel drive or rear-wheel drive). The sticker indicates the program. Danger of crushing! Use caution when swinging the controller aside to avoid getting anything crushed.

  • Page 7: Available Documentation

    Preface The following pictograms are used in this manual: CAUTION/WARNING Procedures that - if not executed properly - can result in damage to the product, the environment, or human injury. ATTENTION! Suggestions and advice that help tasks or procedures involved to be carried out more easily. Consult the specified information source(s) first.

  • Page 8: Identification Of The Product

    (1) year after the date of delivery of the product to the customer. The parts to be replaced must be shipped postage-paid to Handicare . Installation or removal of these parts is for the customer’s account. Therefore, the following cases are not eligible for free repair or replacement as meant above: - The repair or replacement that is necessary in connection with faults that arise after one (1) year after the date of delivery of the product to the customer;...

  • Page 9: Liability Stipulations Concerning The Product

    1. Taking into consideration the following stipulations, Handicare only accepts liability for loss due to death or physical injury that is the result of a defect in the product for which Handicare is responsible and for damage to another object that is the private property of the user of the product, providing said loss is the direct result of a fault in the product.

  • Page 10: General Safety Regulations And Instructions

    1 General safety regulations and instructions ® Handicare accepts no liability whatsoever for damage or injury caused by the failure to (strictly) adhere to the safety guidelines and instructions or due to carelessness during the use and cleaning of the wheelchair and possible accessories.

  • Page 11: Tools

    Tools 2 Tools Tools The tools below are needed for various mechanical settings and maintenance: Quantity Description Size (mm) Application Screwdriver Installing or removing a variety of plastic cover caps. Installing or removing the carbon brushes. Crosshead Adjusting the position of the seat cushion. screwdriver Adjusting the height of the side panel.

  • Page 12: Maintenance, Replacement And Repair

    Maintenance 3 Maintenance, replacement and repair Maintenance table Below, we have indicated what needs to be checked, how often this should be done, and by whom. Time Description To be carried out by User Dealer • Daily Charging the batteries, after each use. •...

  • Page 13: Cleaning The Batteries

    Maintenance Replace the batteries as follows: • Switch the wheelchair off. • Loosen the star knobs (A). • Remove the front cover (B) from the battery tray. • Loosen the bolt from the negative (-) terminal (F) and remove the battery clamp from the battery terminal. •...

  • Page 14: Replacing The Tyre On The Driven Wheel

    Maintenance Refit the tyre (with repaired or new inner tube) as follows: • Place the inner tube in the tyre. • Pump the inner tube up a little. • Slide both tube and tyre onto the rim. The valve should fall into the notch in the rim. •...

  • Page 15: Replacing The Driven Wheel

    Maintenance 3.3.3 Replacing the driven wheel When replacing the driven wheel, make sure not to switch off the neutral, so that the wheel does not turn. Replace as follows: • Support the wheelchair so that the wheel is off the ground. •...

  • Page 16: Tyre Repair For Swivel Wheels

    Maintenance 3.4.1 Tyre repair for swivel wheels Repair a flat tyre as follows: • Support the wheelchair so that the wheel is off the ground. • Pull out the valve to completely deflate the tyre. • Loosen the wheel bolt using an open-ended spanner with a width of 13 mm and stop the bolt with the same open- ended spanner.

  • Page 17: Replacing The Swivel Wheel

    Maintenance 3.4.3 Replacing the swivel wheel Replace the swivel wheel as follows: • Support the wheelchair so that the swivel wheel is off the ground. • Remove the plastic cover cap (A) using a screwdriver. • Loosen nut (B) using a box spanner with a width of 17 mm. •...

  • Page 18: Replacing The Ball-Head Bearings

    Maintenance 3.4.5 Replacing the ball-head bearings Replace the ball-head bearings as follows: • Support the wheelchair so that the swivel wheel is off the ground. • Remove the complete swivel wheel; see 'replacing swivel wheel’. • Remove the bearings (A) from the bush (B). •...

  • Page 19: Replacing The Covers

    Maintenance Replacing the covers 3.6.1 Removing/fitting the covers Remove/fit the covers as follows: • Remove the front cover (A), the side covers (B) and the mud guards (C) by unscrewing all screws from the front cover, the side covers and the mud guards with an Allen key with a width of 4 mm on both sides of the wheelchair.

  • Page 20: Replacing Drive And Components

    Maintenance Replacing drive and components 3.7.1 Replacing tube under the drive unit Replace the tube under the drive unit as follows: • Support the wheelchair under the battery tray so that both drive wheels remain on the ground. • Remove the shock breaker; see 'replacing shock breaker'. •...

  • Page 21: Replacing The Side Frame

    Maintenance 3.7.3 Replacing the side frame Replace the side frame as follows: • Support the wheelchair under the battery tray so that both drive wheels remain on the ground. • Remove the drive unit; see 'replacing drive unit'. • Remove the swivel wheel; see 'replacing the swivel wheel'. •...

  • Page 22: Electronic Components

    Maintenance Electronic components 3.8.1 Working on the electrical system • Remove both fuses from the battery compartment before carrying out any work on the electronic system. Remove the fuses as follows: • Unscrew both crosshead screws (A). • Remove the front cover from the battery tray (B). •...

  • Page 23: Replacing The 'Shark' Controller

    Maintenance 3.8.3 Replacing the ‘Shark’ controller Remove the fuses, see § 3.8.1. Replace the ‘Shark’ controller as follows: • Push the lock (B) in and simultaneously pull the plug (A) out of the controller. • Unscrew the screws (C) and the washers, using a Phillips screwdriver PH-2.

  • Page 24: Replacing The Front Light

    Maintenance 3.9.1 Replacing the front light Replace the front light as follows: • Pull the reflector (A) off the holder (D). • Hold the rubber seal (C) tight so that it cannot get lost. • Unscrew the bulb (B) from the fitting. Replace the new bulb in the reverse order.

  • Page 25: Cleaning

    Maintenance 3.10 Cleaning Removing dry dirt Upholstery, metal parts and frame parts can usually be cleaned easily with a dry soft cloth. Removing mud and/or other wet dirt Parts that are soiled with wet dirt are best cleaned by first wiping the dirty parts with a wet sponge and then wiping them dry with a dry soft cloth.

  • Page 26: Troubleshooting

    Troubleshooting 4 Troubleshooting 'DX' faultfinding table Check the malfunction/signal with the aid of the following list. Signal Possible cause Remedy ON/OFF light The controller plug is not properly inserted Insert the plug properly in the 'power module' does not go on: in the 'power module'.
  • Page 27 Note: If all the plugs are connected properly and you have used the troubleshooting list but not found the cause, contact the Service Department of Handicare. Before changing DX bus cables, fuses and/or modules, remove both fuses from the battery compartment (see §...

  • Page 28: Shark' Faultfinding Table

    Note: If all the plugs are connected properly and you have used the troubleshooting list but not found the cause, contact the Service Department of Handicare. Before changing Shark bus cables, fuses and/or modules, remove both fuses from the battery compartment (see §...

  • Page 29: Technical Specifications

    Technical specifications 5 Technical specifications Product specification sheet of the Yes-Series ® Manufacturer: Handicare SPECIFICATIONS BEATLE PUMA Segment indoor indoor indoor/outdoor DIMENSIONS Axle configuration Maximum user's weight Batteries 40 / 56 / 73 40 / 56 / 73 Total weight excluding batteries...
  • Page 30 Technical specifications CERTIFICATES EN 12182 EN 12184 Classes ISO 7176-19 COLOUR OF FRAME/COVERING Blue/grey Blue/yellow Ice-blue Grey Black Orange OPTIONS Sedeo seat options Standard, comfort or electric leg rests Central leg rest Swing-away joystick bracket Special controls Compact lighting and direction indicators Indoor swivel wheels and tyres Outdoor swivel wheels and tyres Spring-loaded swivel wheels...

  • Page 31: Measurements Legends

    Technical specifications Measurements legends Armrest height Distance from top/side of seat to top of armrest. Leg rest width Distance between the leg rest tubes. Total width Distance between the widest points of the wheelchair. Foot-plate width Width of the foot plate, including the cover caps and the mounting parts.

  • Page 32: Glossary

    An adjustment that is permanently adjustable by the attendant or the therapist is indicated by PAT. • A number of parts for Yes-Series wheelchairs are available with different dimensions. After delivery, these parts cannot be adjusted by the user or the dealer.

  • Page 33: Electrical Connection Diagrams For 'Dx' And 'Shark

    Technical specifications 5.4.1 Electrical connection diagrams for ‘DX’ and ‘Shark’ Version 2008v4...

  • Page 34: Electrical Wiring Diagram For 'Dx' Standard

    Technical specifications 5.4.2 Electrical wiring diagram for 'DX' Standard Version 2008v4...

  • Page 35: Electrical Wiring Diagram For 'Dx' Lighting

    Technical specifications 5.4.3 Electrical wiring diagram for 'DX' Lighting Version 2008v4...

  • Page 36: Electrical Wiring Diagram For 'Dx' Back Rest/Leg Rest

    Technical specifications 5.4.4 Electrical wiring diagram for 'DX' Back rest/Leg rest Version 2008v4...

  • Page 37: Electrical Wiring Diagram For 'Dx' Lighting/Back Rest/Leg Rest

    Technical specifications 5.4.5 Electrical wiring diagram for 'DX' Lighting/Back rest/Leg rest Version 2008v4...

  • Page 38: Electrical Wiring Diagram For 'Dx' Mbl Seat Lift/Mbl Tilt/Lighting/Back Rest/Leg Rest

    Technical specifications 5.4.6 Electrical wiring diagram for ‘DX’ MBL Seat lift/MBL Tilt/Lighting/Back rest/Leg rest Version 2008v4...

  • Page 39: Electrical Wiring Diagram For 'Shark' Drive Only

    Technical specifications 5.4.7 Electrical wiring diagram for ‘Shark’ Drive only Version 2008v4...

  • Page 40: Electrical Wiring Diagram For 'Shark' Drive Only/Lighting

    Technical specifications 5.4.8 Electrical wiring diagram for ‘Shark’ Drive only/Lighting Version 2008v4...

  • Page 41: Electrical Wiring Diagram For 'Shark' Back Rest

    Technical specifications 5.4.9 Electrical wiring diagram for ‘Shark’ Back rest Version 2008v4...

  • Page 42: Electrical Wiring Diagram For 'Shark' Mbl Seat Lift

    Technical specifications 5.4.10 Electrical wiring diagram for ‘Shark’ MBL Seat lift Version 2008v4...

  • Page 43: Electrical Wiring Diagram For 'Shark' Mbl Tilt

    Technical specifications 5.4.11 Electrical wiring diagram for ‘Shark’ MBL Tilt Version 2008v4...

  • Page 44: Electrical Wiring Diagram For 'Shark' Mbl Seat Lift And Back Rest

    Technical specifications 5.4.12 Electrical wiring diagram for ‘Shark’ MBL Seat lift and Back rest Version 2008v4...

  • Page 45: Electrical Wiring Diagram For 'Shark' Mbl Tilt And Back Rest

    Technical specifications 5.4.13 Electrical wiring diagram for ‘Shark’ MBL Tilt and Back rest Version 2008v4...

  • Page 46: Electrical Wiring Diagram For 'Shark' Mbl Seat Lift And Tilt

    Technical specifications 5.4.14 Electrical wiring diagram for ‘Shark’ MBL Seat lift and Tilt Version 2008v4...

  • Page 47: Authorised Service And Technical Support

    Technical specifications Authorised service and technical support If you have any problems or questions concerning this product, please contact your dealer. Ask us for information about your nearest dealer. Manufacturer: Handicare Supplier Stamp Version 2008v4...

  • Page 48: Use Of The Parts Lists

    Parts lists 6 Use of the parts lists This document is meant as a reference book to be used to order parts for the wheelchair that is shown on the front cover. How to order: When ordering parts, please specify: •...
  • Page 49 Parts lists • Overview Drawing Description Page 001-016 Sedeo 50-69 017-024 Carrier 70-78 025-030 Options, wiring and modules 80-98 Version 2008v4...

  • Page 50: Sedeo

    Parts lists SEDEO Drawing Description Page Sedeo seating frame Mechanical backrest old Electrical backrest Gas spring backrest adjustment Mounting bracket for leg rest Standard leg rest Comfort Mechanical leg rest Comfort Electrical leg rest Central leg rest Upholstery Head rest Arm rests Lighting Fixed joystick bracket...
  • Page 51 Parts lists • 001 Sedeo seating frame Article number Units Description Price p/p 2008 00000.9009 Insert cap round 15 black € 0,20 02030.4123 Back part 2 Sedeo short back arm € 33,00 00001.0204 Washer € 0,60 00000.1401 Shaft lock washer 15MM D6799 RVS €...
  • Page 52 Parts lists • 002 Mechanical backrest old Article number Units Description Price p/p 2008 No longer available as on drawing. See drawing 001 pos 10 for replacement parts. Version 2008v4...
  • Page 53 Parts lists • 003 Electrical backrest Article number Units Description Price p/p 2008 1008078 Electrical backrest € 746,00 150.00141.000 Actuator for backrest € 707,00 00001.0914 Screw M8x16 D7991 € 0,40 02030.3523 Bracket backrest adjustment € 36,00 00000.2250 Spring washer fluted M8 D137B VZ €...
  • Page 54 Parts lists • 004 Gas spring backrest adjustment Article number Units Description Price p/p 2008 1003440 Gasspring backrest adjustment complete € 220,00 02152.9200 Gasspring backrest adj. € 192,00 02010.6910 Gasspring unlock mechanism € 11,00 1002813 Gasspring bloc-o-lift 200N € 96,00 1008057 Cable €...
  • Page 55 Parts lists • 005 Mounting bracket for leg rest Article number Units Description Price p/p 2008 01245.9623 Mounting bracket for standard and comfort leg rests € 120,00 05245.9723 Mounting bracket for electrical leg rests € 211,00 05990.0012 Insert tube right for electrical leg rest €...
  • Page 56 Parts lists • 006 Standard leg rest Article number Units Description Price p/p 2008 Standard leg rest left See page 59. Standard leg rest right See page 59. 1002515 Standard leg rest upper part left € 69,00 1002514 Standard leg rest upper part right €...
  • Page 57 Parts lists • 007 Comfort mechanical leg rest Article number Units Description Price p/p 2008 Comfort leg rest left See page 59. Comfort leg rest right See page 59. 1002517 Comfort leg rest upper part left € 224,00 1002516 Comfort leg rest upper part right €...
  • Page 58 Parts lists • 008 Comfort electrical legrest Article number Units Description Price p/p 2008 Electrical comfort leg rest left See page 59 Electrical comfort leg rest right See page 59 1003029 Electrical comfort leg rest upper part left € 476,00 1003028 Electrical comfort leg rest upper part right €...
  • Page 59 Parts lists • Leg rests and footplates Leg rests 2008 Set with calf Set with calf plates and leg strap and leg Type Size Left Price Right Price rest bracket Price rest bracket Price 1003560 1003561 1003592 1003579 1003562 1003563 1003593 1003580 01500.9119...
  • Page 60 Parts lists • 009 Central leg rest Article number Units Description Price p/p 2008 140.00061.000 Central leg rest € 222,00 9001719 Upper part hinge € 92,00 00001.1324 Label tilting hazard € 1,30 00000.3706 Button head M8X25 € 0,40 20050.1311 Lower tube €...
  • Page 61 Parts lists • 010 Upholstery Article number Units Description Price p/p 2008 Sedeo seat See page 62. 00000.3617 Screw M5X30 € 0,20 00000.6501 Pipe clamp DIA 22 black € 2,20 220.00121.505 Calf plate standard € 67,00 220.00141.505 Calf plate small €...
  • Page 62 Parts lists • 010 Sedeo seats SEATS SEDEO 2008 Profiled with grey Profiled Webbed Memory foam middle bar W X D € € € € W X D 42x50 200.42131.505 1002950 200.42791.517 200.40481.517 307 42x50 46x50 200.42211.505 1002951 200.42871.517 200.40561.517 307 46x50 50x50 200.42291.505...
  • Page 63 Parts lists • 010 Sedeo backrests BACKRESTS SEDEO 2008 Profiled with grey Profiled Webbed With lumbar support middle bar W X D € € € € W X D 42x52 207.20031.505 1002974 207.20751.520 215.20031.505 338 42x52 46x52 207.20051.505 1002975 207.20771.520 215.20051.505 338 46x52 50x52...
  • Page 64 Parts lists • 011 Headrest Article number Units Description Price p/p 2008 222.00151.505 Headrest type 4, small mode, black Sellaskin € 126,00 222.00131.505 Headrest Type 3, Flexible, black Sellaskin € 131,00 222.00111.505 Headrest Type 2, Large, black Sellaskin € 131,00 00000.3206 Screw bck/kr M5X16 D7985 €...
  • Page 65 Parts lists • 012 Arm rests Article number Units Description Price p/p 2008 05373.9490 Armrest PU left € 50,00 05373.9390 Armrest PU right € 50,00 221.00131.505 Armrest 30 cm, black Sellaskin € 50,00 221.00111.505 Armrest 40 cm, black Sellaskin € 50,00 221.00301.505 Armrest P-Shape L/H, black Sellaskin €...
  • Page 66 Parts lists • 013 Lighting Article number Units Description Price p/p 2008 1007951 Light unit € 266,00 1001122 Headlight white € 15,00 264.00091.000 Rear light red € 15,00 6234 Bulb 24V 5W t9.5 € 2,00 264.00111.000 Signal light € 45,00 1272 Bulb 24v 5w ba9s €...
  • Page 67 Parts lists • 014 Fixed joystick bracket Article number Units Description Price p/p 2008 00000.9301 Insert cap 15mm € 0,30 00000.3541 Adjusting screw + crater M8X10 D916 € 0,70 06040.0923 Fixed bracket for remote € 62,00 00000.3541 Adjusting screw + crater M8X10 D916 €...
  • Page 68 Parts lists • 015 Swing-away joystick bracket Article number Units Description Price p/p 2008 05041.9123 Swing-away bracket for remote right € 167,00 165.00111.000 Swing-away bracket for remote left € 167,00 008.00000.191 Label € 1,20 15040.0823 Tube € 22,00 1002331 Tube for remote G90 right €...
  • Page 69 Parts lists • 016 Mechanical tilt 20 18 24 23 27 28 Article number Units Description Price p/p 2008 00000.4016 Cil cap screw inn zk M6X25 VZ € 0,20 00000.2202 Spring washer M6 D127B/VZ € 0,20 02010.7482 Stauff block € 0,90 9001374 Push frame small XP €...

  • Page 70: Carrier

    Parts lists Carrier Drawing Description Page Suspension arm and motor Battery tray and suspension Swivel wheels Swivel wheels suspended Drive wheel Transport fixation Covers Batteries Version 2008v4...
  • Page 71 Parts lists • 017 Suspension arm and motor Article number Units Description Price p/p 2008 906.00000.061 Freewheel handle € 7,40 101.00011.000 Motor 10Km/u RWD left/FWD right € 1.202,00 101.00001.000 Motor 10Km/u RWD right/FWD left € 1.202,00 101.00111.000 Motor 6Km/u RWD left/FWD right €...
  • Page 72 Parts lists 018 Battery tray and suspension Article number Units Description Price p/p 2008 123.00021.035 Plug € 9,50 9001641 Shock absorber 220 mm € 94,00 00000.2104 Washer flat 3XD M10 € 0,30 00000.4110 Hex. bolt M10x70 D931/8.8 vz € 0,50 001.00180.007 Capped nut M10 €...
  • Page 73 Parts lists • 019 Swivel wheels Article number Units Description Price p/p 2008 1008070 Fork assy (Puma outdoor) € 166,00 00001.0701 Locknut low M8 € 0,30 00000.2003 Washer flat M8 D125A/vz € 0,20 00000.4118 Hex. Bolt M8X120 D931/8.8 VZ € 0,80 1008069 Fork assy (Puma/Beatle indoor) €...
  • Page 74 Parts lists • 020 Swivel wheels suspended Article number Units Description Price p/p 2008 1008071 Front fork spring loaded assy, Puma outdoor € 248,00 00001.0701 Locknut flat M8 € 0,30 00000.2003 Washer flat M8 D125A/vz € 0,20 00000.4118 Hex. Bolt M8X120 D931/8.8 VZ €...
  • Page 75 Parts lists • 021 Driven wheel Article number Units Description Price p/p 2008 9002012 Drive wheel air complete left, Puma 3,5 bar € 130,00 9001714 Drive wheel PU complete left, Puma € 211,00 9002011 Drive wheel air complete right, Puma 3,5 bar €...
  • Page 76 Parts lists • 022 Transport fixation Revision B Revision C and higher Article number Units Description Price p/p 2008 05010.3310 Washer € 1,20 00000.2803 Cup spring bl 23X12,2X1 € 0,70 00000.1750 Locknut M12 D985/8/VZ € 0,70 00000.9008 Insert cap, round 35 black €...
  • Page 77 Parts lists • 023 Bekapping Article number Units Description Price p/p 2008 00000.3703 Button head M6X16 vz € 0,30 1002527 Cover electronics assy yellow+logo, Puma Yes € 38,00 1003121 Cover electronics assy yellow+logo, Beatle Yes € 38,00 1002526 Cover electronics assy grey+logo, Puma Yes €...
  • Page 78 Parts lists • 024 Batteries Article number Units Description Price p/p 2008 00355.4014 Battery 40 Ah € 211,00 135.00071.000 Battery 56 Ah € 280,00 1001453 Battery 73 Ah € 362,00 00001.0007 Battery clamp - € 3,80 00355.0283 Battery clamp cover €...
  • Page 79 Parts lists • This page has been left blank on purpose Version 2008v4...

  • Page 80: Options, Wiring And Modules

    Parts lists Options, wiring and modules Drawing Description Page Electrical tilt Electrical lift Electrical lift with mechanical tilt 83-84 Wiring and modules DX 85-92 Wiring and modules Shark 93-97 Kerb climber Version 2008v4...
  • Page 81 Parts lists • 025 Electrical tilt Article number Units Description Price p/p 2008 1004851 Electrical seat tilt for Beatle Shark (conversion kit) € 1.512,00 1004574 Electrical seat tilt for Beatle DX (conversion kit) € 1.512,00 1004852 Electrical seat tilt for Puma Shark (conversion kit) €...
  • Page 82 Parts lists • 026 Electrical seat lift Article number Units Description Price p/p 2008 1004854 Electrical seat lift for Beatle Shark (conversion kit) € 2.769,00 1004853 Electrical seat lift for Beatle DX (conversion kit) € 2.769,00 1004855 Electrical seat lift for Puma Shark (conversion kit) €...
  • Page 83 Parts lists • 027 Electrical seat lift with mechanical tilt 10 11 Article number Units Description Price p/p 2008 Electrical seat lift and mechanical tilt for Beatle Shark 1004861 € 3.153,00 (conversion kit) Electrical seat lift and mechanical tilt for Beatle DX 1004862 €...
  • Page 84 Parts lists • 027 Electrical seat lift with mechanical tilt 10 11 Article number Units Description Price p/p 2008 00000.4028 Cil cap screw M6x20 € 0,20 9002213 Seat angle adjuster € 20,00 00000.2002 Flat washer M6 € 0,20 00000.1701 Lock nut M6 €...
  • Page 85 Parts lists • 028 Wiring and modules DX Version 2008v4...
  • Page 86 Parts lists • 028 Wiring and modules DX Article number Units Description Price p/p 2008 00355.0425 DX remote 16 key (Rem 48) € 1.292,00 00355.0426 DX remote 16 key + (Rem 48a) € 1.614,00 00355.0218 DX Remote 12 key for worktop (Rem41c) €...
  • Page 87 Parts lists • 028 Wiring and modules DX In this overview it’s indicated which cabling and modules are being used on the wheelchair in a particular Construction. This is equal to a front- and back-wheel driven wheelchair. Standard: Article number Units Description Price 2008 00355.0425 DX Remote 16 key...
  • Page 88 Parts lists Electrical leg rests (lighting optional): Article number Units Description Price 2008 00355.0425 DX Remote 16 key € 1292,00 00355.0109 DX Power module PM2 80A € 1290,00 055.00000.023 DX Power cable € 102,00 055.00000.013 Wire battery loop € 38,00 00355.0018 DX cable 1,75m €...
  • Page 89 Parts lists Electrical backrest & leg rests (lighting optional): Article number Units Description Price 2008 00355.0425 DX Remote 16 key € 1292,00 00355.0109 DX Power module PM2 80A € 1290,00 055.00000.023 DX Power cable € 102,00 055.00000.013 Wire battery loop €...
  • Page 90 Parts lists Electrical leg rests & tilt (lighting optional): Article number Units Description Price 2008 00355.0425 DX Remote 16 key € 1292,00 00355.0109 DX Power module PM2 80A € 1290,00 055.00000.023 DX Power cable € 102,00 055.00000.013 Wire battery loop €...
  • Page 91 Parts lists Electrical backrest & leg rests & tilt (lighting optional): Article number Units Description Price 2008 00355.0425 DX Remote 16 key € 1292,00 00355.0109 DX Power module PM2 80A € 1290,00 055.00000.023 DX Power cable € 102,00 055.00000.013 Wire battery loop €...
  • Page 92 Parts lists Electrical leg rests & tilt & seat lift (lighting optional): Article number Units Description Price 2008 00355.0425 DX Remote 16 key € 1292,00 00355.0109 DX Power module PM2 80A € 1290,00 055.00000.023 DX Power cable € 102,00 055.00000.013 Wire battery loop €...
  • Page 93 Parts lists • 029 Wiring and modules Shark Version 2008v4...
  • Page 94 Parts lists • 029 Wiring and modules Shark Article number Units Description Price p/p 2008 1003091 Shark remote drive & lighting € 844,00 1002943 Shark remote lighting & actuators € 900,00 1001179 Shark remote drive only € 741,00 9001502 Micro switch Lift €...
  • Page 95 Parts lists • 029 Wiring and modules Shark In this overview it’s indicated which cabling and modules are being used on the wheelchair in a particular Construction. This is equal to a front- and back-wheel driven wheelchair. Drive only: Article number Units Description Price 2008...
  • Page 96 Parts lists Electrical seat lift (lighting optional): Article number Units Description Price 2008 1002943 Shark remote lighting & actuators € 900,00 1002944 Shark power module lighting & actuators € 1047,00 9001373 Power cable Shark € 29,00 055.00000.013 Wire battery loop €...
  • Page 97 Parts lists Electrical tilt & backrest (lighting optional): Article number Units Description Price 2008 1002943 Shark remote lighting & actuators € 900,00 1002944 Shark power module lighting & actuators € 1047,00 9001373 Power cable Shark € 29,00 055.00000.013 Wire battery loop €...
  • Page 98 Parts lists • 030 Kerb climber Article number Units Description Price p/p 2008 1004275 Kerb climber Beatle-Yes € 365,00 1004565 Kerb climber Puma-Yes € 365,00 00000.1702 Lock nut M8 € 0,30 00000.2003 Washer flat M8 € 0,20 9001194 Kerb climber mounting bracket Beatle-Yes €...
