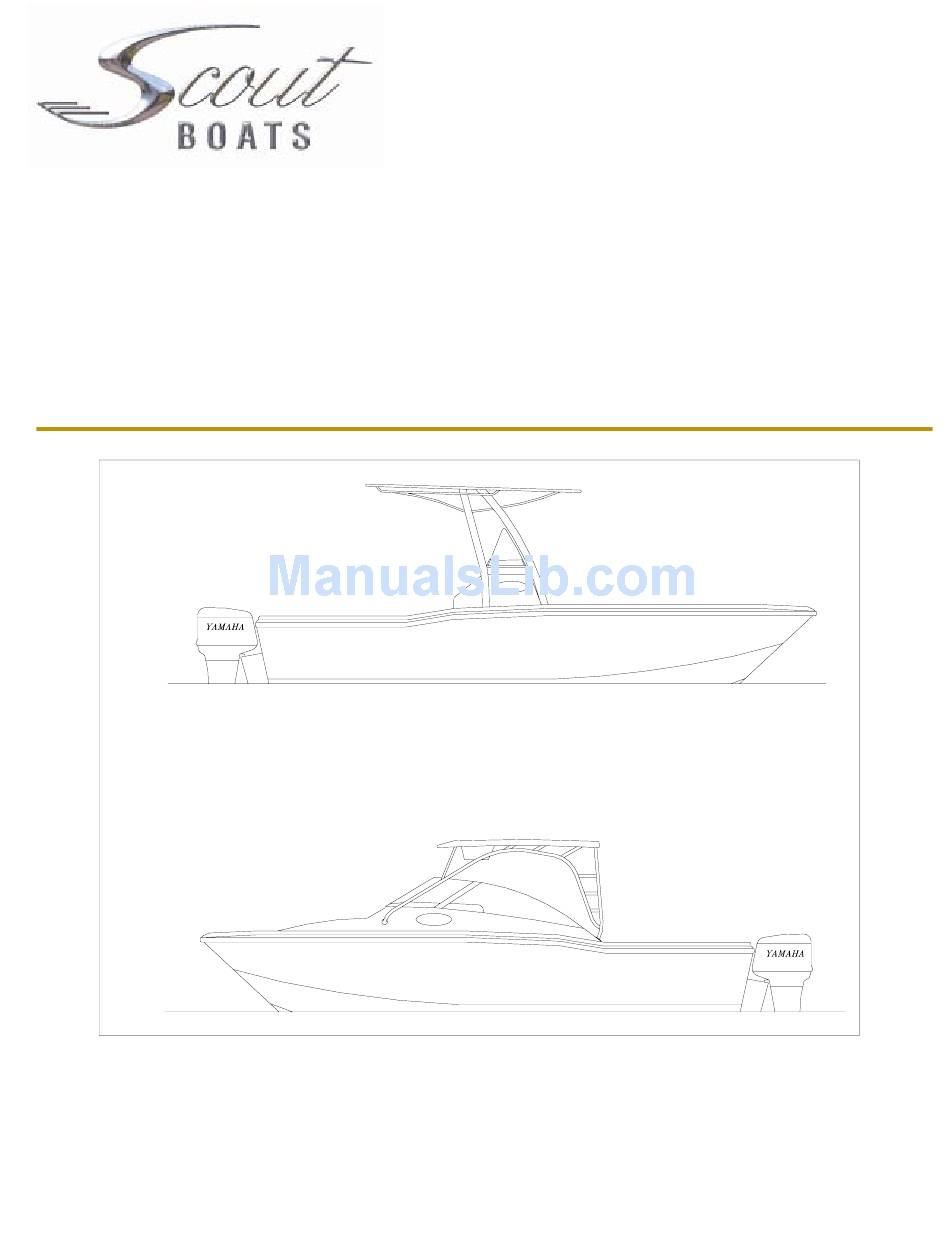

- Page 1 222 Sport Fish 222 Abaco 222 Dorado Owner’s Manual Scout Boats Inc. 2531 Hwy 78 West Summerville, SC 29483...
- Page 2 THIS PAGE WAS LEFT BLANK INTENTIONALLY Print Date 1-2006...
-
Page 3: Safety Information
SAFETY INFORMATION Your Scout manual has been written to include a number of safety instructions to assure the safe operation and maintenance of your boat. These instructions are in the form of DANGER, WARNING, CAUTION, and NOTICE statements. The following definitions apply: HAZARDS OR UNSAFE PRACTICES WHICH COULD RESULT IN MINOR PERSONAL INJURY OR PRODUCT AND PROPERTY DAMAGE. -
Page 4: Boat Information
BOAT INFORMATION Please fill out the following information section and leave it in your Scout Owner’s Manual. This information will be important for you and Scout service personnel to know, if and when you may need to call Scout for technical assistance or service. -
Page 5: Identification Numbers
To be in compliance with European directives for recreational boats as published by the International Organization for Standardization (ISO) in effect at the time this boat was manufactured, we are providing the following information. Manufacturer: Scout Boats Name: 2531 Hwy 78 West... - Page 6 (9) Any Scout Boat with a jack plate installed by anyone other than Scout boats, Inc., or an authorized dealer, or on any hull other than the 160, 170, 180, 190, 200, 220, or 240 models.
- Page 7 This warranty is in lieu of any other warranty implied or expressed. Scout Boats, Inc. accepts no responsibility for any representations, acts, or omissions of its dealer relating to the preparation and/or sale of Scout Boats, Inc. products to original consumer. This warranty is transferable, and to do so the original owner or purchaser must download a copy of the warranty transfer form from www.scoutboats.com from the warranty section of the website and mail it to Scout Boats, Inc.
- Page 8 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 9: Important Information
If you have questions about the equipment on place. After which, the transferee will be treated as the origi- your Scout, please contact Scout Customer Service. nal purchaser as outlined in the Scout Boats Limited War- ranty Statement. - Page 10 Yamaha Engine Warranty • If you are away from home, or your selling dealer is not an Yamaha is ready to stand behind your purchase with strong authorized Yamaha dealer, use the following toll-free warranty coverage. To be sure you receive all the benefits of numbers to find the nearest Yamaha dealer.
- Page 11 OWNER’S / OPERATOR’S INFORMATION Registration and Numbering Federal law requires that all undocumented vessels equipped Education with propulsion machinery be registered in the state of prin- If you are not an experienced boater, we recommend that the cipal use. A certificate of number will be issued upon regis- boat operator and other people that normally accompanies tering the boat.
- Page 12 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 13: Table Of Contents
TABLE OF CONTENTS Chapter 1: PROPULSION SYSTEM General ..................................17 Drive System Corrosion ..............................17 Engine Lubrication ................................ 18 Engine Cooling System ..............................18 Propellers ..................................18 Performance Issues & Propellers ..........................18 Engine Instrumentation ..............................19 Chapter 2: HELM CONTROL SYSTEMS General .................................. - Page 14 TABLE OF CONTENTS Chapter 6: RAW WATER SYSTEM General ..................................39 Raw Water System Operation ............................39 Livewell ..................................40 Raw Water System Maintenance ........................... 41 Chapter 7: DRAINAGE SYSTEMS General ..................................43 Cockpit Drains ................................43 T-Top and Leaning Post Drains (Optional) ........................43 Bilge Drainage ................................
- Page 15 TABLE OF CONTENTS Chapter 11: SAFETY EQUIPMENT 11.1 General ..................................69 11.2 Engine Alarms ................................69 11.3 Neutral Safety Switch ..............................69 11.4 Engine Stop Switch ................................ 69 11.5 Required Safety Equipment ............................70 11.6 Carbon Monoxide Monitoring System .......................... 71 11.7 First Aid ..................................
- Page 16 TABLE OF CONTENTS Appendix A: SCHEMATICS ................................97 Appendix B: GLOSSARY OF TERMS ............................99 Appendix C: MAINTENANCE SCHEDULE AND LOG ......................103 Appendix D: BOATING ACCIDENT REPORT .......................... 109 Appendix E: FLOAT PLAN ................................111 Appendix F: TROUBLESHOOTING GUIDE ..........................113...
-
Page 17: Chapter 1: Propulsion System
Chapter 1: PROPULSION SYSTEM General Your Scout is designed to be powered with a 2-cycle or 4- cycle outboard motor. 4-cycle outboard engines do not use an oil injection system and are not equipped with remote oil tanks. They have an oil sump in the crankcase that must be kept full of the type of oil recommended by the engine manu- facturer. -
Page 18: Engine Lubrication
Engine Lubrication 2-cycle outboard motors are lubricated by a variable ratio oil injection system. The oil tank is mounted below the cockpit floor near the transom. Always monitor the oil level before each cruise by checking the gauge or indicator lights in the helm (not available on all engine installations) or visually checking the oil level using the reference marks on the tank. -
Page 19: Engine Instrumentation
NEVER EXCEED THE MAXIMUM RECOMMENDED OPERATION RPM OF THE ENGINE. MAINTAINING MAXIMUM, OR CLOSE TO MAXIMUM RPM FOR Note: Most Scout boats are equipped with Yamaha en- EXTENDED PERIODS CAN REDUCE THE LIFE OF gines and multifunction instruments. A brief de- THE ENGINE. - Page 20 Overheat Warning Indicator The temperature warning indicates that the temperature of the engine is too high. A sudden increase in the temperature could indicate an obstructed water inlet or an impeller fail- ure. On Yamaha engines the overheat warning indicator is built into each tachometer and will start to blink if the engine temperature is too high.
-
Page 21: Chapter 2: Helm Control Systems
Chapter 2: HELM CONTROL SYSTEMS General The helm controls consist of three systems: the engine throttle and shift control, the steering system, and the trim tab control switches. These systems provide the operator with the ability to control the direction and attitude of the boat from the helm station. -
Page 22: Engine Power Tilt And Trim
disengage the safety cutout switch. Control or cable adjust- The stern seat backrest must in the folded or down position ments may be required to correct this condition should it per- before tilting the engine to the full up or trailering position. sist. -
Page 23: Steering System
yard is not properly inserted into the engine stop switch. Al- ways make sure the lanyard is properly attached to the engine stop switch before attempting to start the engine. Refer to the engine owner's manual for more information on the engine stop switch. -
Page 24: Control Systems Maintenance
When running at a speed that will result in the boat falling off plane, lowering the tabs slightly, bow down, will improve the running angle and operating efficiency. Too much bow down tabs can reduce operating efficiency and cause substantial steering and handling difficulties. -
Page 25: Chapter 3: Fuel System
Chapter 3: FUEL SYSTEM General The gasoline fuel system used in Scout boats is designed to meet or exceed the requirements of the U.S. Coast Guard, the Boating Industry Association, and The American Boat and Yacht Council in effect at the time of manufacture. -
Page 26: Outboard Fuel System
Be sure to use the proper type and grade fuel. Refer to the engine owner’s manual for additional information. Note: Do not overtighten the fuel cap. If the cap is over- tightened, the O-ring seal could be damaged al- lowing water to contaminate the fuel system. DO NOT CONFUSE FUEL FILL DECK PLATE WITH THE WATER OR WASTE FILL DECK PLATES. -
Page 27: Fuel System Maintenance
Fuel System Maintenance Make sure all passengers leave the boat. Periodically inspect all primer bulbs, connections, clamps 4. Estimate how much fuel is needed and avoid over and hoses for leakage and damage or deterioration. Replace filling the tank. as necessary. Spray the fittings, tank fuel gauge sender and ground connections with a metal protector. - Page 28 DO NOT DRAIN ANY FUEL INTO THE BILGE WHEN SERVICING THE FUEL SYSTEM. THIS COULD LEAD TO A FIRE OR EXPLOSION. AFTER THE FILTER ELEMENT HAS BEEN CHANGED, PRIME THE FUEL SYSTEM AND CHECK ALL FITTINGS FOR LEAKS BEFORE AND AFTER STARTING THE ENGINE.
-
Page 29: Chapter 4: Electrical System
Chapter 4: ELECTRICAL SYSTEM General Your Scout is equipped with a 12-volt DC electrical system and could be equipped with an optional battery charging sys- tem. The battery charger draws current from shore power outlets at dockside. The DC system draws current from two onboard batteries. - Page 30 battery required. Consider increasing the capacity of the bat- tery if you will be trolling, drift fishing or have extensive electronics on board. Larger batteries will give you addi- tional capacity to operate the livewell, washdown, and elec- tronics at low speed when the charging system output of the engines is minimal.
- Page 31 Pressing the “Auto” side of the switch activates the automatic Aerator Switch float switch next to the pump. The pump moves water out Activates the livewell circulating pump that supplies water to through a thru-hull fitting in the hull. The pump is also acti- the livewell.
-
Page 32: Ac System
Helm Main Circuit Breaker REDUCE POSSIBILITY Power is distributed to most of the 12-volt accessories acti- ELECTRICAL SHOCK, IT IS IMPORTANT THAT THE vated by the helm switch panel through the Main “push to GROUND SYSTEM FUNCTIONING reset” circuit breaker located in the helm switch panel on the PROPERLY AND THAT A PROPER CONNECTION Sportfish and Dorado or in the selector switch panel on the EXISTS BETWEEN THE SHORE POWER CORD AND... -
Page 33: Electrical System Maintenance
Inspect all engine wiring. Please note that Scout Boats are factory equipped with pre- mium, maintenance free batteries that are sealed and the cells... - Page 34 CORROSION ALLOWED TO BUILD ON THE ELECTRICAL CONNECTORS CAN CAUSE A POOR CONNECTION RESULTING IN SHORTS, GROUND FAULTS OR POOR GROUND CONNECTIONS. ELECTRICAL CONNECTORS SHOULD CHECKED AT LEAST ANNUALLY AND CLEANED AS REQUIRED. DO NOT ALLOW CORROSION TO BUILD ON CONNECTIONS. THE AC AND DC ELECTRICAL SYSTEMS ALWAYS SHOULD BE DISCONNECTED FROM THE POWER SOURCE BEFORE INSPECTING OR SERVICING THE...
-
Page 35: Chapter 5: Fresh Water System
Chapter 5: FRESH WATER SYSTEM General The fresh water system consists of a potable water tank, dis- tribution lines and a distribution pump. The pump is equipped with an automatic pressure switch and is located behind a panel in the head compartment on the Sportfish, below the tackle station on the Abaco and behind the helm on the Dorado. -
Page 36: Fresh Water System Maintenance
When properly primed and activated, the water system will operate much like the water system in a home. An automatic pressure sensor keeps the system pressurized. If the system has been recently filled or has not been used for an extended period, air bubbles may accumulate at the pump and the sys- tem may have to be re-primed. - Page 37 Sanitizing the Fresh Water Tank • Drain the system by pumping it dry and flush with several The freshwater system should be sanitized if it has not been tank fills of freshwater. used for a long period or you are unsure of the quality of the water in the system.
- Page 38 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 39: Chapter 6: Raw Water System
Chapter 6: RAW WATER SYSTEM General In the raw or sea water systems, the livewell water pump is mounted to a sea cock on the thru-hull fitting located in the stern bilge compartment and the water system pressure pump is connected to an auxiliary fitting on the pump. Always make sure the ball valve is open before attempting to operate any component of the raw water system. -
Page 40: Livewell
The water system is equipped with a sea strainer on the intake side of the pump. The strainer should be checked frequently and cleaned as necessary. Whenever the boat is left unattended, the washdown switch should be placed in the “OFF” position. The Washdown Hose and Selector Valve The washdown hose is located in the cockpit. -
Page 41: Raw Water System Maintenance
The livewell sea cock valve and the valve on the aerator should • Periodically remove and clean the water strainer located be closed whenever the livewell is not in use. This will pre- at the intake side of the pressure pump. To clean the vent water from entering the livewell while the boat is cruis- strainer, make sure the raw water accessories are off and ing. - Page 42 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 43: Chapter 7: Drainage Systems
Chapter 7: DRAINAGE SYSTEMS General All water is drained by gravity to overboard thru-hull fittings located in the hull above the water line. It is important to check the drain system frequently to insure it is free flowing and that the hoses on the thru-hull fittings are secure and not leaking. -
Page 44: Fishbox, Cooler And Storage Compartment Drains
A LOOSE DRAIN PLUG WILL ALLOW SEA WATER TO ENTER THE BILGE AND COULD CAUSE THE BOAT TO SINK. IT IS VERY IMPORTANT TO CHECK THE DRAIN PLUG FREQUENTLY TO INSURE IT IS PROPERLY TIGHTENED. Important: Any oil spilled in the bilge must be thor- oughly removed and properly disposed of before operating the bilge pump. - Page 45 • Frequently test the automatic bilge pump switch for proper operation. This is accomplished by removing the pump from the base and raising the float switch until the pump is activated. You can also use a garden hose to flood the bilge until the water level is high enough to activate the pump.
- Page 46 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 47: Chapter 8: Ventilation System
Chapter 8: VENTILATION SYSTEM Cabin Ventilation Ventilation to the cabin area is provided by a deck hatch and opening port windows. Deck Hatch (Abaco) The deck hatch is supported in the open position by an ad- justable hatch adjuster. To close the hatch, loosen the hatch adjuster and lower the hatch. -
Page 48: Carbon Monoxide And Proper Ventilation
Carbon Monoxide and Proper life, common sense is still prudent and necessary. Remem- ber, the operator of the boat carries the ultimate responsibil- Ventilation ity to make sure the boat is properly ventilated and the pas- sengers are not exposed to dangerous levels of carbon mon- oxide. -
Page 49: Maintenance
Maintenance • Periodically lubricate all hinges and latch assemblies with a light oil. • Periodically clean and coat gasket materials with silicone to help keep them pliable. • The opening cabin deck hatches, the cabin door hatch and the cabin door are made of acrylic plastic glass. Acrylic glass scratches easily. - Page 50 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 51: Chapter 9: Exterior Equipment
All fittings must be periodically inspected for loose fit or wear and damage. Any problems should be corrected immediately. SCOUT BOATS ARE NOT EQUIPPED WITH HARDWARE DESIGNED FOR TOWING PURPOSES. THE MOORING CLEATS ARE NOT TO BE USED FOR Sportfish and Dorado Anchor/Rope Locker and Bow Cleat TOWING ANOTHER VESSEL OR HAVING THIS BOAT TOWED. -
Page 52: Hull
THE ANCHOR MUST BE POSITIONED SO IT DOES NOT REST DIRECTLY AGAINST THE SIDES OF THE LOCKER AND BE PROPERLY SECURED AT ALL TIMES WHEN IT IS STORED IN THE ANCHOR LOCKER. A LOOSE ANCHOR IN THE ANCHOR LOCKER WILL BOUNCE AND CAN DAMAGE THE BOAT. -
Page 53: Cockpit Features Abaco, Dorado And Sportfish
MOVING PROPELLERS ARE DANGEROUS. THEY CAN CAUSE DEATH, LOSS OF LIMBS, OR OTHER SEVERE INJURY. DO NOT USE THE SWIM PLATFORM OR SWIM LADDER WHILE THE ENGINE IS RUNNING. STOP THE ENGINE IF DIVERS OR SWIMMERS ARE ATTEMPTING TO BOARD. ALWAYS REMOVE AND PROPERLY STORE THE LADDER BEFORE STARTING THE ENGINE. - Page 54 Stern Cooler and Livewell The stern cooler is located in the stern on the starboard side of the cockpit. The hatch is held closed by an automatic fric- tion latch. The cooler is insulated and drained by gravity to a thru-hull fitting in the hull side.
- Page 55 To fold the seat, lift the front of the bottom seat cushion and pull it toward the bow of the boat. The retaining pins at the rear of seat will clear the receivers as the seat moves forward in the slotted hinges. Then lower the cushion until it is verti- cal.
-
Page 56: Cockpit Features Abaco
Cockpit Features Abaco Helm Seat Base and Tackle Rigging Station The helm seat pedestal is mounted on a fiberglass seat base and tackle rigging station. There is a cockpit light and the inlet plug for the optional battery charger in the base below the helm seat. - Page 57 helm station clamp is properly secured with the safety pin when the helm is closed. ALWAYS MAKE SURE THE HELM STATION CLAMP IS PROPERLY SECURED AND THE SAFETY PIN IS IN PLACE BEFORE OPERATING OR TRANSPORTING YOUR BOAT. IF THE HELM STATION IS NOT PROPERLY SECURED, COULD...
-
Page 58: Cockpit Features Sportfish
Bimini Top and Side Curtains (Optional) The canvas for Scout boats is custom fit to each boat. The bimini top is designed with a relatively flat profile and a snug fit. The canvas is fit to the boat at the factory and the bimini... - Page 59 and ground buss are provided make it easier to add 12-volt accessories and electronics. A small compartment starboard of the engine controls pro- vides convenient storage for small items. The console is also equipped with a Plexiglas windshield and there are grab rails recessed into the deck that run from each side of the console to the bow that provide a hand hold as you move about the cockpit.
- Page 60 Note: Always make sure the cooler is latched securely before operating the boat to avoid damage to the cooler or injury to a passenger sitting on the seat. THE COOLER SEAT COULD SLIDE UNEXPECTEDLY WHILE UNDERWAY CAUSING DAMAGE TO THE BOAT OR INJURY TO A PASSENGER SITTING ON THE SEAT IF IT IS NOT SECURED PROPERLY.
-
Page 61: Cockpit Features Dorado
Scout Dorado Helm Boats Limited Warranty. Additionally, Scout Boats will not be responsible for any damage resulting from the installation of a fabrication not installed at the Scout factory. If you in- tend to install an after market T-top on your boat, please con- tact your dealer or Scout Customer Service. - Page 62 Helm Storage Compartment A large storage compartment is located forward of the helm. An acrylic door secured with flush slam latch provides access to the compartment. The door could be damaged or hurt a passenger by the motion of the boat if it is allowed to swing free.
- Page 63 Bimini Top and Side Curtains (Optional) The canvas for Scout boats is custom fit to each boat. An Note: The front straps of the bimini must be secured to...
- Page 64 Once the clear connector is completely installed, the side cur- There is a panel in the clear connecter that can be rolled up tains can be put on. Attach the side curtains to the zippers on and secured by straps near the top of the bimini. This roll up the sides of the bimini and to the front connector.
-
Page 65: Chapter 10: Interior Equipment
Chapter 10: INTERIOR EQUIPMENT 10.1 Sportfish and Dorado removed and the only way to evacuate the system is by a dock side pump. Head Compartment Sportfish Storage/Head Compartment To use the portable head, add the recommended amount of The head compartment is equipped with compartments for holding tank deodorant to the waste tank and fill the fresh the batteries, battery charger and storage. -
Page 66: Cuddy Cabin And V-Berth (Abaco)
In the overboard discharge position, the waste exits the boat through a large thru-hull fitting located on the side of the hull. Selecting overboard will only pump the waste from the toilet directly overboard, this will not pump out the holding tank. -
Page 67: Carbon Monoxide Detector (Abaco)
10.4 Carbon Monoxide Detector (Abaco) A carbon monoxide (CO) detector installed in the cabin on the rear bulkhead. If excess carbon monoxide fumes are de- tected, an audible beeping will sound indicating the presence to the toxic gas. A by product of combustion, carbon monoxide is invisible, tasteless, odorless, and is produced by all engines, heating and cooking appliances. - Page 68 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 69: Chapter 11: Safety Equipment
Chapter 11: SAFETY EQUIPMENT 11.1 General Your boat and outboard engine have been equipped with safety equipment designed to enhance the safe operation of the boat and to meet U.S. Coast Guard safety standards. The Coast Guard or state, county, and municipal law enforcement agen- cies require certain additional accessory safety equipment on each boat. -
Page 70: Required Safety Equipment
Throwable devices must be immediately avail- and must automatically flash the international SOS distress able for use. All Scout boats must be equipped with at least signal. Under Inland Navigation Rules, a high intensity one Type I, II or III PFD for each person on board, plus one white light flashing at regular intervals from 50-70 times throwable device (Type IV). -
Page 71: Carbon Monoxide Monitoring System
• There is no obvious physical damage, corrosion, leakage Navigation Lights or clogged nozzles. Recreational boats are required to display navigation lights between sunset and sunrise and other periods of reduced vis- Refer to the “Federal Requirements And Safety Tips For Rec- ibility (fog, rain, haze, etc.) Navigation lights are intended to reational Boats”... -
Page 72: First Aid
Drug or alcohol use increases the effect of CO exposure. Indi- 11.7 First Aid viduals with cardiac or respiratory conditions are very suscep- It is the operator's responsibility to tible to the dangers of carbon monoxide. CO poisoning is be familiar with the proper first- especially dangerous during sleep when victims are unaware aid procedures and be able to care of any side effects. -
Page 73: Maximum Capacities Label
Additional Equipment to Consider VHF Radio Life Raft Spare Anchor Fenders Heaving Line Mirror First Aid Kit Tool Kit Flashlight & Batteries Anchor Searchlight Boat Hook Sunburn Lotion Mooring Lines Ring Buoy Binoculars Whistle or Horn Extra Clothing Portable Radio Chart and Compass Marine Hardware Food &... - Page 74 Inside Console Behind Hatch Interiors by Garelick sticker in Rear Bulk Head Above Se- is under the trim tab switch: lector Valve: Wiring Color Code Warning - “Leaking fuel is a fire and explosion hazard. Inspect system at least once annually”...
- Page 75 Dorado Labels Dorado Designator is on the port & stbd sides of the wind- Interiors by Garelick sticker shield: is near the compass: Capacity Sticker is on the port Stbd Wall Forward OF En- wall of the walkway to the gine Throttle and Shift Con- bow.
- Page 76 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 77: Chapter 12: Operation
Chapter 12: OPERATION 12.1 General 12.2 Rules of the Road Before you start the engine on your Scout, you should have As in driving an automobile, there are a few rules you must become familiar with the various component systems and their know for safe boating operation. - Page 78 Night Operation Recreational boats are required to display navigation lights between sunset and sunrise and other periods of reduced vis- ibility such as fog, rain, haze, etc. When operating your boat at night you should: • Make sure your navigation lights are on and working properly.
-
Page 79: Pre-Cruise Check
12.3 Pre-Cruise Check • Have a tool kit aboard. The kit should include the following basic tools: Before Starting the Engine Spark plug wrench Hammer • Check the weather forecast. Decide if the planned cruise Spark plug gap gauge Electrician’s tape can be made safely. -
Page 80: Operating Your Boat
12.4 Operating Your Boat DO NOT OPERATE THE BOAT UNLESS IT IS COMPLETELY ASSEMBLED. KEEP ALL FASTENERS TIGHT. KEEP ADJUSTMENTS ACCORDING TO SPECIFICATIONS. TO REDUCE THE RISK OF A FIRE OR EXPLOSION, DO NOT START THE ENGINE WHEN FUEL FUMES ARE PRESENT. -
Page 81: Docking, Anchoring And Mooring
After Operation and is soft and easy on the hands. The line's size will vary with the size of the boat. Typically a 30 to 40 foot boat will • If operating in saltwater, wash the boat and all equipment use 5/8-inch line and a 20 to 30 foot boat will use 1/2-inch with soap and water. -
Page 82: Controls, Steering Or Propulsion System Failure
motion, and allow the boat to ride the tide. Two forward quarter spring lines typically are secured to the stern cleats and to mid ship pilings or cleats. The spring lines keep the boat from backing into the dock while allowing it to ride the tide. -
Page 83: Collision
THE MOORING CLEATS ON SCOUT BOATS ARE NOT DESIGNED OR INTENDED TO BE USED FOR boats in the area. -
Page 84: Water Skiing
12.11 Water Skiing 12.12 Man Overboard Your boat could be equipped for water skiing. If you have If someone falls overboard, you must be prepared to react never driven skiers before, you should spend some hours as quickly, particularly when you are offshore. The following an observer and learning from an experienced driver. - Page 85 The boat trailer is an important part of your boating package. BOATS HAVE BEEN DAMAGED BY TRAILERS THAT The trailer should be matched to your boat's weight and hull. DO NOT PROPERLY SUPPORT THE HULL. ALWAYS Using a trailer with a capacity too low will be unsafe on the MAKE SURE THE TRAILER BUNKS AND ROLLERS road and cause abnormal wear.
- Page 86 • Make sure the tow vehicle has SIDE VIEW MIRRORS that are large enough to provide an unobstructed rear view on both sides of the vehicle. • CHECK THE TIRES and WHEEL BEARINGS. Note: Make sure your towing vehicle and trailer are in compliance with all state and local laws.
-
Page 87: Chapter 13: Routine Maintenance
Chapter 13: ROUTINE MAINTENANCE 13.1 Exterior Hull and Deck They must be monitored if the boat is to be left in the water. Anodes should be checked monthly and changed when they Hull Cleaning-Below The Water Line are 75% of their original size. When replacing the anodes, When the boat is removed from the water, clean the outer make sure the contact surfaces are clean, shinny metal and bottom surface immediately. - Page 88 If the fiberglass should become damaged and need repair, con- ONE DRAWBACK TO METAL PROTECTORS IS THAT tact your dealer or Scout Customer Service for assistance in THEY CAN MAKE THE METAL SLIPPERY. finding an authorized repair person to make the repairs. THEREFORE, THEY SHOULD BE NOT BE USED ON TOWER LADDERS, STEERING WHEELS AND OTHER AREAS WHERE A GOOD GRIP AND SURE FOOTING...
-
Page 89: Upholstery, Canvas And Enclosures
If excessive chipping and peeling occurs, it could be an indi- The age of gasoline can effect engine performance. Chemi- cation of an electrical fault in the boat or aluminum fabrica- cal changes occur as the gasoline ages that can cause deposits tion. - Page 90 • Stubborn dirt - Wash with a soft cloth dampened with Laminated Vinyl Tops ® Ivory Flakes and water. Rinse with clean water. Laminated vinyl top material is a lamination of two plies of specially formulated vinyl with an inner reinforcing core fab- ®...
-
Page 91: Interior
13.3 Interior Strataglass ® Strataglass is a special coated vinyl that could be used in the The cabin or head interior can be cleaned just like you would curtains for the T-top enclosure. The coating protects the vi- clean a home interior. To preserve woodwork, use teak oil. nyl glass and resists scratching. -
Page 92: Bilge
13.4 Bilge 13.5 Drainage System To keep the bilge clean and fresh, it is recommended that It is essential that the following items be done periodically to you use a commercial bilge cleaner on a regular basis. Fol- maintain proper drainage of your boat: low the directions carefully. -
Page 93: Chapter 14: Seasonal Maintenance
Chapter 14: SEASONAL MAINTENANCE 14.1 Storage and Lay-up fore and aft slings should be tied together to prevent the slings from sliding on the hull. Before Hauling: • Pump out the head and holding tank. Flush the holding BOATS CAN BE DAMAGED FROM IMPROPER tank using clean soap, water and a deodorizer. -
Page 94: Winterizing
When storing the boat on a lift or cradle: • Thoroughly clean the interior of the boat. Vacuum all • The cradle must be specifically for boat storage. carpets and dry clean drapes and upholstery. • Make sure the cradle or lift is well supported with the •... - Page 95 into the solution. Run the pumps one at a time until the anti- Clean the aluminum frame with soap and water and dry thor- freeze solution is visible at all raw water faucets and discharge oughly. Apply an aluminum metal protector to the entire frame fittings and drains.
-
Page 96: Recommissioning
14.3 Recommissioning • Perform all routine maintenance. • Check all hose clamps for tightness. DO NOT OPERATE THE BOAT UNLESS IT IS COMPLETELY ASSEMBLED. KEEP ALL FASTENERS TIGHT. KEEP ADJUSTMENTS ACCORDING TO • Pump the antifreeze from the freshwater and raw water SPECIFICATIONS. -
Page 97: Appendix A: Schematics
Appendix A: SCHEMATICS... - Page 98 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 99: Appendix B: Glossary Of Terms
Appendix B: GLOSSARY OF TERMS ft: In, near, or toward the stern of a boat. Bow Line: A line that leads forward from the bow of the Aground: A boat stuck on the bottom. boat. Amidships: In or toward the part of a boat midway between Bow Rail: Knee high rails of solid tubing to aid in prevent- the bow and stern. - Page 100 Cutlass Bearing: A rubber bearing in the strut that supports the propeller shaft. alley: The kitchen of a boat. Grab Rail: Hand-hold fittings mounted on cabin tops or sides eck: The floor-like platform of a boat that covers the for personal safety when moving around the boat, both on hull.
- Page 101 Leeward: The direction toward which the wind is blowing. Pier: A structure which projects out from the shoreline. Length On The Waterline (l.w.l.): A length measurement of Pile or Piling: A long column driven into the bottom to which a boat at the waterline from the stern to where the hull breaks a boat can be tied.
- Page 102 ea anchor: An anchor that does not touch the bottom. Provides drag to hold the bow in the most favorable position affrail: Rail around the rear of the cockpit. in heavy seas. Thru-hull: A fitting used to pass fluids (usually water) through Scupper: An opening in the hull side or transom of the boat the hull surface, either above or below the waterline.
-
Page 103: Maintenance Schedule And Log
Appendix C: MAINTENANCE SCHEDULE AND LOG MAINTENANCE l l u n i l t n i l l u i r c c i f l a i i r c c i f l a i & & i l o &... -
Page 104: Maintenance Log
MAINTENANCE LOG Service/Repairs Date Hours Dealer... - Page 105 MAINTENANCE LOG Service/Repairs Date Dealer Hours...
- Page 106 MAINTENANCE LOG Service/Repairs Date Hours Dealer...
- Page 107 MAINTENANCE LOG Service/Repairs Date Dealer Hours...
- Page 108 MAINTENANCE LOG Service/Repairs Date Hours Dealer...
-
Page 109: Boating Accident Report
Appendix D: DEPARTMENT OF TRANSPORTATION BOATING ACCIDENT REPORT U.S. COAST GUARD FORM APPROVED C.G. 1865 (REV. 1/88) OMB NO.211-0010 The operator/owner of a vessel used for recreational purposes is required to file a report in writing whenever an accident results in: loss of life or disappearance from a vessel, or an injury which requires medical treatment beyond first aid: or property damage in excess of $200 or complete loss of the vessel. -
Page 110: Boating Accident Report
BOATING ACCIDENT REPORT If more than 3 fatalities and/or injuries, attach additional form(s) DECEASED NAME ADDRESS DATE OF WAS VICTIM? DEATH CAUSED BY WAS PFD WORN? BIRTH [ ] Swimmer [ ] Drowning [ ] Yes [ ] No [ ] Non Swimmer [ ] Other What Type? [ ] DISAPPEARANCE... -
Page 111: Appendix E: Float Plan
Appendix E: FLOAT PLAN Scout recommends filling out a float plan each time you use your boat for an offshore day trip or a long cruise. Leave this information with a responsible person ashore, like a close friend or relative that you know well. - Page 112 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
-
Page 113: Troubleshooting Guide
Appendix F: TROUBLESHOOTING GUIDE PROBLEM CAUSE AND SOLUTION CONTROL SYSTEMS Hydraulic Steering is slow to respond & erratic. • Steering system is low on fluid. Fill and bleed system. • Steering system has air in it. Fill and bleed system. •... -
Page 114: Engine Problems
Troubleshooting Guide PROBLEM CAUSE AND SOLUTION ENGINE PROBLEMS The engine is running too hot. • The engine raw water pick up strainer up is clogged with marine growth. Clean pick up • The engine raw water pump impeller is worn or damaged. Repair the pump. -
Page 115: Accessory Problems
Troubleshooting Guide PROBLEM CAUSE AND SOLUTION ACCESSORY PROBLEMS • The strainer on the intake scoop is clogged preventing the The livewell pump runs, but does not pump water. water from getting to the pump. Put the boat in reverse to clean the strainer. - Page 116 Scout Boats Inc. 2531 Hwy 78 West Summerville, SC 29483...
