Outline And Dimensions - General AUG12FBAB Service Manual

Split type air conditioner cassette type (50hz)
Hide thumbs
Table of Contents

Advertisement

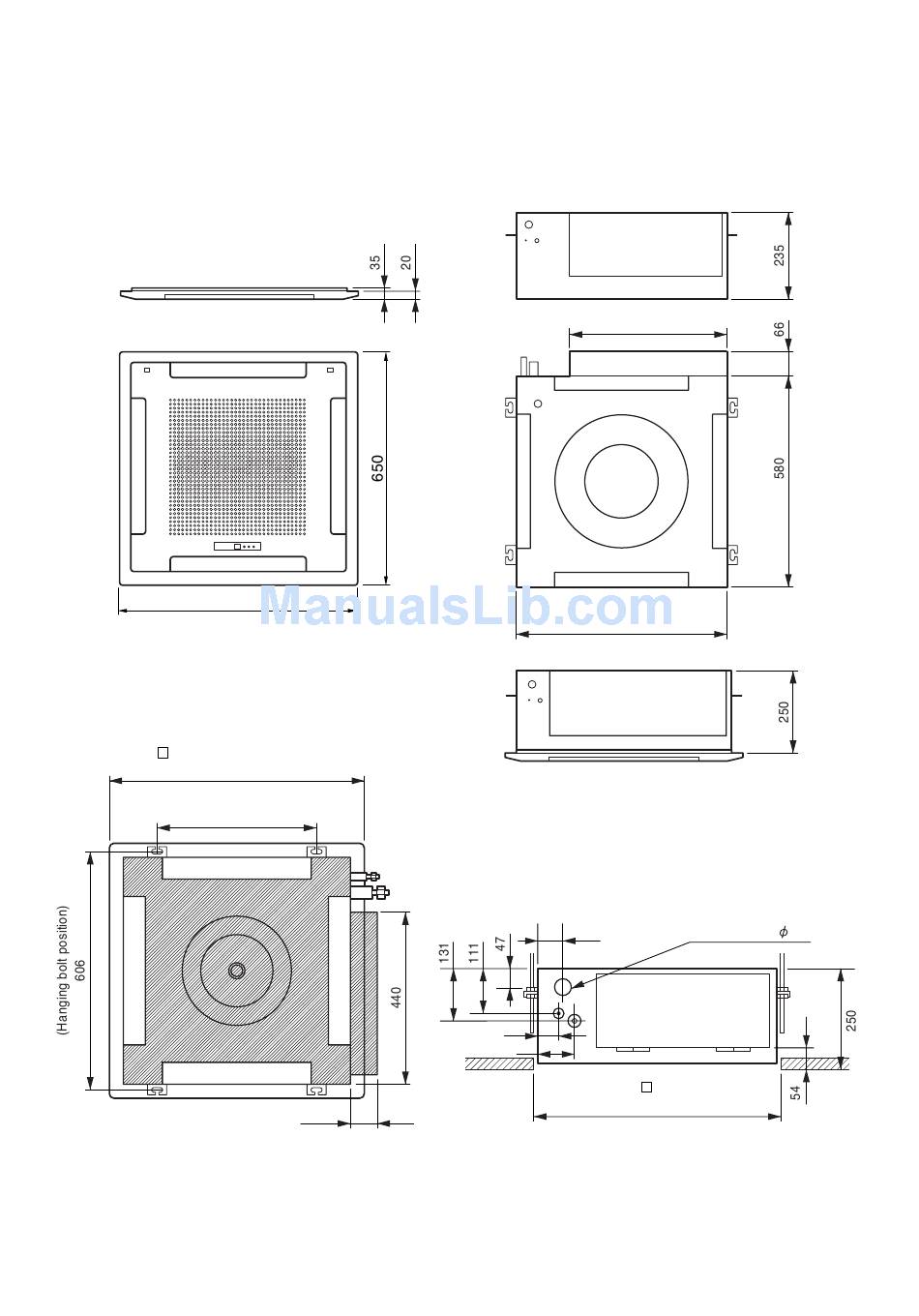

O U T L I N E A N D
D I M E N S I O N S
INDOOR UNIT
(unit : mm)
440
650
580
( 650) (Grille measurement)
650
(Hanging bolt position)
400
60
Drain pipe (I.D. 32)
46
86
600
(Ceiling opening measurement)
66
2004.05.12
5
