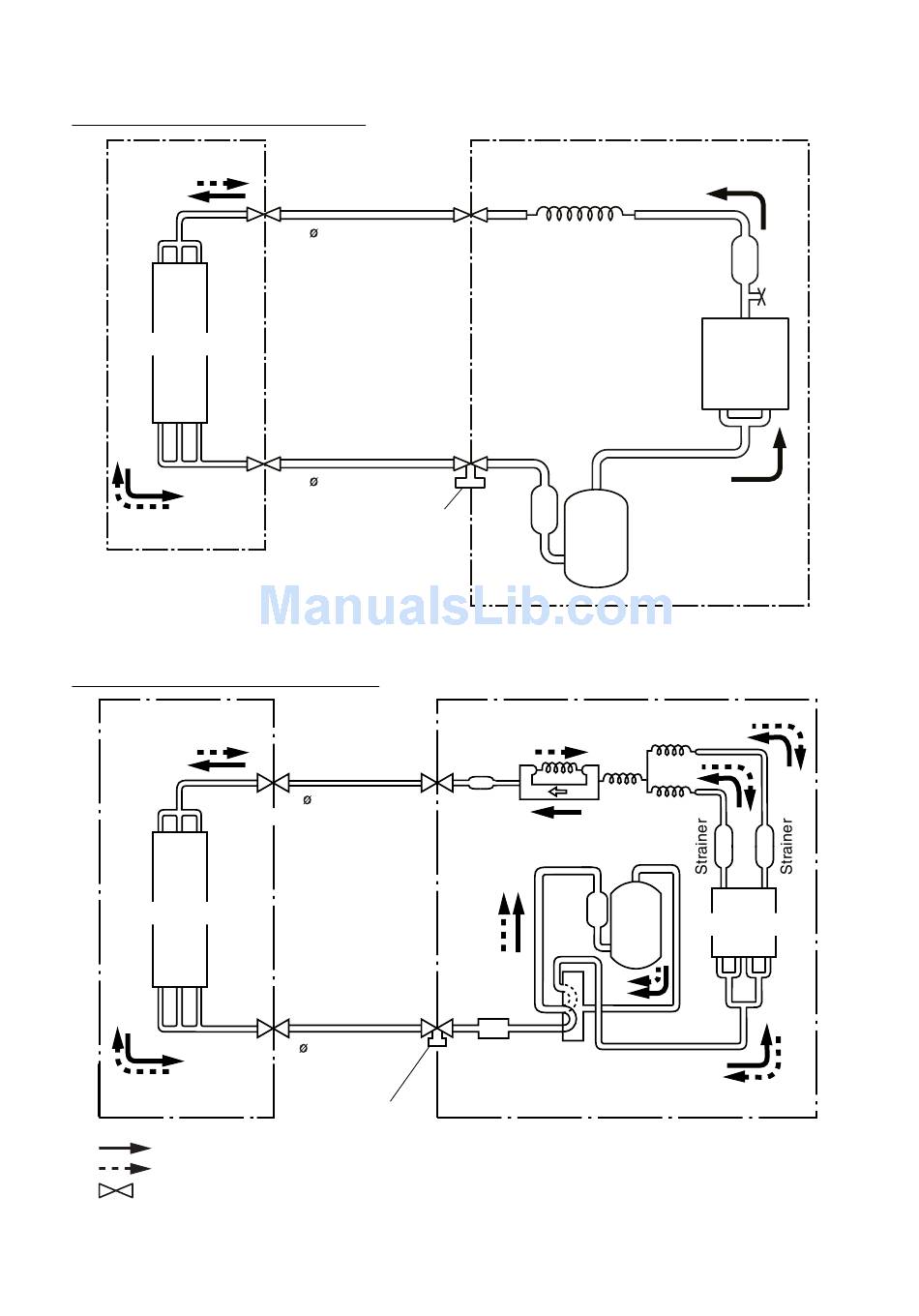

Models : AUG14FBAB / AOG14FSDJ
INDOOR UNIT
Evaporator
Models : AUG14UBAB / AOG14USDJL
INDOOR UNIT
Evaporator
Cooling
Heating
: Flare coupling
2004.04.27
Refrigerant pipe
Distributor
6.35mm(1/4")
Refrigerant pipe
12.7mm(1/2")
Charging valve
Refrigerant pipe
Distributor
6.35mm(1/4")
Refrigerant pipe
12.7mm(1/2")
Charging valve
Capillary tube
OUTDOOR UNIT
Strainer
Capillary
tube
Compressor
Muffler
4-Way
valve
10
OUTDOOR UNIT
Strainer
Condenser
Compressor
Condenser
