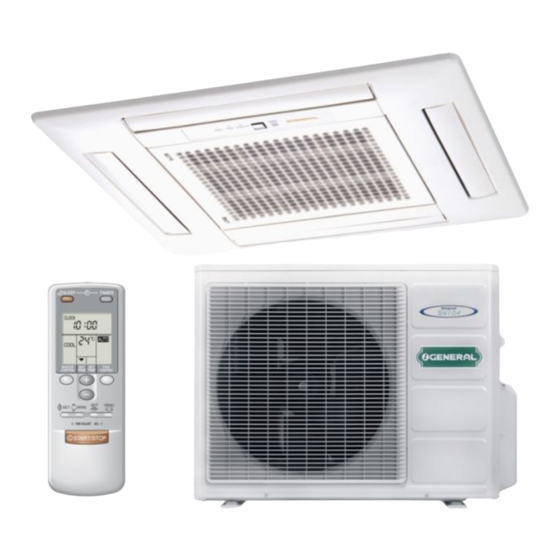

SPLIT TYPE
AIR CONDITIONER
CASSETTE
Models
Indoor unit
AUG18FBAB
AUG18FBAB
AUG18UBAB
AUG18UBAB
CONTENTS
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
type (50Hz)
Outdoor unit
AOG18FNCKL
AOG18FNCNL
AOG18UNCKL
AOG18UNCNL
. . . . . . . .
. . .
. . . . . . . . . . . . . . . .
. . . .
. . . . . . . . . . . . . . .
. . . . . .
10
18
1
2
4
5
7
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUG18FBAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General AUG18FBAB

Summary of Contents for General AUG18FBAB

  • Page 1: Table Of Contents

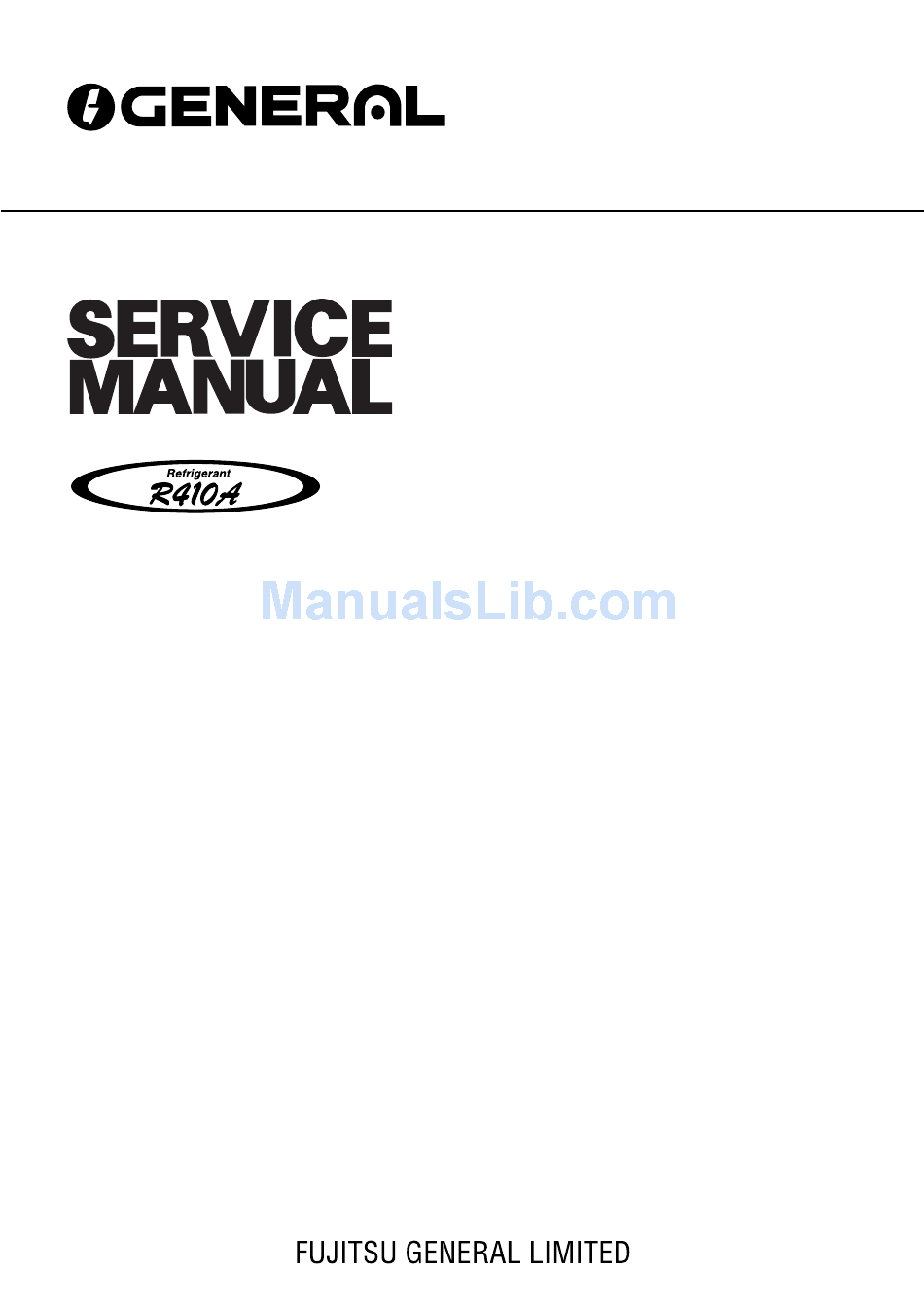

    SPLIT TYPE AIR CONDITIONER CASSETTE type (50Hz) Models Indoor unit Outdoor unit AUG18FBAB AOG18FNCKL AUG18FBAB AOG18FNCNL AUG18UBAB AOG18UNCKL AUG18UBAB AOG18UNCNL CONTENTS ....SPECIFICATIONS ..

  • Page 2: Specifications

    SPECIFICATIONS COOL COOL & HEAT TYPE TYPE AUG18FBAB AUG18UBAB INDOOR UNIT INDOOR UNIT AOG18FNCKL AOG18FNCNL AOG18UNCKL AOG18UNCNL OUTDOOR UNIT OUTDOOR UNIT 5.00 kW 4.85 kW COOLING CAPACITY COOLING CAPACITY 5.40 kW HEATING CAPACITY ELECTRICAL DATA ELECTRICAL DATA 230 V 50 Hz POWER SOURCE 8.5 A...

  • Page 3: Outline And Dimensions

    OUTLINE AND DIMENSIONS INDOOR UNIT (unit : mm) ( 650) (Grille measurement) (Hanging bolt position) Drain pipe (I.D. 32) (Ceiling opening measurement) 2006.03.23...
  • Page 4 OUTDOOR UNIT (unit : mm) 2006.03.23...

  • Page 5: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Models : AUG18FBAB / AOG18FNCKL AUG18FBAB / AOG18FNCNL INDOOR UNIT OUTDOOR UNIT Refrigerant pipe 6.35mm(1/4") Capillary tube Strainer Condenser Evaporator Refrigerant pipe 12.7mm(1/2") Charging valve Compressor Models : AUG18UBAB / AOG18UNCKL AUG18UBAB / AOG18UNCNL INDOOR UNIT OUTDOOR UNIT...

  • Page 6: Circuit Diagram

    CIRCUIT DIAGRAM Model : AUG18FBAB DISPLAY BOARD THERMISTOR(ROOM TEMP) THERMISTOR(PIPE TEMP) WHITE YELLOW CN15 CN13 ORANGE WHITE BROWN BLACK GREEN / YELLOW BLUE CONTROL BOARD PURPLE WHITE BLACK CN19 YELLOW BLACK GREEN BLACK YELLOW BLACK WHITE GRAY WHITE BLACK Models : AOG18FNCKL, AOG18FNCNL...

  • Page 7: Control Board

    Model : AUG18UBAB DISPLAY BOARD THERMISTOR(ROOM TEMP) THERMISTOR(PIPE TEMP) WHITE CN13 YELLOW CN15 ORANGE WHITE BROWN BLACK GREEN / YELLOW BLUE CONTROL BOARD PURPLE PINK WHITE CN19 GREEN YELLOW BLACK FAN MOTOR BLACK CAPACITOR YELLOW BROWN BLUE GRAY WHITE BLACK Models : AOG18UNCKL, AOG18UNCNL THERMAL PROTECTOR...

  • Page 8: Indoor Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM Model : AUG18FBAB Controller PCB Assy EZ-003SWSE-C R15 - R17 ROOM TEMPERATURE THERMISTOR 10K <1/10W> x 3 B2B-XASK-1-A CN8-1 R5 62K BLACK R18 1.0K <1/10W> <2W> CN8-2 4700P NOT USED BLACK CUSTOM CODE SWITCHING 1 R19 1.0K <1/10W>...
  • Page 9 Model : AUG18UBAB Controller PCB Assy EZ-00306HSE-C R15 - R17 ROOM TEMPERATURE THERMISTOR B2B-XASK-1-A 10K <1/10W> x 3 CN8-1 BLACK R5 62K R18 1.0K <1/10W> 4700P <2W> CN8-2 BLACK NOT USED R19 1.0K <1/10W> R44 1.0K CUSTOM CODE SWITCHING 1 HEAT EXCHANGER THERMISTOR 1000P 10K (1%)

  • Page 10: Error Contents

    ERROR CONTENTS CHECK ITEMS Operation can be checked by lighting and flashing of the grille display section OPERATION and TIMER lamps. Perform judgment in accordance with the following. 1. INDOOR UNIT (1) Is operation of each button on the remote control unit MANUAL SWING TIMER OPERATION...

  • Page 11: Disassembly Illustration

    DISASSEMBLY ILLUSTRATION Models : AUG18FBAB AUG18UBAB 117-3 652-1 184-1 476-3 476-2 476-1 2006.03.23...
  • Page 12 Models : AUG18FBAB AUG18UBAB 824-3 989-2 989-1 2006.03.23...
  • Page 13 Model : UTG-UDGD-W 876-2 711-2 711-1 2006.03.23...
  • Page 14 Models : AOG18FNCKL AOG18UNCKL AOG18FNCNL AOG18UNCNL 2006.03.23...
  • Page 15 Models : AOG18FNCKL AOG18UNCKL AOG18FNCNL AOG18UNCNL 218-3 824-4 823-2 815-3 989-1 989-2 2006.03.23...
  • Page 16 Models : AOG18FNCKL AOG18UNCKL AOG18FNCNL AOG18UNCNL 2006.03.23...
  • Page 17 Models : AOG18FNCKL, AOG18FNCNL 47-1 58-1 348-1 13-2 13-1 2006.03.23...
  • Page 18 Models : AOG18UNCKL, AOG18UNCNL 772-1 20-1 753-3 772-4 772-3 178-2 178-2 178-2 772-2 13-2 13-1 20-2 826-1 2006.03.23...

  • Page 19: Parts List

    PARTS LIST INDOOR UNIT GRILLE ASSY Part No. Part No. Ref. Ord. Ref. Ord. Description Description AUG18FBAB AUG18UBAB UTG-UDGD-W Q'ty Q'ty Capacitor (Fan Motor) 9704305046 9703306044 Filter 9359632009 Rubber 9361279001 9361279001 Motor Cover 9359623014 117-3 Special Washer M6 313306391007 313306391007...
  • Page 20 OUTDOOR UNIT Part No. Ref. Ord. Description Q'ty AOG18FNCKL AOG18UNCKL Fan Guard 9371187013 9371187013 Emblem-Rear 9372171011 9372171011 Front Panel 9371924014 9371924014 Connector Cover (Cabinet) 9366398004 9366398004 Wire Assy (Comp) 9372334010 9372334010 Side Panel R 9371927015 9371927015 Base Assy 9371920054 9371920054 13-1 3-Way Valve Assy 9372205112...
  • Page 21 OUTDOOR UNIT Part No. Ref. Ord. Description Q'ty AOG18FNCNL AOG18UNCNL Fan Guard 9371187013 9371187013 Emblem-Rear 9372171011 9372171011 Front Panel 9371924014 9371924014 Connector Cover (Cabinet) 9366398004 9366398004 Wire Assy (Comp) 9314792007 9314792007 Side Panel R 9371927015 9371927015 Base Assy 9371920054 9371920054 13-1 3-Way Valve Assy 9314678011...

  • Page 22: Standard Accessories

    STANDARD ACCESSORIES INDOOR UNIT Name and Shape Application Part No. For indoor side Coupler heat insulation 9350716029 pipe joint 9352766015 For installing Special nut A indoor unit (large flange) 313005446653 For installing Special nut B indoor unit (small flange) 313005446759 For ceiling hole cutting Template 9360256003...
  • Page 23 0401G2520...

This manual is also suitable for:

Aug18ubabAog18fncklAug18ubab aog18uncnlAog18uncklAog18fncnl

Table of Contents
